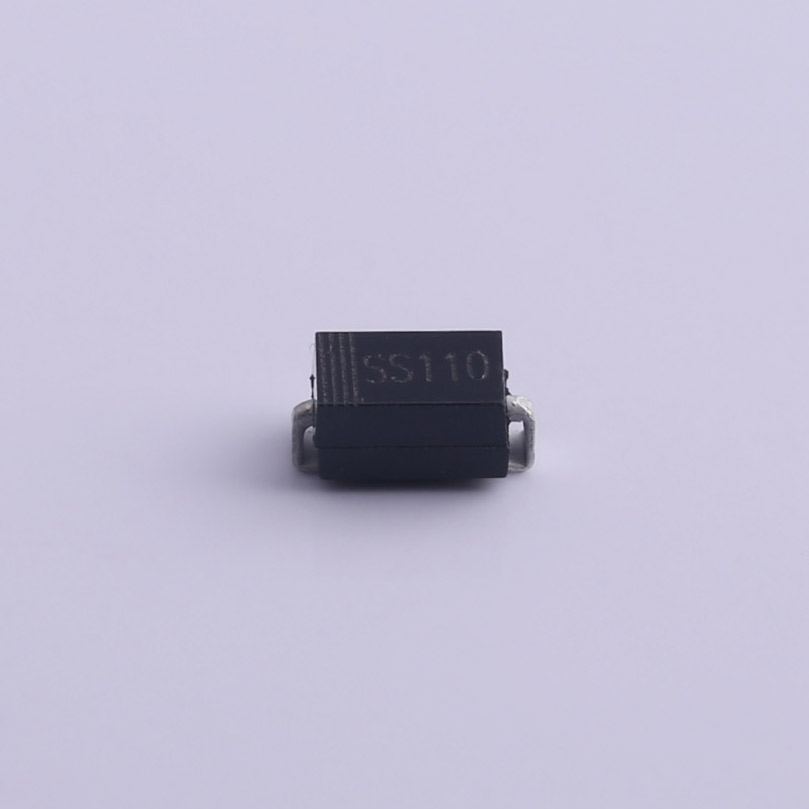

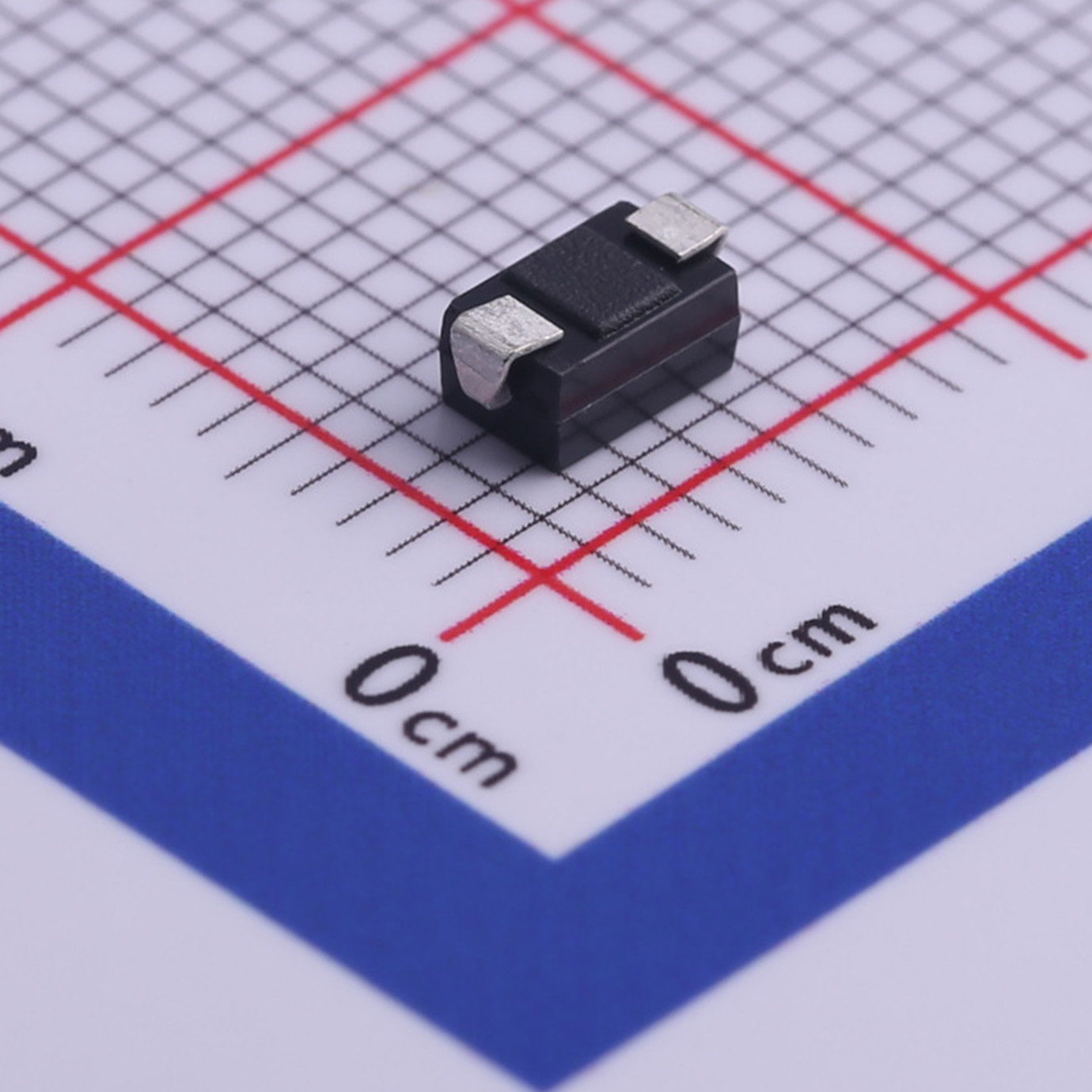

SS110 Schottky Rectifying SMA
Download datasheet InquirySurface Mount Schottky Rectifiers
Features
Low profile package
Ideal for automated placement
Ultrafast reverse recovery time
Low power losses, high efficiency
Low forward voltage drop
High surge capability
High temperature soldering: 260C/10 seconds at terminals
Mechanical Data
Case: JEDEC DO-214AC molded plastic body over glass passivated chip
Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

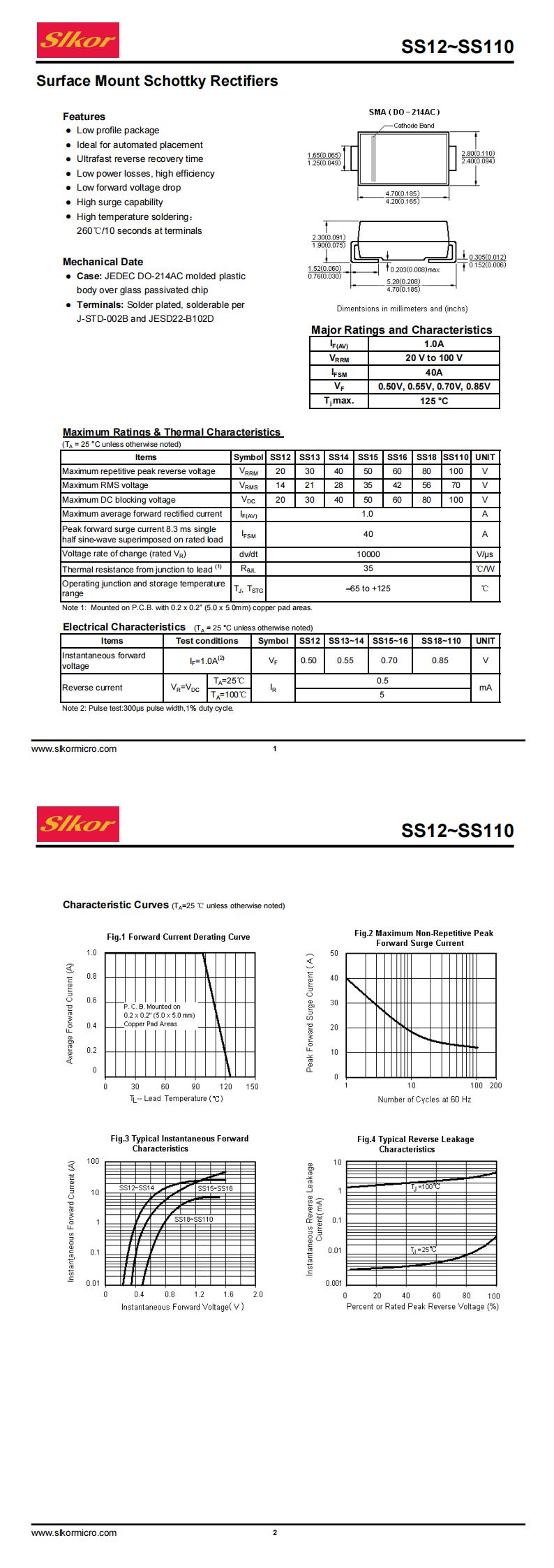

| File Name | Title | Description |
|---|---|---|
| SS110.pdf | SS110 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
SS54C Schottky Rectifying SMA
The Polar High-Performance Rectifier Diode is engineered to deliver reliable performance in high-current and moderate-voltage applications. It supports a continuous forward current of 3.0A and a reverse voltage of up to 60V. This diode features a forward voltage drop of 0.7V and a low reverse leakage current of 0.5mA, ensuring efficient operation and minimal power loss. Housed in a compact SMAF package, it is designed for space-constrained environments while maintaining durability and performance.
The Polar High-Voltage Rectifier Diode is designed for applications requiring reliable high-current and high-voltage performance. With a continuous forward current capability of 3.0A and a maximum reverse voltage of 100V, this diode ensures robust operation under demanding conditions. It features a forward voltage drop of 0.85V and a low reverse leakage current of 0.3mA, providing efficient power conversion and minimal energy loss. The diode comes in a compact SMAF package, making it ideal for space-constrained designs.
The Polar High-Voltage Diode is engineered to provide robust performance in high-voltage applications. With a maximum reverse voltage rating of 60V and a forward voltage drop of just 0.7V, it ensures efficient operation and minimal power loss. Capable of handling a continuous current of 1.0A, this diode is designed for reliable performance in demanding environments. The low reverse leakage current of 0.3mA further enhances its efficiency and stability. Packaged in an SMAF format, it offers a compact and durable solution suitable for various electronic circuits.
The Polar High-Performance Diode is engineered for demanding high-voltage applications, offering superior reliability and efficiency. With a maximum reverse voltage rating of 100V and a forward voltage drop of just 0.85V, this diode ensures effective rectification with minimal energy loss. It supports a continuous forward current of 2.0A, making it suitable for a range of power-intensive applications. Featuring a low reverse leakage current of 0.3mA, this diode maintains high efficiency and performance. The device is housed in a compact SMAF package, designed for robust and space-efficient integration.
The Polar High-Current Diode is designed to deliver exceptional performance in high-current and moderate-voltage applications. With a continuous forward current capacity of 3.0A and a reverse voltage rating of 40V, this diode ensures reliable operation even under demanding conditions. It features a low forward voltage drop of 0.55V, which optimizes energy efficiency, and a reverse leakage current of only 0.5mA, ensuring minimal power loss. Encased in a compact SMAF package, this diode is ideal for applications where space and performance are crucial.
The Polar High-Voltage Rectifier Diode is engineered for applications that demand robust performance under high-current and high-voltage conditions. With a continuous forward current rating of 3.0A and a maximum reverse voltage of 200V, this diode is designed to handle substantial electrical loads and high voltage requirements with reliability. It features a forward voltage drop of 0.95V and a low reverse leakage current of 0.3mA, which ensures efficient operation and minimal power loss. The diode is packaged in a compact SMAF package, making it suitable for applications with limited space.
