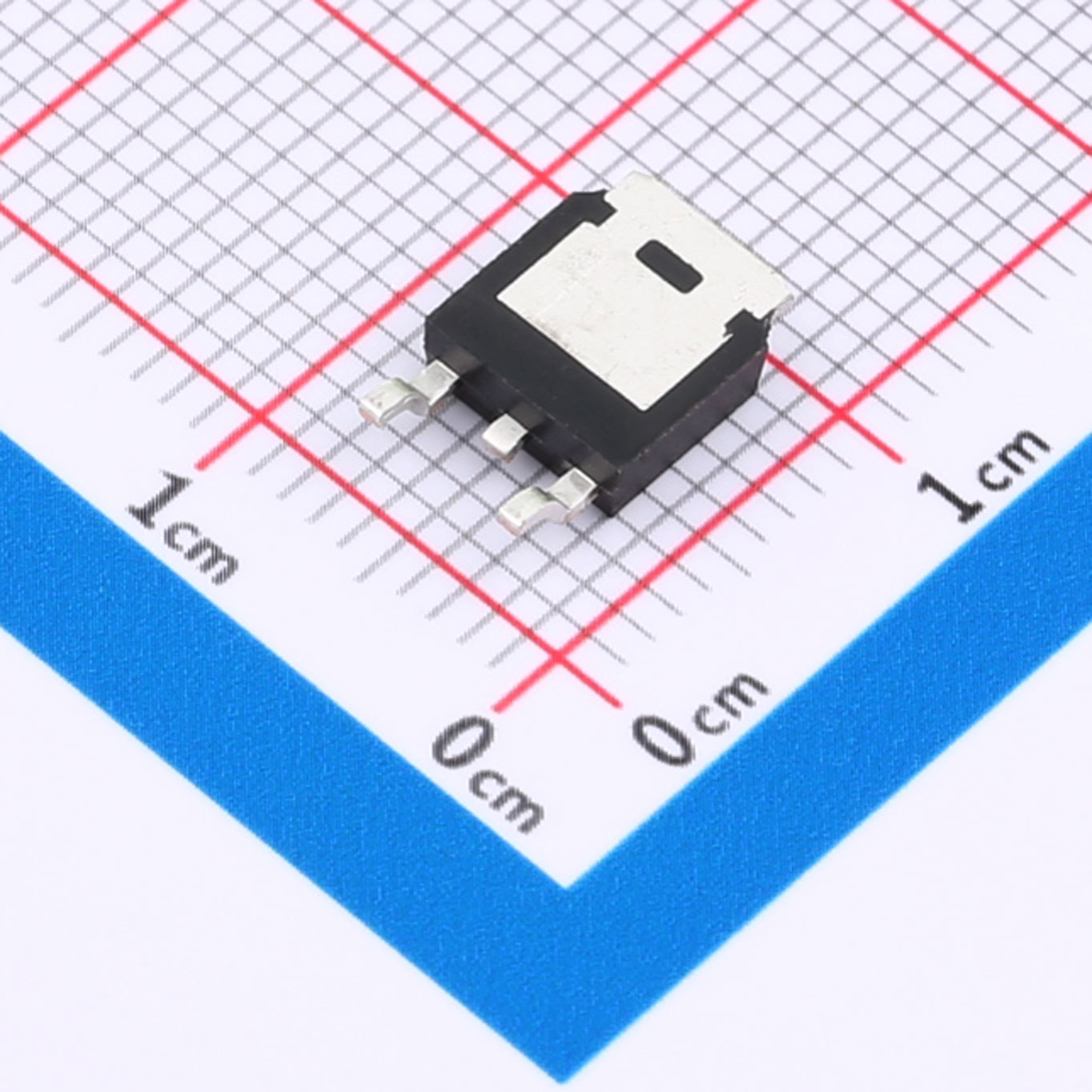

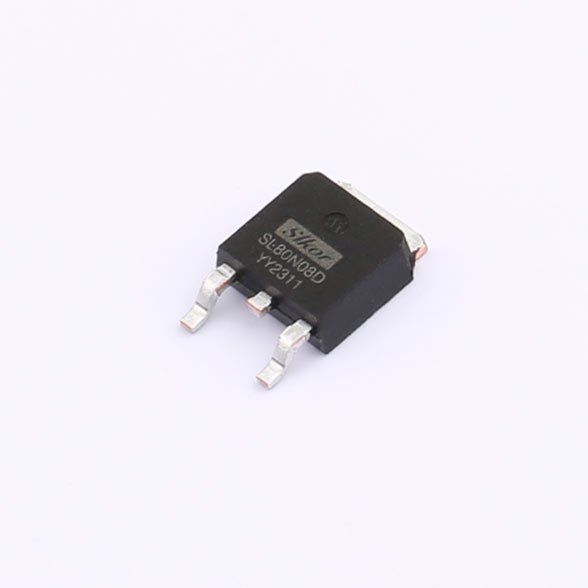

The SL80N08D features advanced trench technology, offering low RDS(ON), minimal gate charge, and operates with gate voltages from 4.5V. Ideal for battery protection and switching applications.
Download datasheet InquiryDescription
The SL80N08Duses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application.
Features
lVDS= 80V ID=80A
lRDS(ON)< 6.5mΩ VGS=10V
Application
lBattery protection
lLoad switch
lUninterruptible power supply
| File Name | Title | Description |
|---|---|---|
| SL80N08D TO-252.pdf | SL80N08D TO-252 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
