Trench Power MV MOSFET technology
Excellent package for heat dissipation
High density cell design for low RDS(ON)
Product Summary
● VDS 100V
● ID 15A
● RDS(ON)( at VGS= 10V) ＜115mohm
● RDS(ON)( at VGS= 4.5V) ＜130mohm
● 100% UIS Tested
● 100% ▽VDS Tested
General Description
● Trench Power MV MOSFET technology
● Excellent package for heat dissipation
● High density cell design for low RDS(ON)
Applications
● DC-DC Converters
● Power management functions
| File Name | Title | Description |
|---|---|---|

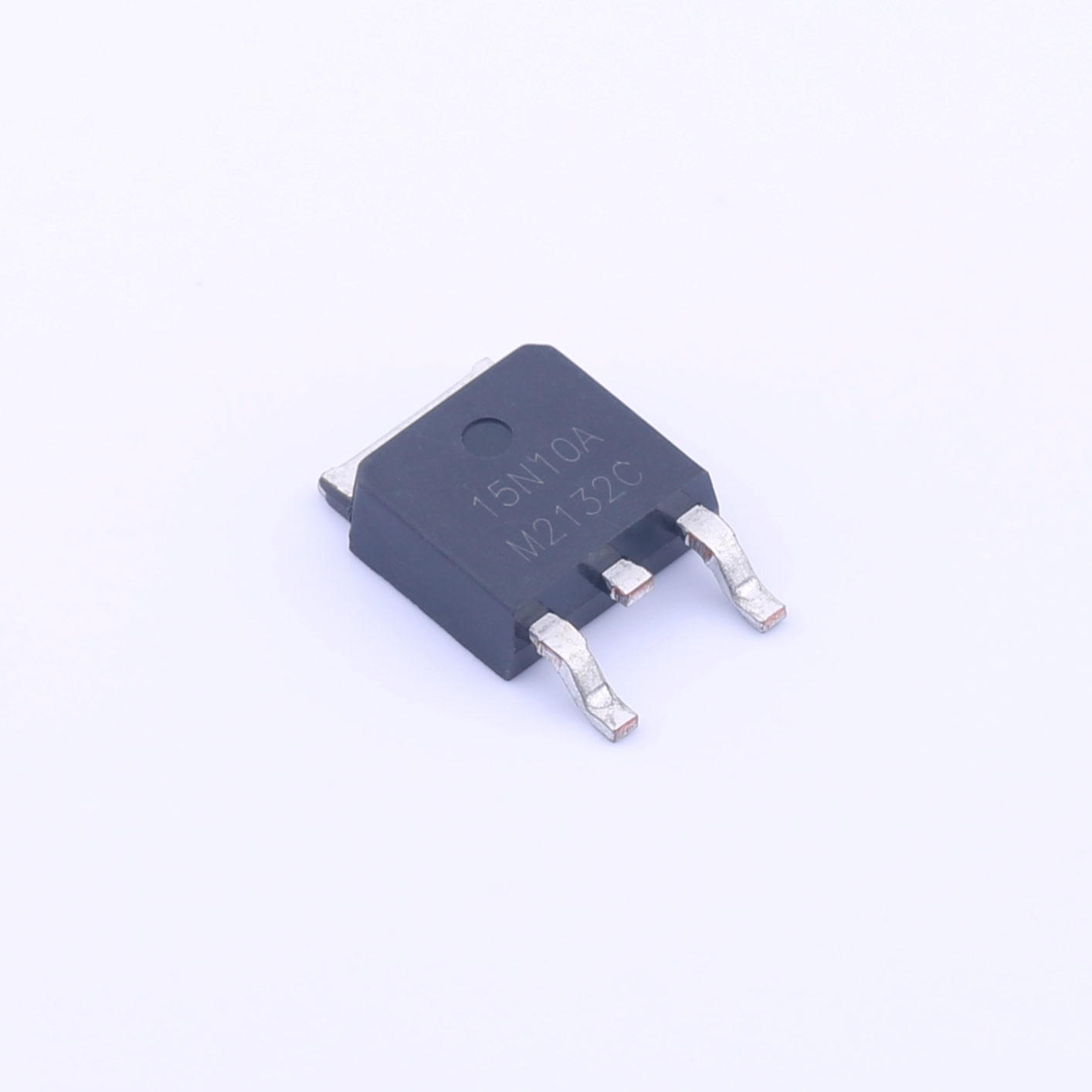

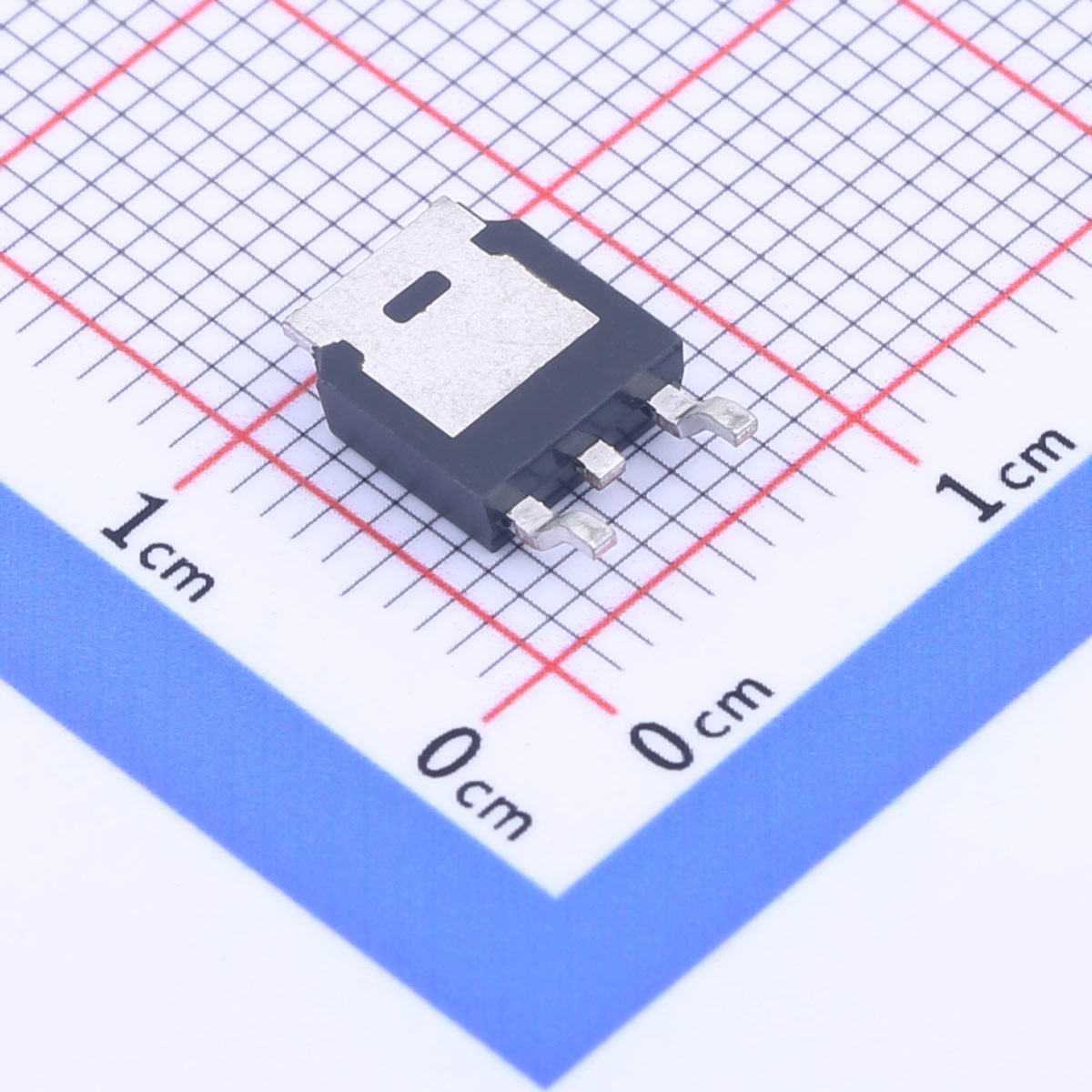

| SL15N10A TO-252.pdf | SL15N10A TO-252 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
