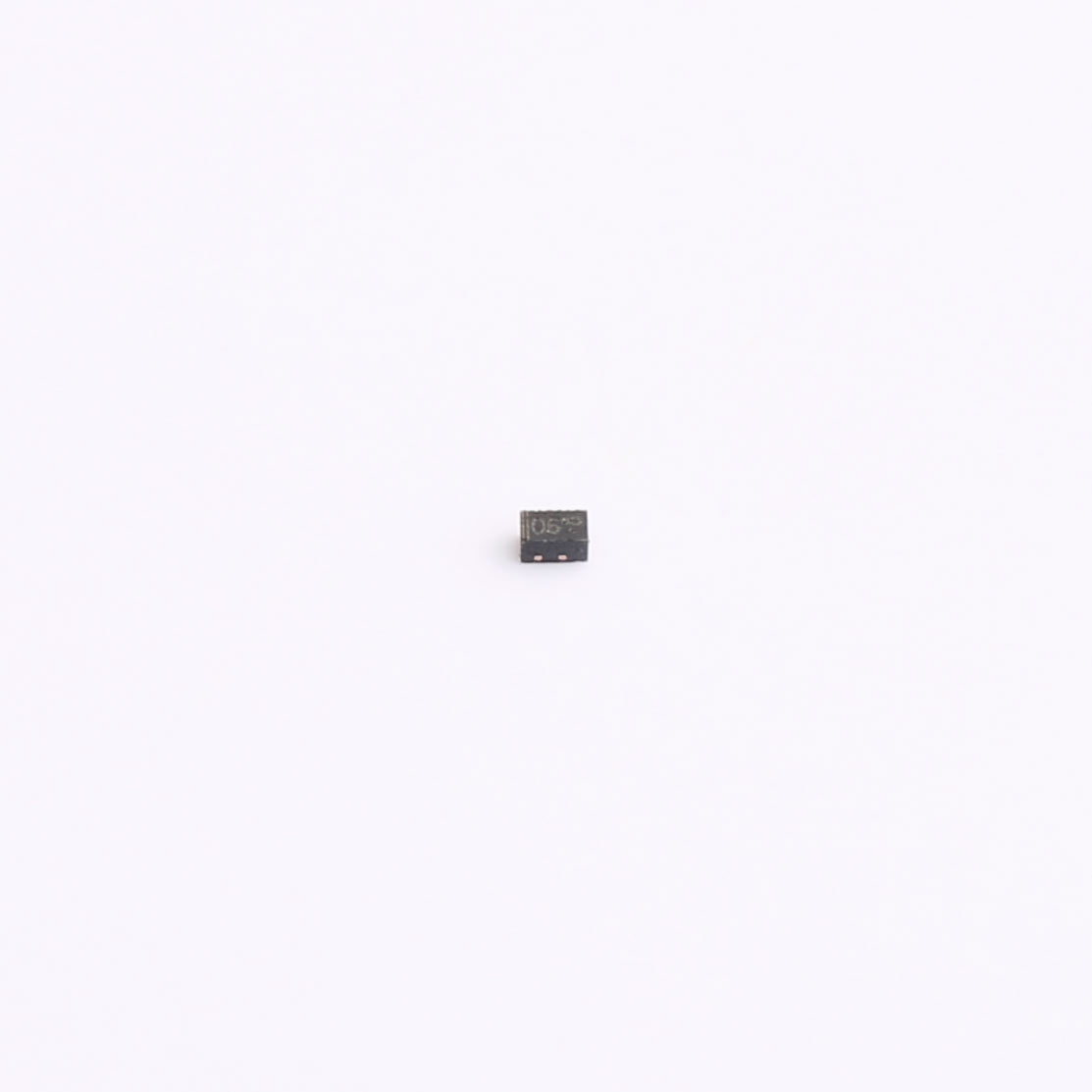

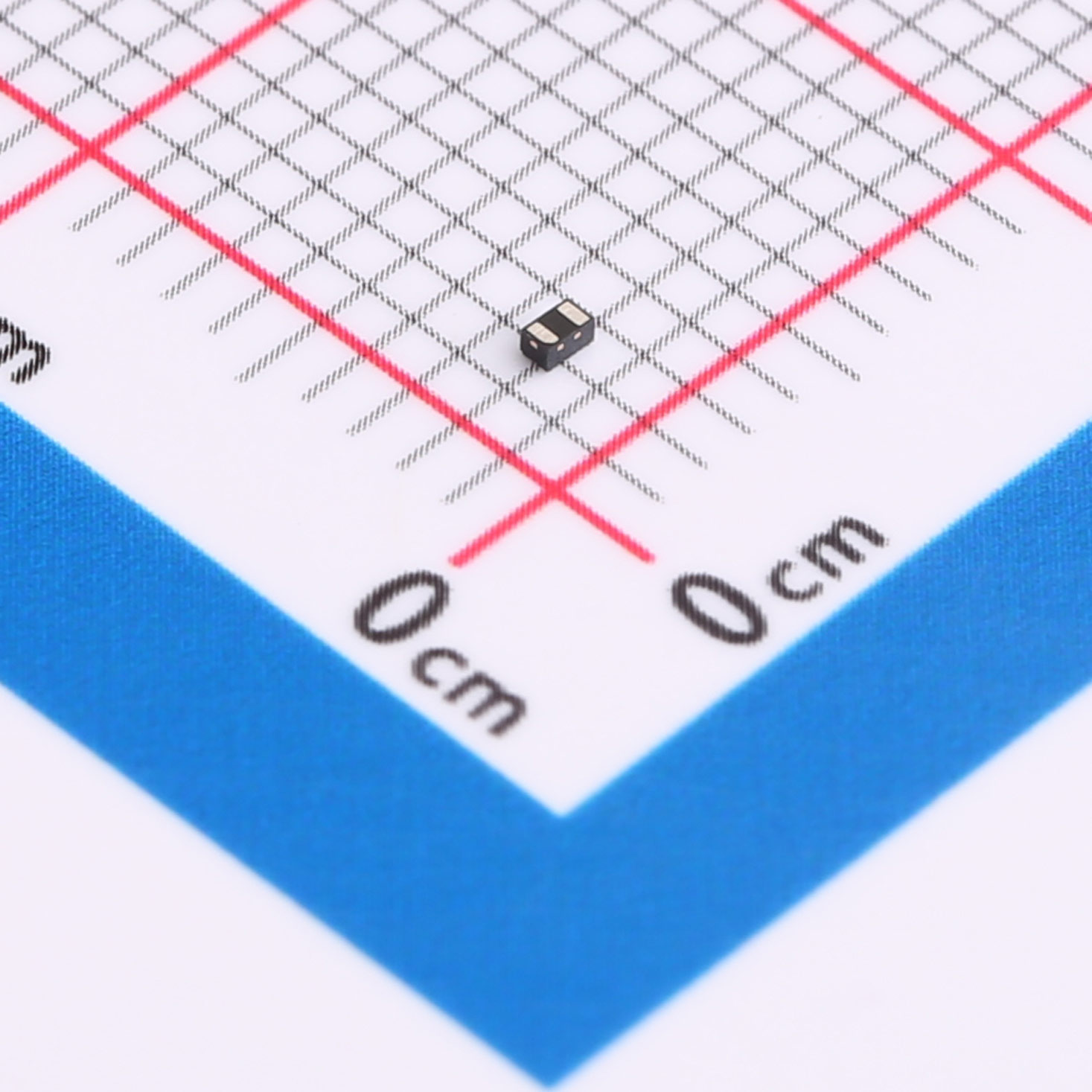

The SLESD5341N is a specialized Electrostatic Discharge (ESD) protection device housed in a DFN1006 package. Engineered to safeguard sensitive electronic components from transient voltage spikes caused by electrostatic discharge, this device offers robust protection in compact dimensions suitable for modern electronic designs.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5341N is a specialized Electrostatic Discharge (ESD) protection device housed in a DFN1006 package. Engineered to safeguard sensitive electronic components from transient voltage spikes caused by electrostatic discharge, this device offers robust protection in compact dimensions suitable for modern electronic designs.

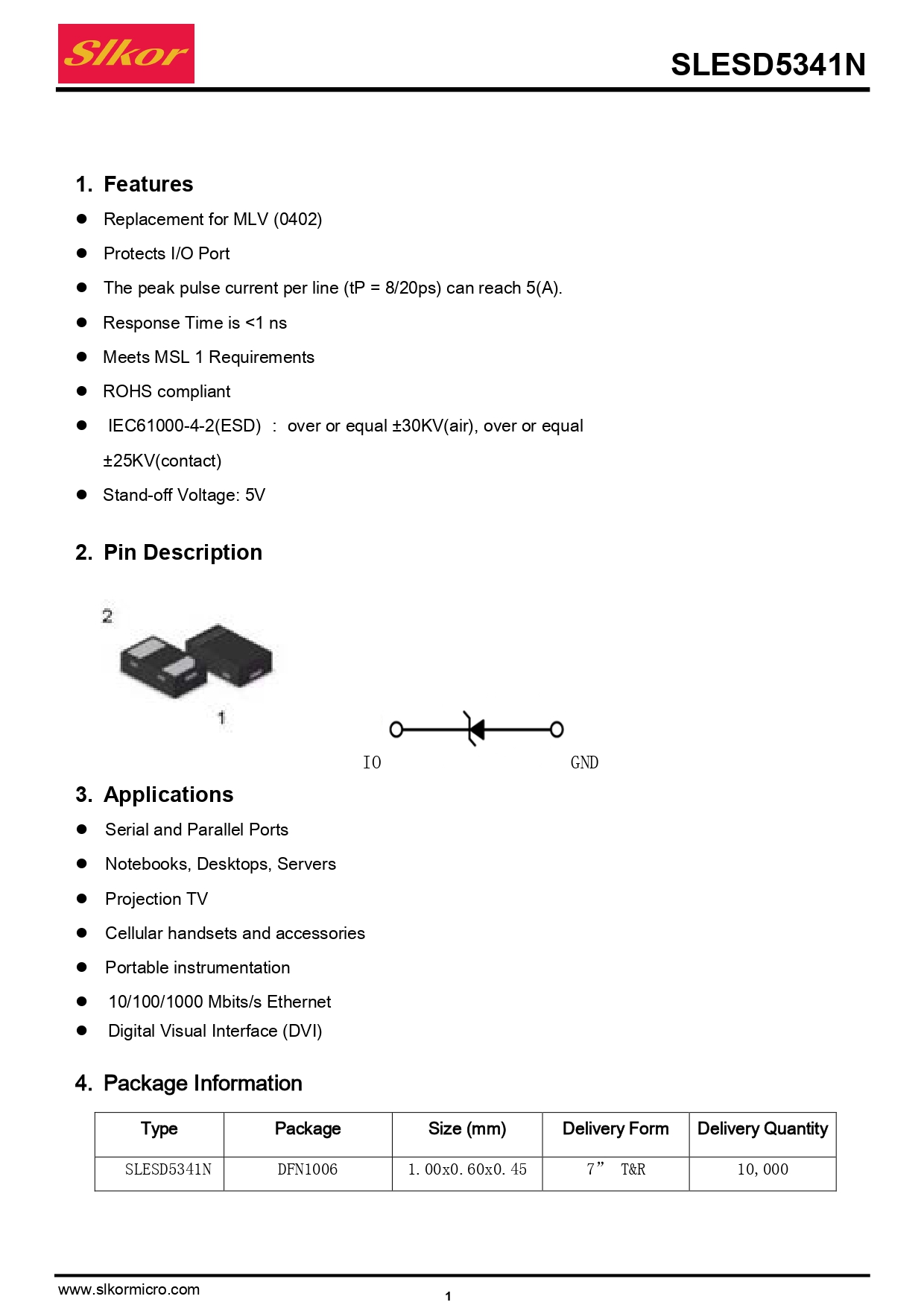

Features
●Replacement for MLV (0402)
●Protects I/O Port
●The peak pulse current per line (tP = 8/20ps) can reach 5(A).
●Response Time is <1 ns
●Meets MSL 1 Requirements
●ROHS compliant
●IEC61000-4-2(ESD) : over or equal ±30KV(air), over or equal ±25KV(contact)
●Stand-off Voltage: 5V
Applications
●Serial and Parallel Ports
●Notebooks, Desktops, Servers
●Projection TV
●Cellular handsets and accessories
●Portable instrumentation
●10/100/1000 Mbits/s Ethernet
●Digital Visual Interface (DVI)
| File Name | Title | Description |
|---|---|---|
| C5355508_静电和浪涌保护(TVS-ESD)_SLESD5341N_规格书_SLKOR(萨科微)静电放电(ESD)保护器件规格书 (1).PDF | C5355508_静电和浪涌保护(TVS-ESD)_SLESD5341N_规格书_SLKOR(萨科微)静电放电(ESD)保护器件规格书 (1) | - |
