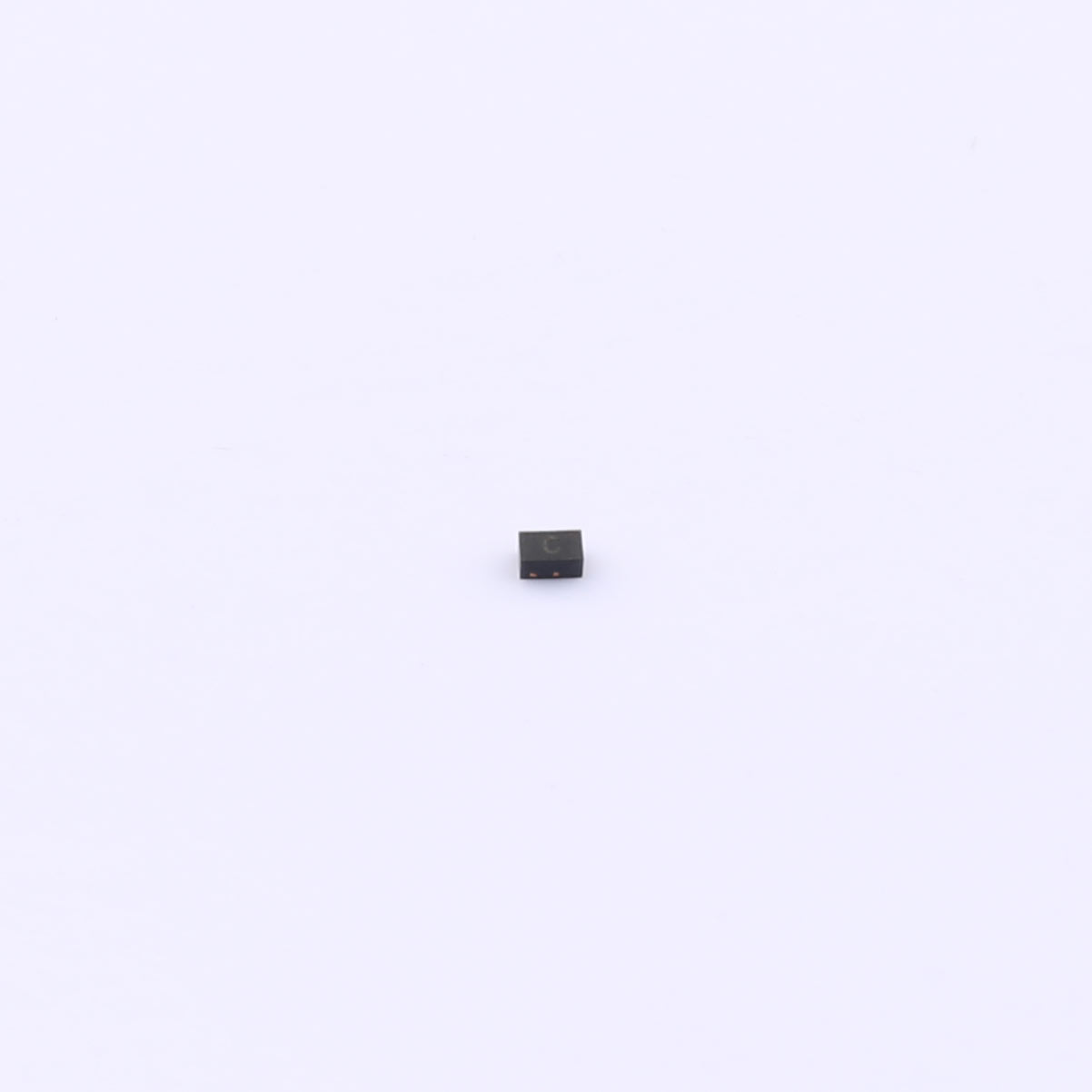

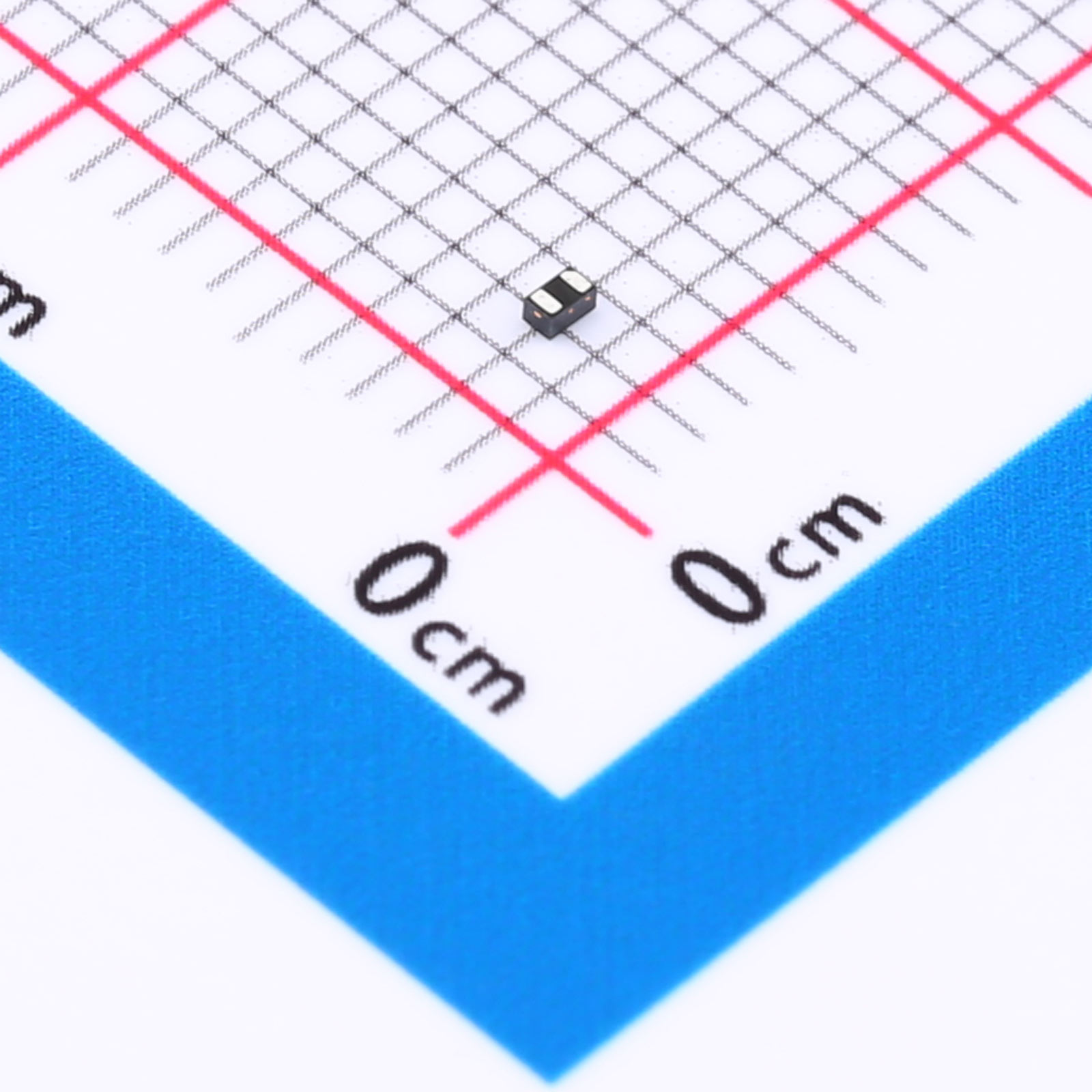

The SLESD8D5V0C ESD Protection Diode is designed to provide robust electrostatic discharge (ESD) protection for sensitive electronic components and circuits. Housed in a compact DFN1006-2L package, this diode ensures reliable protection against ESD events while maintaining excellent electrical characteristics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD8D5V0C ESD Protection Diode is designed to provide robust electrostatic discharge (ESD) protection for sensitive electronic components and circuits. Housed in a compact DFN1006-2L package, this diode ensures reliable protection against ESD events while maintaining excellent electrical characteristics.
Features
● Capacitance Typ. 15pF
● Small Body Outline Dimensions
● Low Leakage Current
● ESD Rating of Class 3 (>16kV) per Human Body Model
● RoHS Compliant
● Green EMC
● Matte Tin(Sn) Lead Finish
Applications
● Consumer Electronics: Protects sensitive circuits in smartphones, tablets, and other consumer electronics from ESD damage.
● Computing Devices: Ensures reliable operation and protection in computing devices such as laptops, desktops, and peripheral interfaces.
● Communication Equipment: Safeguards communication equipment and interfaces against ESD-induced failures.
● Automotive Electronics: Provides ESD protection for automotive electronic systems, enhancing reliability and durability.
| File Name | Title | Description |
|---|---|---|

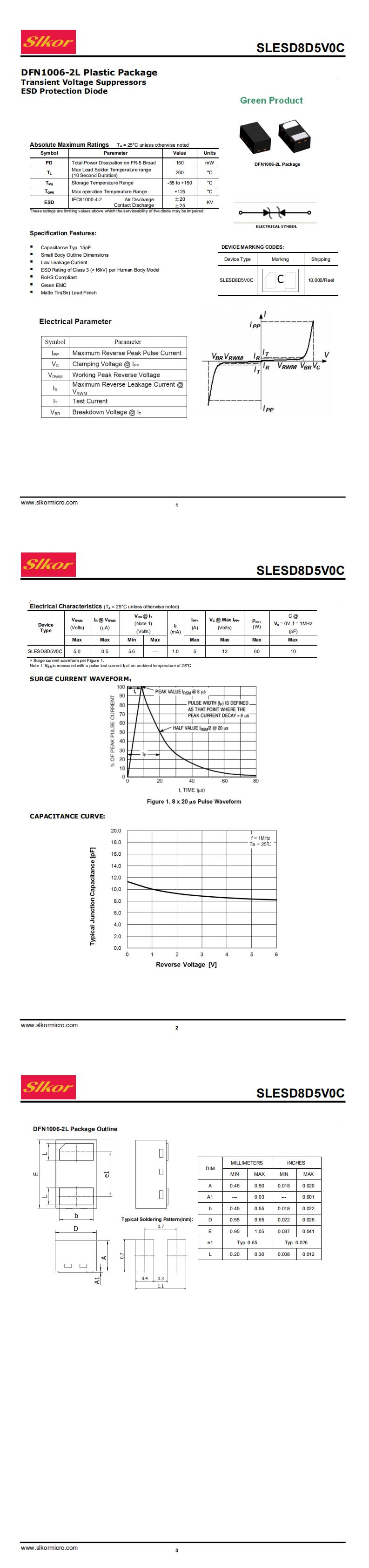

| SLESD8D5V0C DFN1006-2L.pdf | SLESD8D5V0C DFN1006-2L | - |
