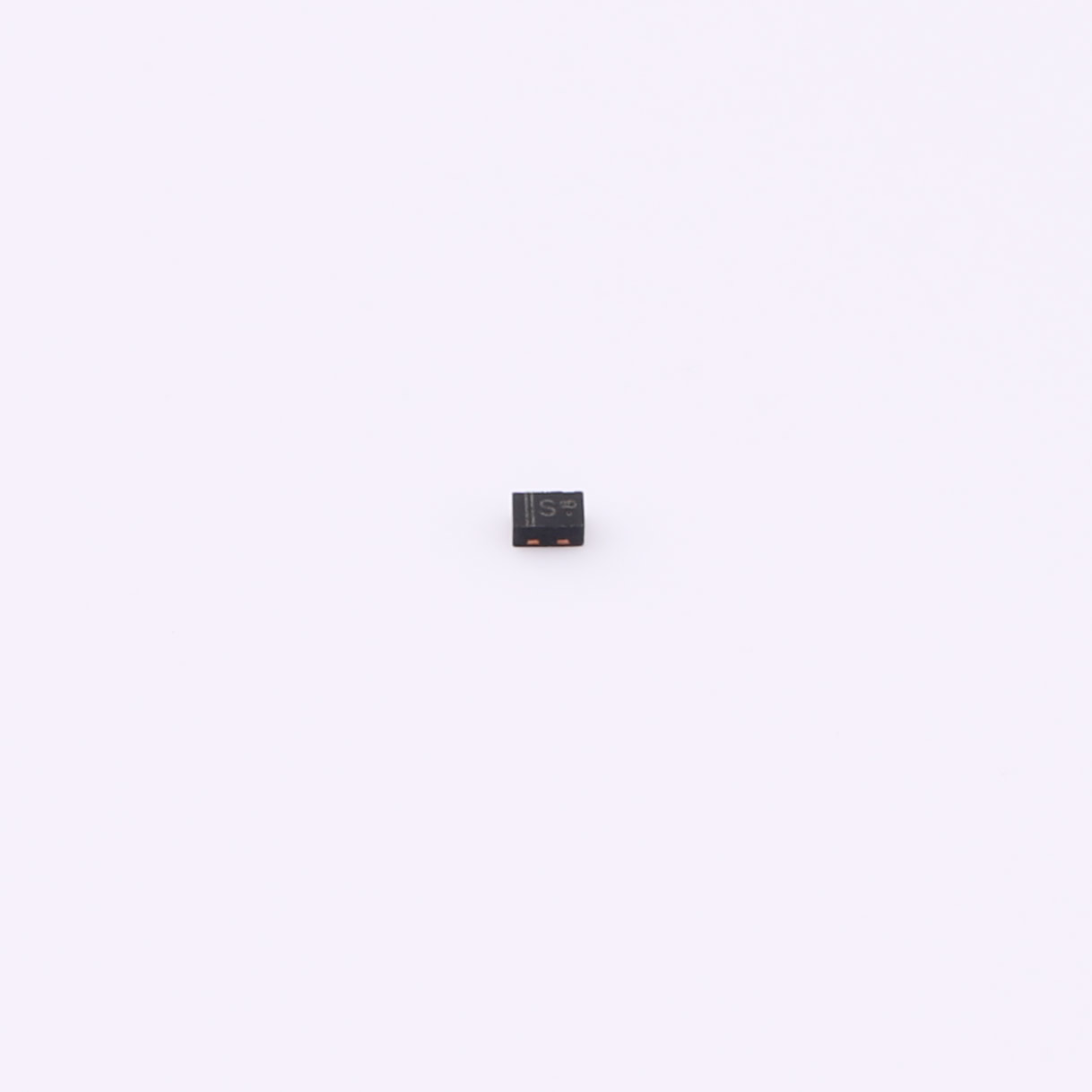

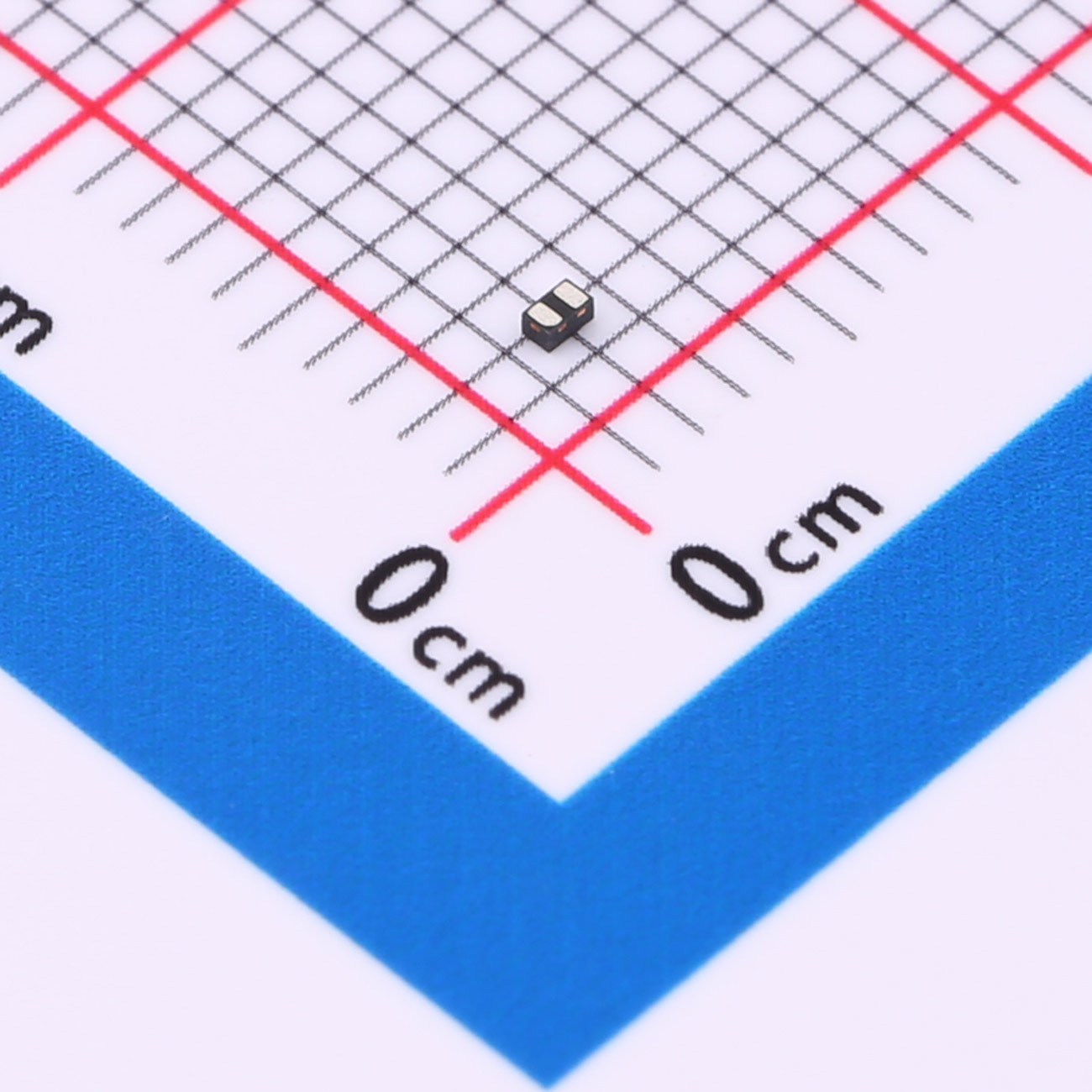

SLESD3301 is a 1 line 3.3SLESD3301 bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The small size and high ESD surge protection make SLESD3301 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SLESD3301 is a 1 line 3.3SLESD3301 bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The small size and high ESD surge protection make SLESD3301 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
Features
● Low junction capacitance( typical value: 0.25pF)
● Working voltage: 3.3V
● Low clamping voltage
● 2-pins leadless package
● RoHS Compliant
Applications
● Cellular Handsets and Accessories
● Display Ports
● MDDI Ports
● USB Ports
● Digital Visual Interface (DVI)
● PCI Express and Serial SATA Ports
| File Name | Title | Description |
|---|---|---|

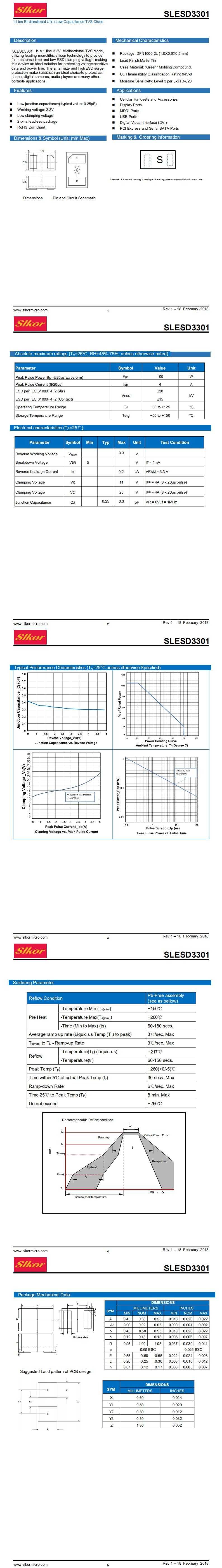

| SLESD3301 DFN1006.pdf | SLESD3301 DFN1006 | - |
