SLESDA33CP is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With Maximum capacitance of 15pF, SLESDA33CP is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 ( ±15kV air, ±8kV contact discharge ), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

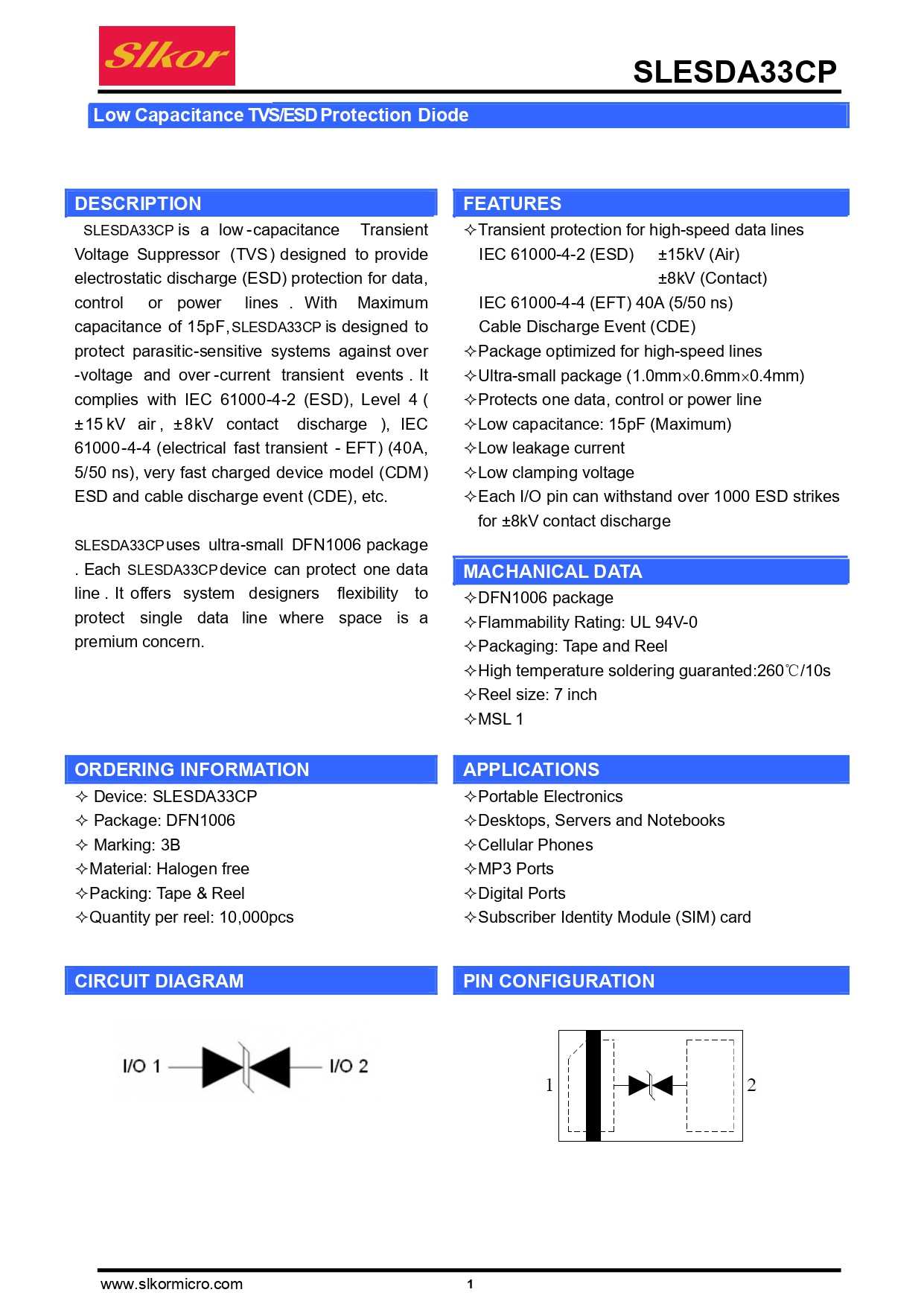

Description
SLESDA33CP is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With Maximum capacitance of 15pF, SLESDA33CP is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 ( ±15kV air, ±8kV contact discharge ), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.

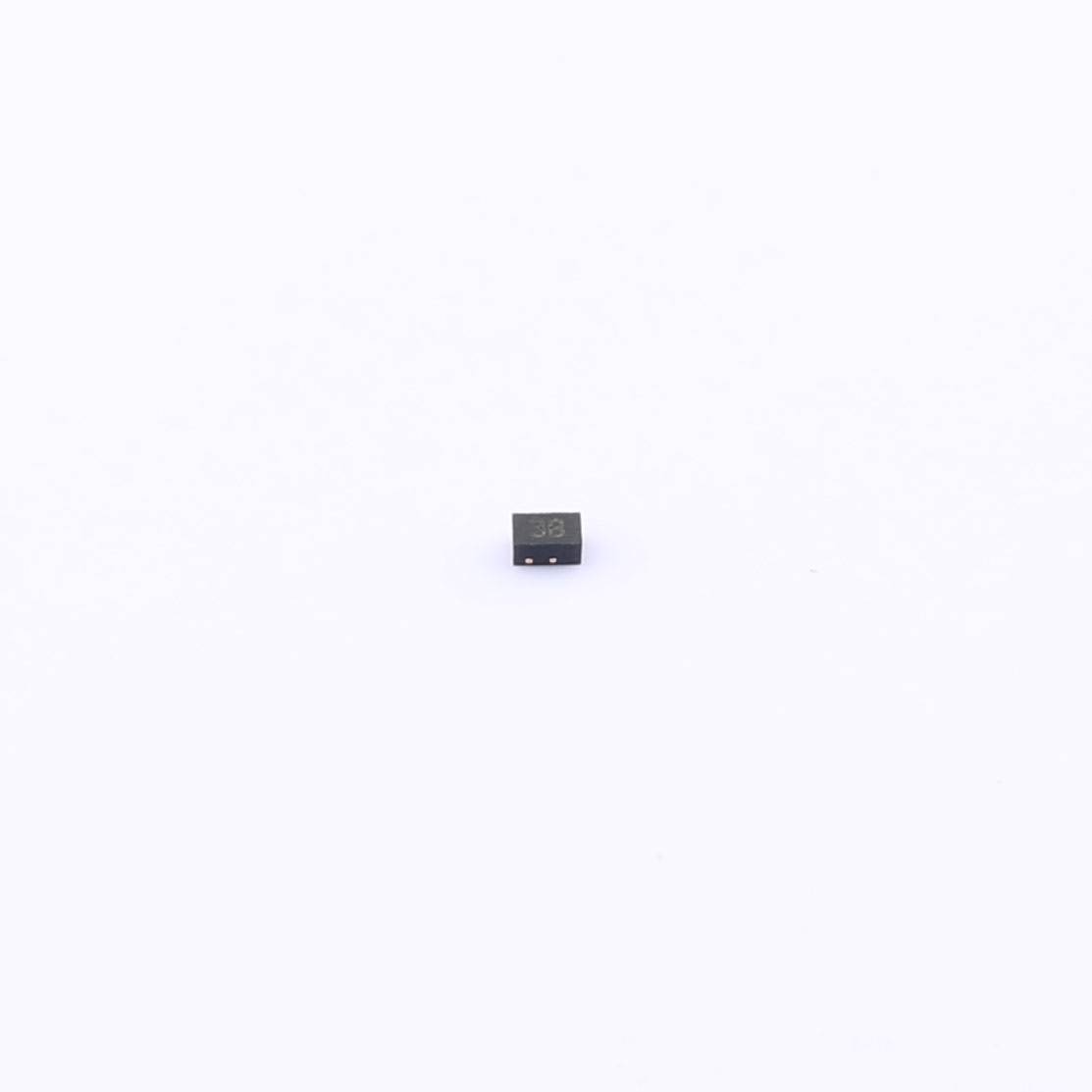

SLESDA33CP uses ultra-small DFN1006 package . Each SLESDA33CP device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
Features
●Transient protection for high-speed data lines
●IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact)
●IEC 61000-4-4 (EFT) 40A (5/50 ns)
●Cable Discharge Event (CDE)
●Package optimized for high-speed lines

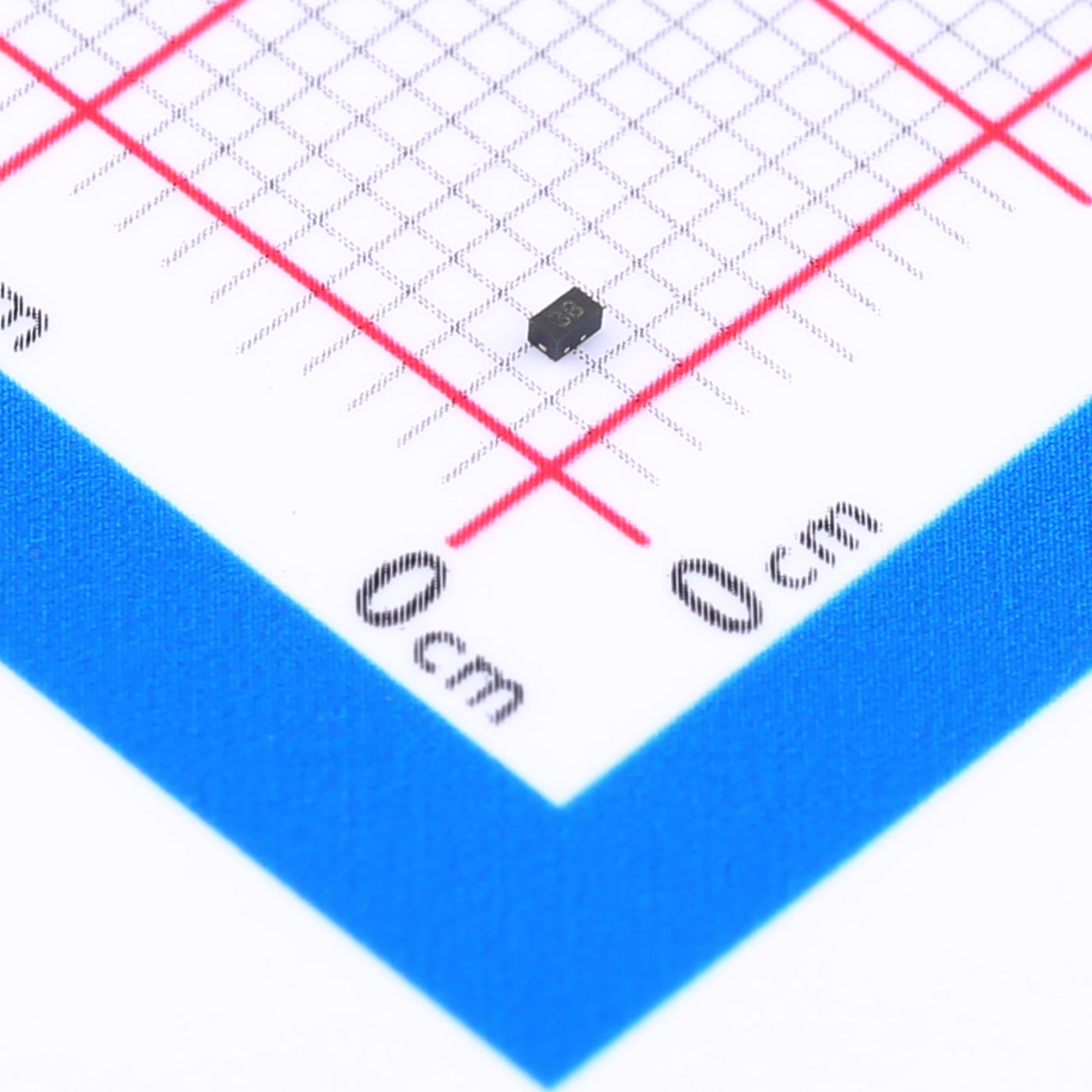

●Ultra-small package (1.0mm 0.6mm 0.4mm) ?
●Protects one data, control or power line ?
●Low capacitance: 15pF (Maximum)
●Low leakage current
●Low clamping voltage
●Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge
Applications
●Portable Electronics
●Desktops, Servers and Notebooks
●Cellular Phones
●MP3 Ports
●Digital Ports
●Subscriber Identity Module (SIM) card
