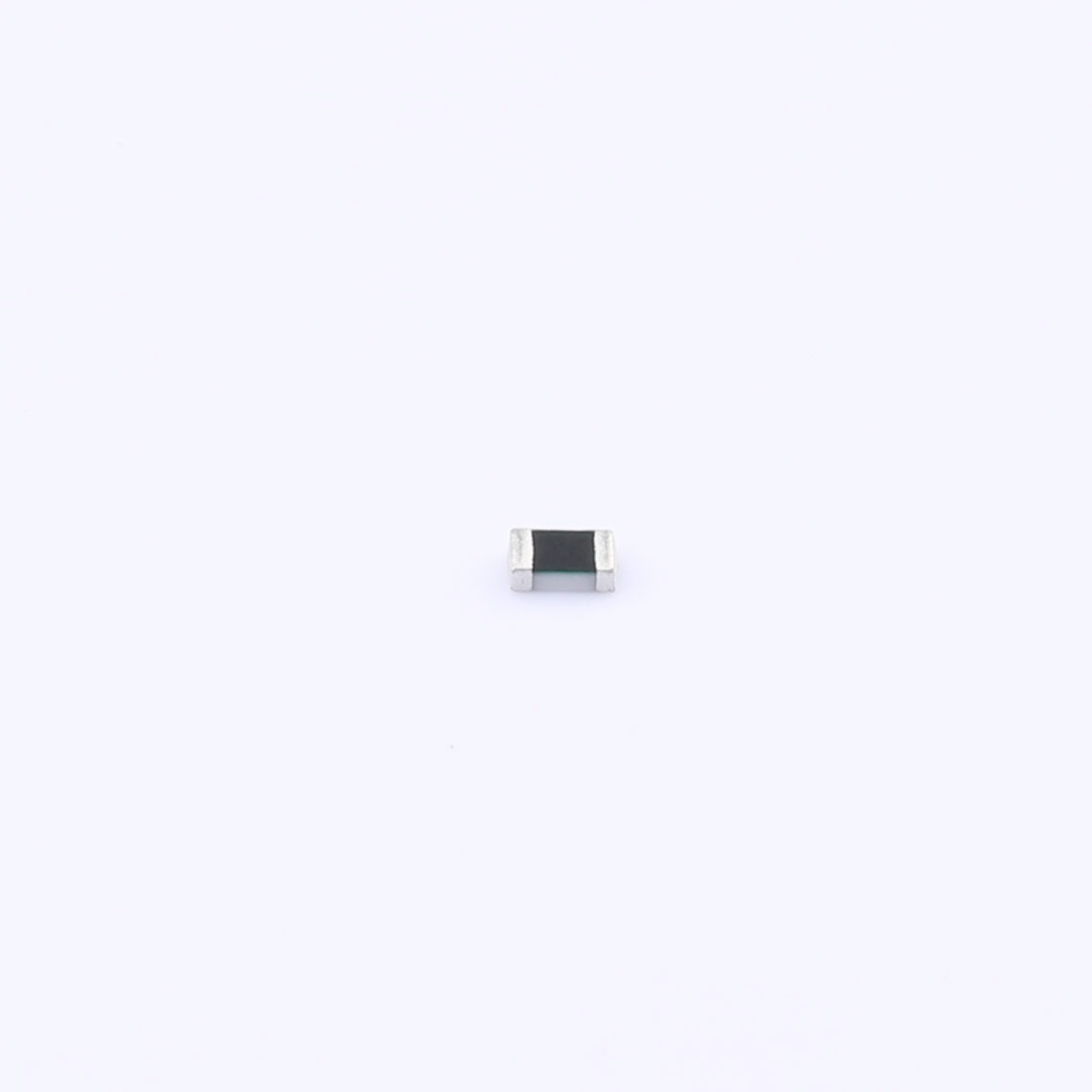

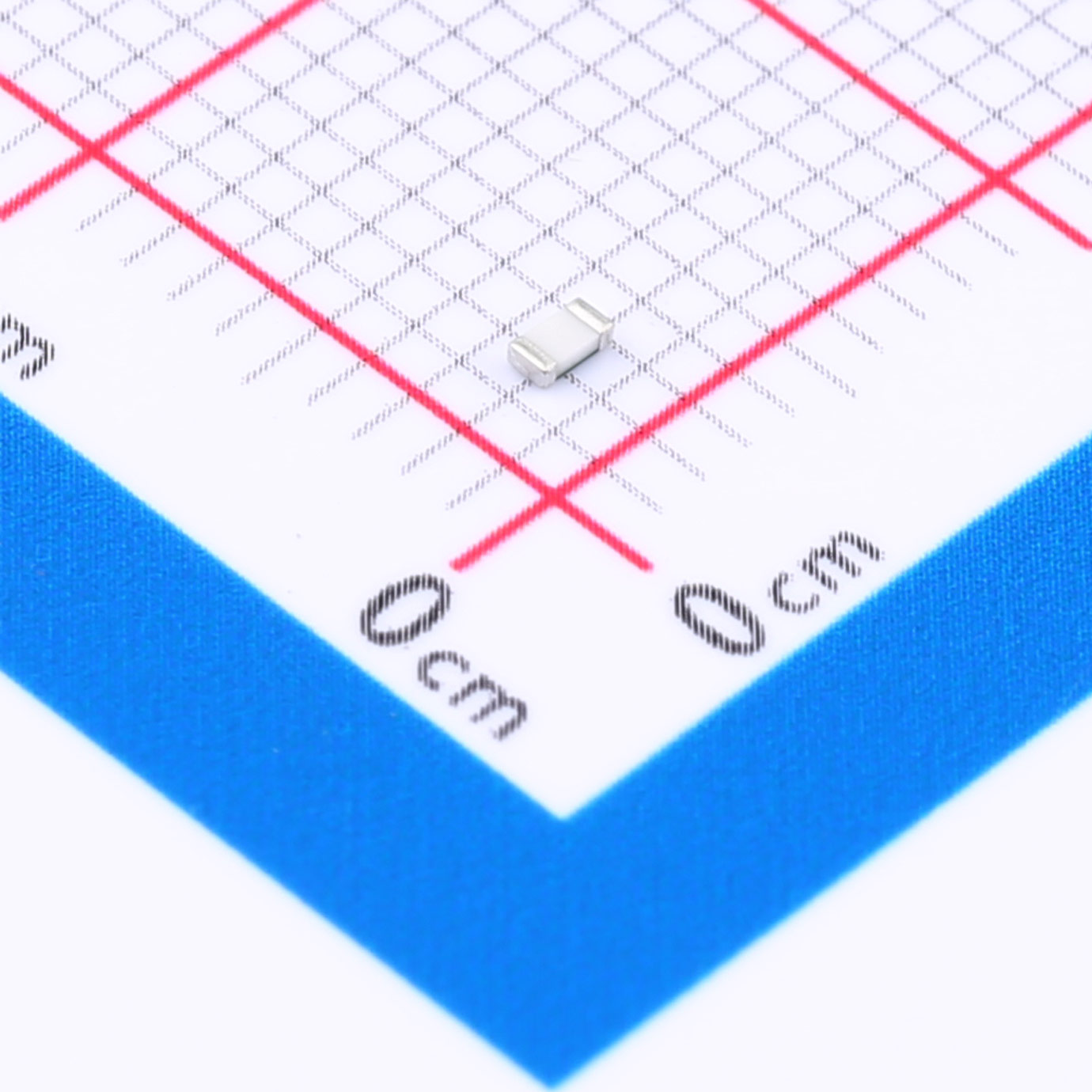

ESD Protector Overvoltage Protection Device

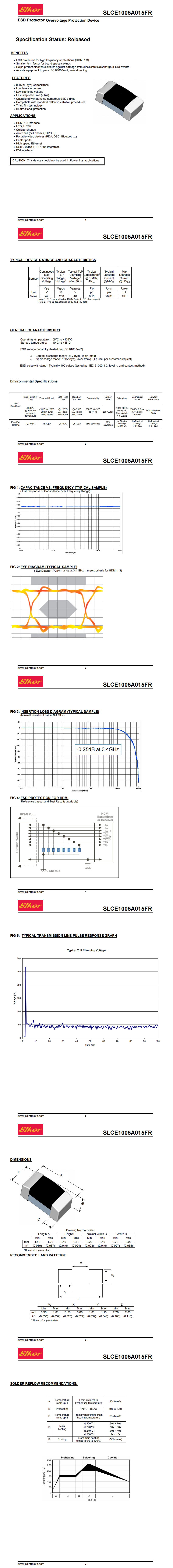

Download datasheet Inquiry
ESD Protector Overvoltage Protection Device
Benefits
l ESD protection for high frequency applications (HDMI 1.3)
l Smaller form factor for board space savings
l Helps protect electronic circuits against damage from electrostatic discharge (ESD) events
l Assists equipment to pass IEC 61000-4-2, level 4 testing
Features
l 0.15 pF (typ) Capacitance
l Low leakage current
l Low clamping voltage
l Fast response time (<1ns)
l Capable of withstanding numerous ESD strikes
l Compatible with standard reflow installation procedures
l Thick film technology
l Bi-directional protection
Applications
l HDMI 1.3 interface
l LCD, HDTV
l Cellular phones
l Antennas (cell phones, GPS…)
l Portable video devices (PDA, DSC, Bluetooth…)
l Printer ports
l High speed Ethernet
l USB 2.0 and IEEE 1394 interfaces
l DVI interface
Caution: This device should not be used in Power Bus applications
| File Name | Title | Description |
|---|---|---|
| SLCE1005A015FR.PDF | SLCE1005A015FR | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
SLESD05D6BU is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.25pF, SLESD05D6BU is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. SLESD05D6BU uses ultra-small DFN0603 package. Each SLESD05D6BU device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make SLESD05D6BU ideal for high-speed data port and high-frequency line applications, such as cellular phones and HD visual devices.
The SLPESD0603M42 is a highly efficient ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronics from voltage transients. This device is engineered to protect low-voltage applications while effectively clamping high-energy surges. It features an ultra-low reverse leakage current of 10μA, ensuring minimal power loss during operation. The clamping voltage (VC) of 40V provides robust*against spikes, while its exceptionally low junction capacitance (CJ) of 0.05pF makes it ideal for high-speed signal lines where preserving signal integrity is essential.
The SLESDL0603-5 is a highly efficient ESD (Electrostatic Discharge) protection device designed for critical applications requiring robust transient voltage protection in a compact form factor. Housed in a 603 package, this device is optimized to offer effective protection while maintaining minimal impact on circuit performance. The SLESDL0603-5 is tailored for low-voltage electronic circuits. It features a relatively high reverse leakage current of 500μA and a clamping voltage (VC) of 65V, making it suitable for applications where significant surge protection is necessary. The device also boasts an exceptionally low junction capacitance (CJ) of 1.5pF, ensuring minimal signal distortion and preserving high-speed data integrity.
The SLD5V0L1B2LP3-7 is a bi-directional TVSdiode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution forprotect voltage sensitive data and power line. The D5V0L1B2LP3-7 complies with the IEC 61000-4-2(ESD) standard with ±15 kV air and ±8 kV contactdischarge. It is assembled into an ultra-small0.6x0.3x0.3mm lead-free 0201 package. The small size and high ESD surge protection make SLD5V0L1B2LP3-7 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
The SLPESD0603-24 is a high-performance ESD (Electrostatic Discharge) protection device designed in a compact 0603 package, offering exceptional protection for sensitive electronic circuits. This device efficiently safeguards against electrostatic discharge and transient voltage spikes. The SLPESD0603-24 features a low reverse leakage current of 10μA and a clamping voltage (VC) of 40V, ensuring reliable performance in protecting high-speed data lines and other delicate components. Its extremely low junction capacitance of 0.05pF makes it ideal for high-frequency applications where signal integrity is crucial.
Introducing the SLPESD0603M16, an advanced surface mount transient voltage suppressor diode designed to provide unparalleled protection against electrostatic discharge (ESD) and transient voltage surges in ultra-compact electronic circuits. Housed in the miniature 0603 package, this diode delivers exceptional performance while occupying minimal board space.
Introducing the SLESDL0603-16, a highly efficient surface mount transient voltage suppressor diode designed to provide reliable protection against electrostatic discharge (ESD) and transient voltage events in compact electronic circuits. Packaged in the miniature 0603 form factor, this diode offers robust performance while minimizing space requirements on PCBs.
Introducing the SLESDL0603-24, an advanced surface mount transient voltage suppressor diode designed to provide robust protection against electrostatic discharge (ESD) and transient voltage events in compact electronic circuits. Packaged in the miniature 0603 form factor, this diode offers high reliability and efficiency in safeguarding sensitive components.
