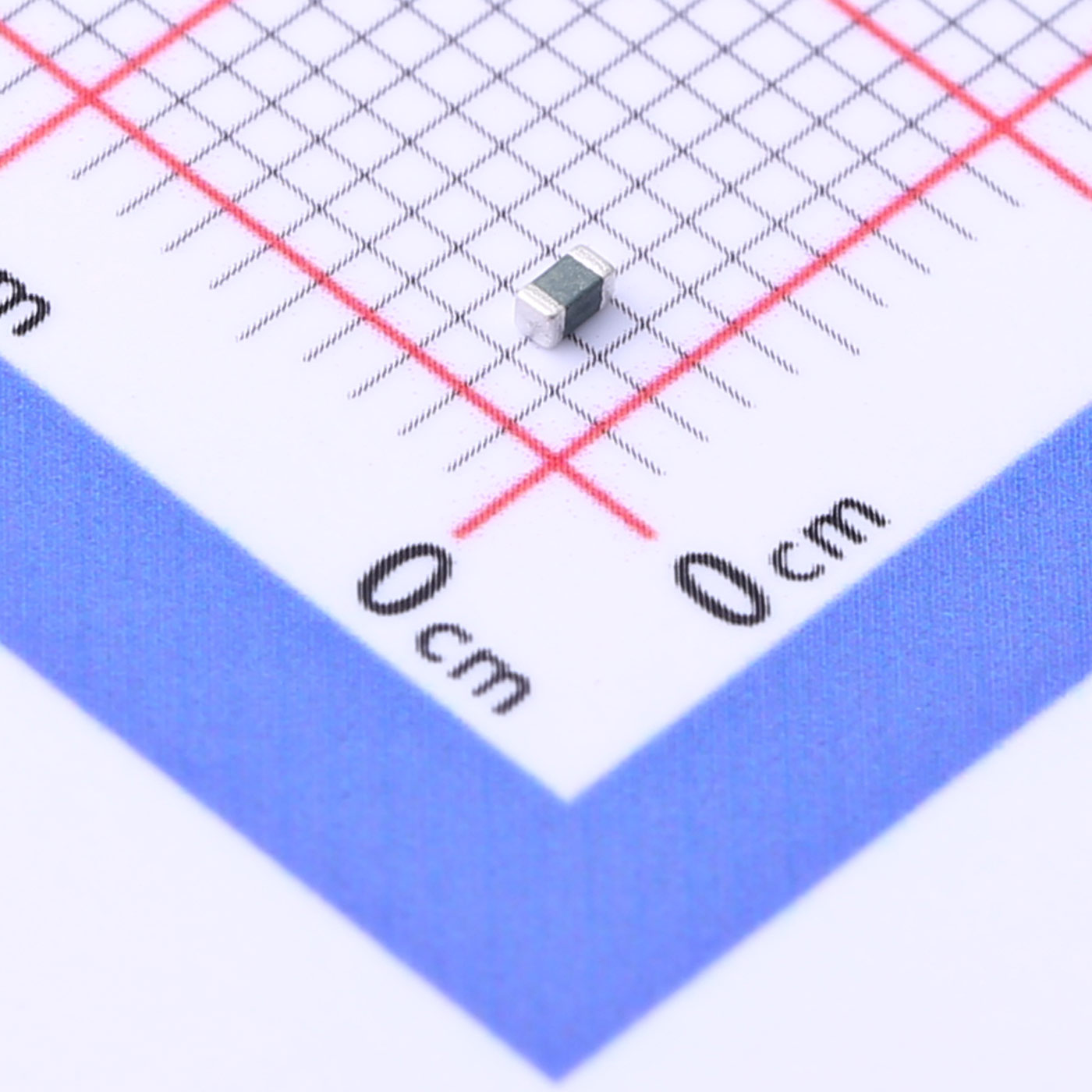

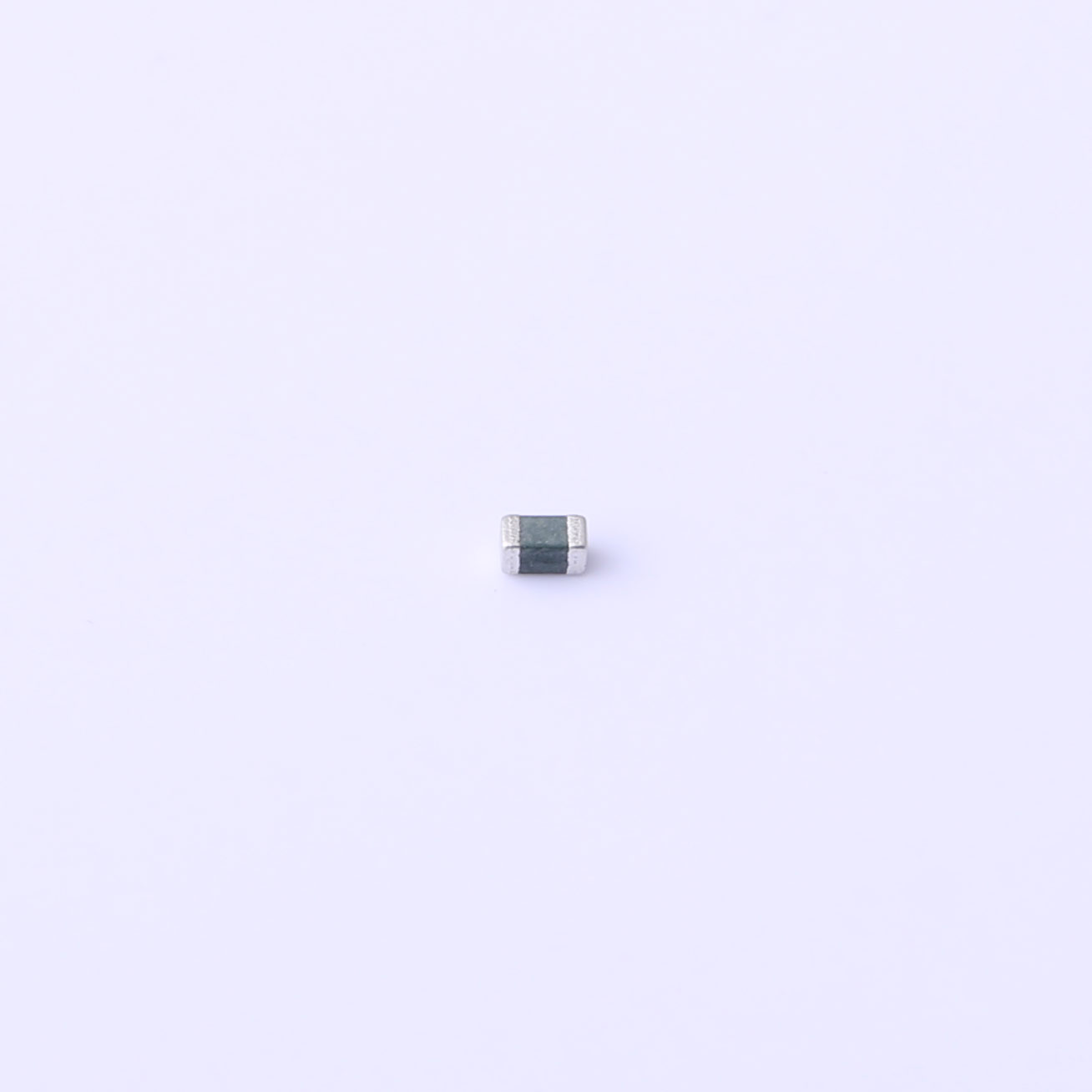

The SLESDL0603-5 is a highly efficient ESD (Electrostatic Discharge) protection device designed for critical applications requiring robust transient voltage protection in a compact form factor. Housed in a 603 package, this device is optimized to offer effective protection while maintaining minimal impact on circuit performance. The SLESDL0603-5 is tailored for low-voltage electronic circuits. It features a relatively high reverse leakage current of 500μA and a clamping voltage (VC) of 65V, making it suitable for applications where significant surge protection is necessary. The device also boasts an exceptionally low junction capacitance (CJ) of 1.5pF, ensuring minimal signal distortion and preserving high-speed data integrity.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESDL0603-5 is a highly efficient ESD (Electrostatic Discharge) protection device designed for critical applications requiring robust transient voltage protection in a compact form factor. Housed in a 603 package, this device is optimized to offer effective protection while maintaining minimal impact on circuit performance. The SLESDL0603-5 is tailored for low-voltage electronic circuits. It features a relatively high reverse leakage current of 500μA and a clamping voltage (VC) of 65V, making it suitable for applications where significant surge protection is necessary. The device also boasts an exceptionally low junction capacitance (CJ) of 1.5pF, ensuring minimal signal distortion and preserving high-speed data integrity.
Features
● 0603inch/ 1608mm foot print
● Ideal ESD protection for high frequency, low voltage applications.
● Exceeds testing requirements outlined in IEC 61000-4-2
● Ultra low capacitance (1.5pF typ.)
● Very low leakage current
● Fast response time
● Bi-directional
● MSL 3
Applications
● High Speed Data Ports
( USB 2.0, IEEE 1394 )
● Computers & Peripherals
( Cell phone, PDA, HDTV, DVD players )

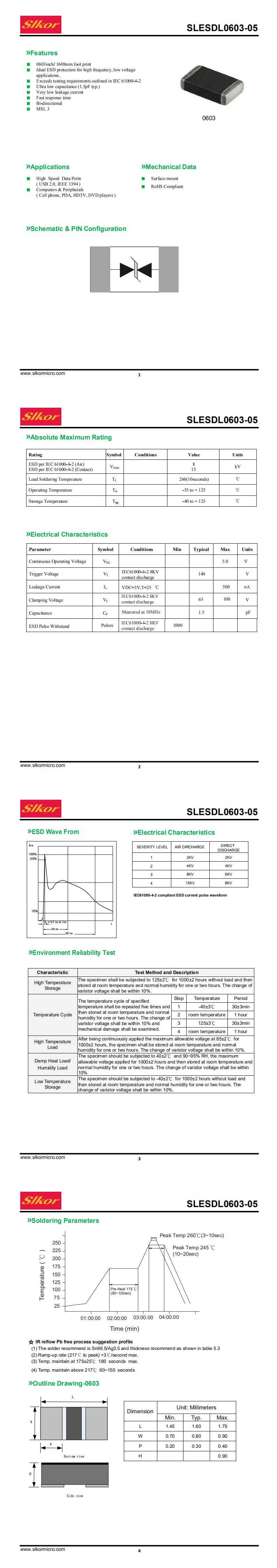

| File Name | Title | Description |
|---|---|---|
| SLESDL0603-05.pdf | SLESDL0603-05 | - |
