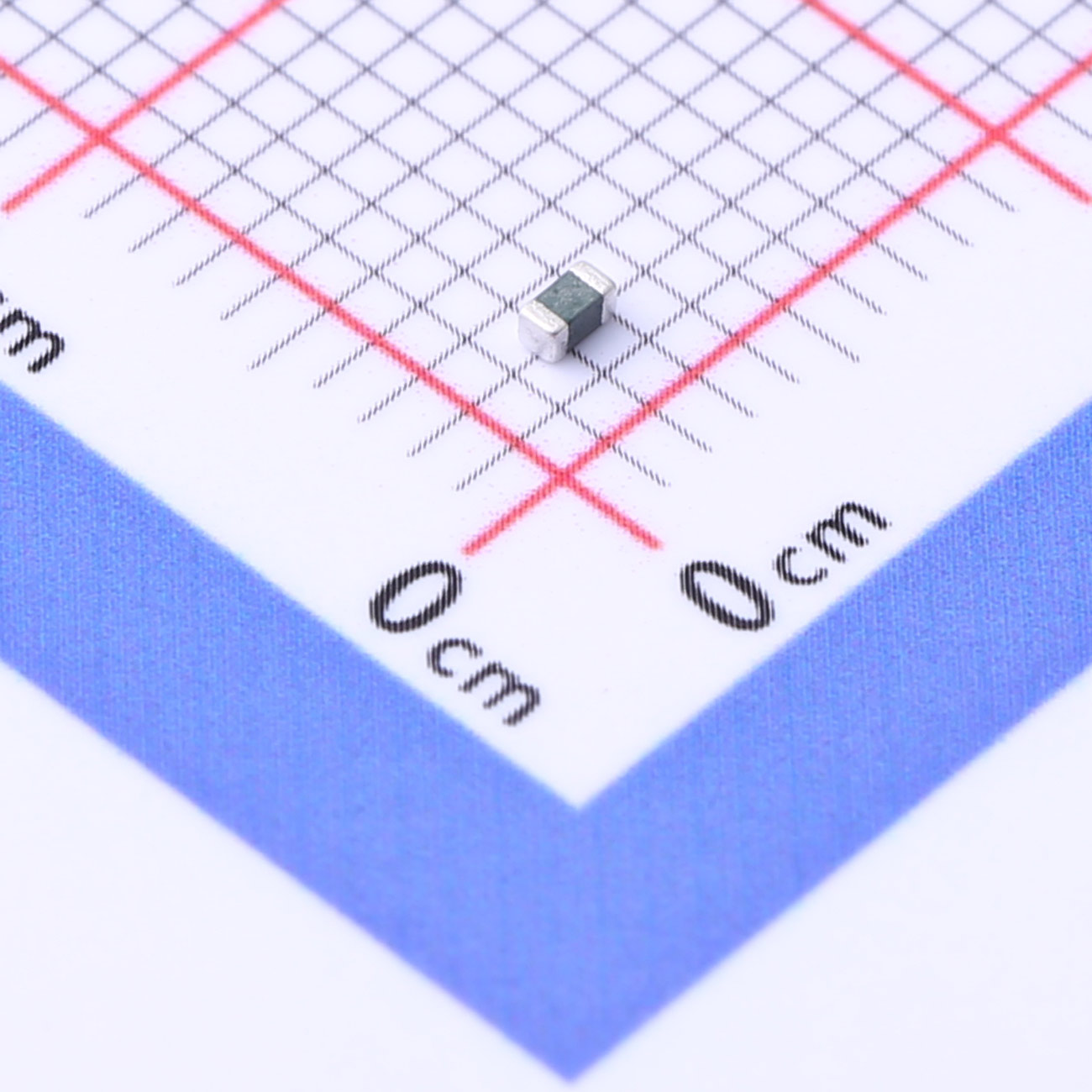

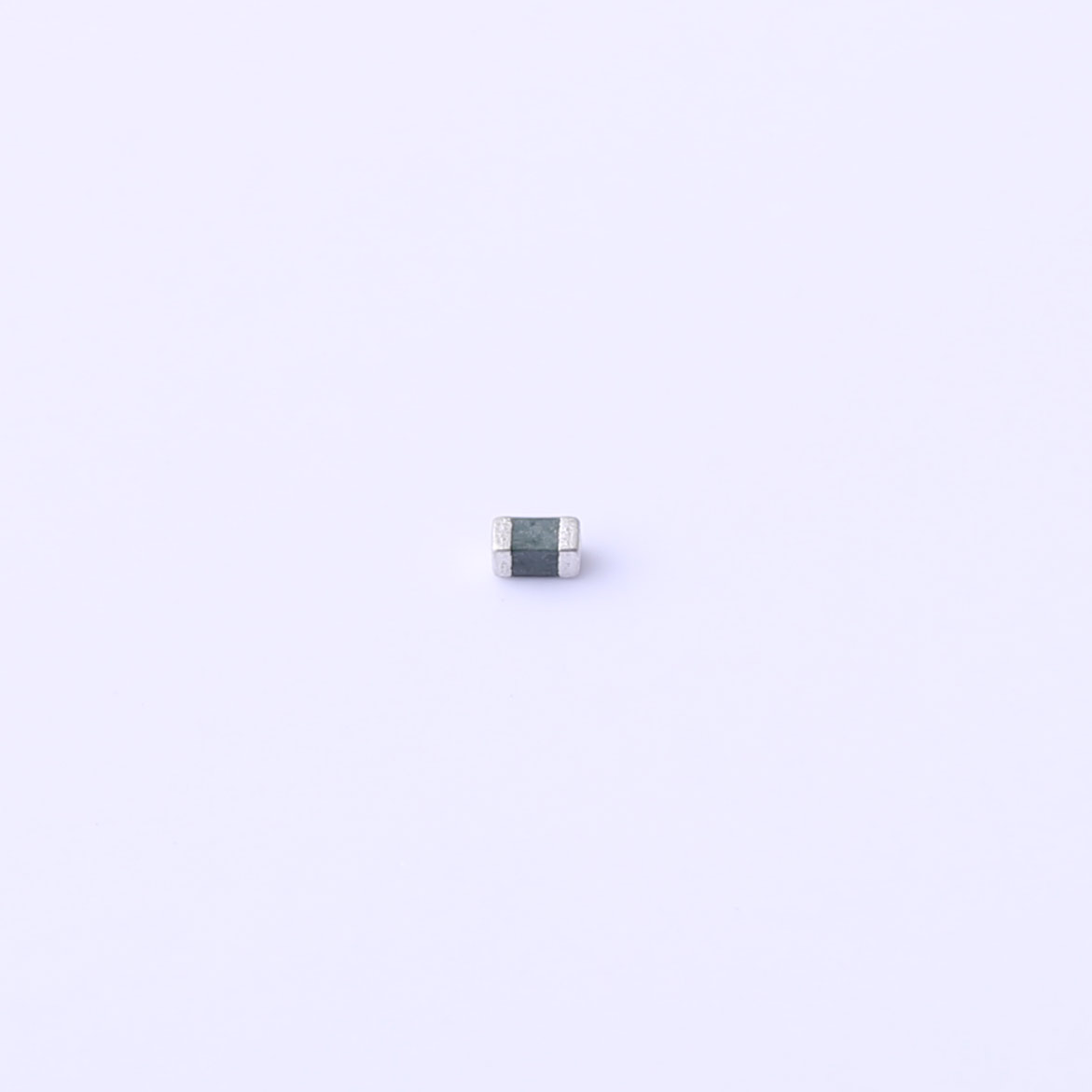

Introducing the SLESDL0603-24, an advanced surface mount transient voltage suppressor diode designed to provide robust protection against electrostatic discharge (ESD) and transient voltage events in compact electronic circuits. Packaged in the miniature 0603 form factor, this diode offers high reliability and efficiency in safeguarding sensitive components.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the SLESDL0603-24, an advanced surface mount transient voltage suppressor diode designed to provide robust protection against electrostatic discharge (ESD) and transient voltage events in compact electronic circuits. Packaged in the miniature 0603 form factor, this diode offers high reliability and efficiency in safeguarding sensitive components.
Features
● 0603inch/ 1608mm foot print
● Ideal ESD protection for high frequency, low voltage
applications.
● Exceeds testing requirements outlined in IEC 61000-4-2
● Ultra low capacitance (1.5pF typ.)
● Very low leakage current
● Fast response time
● Bi-directional
● MSL 3
Applications
● High Speed Data Ports
( USB 2.0, IEEE 1394 )
● Computers & Peripherals
( Cell phone, PDA, HDTV, DVD players )
| File Name | Title | Description |
|---|---|---|

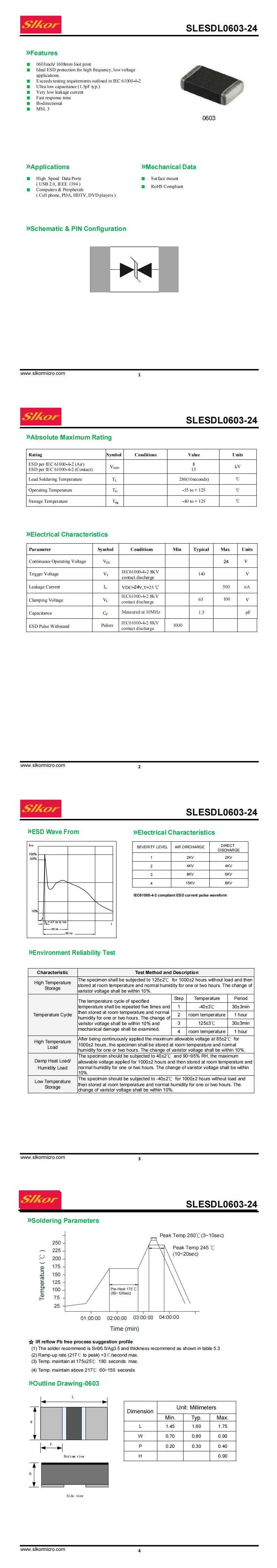

| SLESDL0603-24.pdf | SLESDL0603-24 | - |
