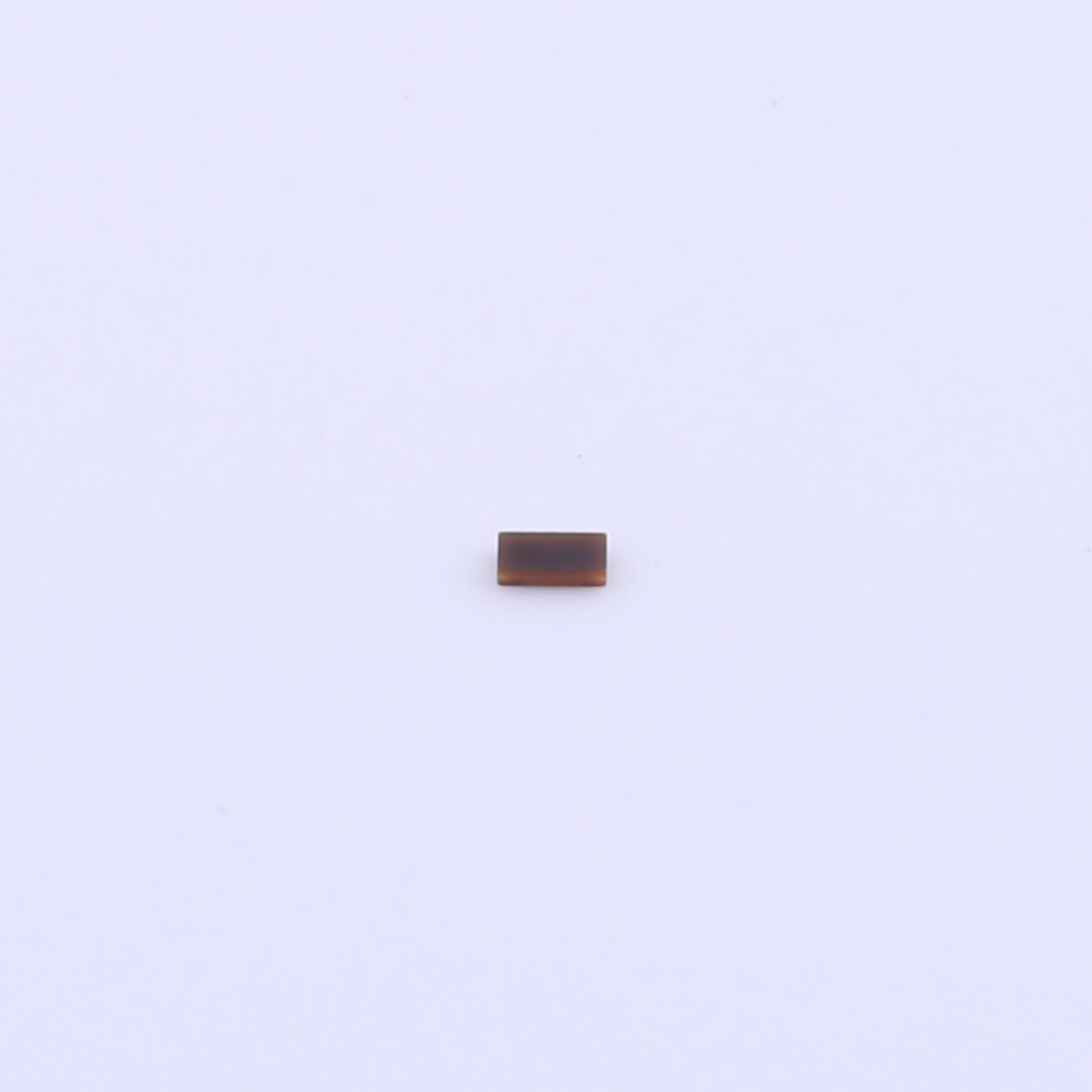

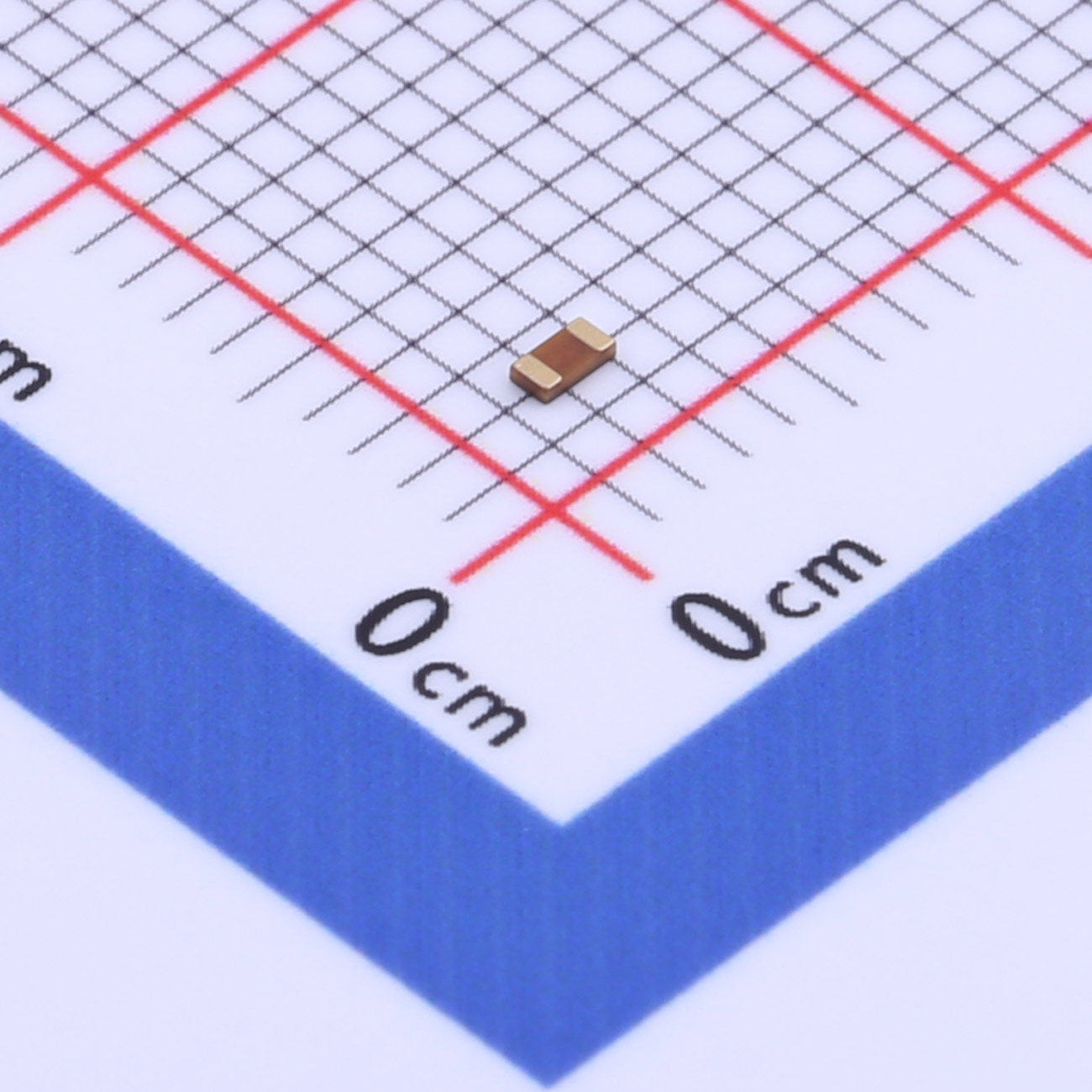

Introducing the SLPESD0603M16, an advanced surface mount transient voltage suppressor diode designed to provide unparalleled protection against electrostatic discharge (ESD) and transient voltage surges in ultra-compact electronic circuits. Housed in the miniature 0603 package, this diode delivers exceptional performance while occupying minimal board space.
Download datasheet Inquiry1 Channel Ultra - low Capacitance ESD Protection
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the SLPESD0603M16, an advanced surface mount transient voltage suppressor diode designed to provide unparalleled protection against electrostatic discharge (ESD) and transient voltage surges in ultra-compact electronic circuits. Housed in the miniature 0603 package, this diode delivers exceptional performance while occupying minimal board space.
Features
● Ultra-Low capacitance:0.05pF(typ.)
● Low leakage current(<10nA)
● Fast response time(<1ns)
● Bi-directional,single line protection
● IEC 61000-4-2 (ESD Air): 15kV
IEC 61000-4-2 (ESD Contact): 8kV
Applications
● USB 3.0/3.1
● HDMI 1.3/1.4/2.0
● RF Antenna
● SATA and eSATA Interface

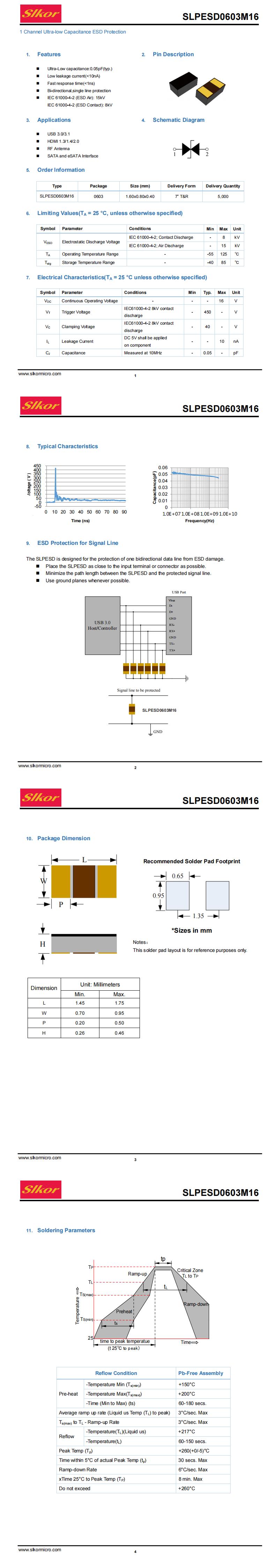

| File Name | Title | Description |
|---|---|---|
| SLPESD0603M16.pdf | SLPESD0603M16 | - |
