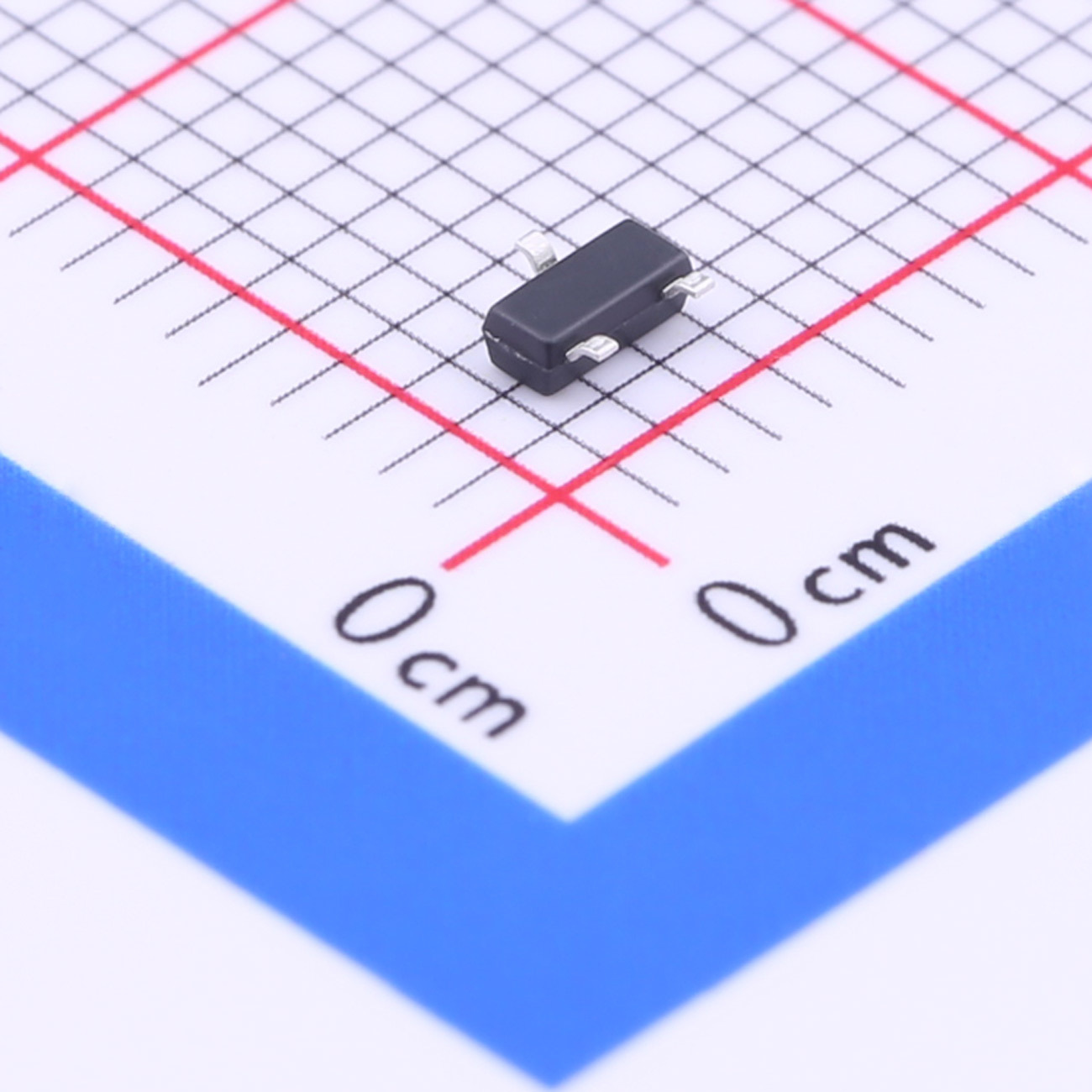

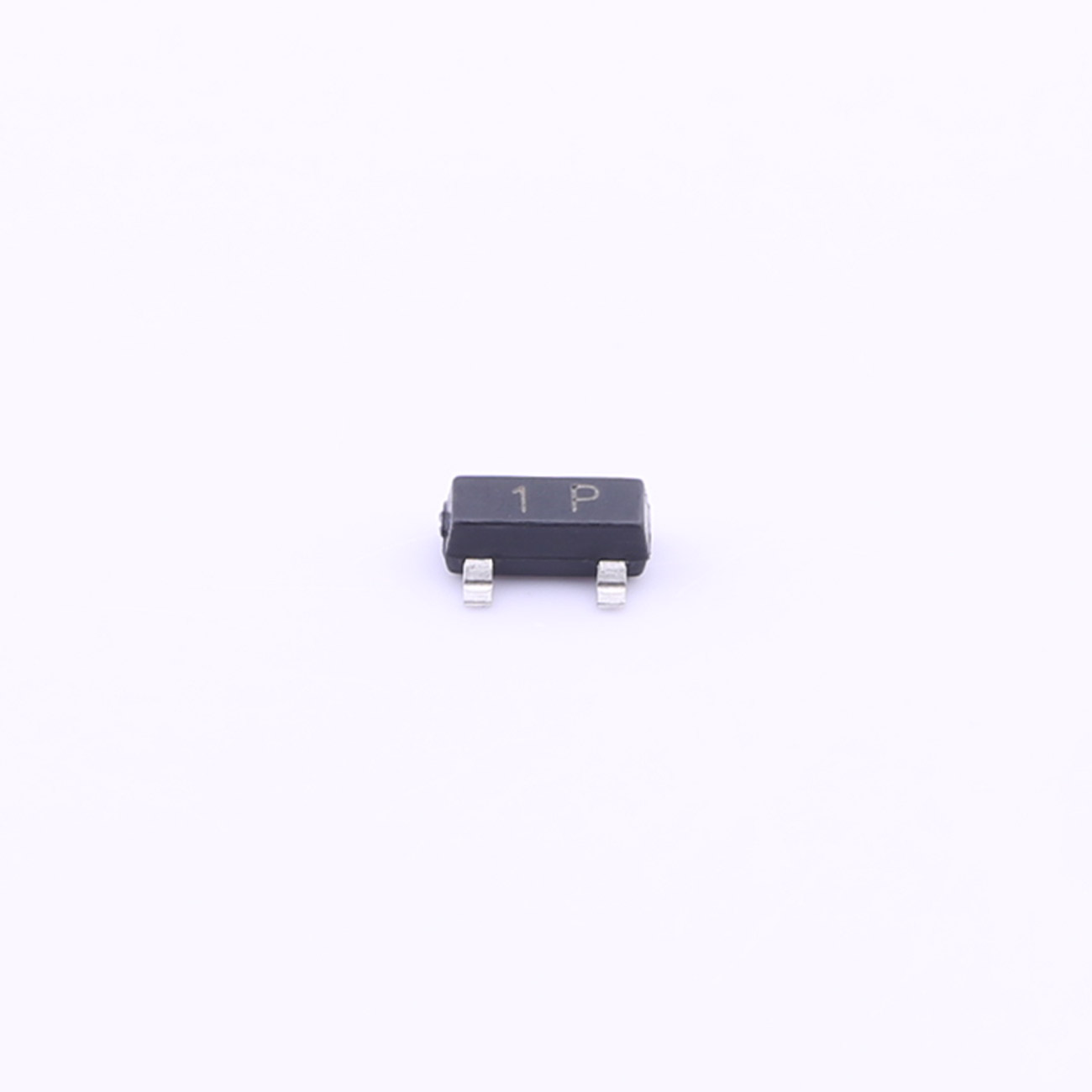

Alternative equivalent for STMicroelectronics MMBT2222A | Slkor MMBT2222A NPN Switching Transistor
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to STMicroelectronics.
| STMicroelectronics | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| BTA06-800BWRG | BTA06-800B | SCR | TO-220 |
| BTA08-800BWRG | BTA08-800B | SCR | TO-220 |
| BTA12-600BWRG | BTA12-600B | SCR | TO-220 |
| BTA16-800BWRG | BTA16-800B | SCR | TO-220 |
| BTA24-800BWRG | BTA24-800B | SCR | TO-220 |
| BTA26-800BWRG | BTA26-800B | SCR | TO-3P |
| BTA41-800BRG | BTA41-800B | SCR | TO-3P |
| BTA41-1200BRG | BTA41-1200B | SCR | TO-3P |
| ZMM5V1 | ZMM5V1 | Zener Diode | LL-34 |
| TIP122 | TIP122 | Darlington Array | TO-220 |
| TIP127 | TIP127 | Darlington Array | TO-220 |
| ULN2001D1013TR | ULN2001D | Darlington Array | SOP-16 |
| L4949 | SL4949 | Linear Regulator | SOP-8 |
| LM317T-DGZ | LM317 | Linear Regulator | TO-220 |
| LMV321ILT | LMV321 | Op-amp | SOT-23-5 |
| M24C02-WMN6TP | SL24C02D | EEPROM | SOP-8 |
| MMBTA42 | MMBTA42 | Transistor | SOT-23 |
| MMBT4401 | MMBT4401 | Transistor | SOT-23 |
| MMBT5551 | MMBT5551 | Transistor | SOT-23 |
| MMBT5401 | MMBT5401 | Transistor | SOT-23 |
| MMBT3904 | MMBT3904 | Transistor | SOT-23 |
| MMBT3906 | MMBT3906 | Transistor | SOT-23 |
| MMBT2222A | MMBT2222A | Transistor | SOT-23 |
| D44H11 | SL44H11 | Transistor | TO-220-3L |
Description
? NPN switching transistor in a SOT23 plastic package. PNP complement: PMBT2907A.
Features
? High current (max. 600 mA)
? Low voltage (max. 40 V)
Applications
? Switching and linear amplification.
Quick reference data
|
Symbol |
Parameter |
Conditions |
Max |
Unit |
|
VCEO |
collector-emitter voltage |
open base |
40 |
V |
|
IC |
collector current |
0.6 |
A |
|
|
VCEsat |
collector-emitter saturation voltage |
IC = 500mA; IB = 50mA |
1 |
V |
| File Name | Title | Description |
|---|---|---|

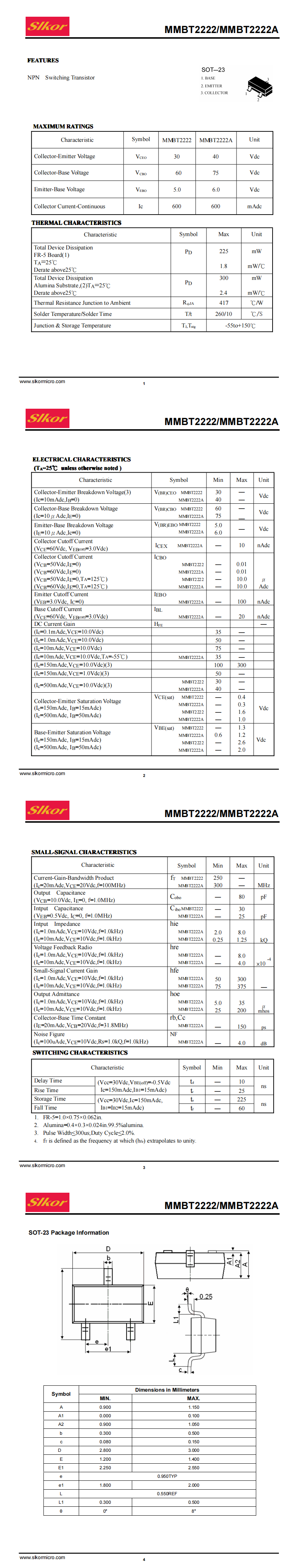

| C400799_NPN40V600MA_2019-06-27.PDF | C400799_NPN40V600MA_2019-06-27 | - |
