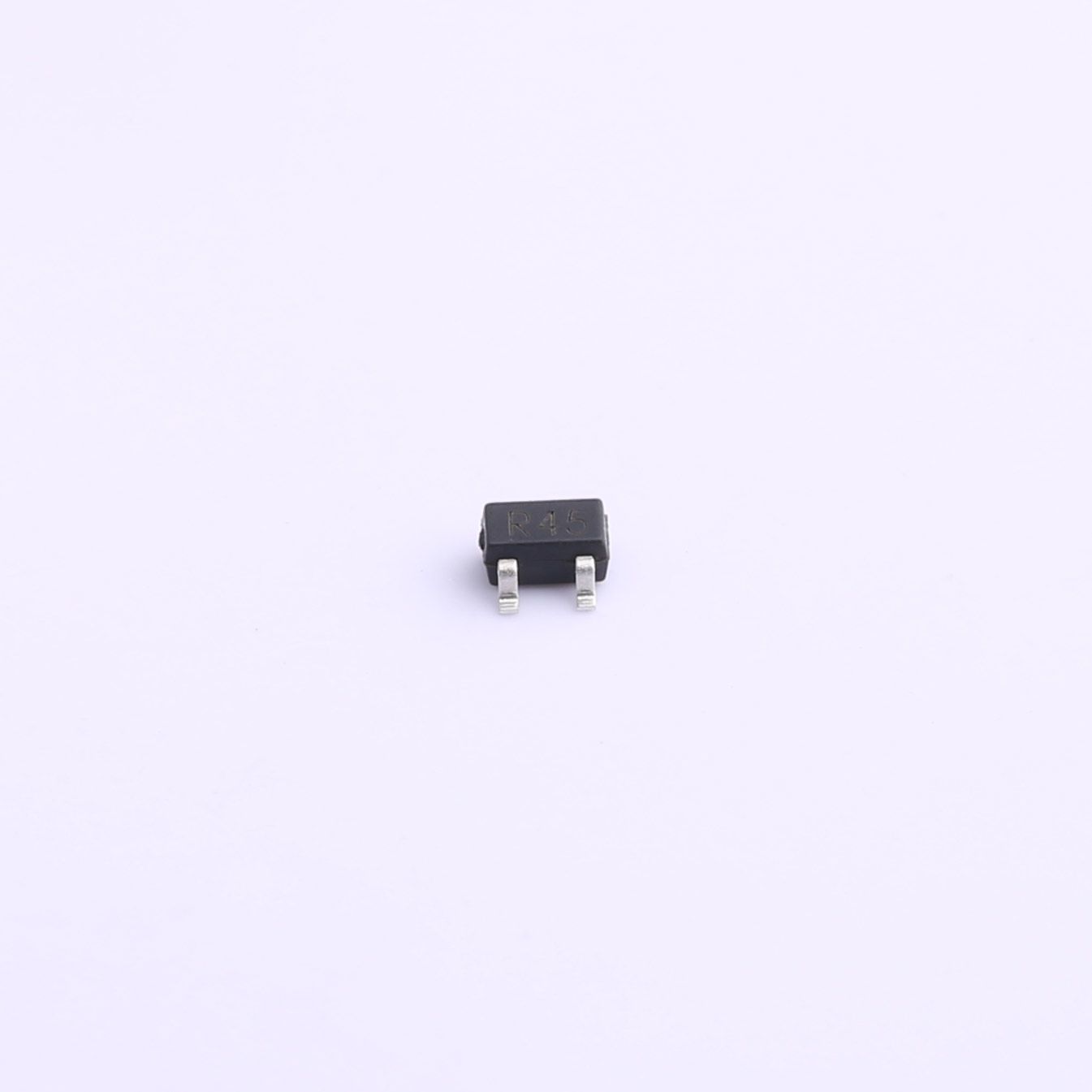

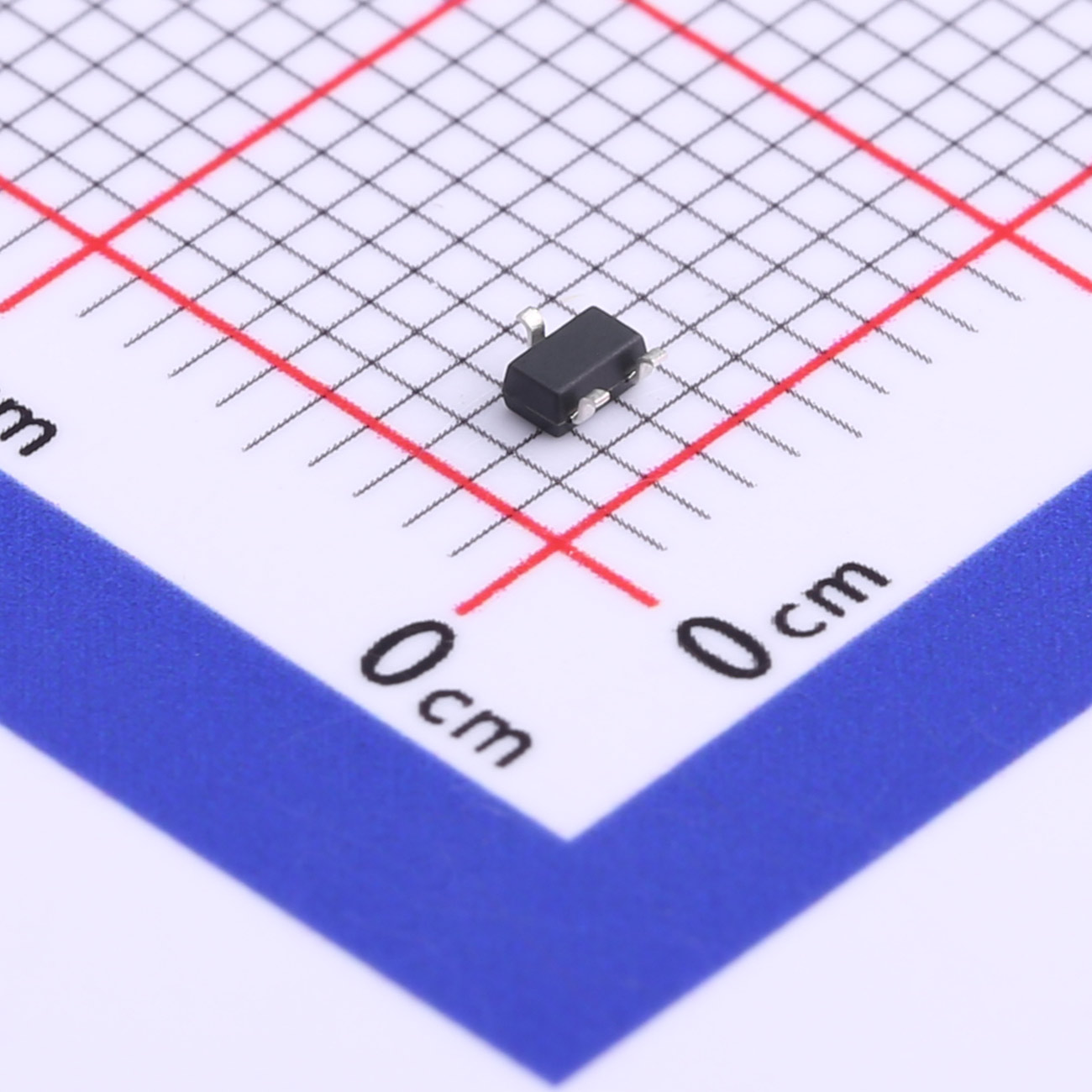

Triode 2SC4228 R45
Download datasheet Inquiry
| File Name | Title | Description |
|---|---|---|

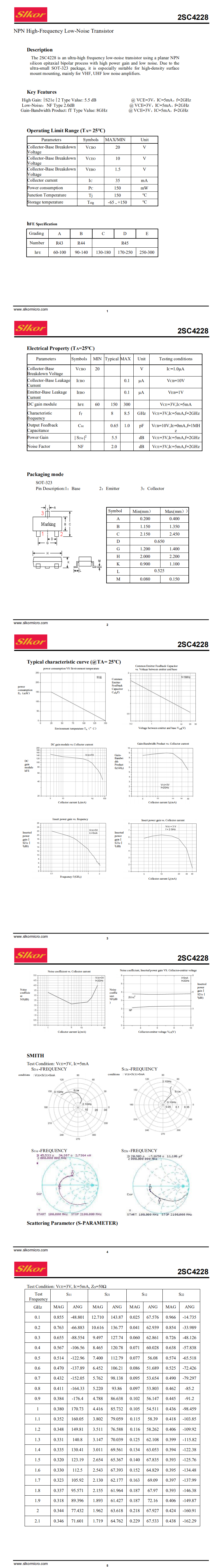

| 2SC4228 R45 SOT-323.pdf | 2SC4228 R45 SOT-323 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The 2SC4228 is an ultra-high-frequency low-noise transistor using planar NPN silicon epitaxial bipolar technology. It features high power gain and low noise characteristics. Due to its ultra-small SOT-323 package, it is particularly suited for high-density surface-mount applications. It is primarily used in VHF and UHF low-noise amplifiers.
The 2SC3585 is an ultra-high-frequency low-noise transistor using planar NPN silicon epitaxial bipolar technology. It features high power gain, low noise figure, wide dynamic range, and ideal current characteristics. It comes in a SOT-23-3L surface-mount package and is primarily used in VHF, UHF, and CATV high-frequency broadband low-noise amplifiers.
Triode 2SC3585 R45
Vceo:12V Ic:100mA Pd:1000mW VCE:- fT:10GHz Working temperature:150℃@(Tj)
Vceo:6V Ic:80mA Pd:380mW VCE:- fT:11GHz Working temperature:150℃@(Tj)
Vceo:12V Ic:100mA Pd:150mW VCE:- fT:8GHz Working temperature:150℃@(Tj)
Vceo:4.5V Ic:100nA Pd:135mW VCE:- fT:25GHz Working temperature:150℃@(Tj)
Vceo:15V Ic:300mA Pd:2000mW VCE(sat):- fT:8.5GHz Working temperature:-40℃~150℃@(Tj)
