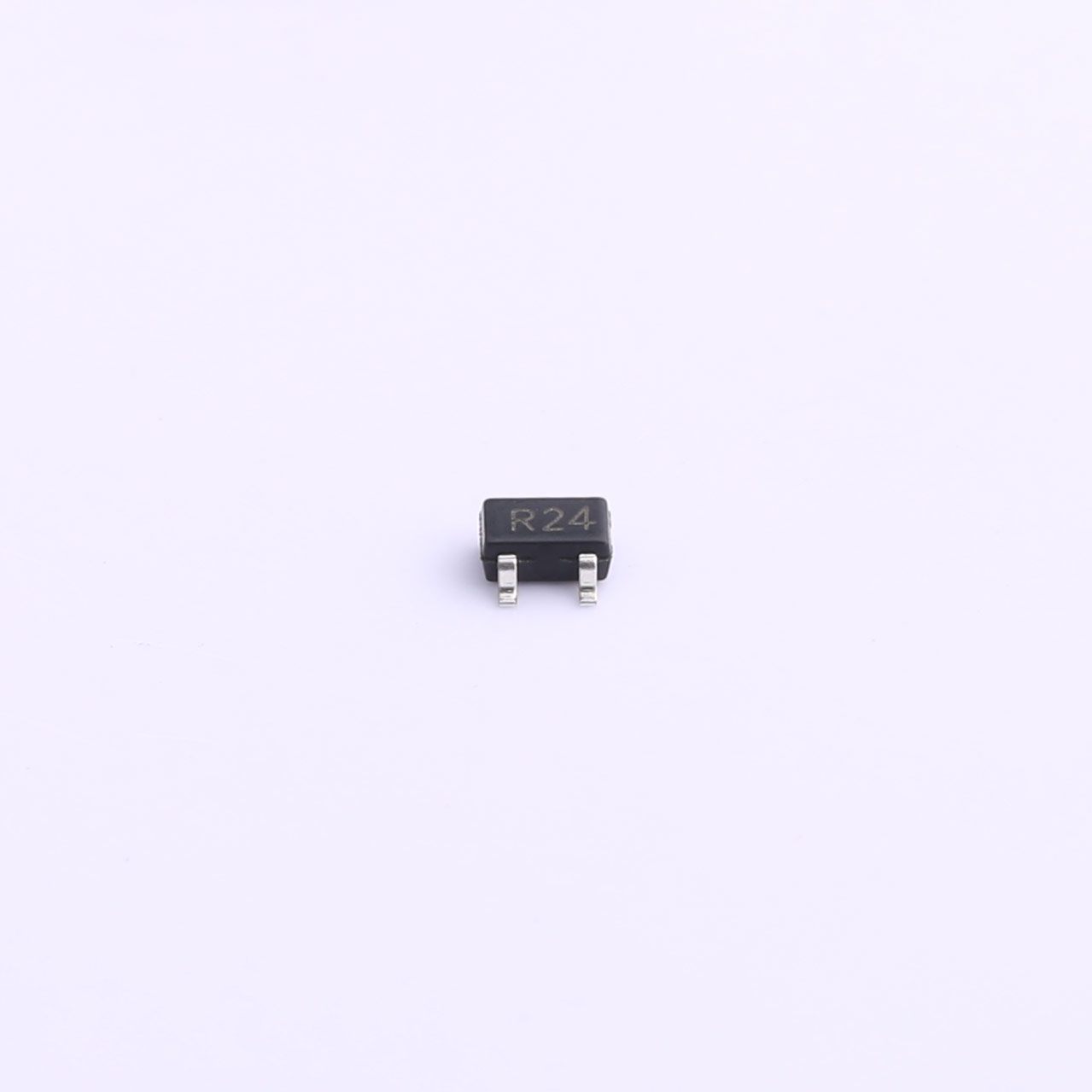

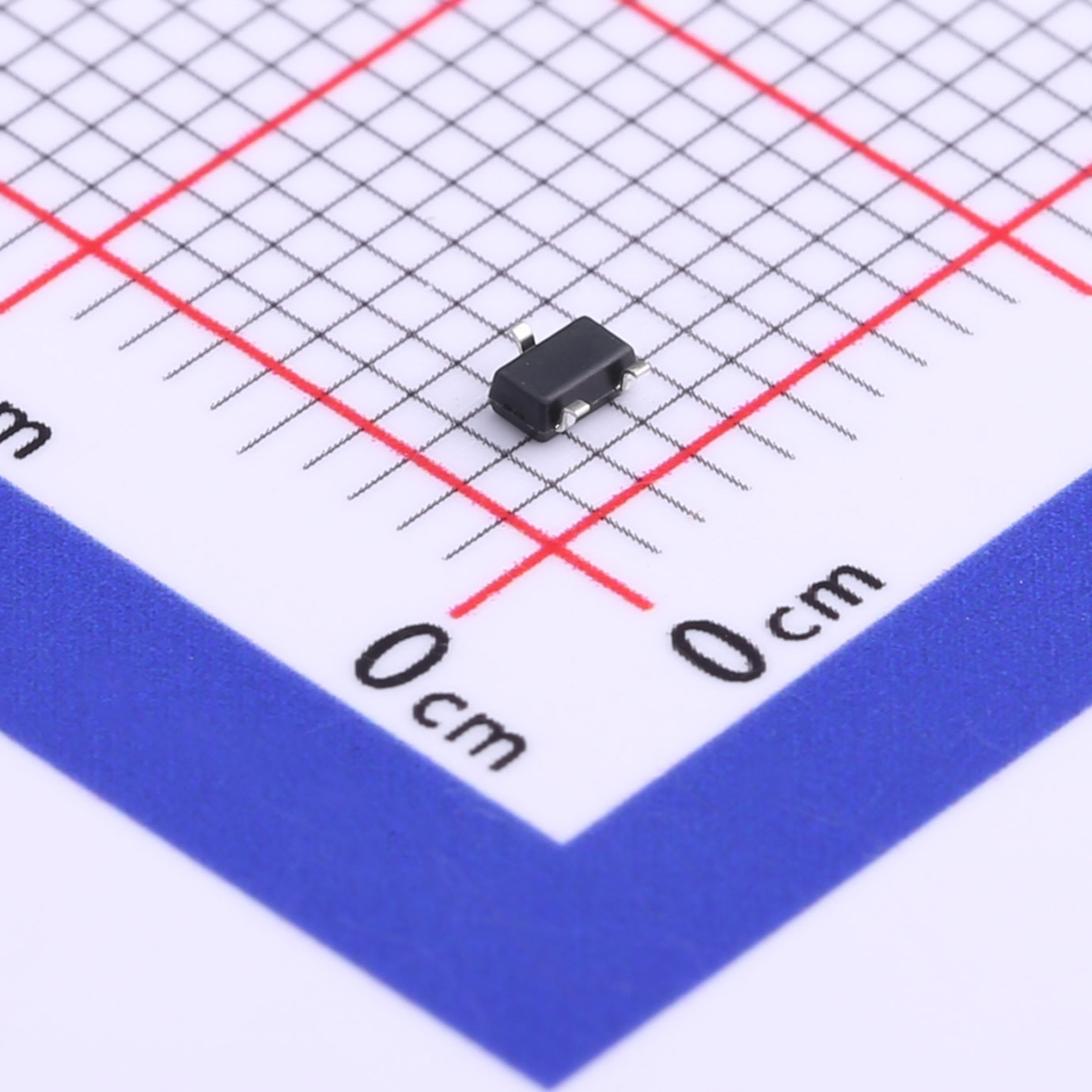

2SC4226 R24 BJT Transistor SOT-323
Download datasheet InquiryNPN Silicon Epitaxial Planar Transistor
FEATURES
Low noise.
High gain.
Power dissipation. (Pc=150mW)
APPLICATIONS
High frequency low noise amplifier.
| File Name | Title | Description |
|---|---|---|
| 2SC4226 R24 SOT-323.pdf | 2SC4226 R24 SOT-323 | - |
