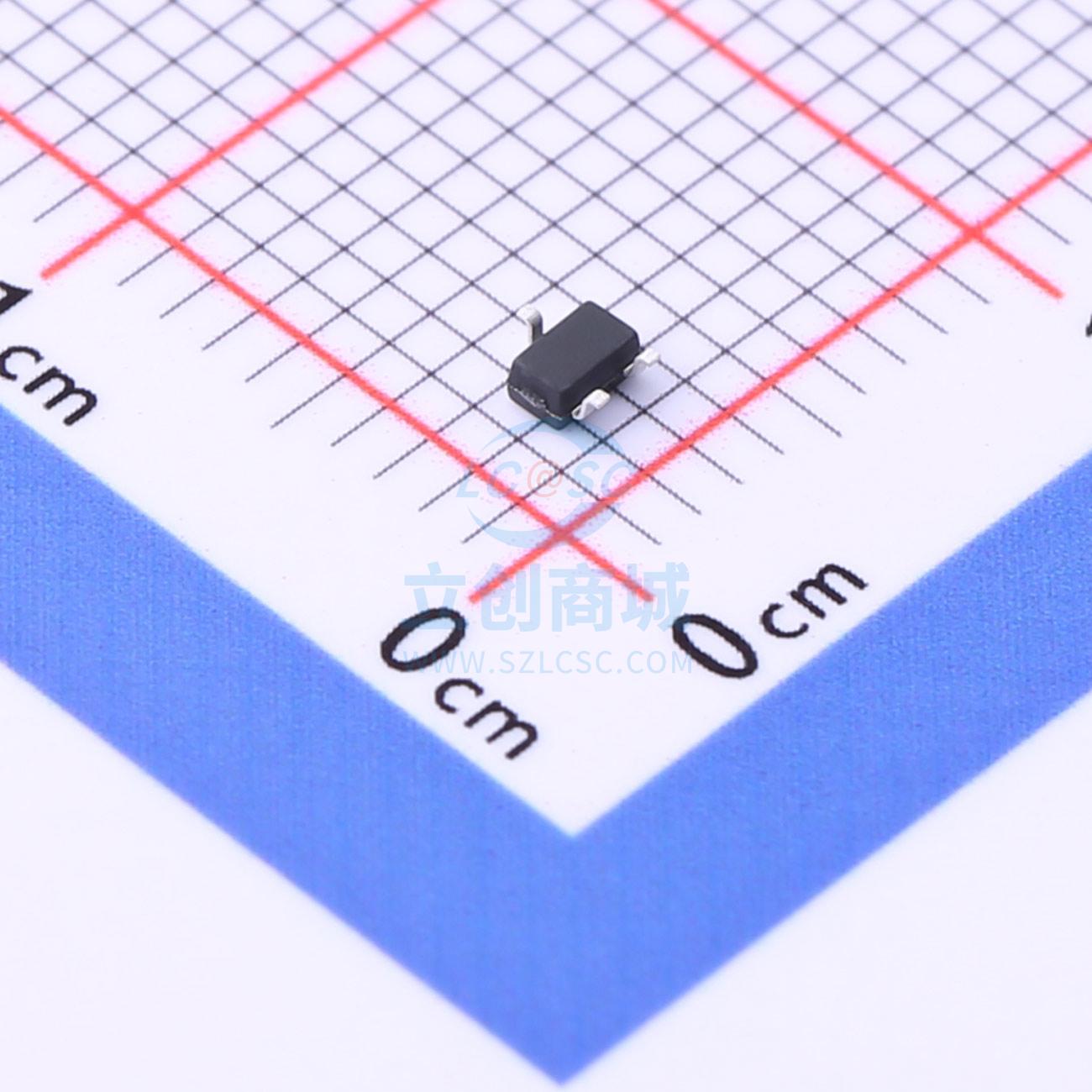

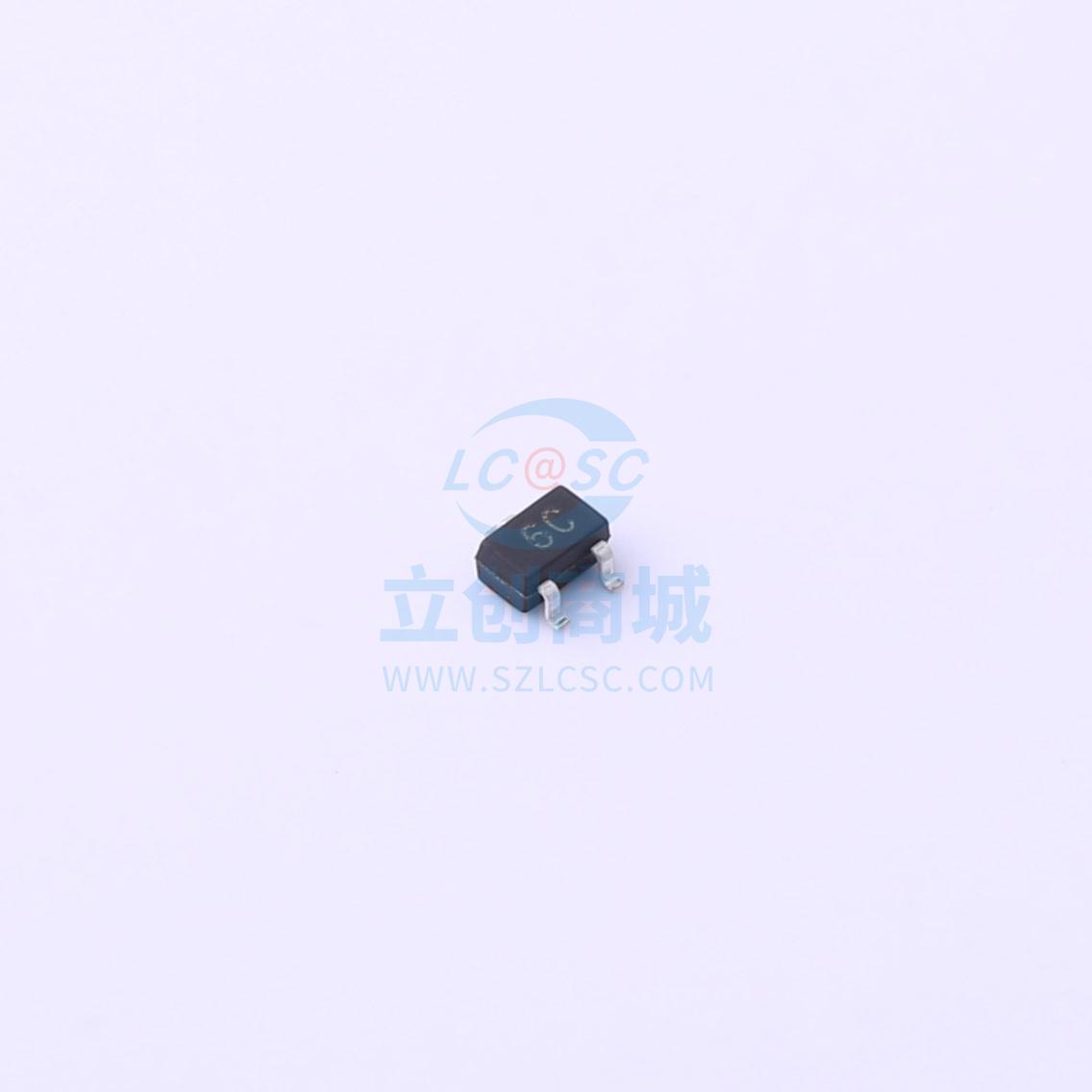

BC817-40W NPN BJT Transistor SOT-323
Download datasheet InquiryNPN Transistor
Features
For General AF Applications
High Collector Current
High Current Gain
Low Collector-Emitter Saturation Voltage
| File Name | Title | Description |
|---|---|---|

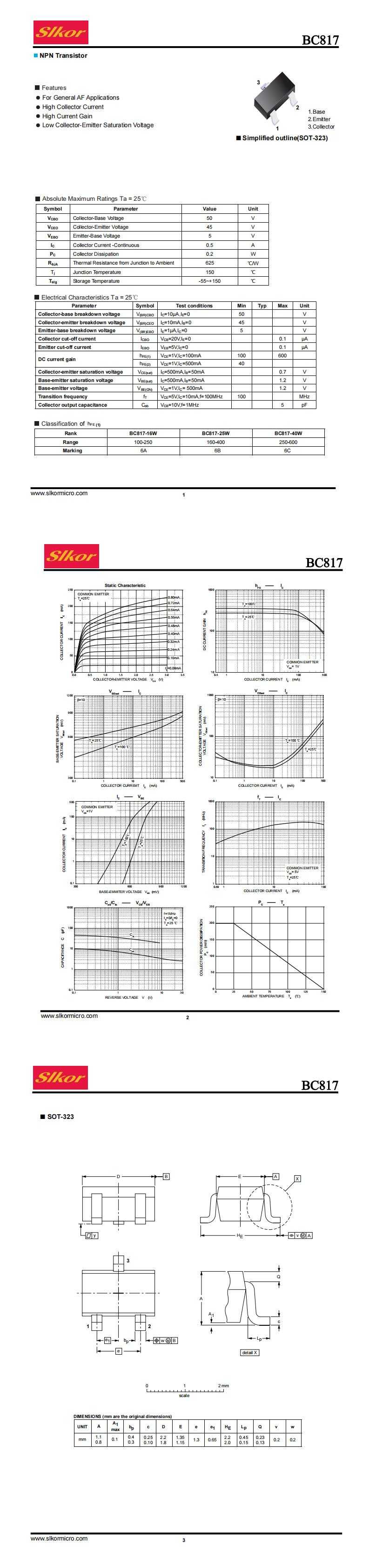

| BC817-40W SOT-323.pdf | BC817-40W SOT-323 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vceo:6V Ic:80mA Pd:380mW VCE:- fT:11GHz Working temperature:150℃@(Tj)
Vceo:12V Ic:100mA Pd:150mW VCE:- fT:8GHz Working temperature:150℃@(Tj)
VCC(V)：50V IO(mA)：50mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
VCC(V)：50V IO(mA)：100mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
The DTC143EUA NPN Digital Transistor SOT-323 is designed for efficient, high-frequency performance in compact applications. This transistor operates with a maximum collector-emitter voltage (VCC) of 50V and a high current handling capability of up to 100mA. Featuring a low input voltage for turn-off (VI(off)) of 0.5V and a turn-on voltage (VI(on)) of 3V, it ensures reliable switching operations. With an impressive transition frequency (fT) of 250MHz, this component delivers superior speed and performance. The transistor comes in a space-saving SOT-323 package, ideal for modern electronic designs where size and efficiency are critical.
The UMC3N NPN+PNP Digital Transistor SOT-323 is a high-performance component designed to meet rigorous electronic needs. With a VCC of -50V and an IO rating of -50mA, this transistor provides robust performance for various circuits. The voltage thresholds are finely tuned with VI(off) at -0.5V and VI(on) at -3V, ensuring precise control over signal flow. With a high transition frequency of 250MHz, this transistor excels in high-speed applications. Packaged in the compact SOT-353, it is ideal for space-constrained environments.
This transistor is engineered to operate efficiently at high frequencies while maintaining a robust operating range. With a maximum collector-emitter voltage of -50V and a high transition frequency of 250MHz, it ensures reliable operation for demanding electronic circuits.
The 2SC4228 is an ultra-high-frequency low-noise transistor using planar NPN silicon epitaxial bipolar technology. It features high power gain and low noise characteristics. Due to its ultra-small SOT-323 package, it is particularly suited for high-density surface-mount applications. It is primarily used in VHF and UHF low-noise amplifiers.
