Designed primarily for SSB linear power amplifier applications
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
Designed primarily for SSB linear power
amplifier applications
Features
? Specified 12.5V, 27MHz Characteristics
? PO = 4W PEP
? ft = 200 MHz
Applications:
The 2SC2078 transistor finds applications in various high-power electronic circuits, including:
| File Name | Title | Description |
|---|---|---|

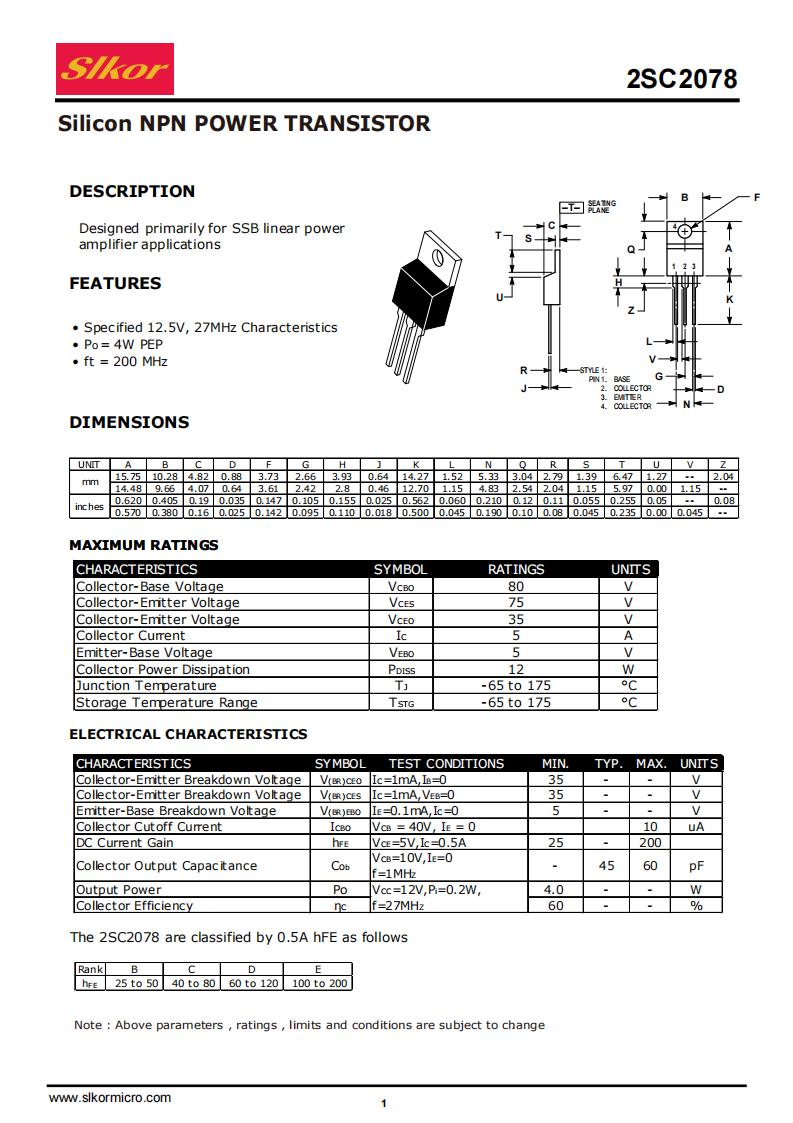

| 2SC2078.pdf | 2SC2078 | - |
