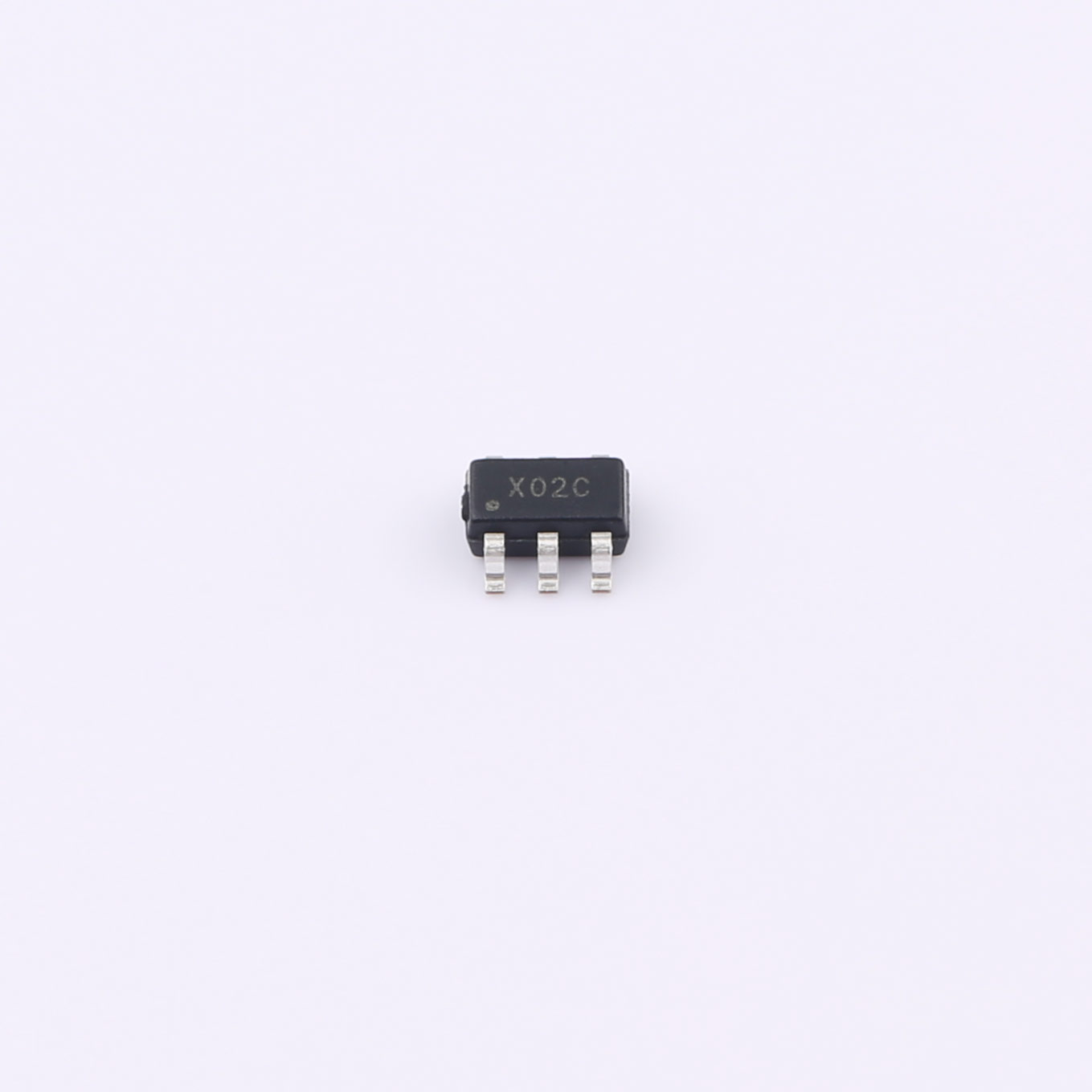

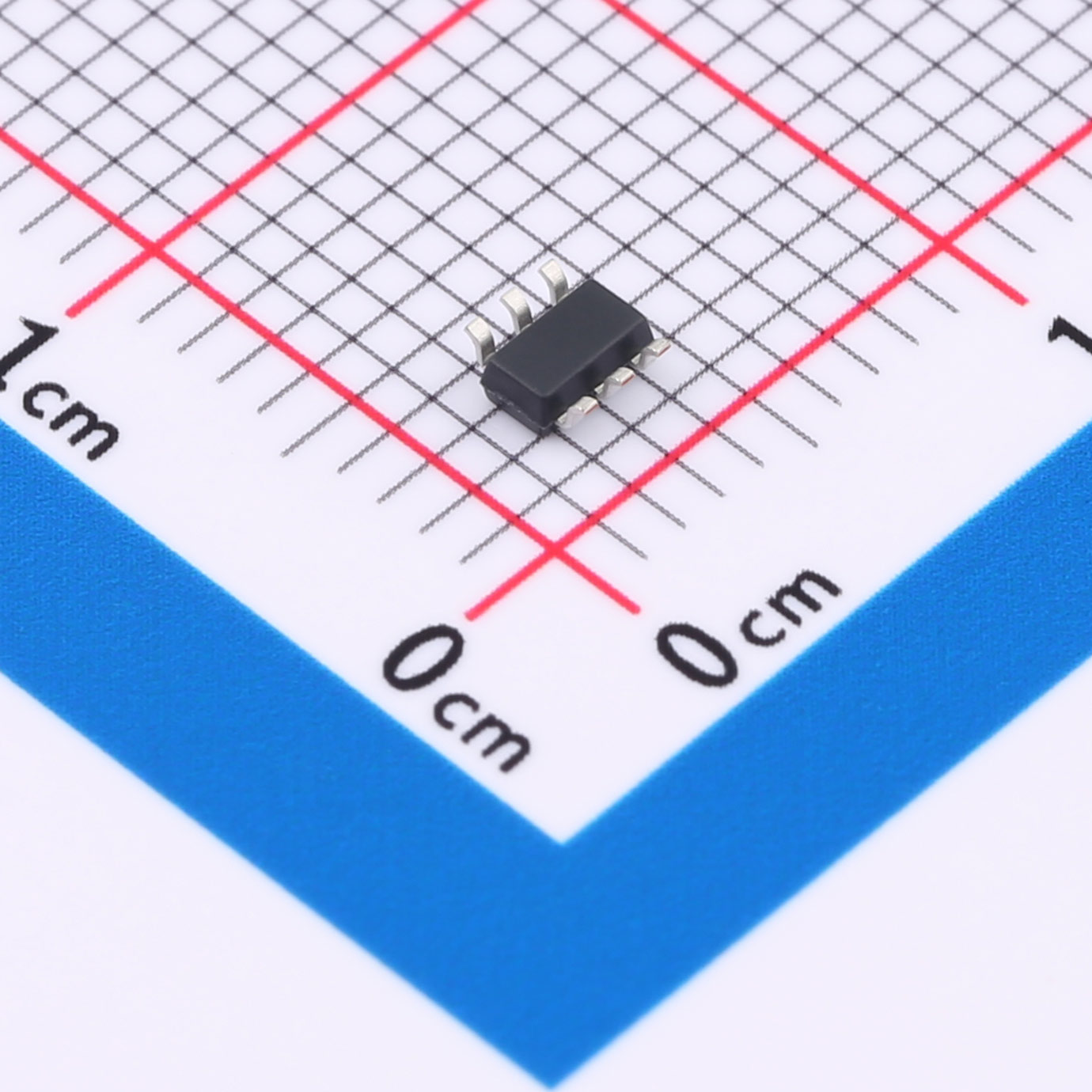

SL101S101 is a 10-bit ADC (Analog-to-Digital Converter) chip with the basic characteristics of high accuracy, high speed, low power consumption, small size and unipolarity. The converter is based on a successive approximation register architecture with an internal sample-and-hold circuit.
Download datasheet InquiryChinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
SL101S101 is a 10-bit ADC (Analog-to-Digital Converter) chip with the basic characteristics of high accuracy, high speed, low power consumption, small size and unipolarity. The converter is based on a successive approximation register architecture with an internal sample-and-hold circuit. The converter is divided into two versions:
The SL101S101 version uses a single power supply of 4 V to 5.25 V, and its performance parameters cover 500KSPS to 800KSPS;
The SL101S101E version uses a single power supply of 3.3 V to 4.8 V, and its performance parameters cover 800KSPS to 1000KSPS. Both versions are currently packaged in a 6-pin SOT-23 package and have an operating temperature range of -40 to 85. SL101S101 can pin-to-pin replace ADC101S101. Moreover, the dynamic power consumption at high voltage is less than 1/2, which significantly extends the battery operating time.
Features
● SL101S101 sampling rate：500–800KSPS
SL101S101E sampling rate：800–1000KSPS
● SL101S101 voltage range：4Vto5.25V
SL101S101E voltage range：3.3Vto4.8V
● 10-bitresolution
● Low power（SL101S101typicalvalue） 5.09mW
(5V, 800 KSPS) 3.18mW (4V, 800 KSPS)
● Maximum deviation±1LSB INL, ±1LSB DNL
● 0—VA unipolar single channel input
● SPI,QSPI?, MICROWIRE?, DSPserial Interface
● 6pin SOT-23package
Applications:
● Portable systems
● Remote data collection
● Instrumentation and control systems
● Optical sensors
● Battery powered system

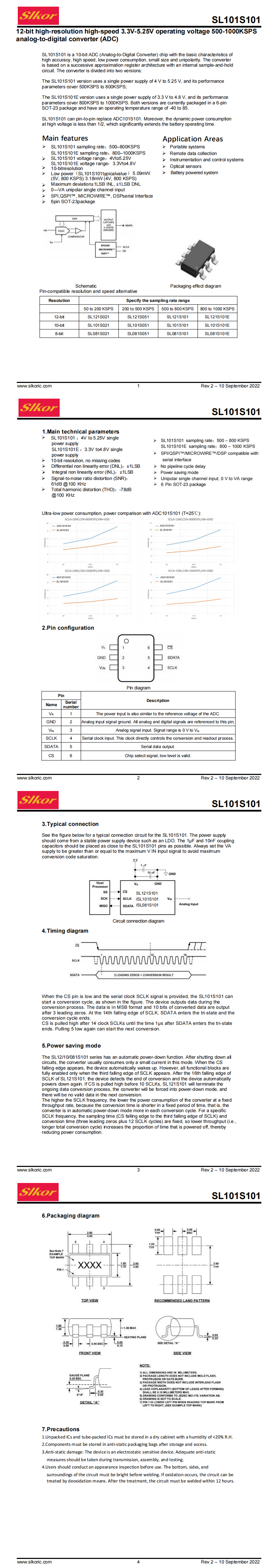

| File Name | Title | Description |
|---|---|---|
