● SL081S101 sampling rate：500 – 800 KSPS
SL081S101E sampling rate：800 – 1000 KSPS
● SL081S101 voltage range：4 V to 5.25 V
SL081S101E voltage range：3.3V to4.8 V
● 8-bit resolution
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
SL081S101 is a 8 -bit ADC (Analog-to-Digital Converter) chip with the basic characteristics of high resolution, high speed, low power consumption, small size and unipolarity. The converter is based on a successive approximation register architecture with an internal sample-andhold circuit. The converter is divided into two versions: The SL081S101 version uses a single power supply of 4 V to 5.25 V, and its performance parameters cover 500KSPS to 800KSPS; The SL081S101E version uses a single power supply of 3.3 V to 4.8 V, and its performance parameters cover 800KSPS to 1000KSPS. Both versions are currently packaged in a 6-pin SOT-23 package with an operating temperature range of -40℃ to 85℃. SL081S101 can pin-to-pin replace ADC081S101, the dynamic power consumption at high voltage is less than 1/2, which significantly extends the battery operating time.
Features
● SL081S101 sampling rate：500 – 800 KSPS
SL081S101E sampling rate：800 – 1000 KSPS
● SL081S101 voltage range：4 V to 5.25 V
SL081S101E voltage range：3.3V to4.8 V
● 8-bit resolution
● Low power（SL081S101 typical value）
5.10mW （5V ，800 KSPS）
2.95mW（4V ，800 KSPS）
● Maximum deviation ±0.5LSB INL，±0.5LSB DNL
● 0—VA unipolar single channel input
● SPI, QSPI, MICROWIRE, DSP s erial Interface

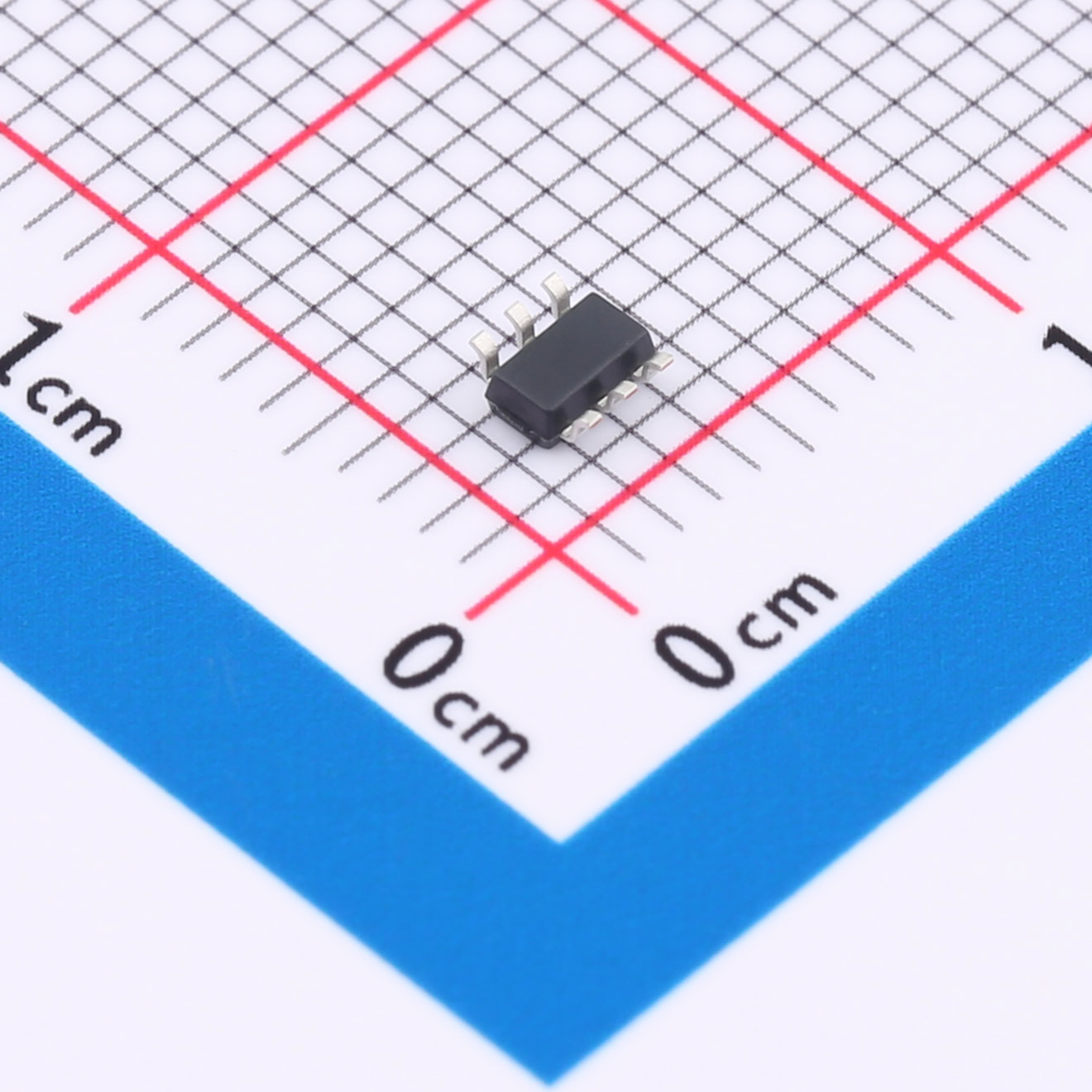

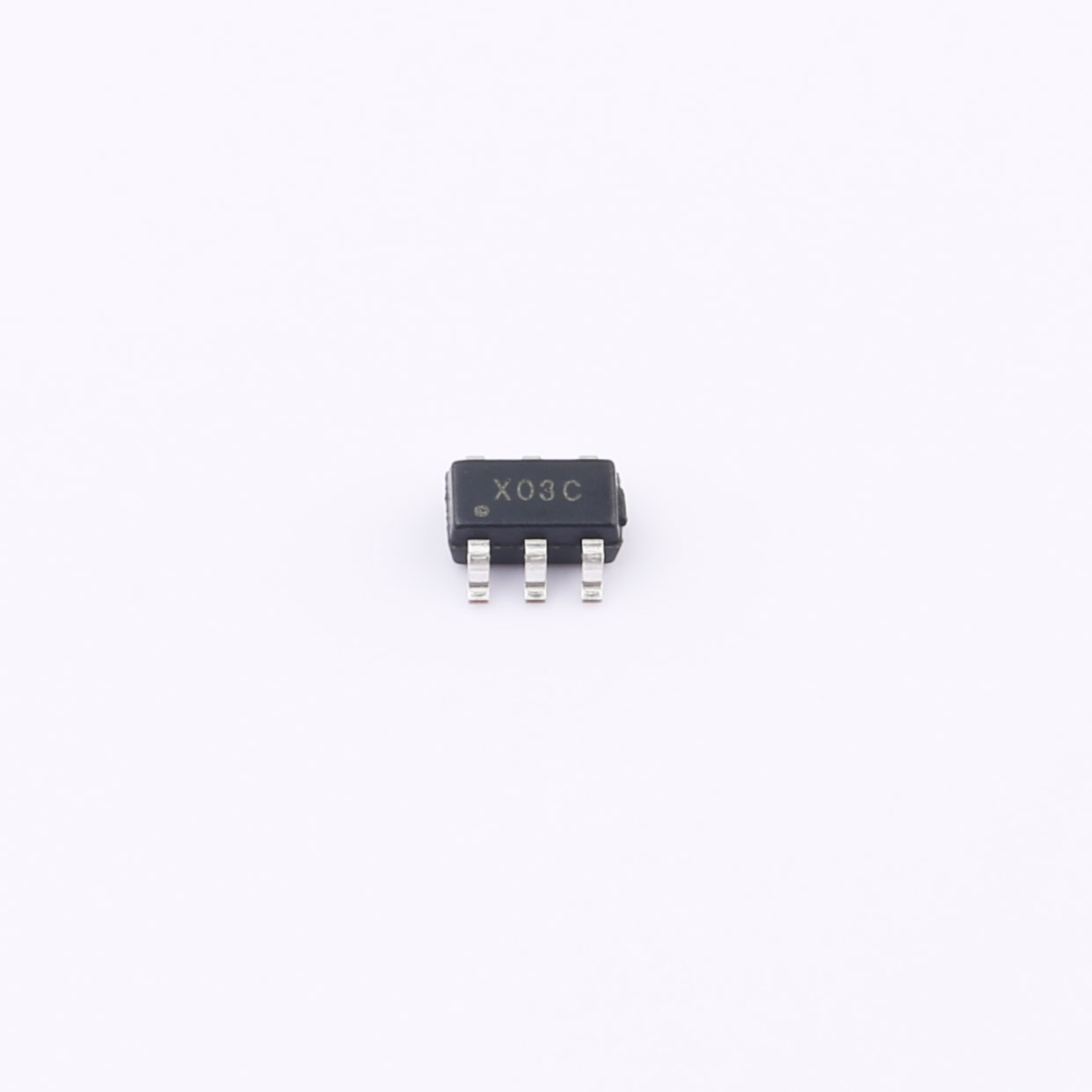

● 6 pinSOT-23 package
Applications:
● Portable systems
● Remote data collection
● Instrumentation and control systems
● Optical sensors
● Battery powered syste
