Voltage Range: 3.3V~5.25V
Sampling Rate: 200~500KSPS
Resolution: 8

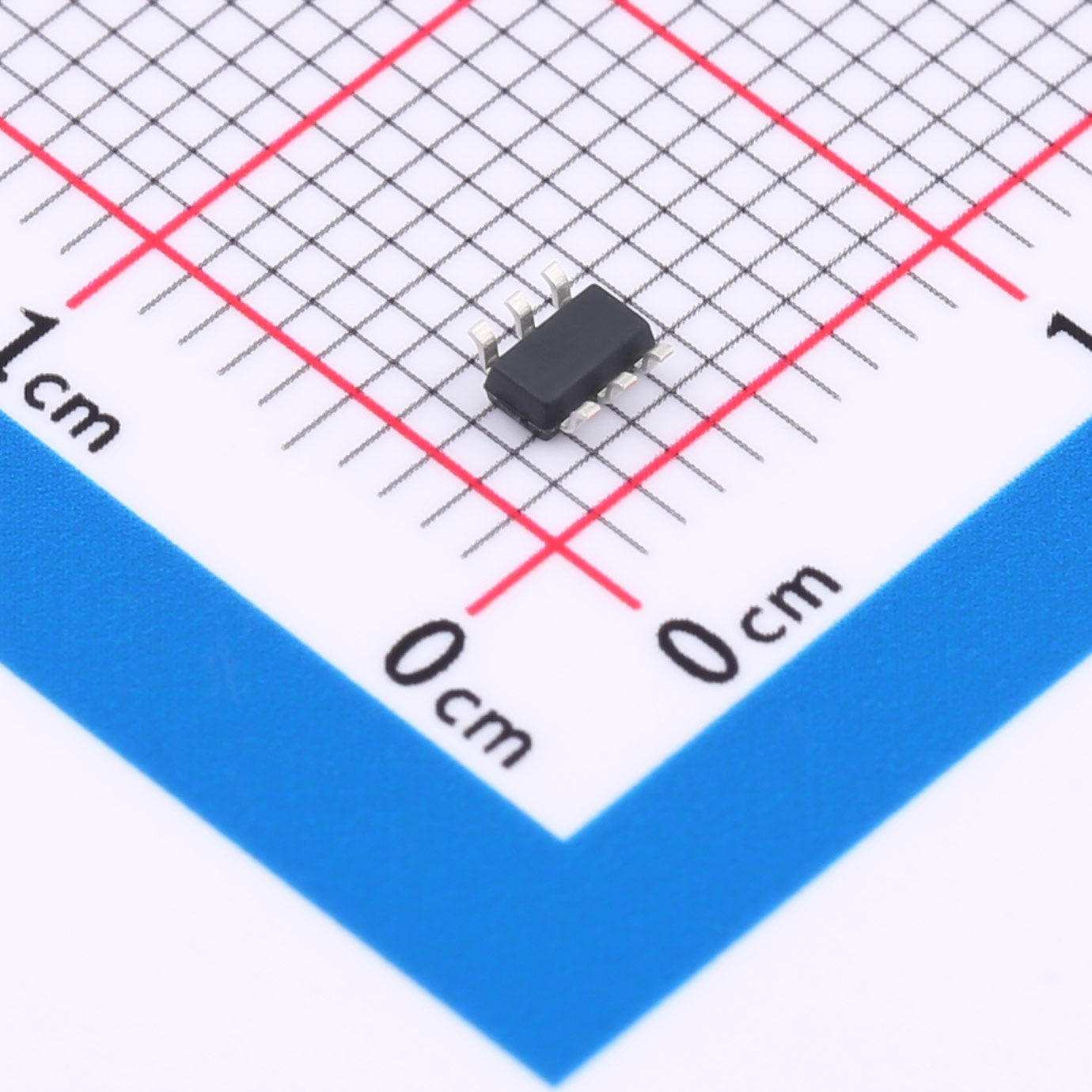

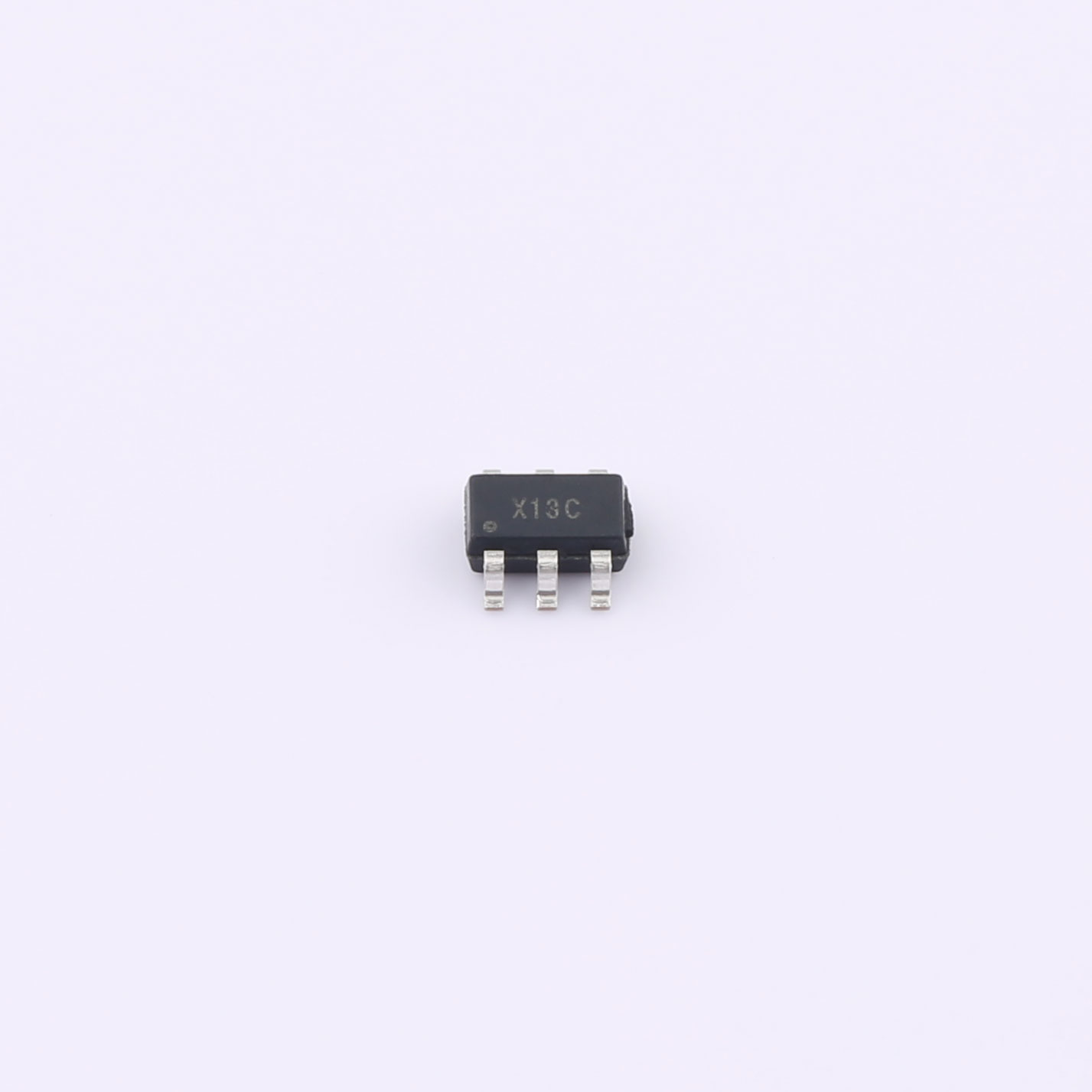

Package: SOT-23-6
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
SL081S051 is a 12-bit ADC (Analog-to-Digital Converter) chip with the basic characteristics of high resolution, low power consumption, small size and unipolarity. The performance parameters of SL081S051 cover a wide sampling range of 200KSPS to 500KSPS, and are not only valid at a specific sampling rate. The converter is based on a successive approximation register architecture with an internal sample-and-hold circuit. SL081S051 is powered by a single power supply of 3.3 V to 5.25 V and has a power saving mode.
Features
● Sampling rate: 200 – 500 KSPS
● 8-bit resolution
● Supply voltage range: 3.3V to 5.25V
● Low power consumption (typical)
3.60mW（5V ，500 KSPS）
1.40mW（3.3V ， 500KSPS）
● Maximum error ±0.5LSB INL，±0.5LSB DNL
● 0—VA uni-polar single channel input
● SPI, QSPI, MICROWIRE, DSP serial interface
● 6 pin SOT-23 package
Applications:
● Portable systems
● Remote data collection
● Instrumentation and control systems
● Optical sensors
● Battery powered syste
| File Name | Title | Description |
|---|---|---|
| SL121S051 .pdf | SL121S051 | - |
