◆ 0-VDD unipolar single channel input
◆ SPI/QSPI/MICROWIRE Compatible Serial Interface
◆ Pin-compatible replacements.
◆ Operating temperature range from -40°C to 85°C
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
● No pipeline cycle delay.
● Ultra-low power consumption. Up to 250KSPS.12bit at 5V.250KSPS typical power consumption of 2.8mW.
● Convenient power supply/serial clock speed management.The conversion rate is determined by the serial clock,and the conversion time can be reduced by increasing the serial clock speed.
● The conversion rate is determined by the serial clock, and the conversion time can be reduced by increasing the serial clock speed. ● Automatic power-down after conversion reduces average power consumption during power-down.

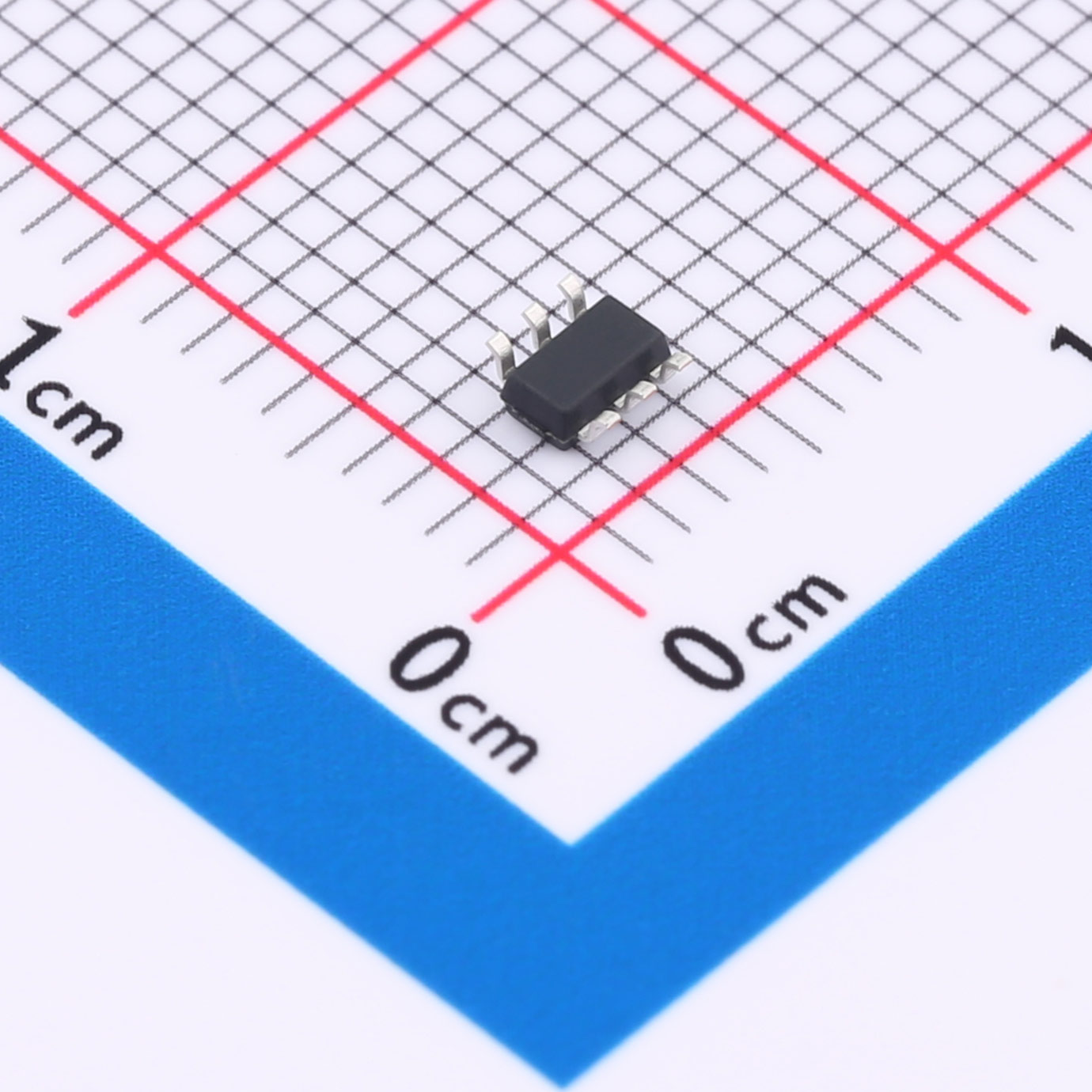

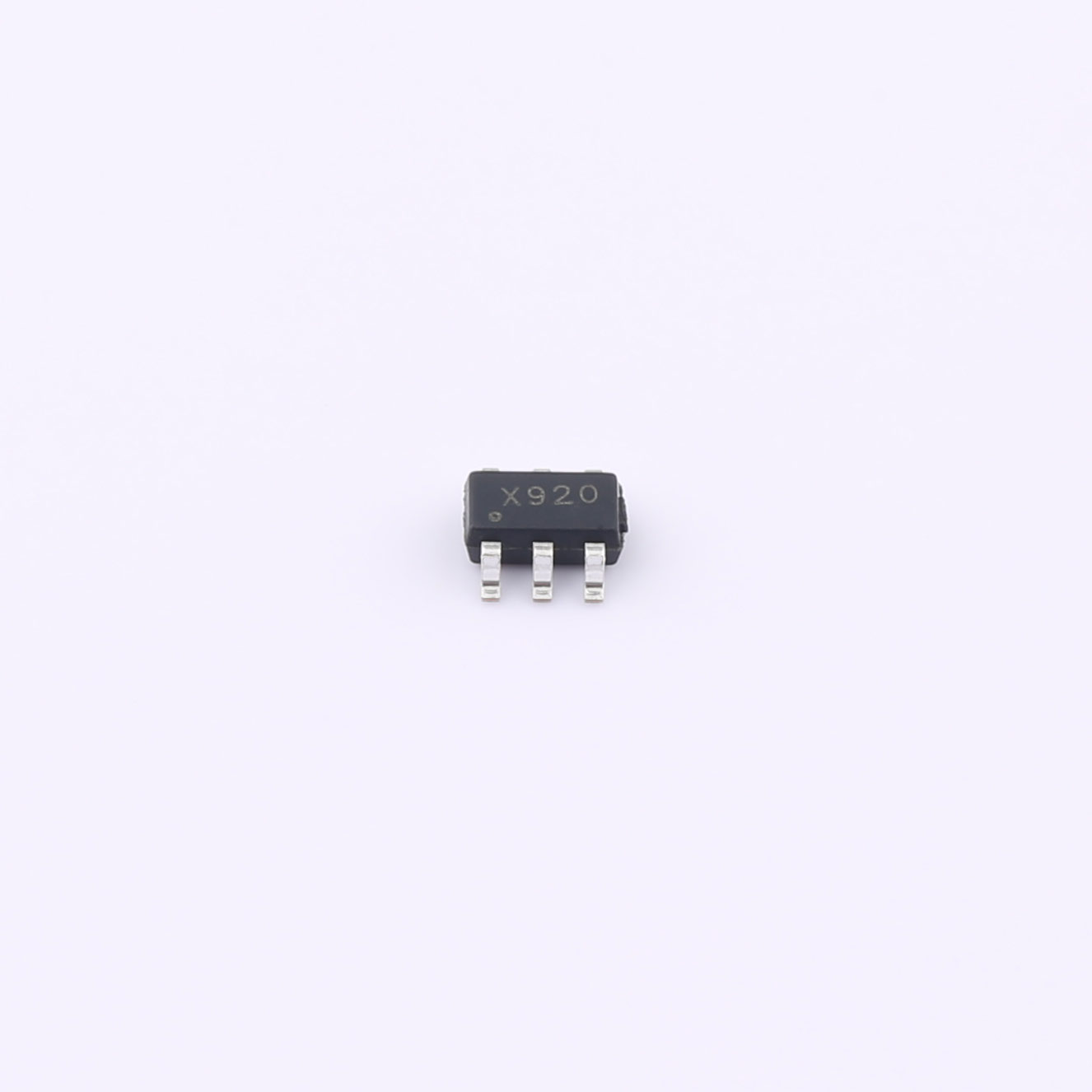

● The SL7910/SL7920 are 10/12-bit ADC (Analog-to-Digital Converter)chips, featuring ultra-low power consumption, compact size, unipolar, single-ended inputs. These products operate with a single supply voltage ranging from 3.3V to 5.25V, with a maximum sampling rate of 250KSPS.They come in a 6-pin SOT-23 package and have an operating temperature range of -40°C to 85°C.
● The SL7910/SL7920 can be pin-to-pin replacements for the AD7910/AD7920.while consuming less than one-third of their dynamic power, significantly extending battery life.
Features
● 3.0V-4.5V single power supply (SL11661A/63A/65A)
3.3V-5.25V single supply (SL11661/63/65)
● Maximum sampling rate 1 MSPS (SL11661A/63A/65A)
● Maximum sampling rate 500 KSPS (SL11661/63/65)
● Automatic shutdown
● Ultra-low power consumption (12bit typical)
1.6mW (3.3 V, 500KSPS)
2.4mW (4 V, 500KSPS)
● Tolerance ±0.5LSB INL, ±0.5LSB DNL
Applications:
● Communication system
● Data acquisition systems
● Handheld Portable Devices
● Uninterruptible Power Supply Equipment
● Battery powered systems
● In-vehicle electronics
| File Name | Title | Description |
|---|---|---|
| SL7920.pdf | SL7920 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Voltage Range: 3.3V to 5.25V Sampling Rate: 50 to 200 KSPS Resolution: 8-bit Package: SOT-23-6
● SL081S101 sampling rate：500 – 800 KSPS SL081S101E sampling rate：800 – 1000 KSPS ● SL081S101 voltage range：4 V to 5.25 V SL081S101E voltage range：3.3V to4.8 V ● 8-bit resolution
Voltage Range: 3.3V~5.25V Sampling Rate: 200~500KSPS Resolution: 8 Package: SOT-23-6
Ultra-low power consumption 3.3V-5.25V operating voltage 250KSPS 10/12-bit analog-to-digital converter (ADC)
The SL11661/SL11663/SL11665 series are analog-to-digital converters (ADC) with basic features including 8/10/12-bit resolution, ultra-low power consumption, small size, unipolar, and single-ended input. They offer convenient power/serial clock speed management. The conversion rate is determined by the serial clock, and conversion time can be reduced by increasing the serial clock speed. With the ability to automatically shut down, the automatic power-down after conversion helps reduce average power consumption.
Type: SPI, DSPChannel: 1Voltage Range: 3.3V~5.25VSampling Rate: 500KSPSResolution: 10Operating Temperature:-40℃~85℃Package:SOT-23-6
The SL11661/SL11663/SL11665 series are analog-to-digital converters (ADC) with basic features including 8/10/12-bit resolution, ultra-low power consumption, small size, unipolar, and single-ended input. They offer convenient power/serial clock speed management. The conversion rate is determined by the serial clock, and conversion time can be reduced by increasing the serial clock speed. With the ability to automatically shut down, the automatic power-down after conversion helps reduce average power consumption. This series is available in two versions: The SL11661/63/65 versions are powered by a single 3.3 V to 5.25 V supply and offer sample rates up to 500 KSPS.The SL11661 A/63A/65A versions are powered by a single 3.0 V-4.5 V supply with sample rates up to 1 MSPS.The SL 11661/SL11663/SL11665 series are all available in a 6-pin SOT-23 package with an operating temperature range of -40°C to 85°C.The SL11661/SL11663/SL11665 are pin-to-pin replacements for the MAX11661/MAX11663/MAX11665 and consume less than 1/2 the dynamic power, significantly extending battery life.
The SL2365 is a 12-bit ADC (Analog-to-Digital Converter) chip. Because these devices automatically power down after the conversion is complete, the supply current drops as the sampling rate decreases.The SL2365 converts signals over an input range of 0V to VDD. with the basic features of ultra-low power consumption, small size, unipolar, and single-ended input. The product is available in two versions: The SL2365 version is powered by a single 4V-5.25V supply and has a sampling rate of up to 800KSPS.The SL2365E version is powered by a single 3.3V-4.8V supply and has a sampling rate of up to 1000KSPS. Both versions are available in a 6-pin SOT-23 package with an operating temperature range of -40°C to 85°C. The SL2365E version is available in a single 3.3V-4.8V power supply with sample rates up to 1000KSPS.The SL2365 is a pin-to-pin replacement for the LTC2365 and consumes less than 1/3 of the dynamic power, significantly extending battery life.
