Type：P-Channel
Vdss：-20V
Id：-2.8A
Pd：400mW
RDS(on)@Vgs,Id：112mΩ@4.5V,2.8A
Vgs(th)@Id：1V@250μA
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to VISHA
| VISHA | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| SI2301CDS | SL2301 | MOSFET | SOT-23 |
| SI2302CDS | SL2302 | MOSFET | SOT-23 |
| SI2309CDS | SL2309 | MOSFET | SOT-23 |
| 2N7002-T1-E3 | 2N7002 | MOSFET | SOT-23 |
| 2N7002K-T1-GE3 | 2N7002K | MOSFET | SOT-23 |
| SMAJ5.0A | SMAJ5.0A | TVS | SMA |
| TCLT1007 | SL-1007 | Optocoupler | SMD-4 |
| TCLT1008 | SL-1008 | Optocoupler | SMD-4 |
| TCLT1009 | SL-1009 | Optocoupler | SMD-4 |
| LL4148-GS08 | LL4148 | Swiching Diode | LL-34 |
| SMBJ6.5CA-E3/52 | SMBJ6.5CA | TVS | SMB |
| SMBJ5.0CA-E3/52 | SMBJ5.0A | TVS | SMB |
| SMBJ15A-E3/52 | SMBJ15A | TVS | SMB |
| SMBJ36CA-E3/52 | SMBJ36CA | TVS | SMB |
Description

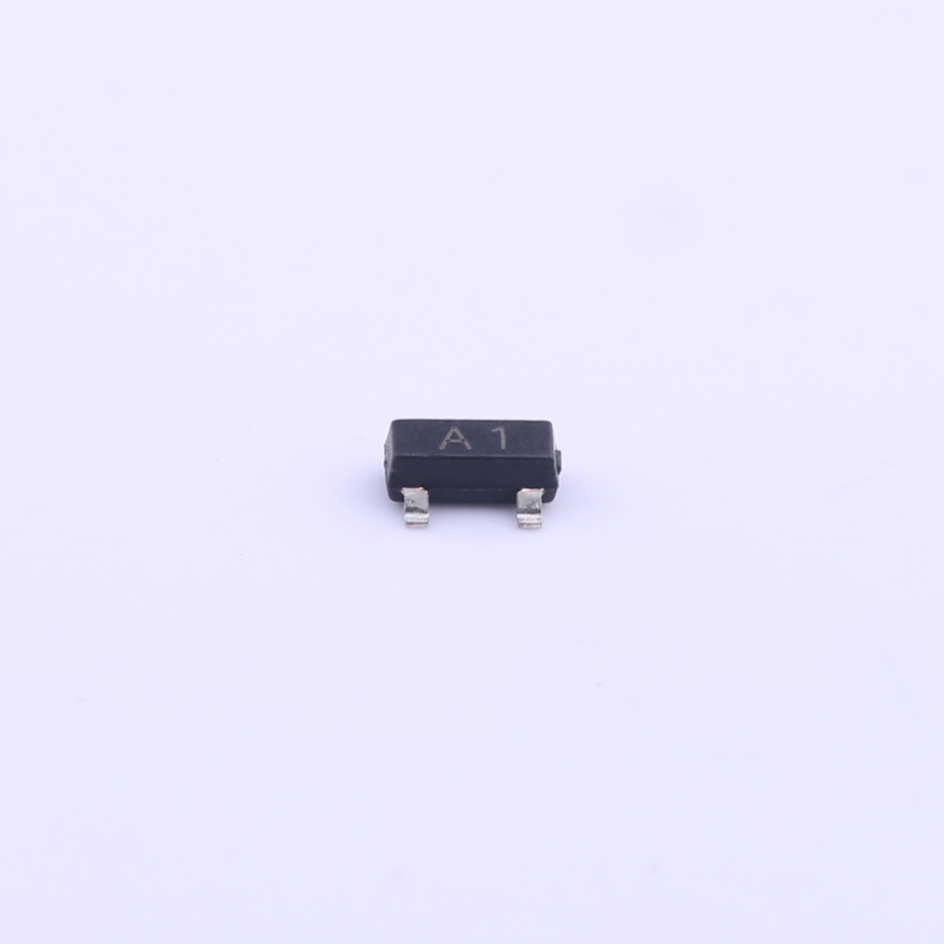

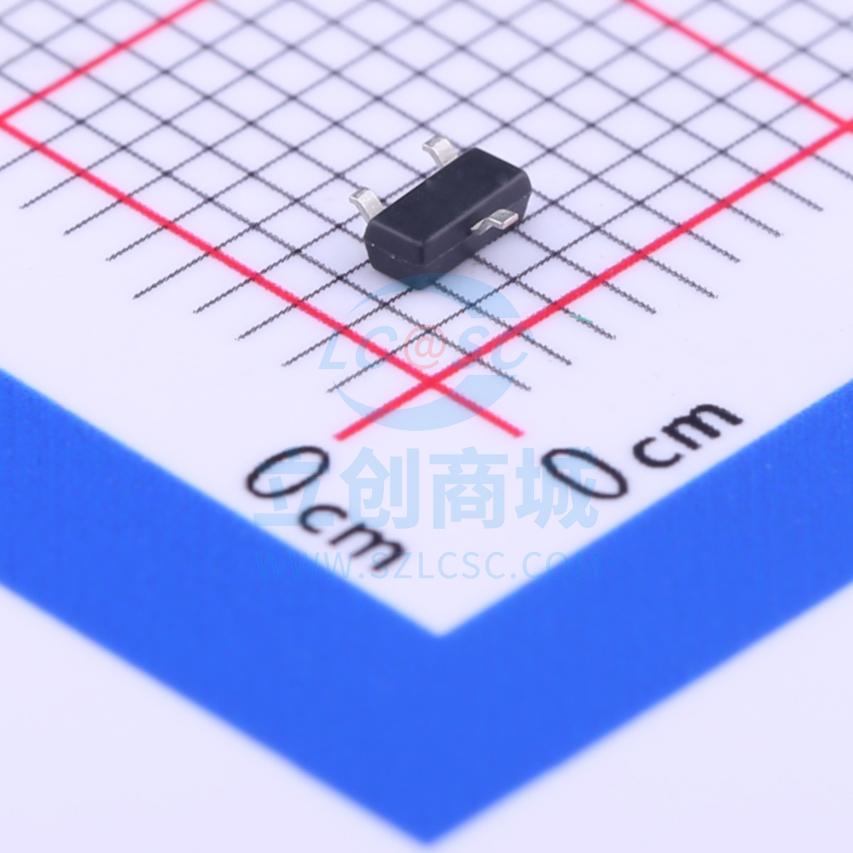

A P-channel enhancement mode Field-Effect Transistor (FET) in a small
SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using
Trench MOSFET technology.
Features
?1.8 V RDSon rated for Low Voltage Gate Drive
?Very fast switching
?Trench MOSFET technology
Applications
?Relay driver
?High-speed line driver
?High-side loadswitch
?Switching circuits
| File Name | Title | Description |
|---|---|---|
| SL2301.pdf | SL2301 | - |
