● Low RDS(on): It has an RDS(on) of 130mΩ at 10V Vgs and 2.2A Id, ensuring efficient performance with minimal power loss.
● High Current Rating: Capable of handling a maximum current (Id) of 2.2A, making it suitable for medium-power applications.
● Power Dissipation: With a maximum power dissipation (Pd) of 1000mW, it offers reliable operation even under moderate load conditions.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to AOS.
| AOS | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |

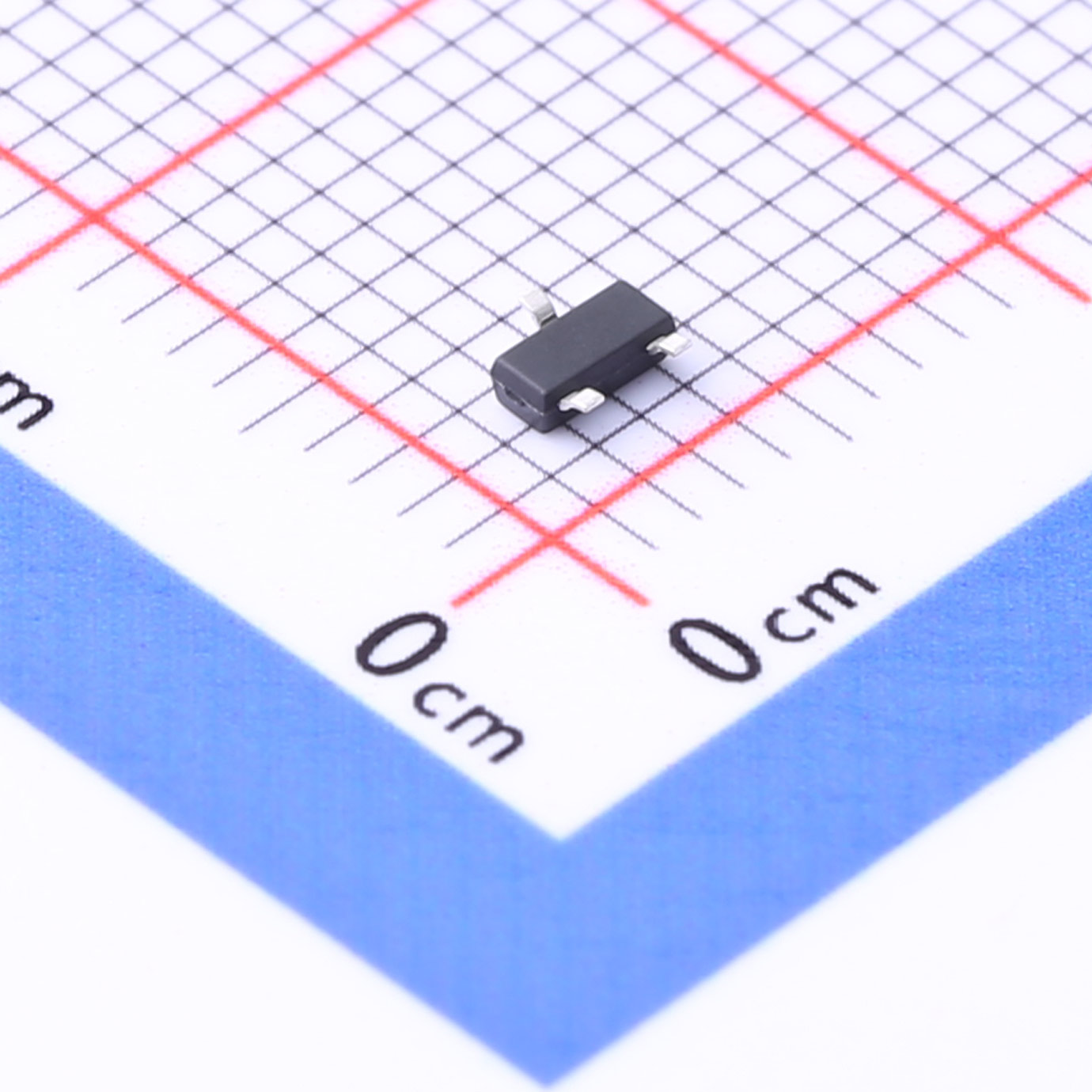

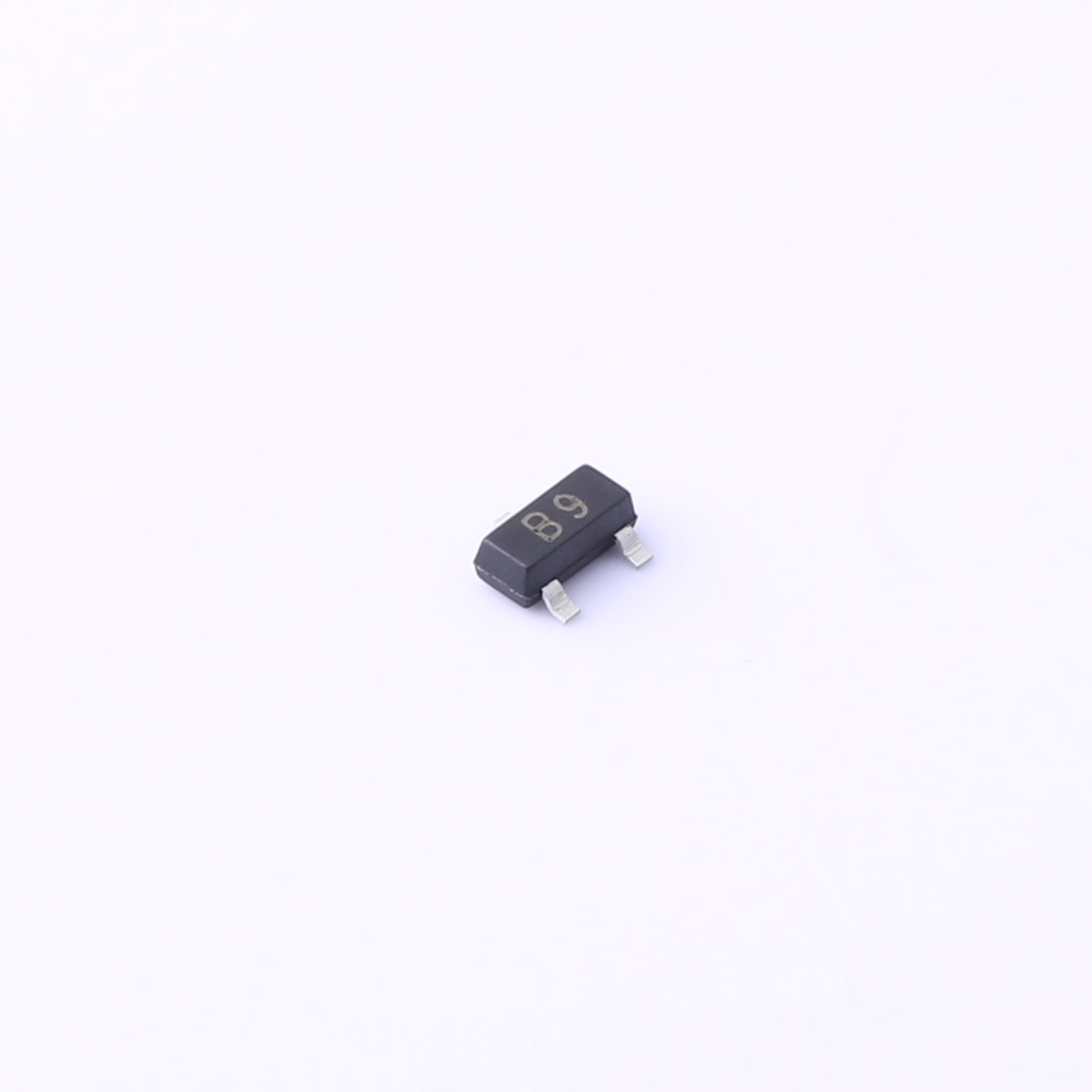

| AO3409 | SL3409 | MOSFET | SOT-23 |
| AO4459 | SL4459 | MOSFET | SOP-8 |
P-Channel Enhancement-Mode MOSFETS
| Characteristic | Symbol | Max | Unit |
| Drain-SourceVoltage | BVDSS | -30 | V |
| Gate-SourceVoltage | VGS | 20 | V |
| DrainCurrent(continuous) | ID | -2.2 | A |
| TotalDeviceDissipation | PD | 1000 | mW |
| TA=25℃ |
| File Name | Title | Description |
|---|---|---|
| SL3409.pdf | SL3409 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
