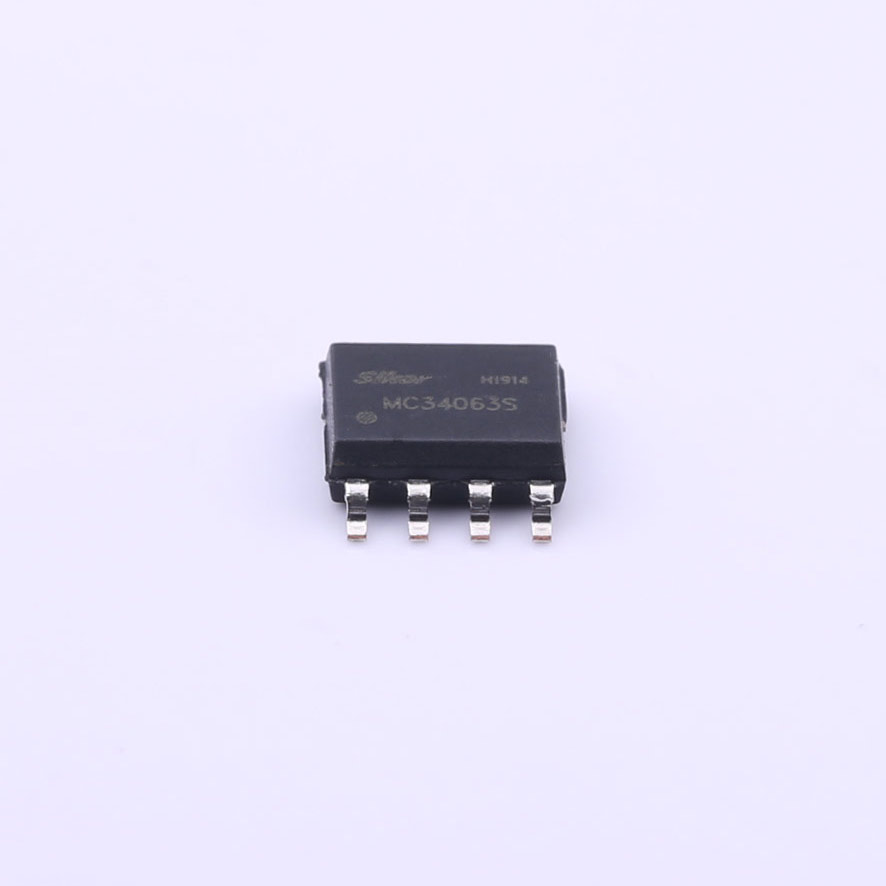

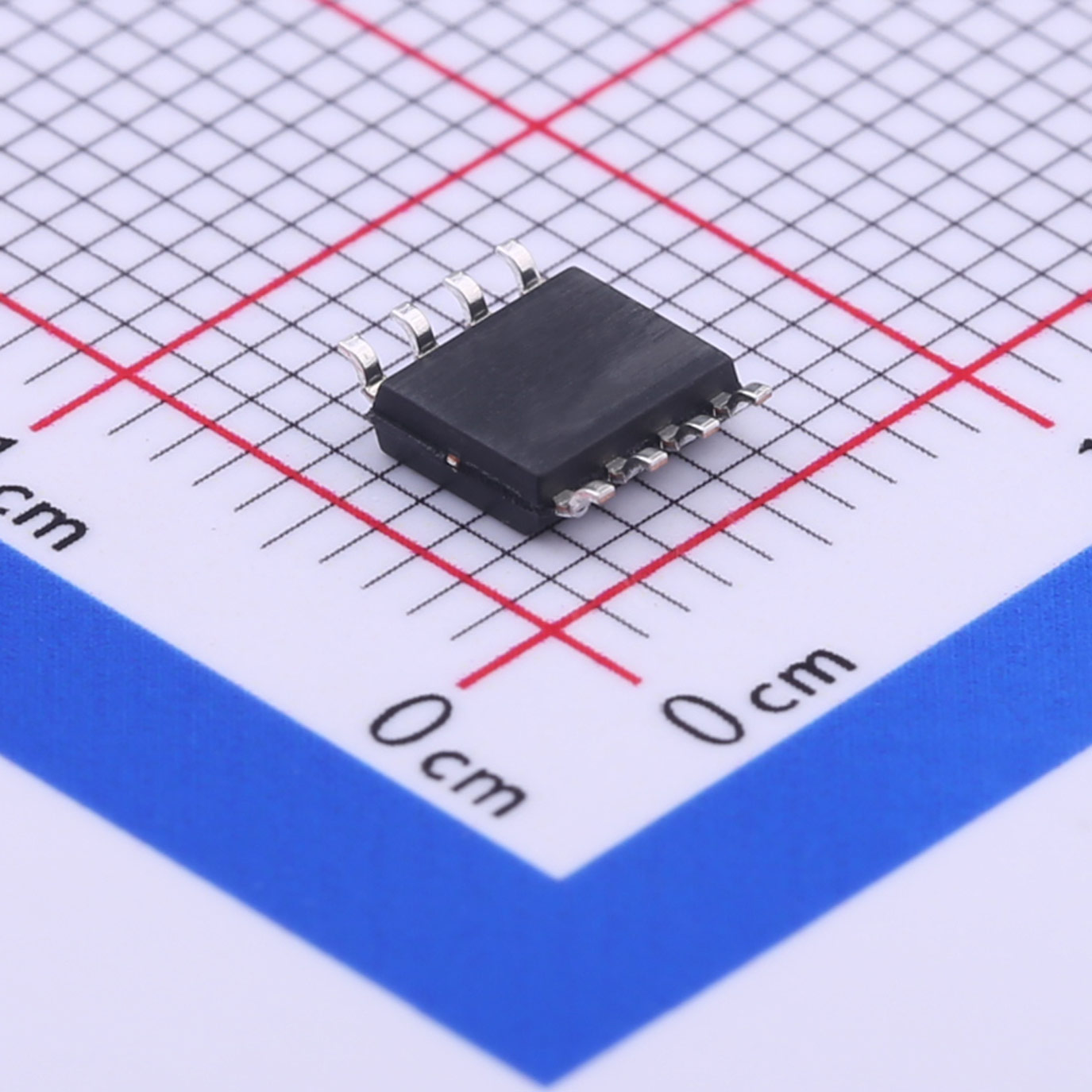

The MC34063 is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The MC34063 is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.
Applications
●Portable Devices
●Wireless Communication Equipment
●Consumer Electronics
●Industrial Equipment
Features
●Operation from 3.0V to 40V.
●Short circuit current limiting.
●Low standby current.
●Output switch current of 1.5A without external transistors.
●Frequency of operation from 100Hz to 100kHz.
●Step-up,step-down or inverting switch regulators.

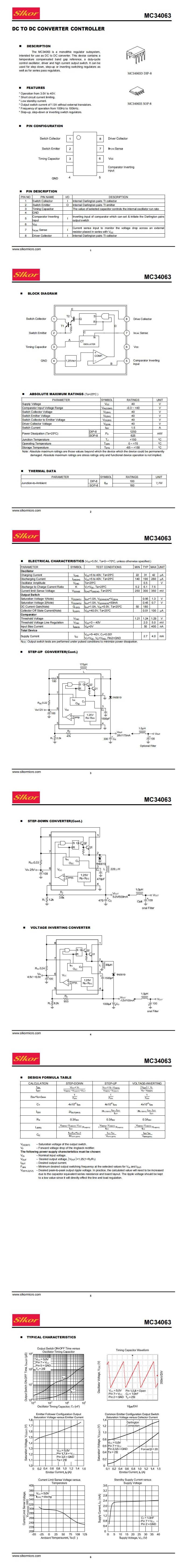

| File Name | Title | Description |
|---|---|---|
| MC34063.PDF | MC34063 | - |
