PD: 350mW
VZ(Nom) @ IZT: 10V @ 20mA
VZ(Min) @ IZT: 9.5V @ 20mA
VZ(Max.) @ IZT: 10.5V @ 20mA
ZZT @ IZT: 17Ω @ 20mA
ZZK @ IZK: 600Ω @ 0.25mA
IR @VR: 3µA @ 8V
Package: SOT-23
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

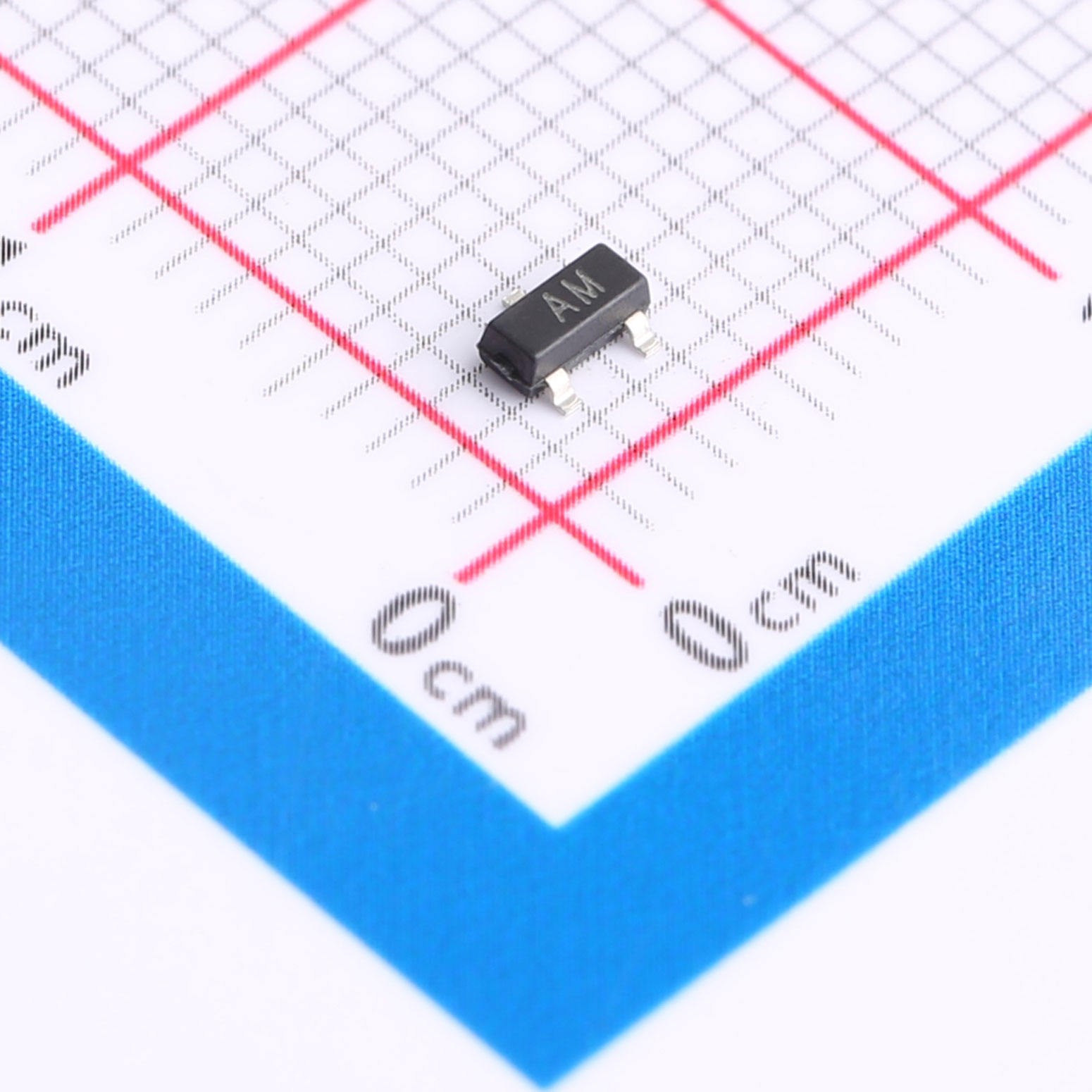

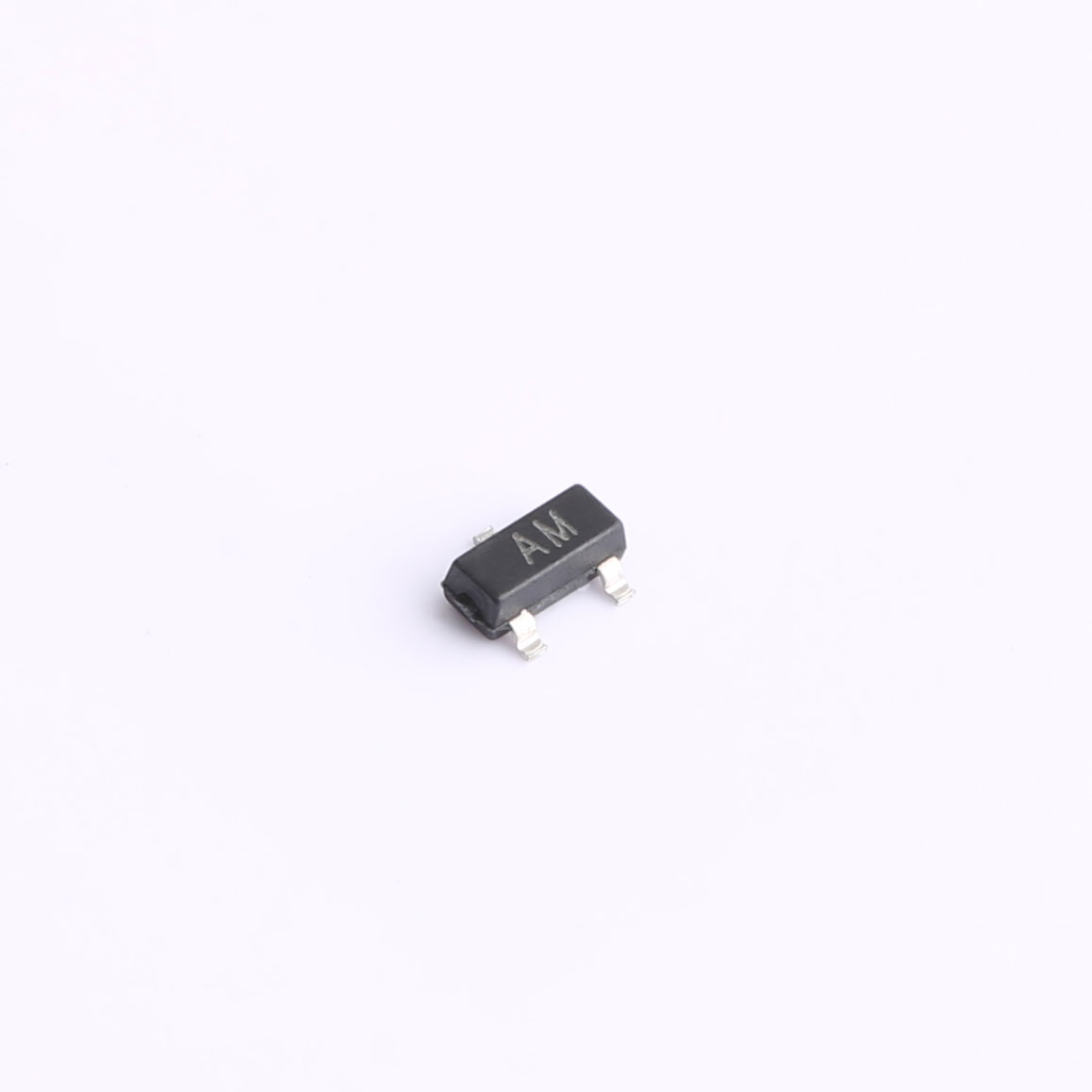

The MMBZ5240B is a surface-mount voltage regulator diode housed in the SOT-23 package. It is designed to stabilize voltage within electronic circuits, offering reliable reverse voltage protection to safeguard sensitive components from overvoltage conditions.
Applications
●Power Management Systems
●Communications Equipment
●Consumer Electronics
●Industrial Control Systems
Features
●Planar Die construction
●350mW Power Dissipation
●Zener Voltages from 2.4V~51V
●Ideally Suited for Automated Assembly Processes
| File Name | Title | Description |
|---|---|---|
| MMBZ5223B.pdf | MMBZ5223B | - |
