◆ Planar Die Construction
◆ 300mW Power Dissipation
◆ Ideally Suited for Automated Assembly Processes
◆ RoHS compliant

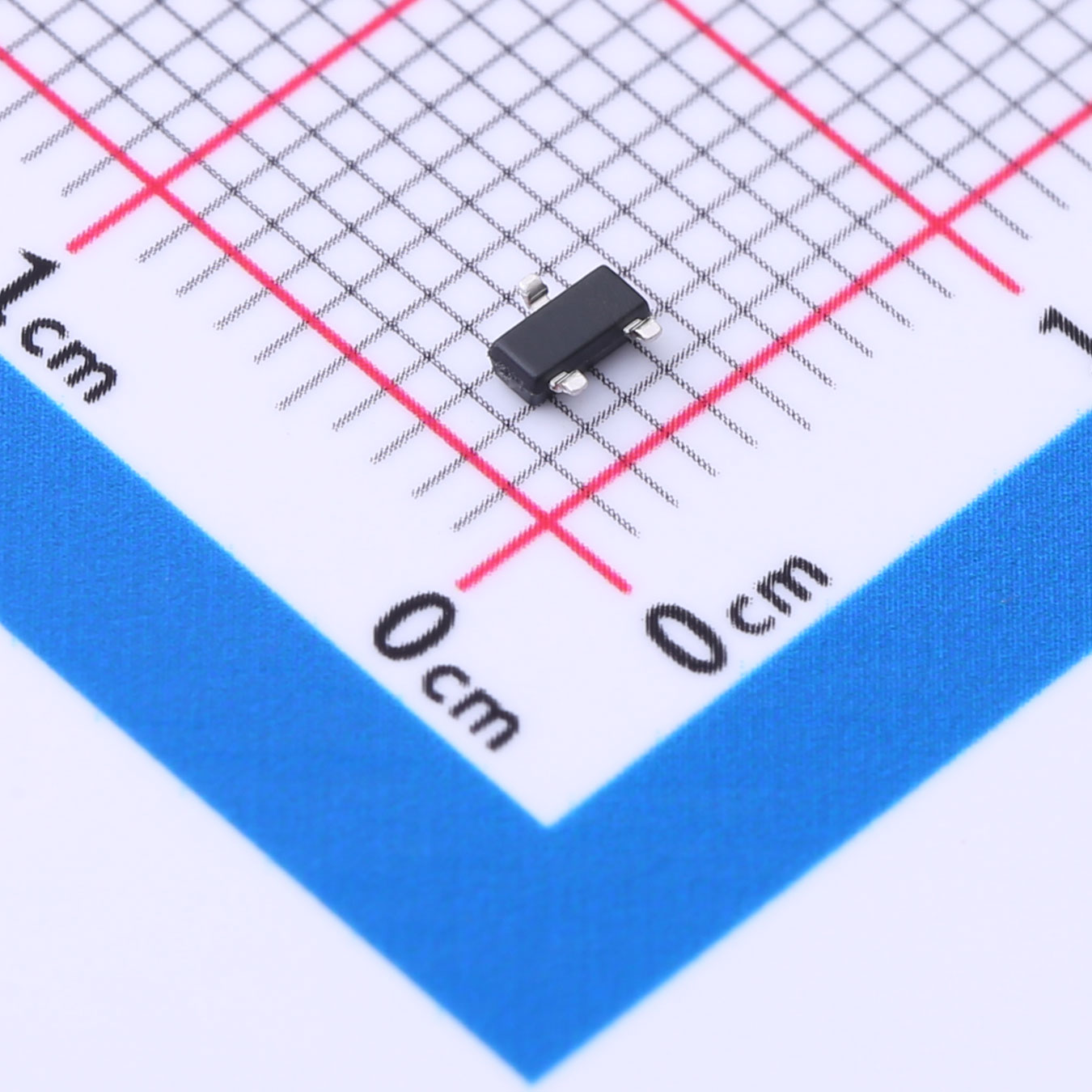

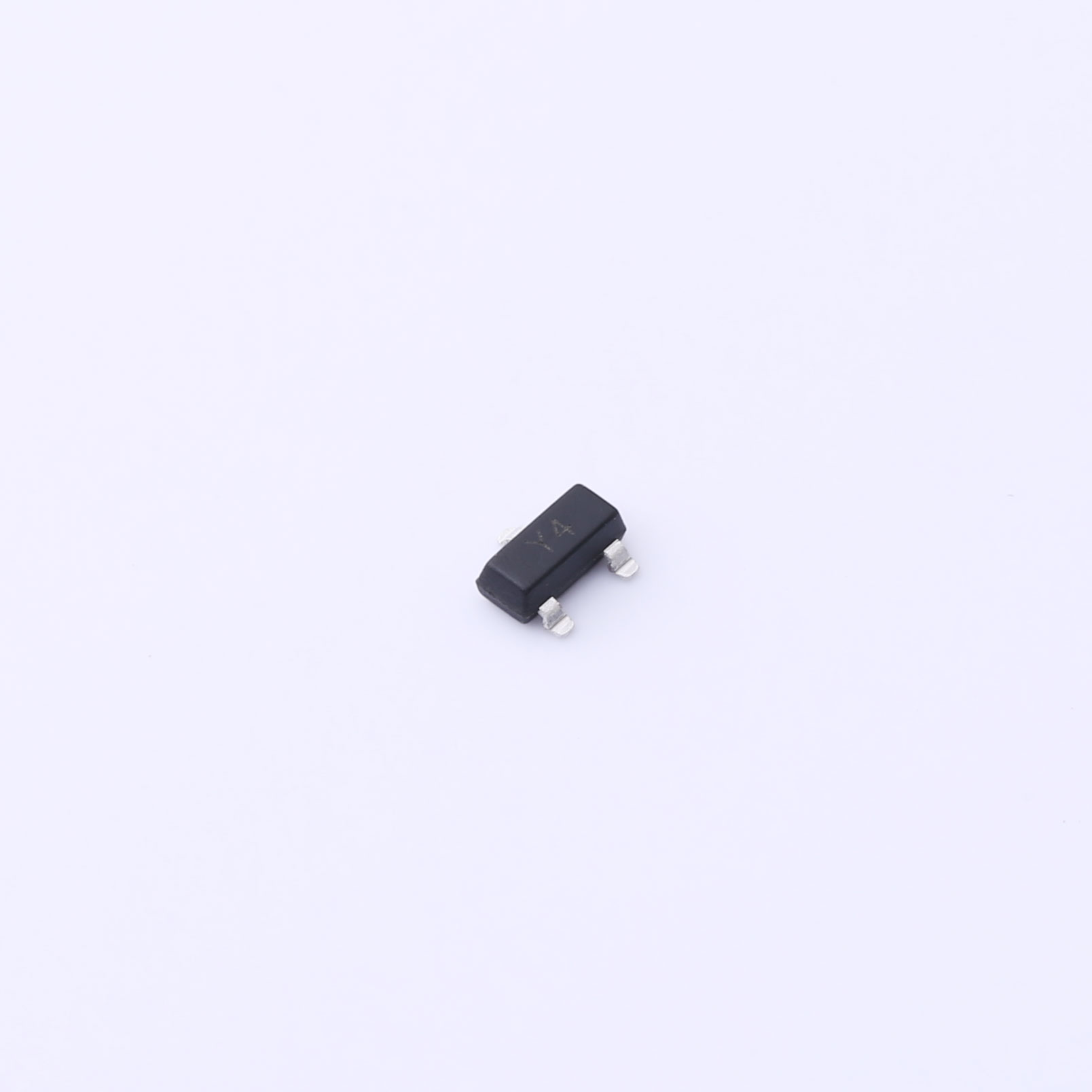

The BZX84C15 is a SOT-23 packaged Zener diode with a nominal voltage of 15V at 5mA (range: 13.8V–15.6V). It features 300mW power dissipation, 30Ω dynamic impedance, and low reverse current of 0.1μA at 10.5V. Its planar die construction makes it ideal for automated assembly.
Features
● Planar Die Construction
● 300mW Power Dissipation
● Ideally Suited for Automated Assembly Processes
| File Name | Title | Description |
|---|---|---|
| BZX84C5V1 SOT-23.pdf | BZX84C5V1 SOT-23 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
