VZTyp:5.6V
VZ:5.2V~6V
Precision-
PD:300mW
Ir:1μA@2V
Zzt:40Ω
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

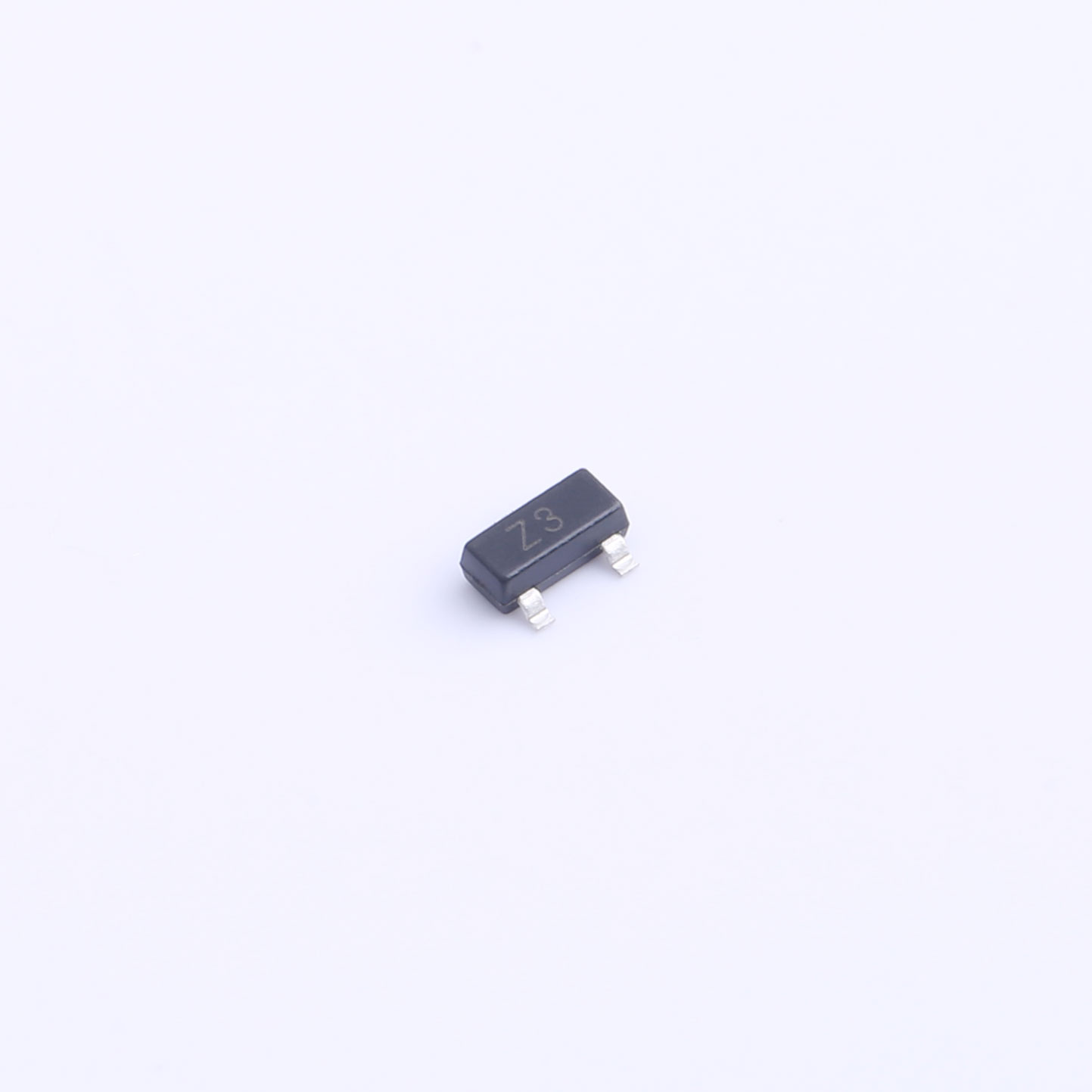

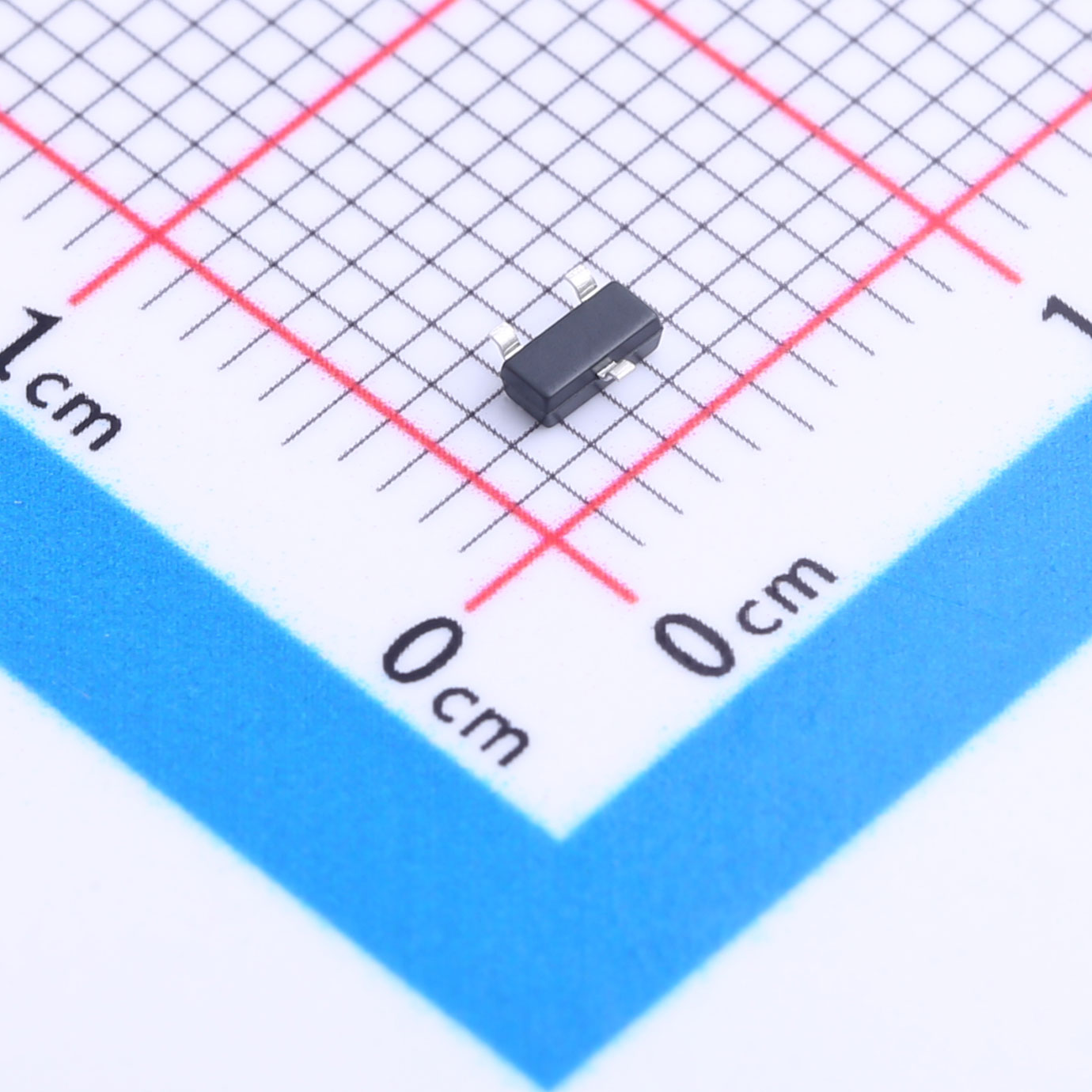

The BZX84C5V6 is a voltage regulator diode packaged in SOT-23-3, designed to provide reliable voltage regulation and reverse voltage protection for electronic circuits. It has a rated reverse working voltage of 5.6V, suitable for applications requiring moderate reverse voltage protection. Features include fast response time and low leakage current, ensuring stable voltage output and effective circuit protection under various operating conditions.
Features
●Planar Die Construction
●300mW Power Dissipation
●Zener Voltages from 2.4V - 43V
●Ultra-Small Surface Mount Package Power Dissipation
Applications
●Power Management
●Signal Line Protection
●Sensor Interfaces
| File Name | Title | Description |
|---|---|---|
| BZX84C5V6 SOT-23.pdf | BZX84C5V6 SOT-23 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VZTyp:6.2V VZ:5.8V~6.6V Precision- PD:300mW Ir:3μA@4V Zzt:10Ω
VZTyp:12V VZ:11.4V~12.7V Precision- PD:300mW Ir:100nA@8V Zzt:25Ω
VZTyp:16V VZ:15.3V~17.1V Precision- PD:300mW Ir:100nA@11.2V Zzt:40Ω
PD: 300mW VZ(Nom) @ IZT: 5.1V @ 5mA VZ(Min) @ IZT: 4.8V @ 5mA VZ(Max.) @ IZT: 5.4V @ 5mA ZZT @ IZT: 60Ω @ 5mA IR @VR: 2μA @ 2V Package: SOT-23
◆ Planar Die Construction ◆ 300mW Power Dissipation ◆ Ideally Suited for Automated Assembly Processes ◆ RoHS compliant
◆ Planar Die Construction ◆ 300mW Power Dissipation ◆ Ideally Suited for Automated Assembly Processes ◆ RoHS compliant
PD: 225mW VZ(Nom) @ IZT: 27V @ 1mA VZ(Min) @ IZT:25.65V @ 1mA VZ(Max.) @ IZT: 28.35V @ 1mA ZZT @ IZT: - IR @VR: 50nA @ 22V Package: SOT-23
VZTyp- Precision- PD:500mW Ir:100nA@12V
