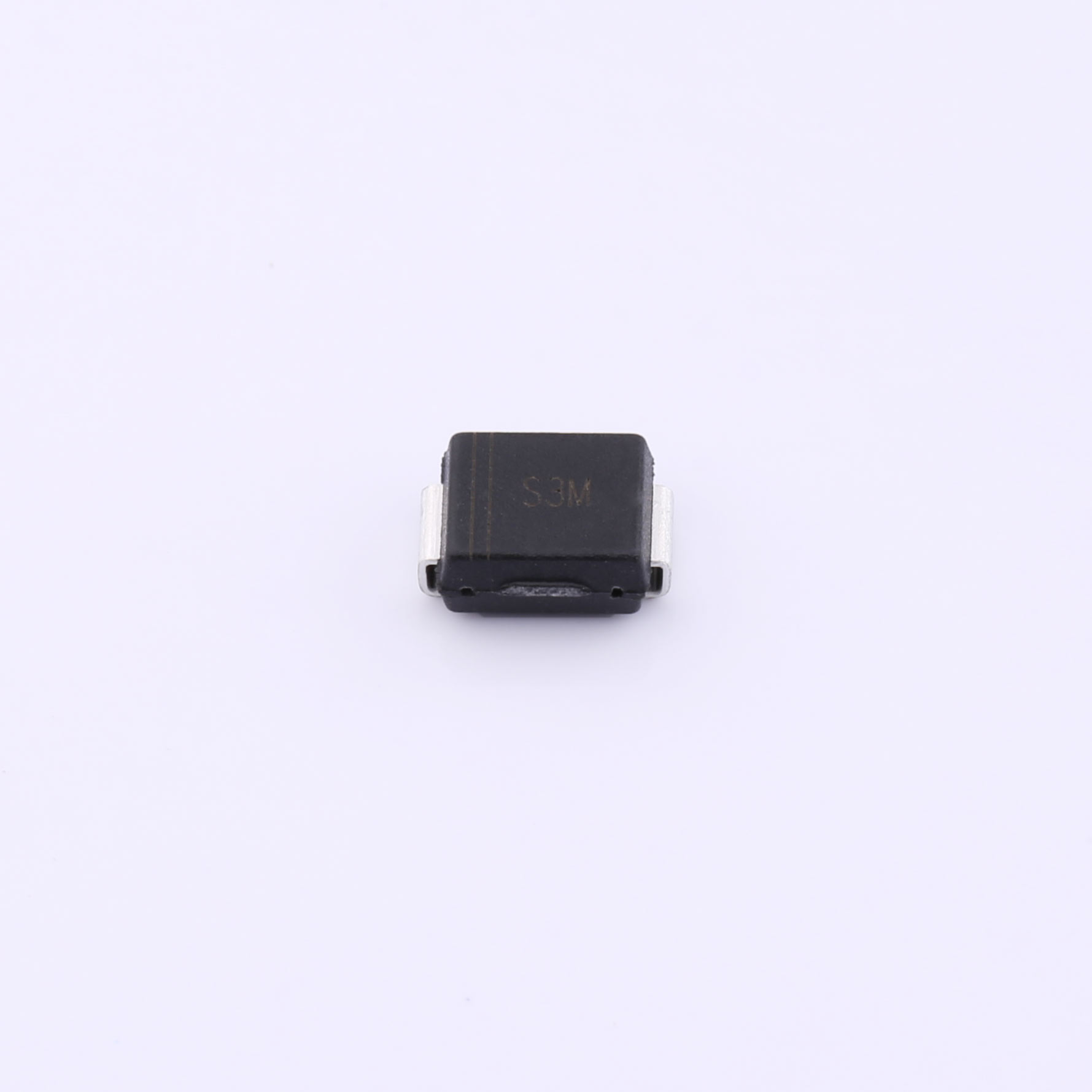

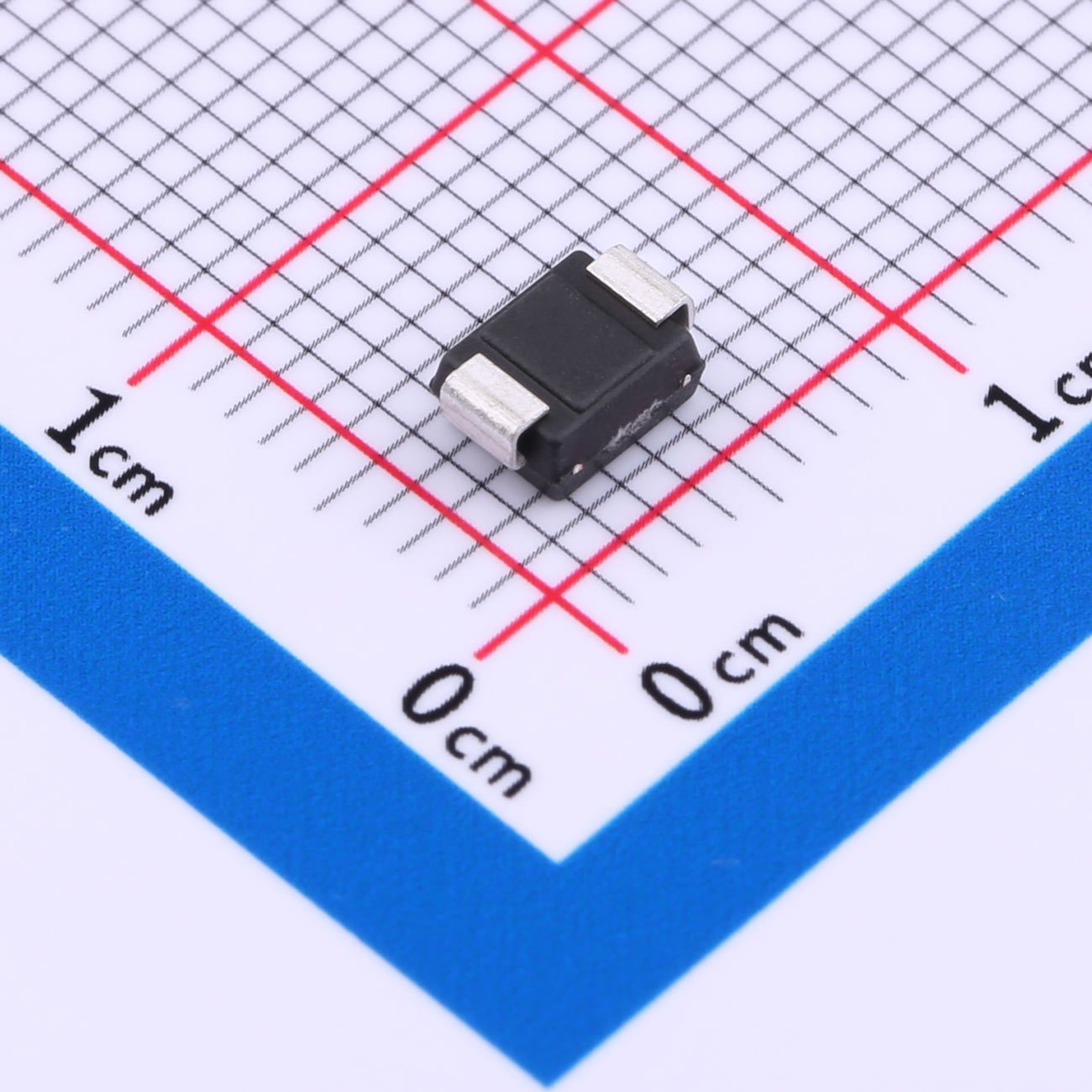

Universal Diode S3MB
Download datasheet Inquiry
SURFACE MOUNT GENERAL RECTIFIER
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The S3MB is an advanced general-purpose diode designed to deliver efficient rectification and voltage regulation in diverse electronic applications.With a robust maximum reverse voltage (Vr) of 1000V, a forward current (Io) rating of 3A, and optimized electrical characteristics, it ensures reliable performance in demanding environments.
Features
● High Voltage Rating: Capable of withstanding a maximum reverse voltage (Vr) of 1000V, the S3MB diode provides robust protection against voltage surges and spikes.
● High Current Capability: Rated for a forward current (Io) of 3A, it supports substantial current flow, making it suitable for power supply and signal processing applications.
● Low Forward Voltage drop: The diode exhibits a low forward voltage (Vf) of 1.1V at 3A, reducing power dissipation and enhancing energy efficiency in circuit designs.
● Low Leakage Current: With a reverse leakage current (Ir) of only 5μA at 1000V, the S3MB ensures minimal power loss and stable operation in low-power applications.
Applications
● Power Supplies:Ideal for rectification and voltage regulation in power supply units across industrial, automotive, and consumer electronics.
● Signal Processing: Used in signal diode applications to manage and protect signals against reverse polarity and voltage transients.
● Battery Management: Integrated into charging circuits to convert AC to DC efficiently and regulate voltage levels during charging.
● Industrial Control: Suitable for use in industrial automation, control systems, and machinery where reliable and efficient power management is crucial.
| File Name | Title | Description |
|---|---|---|

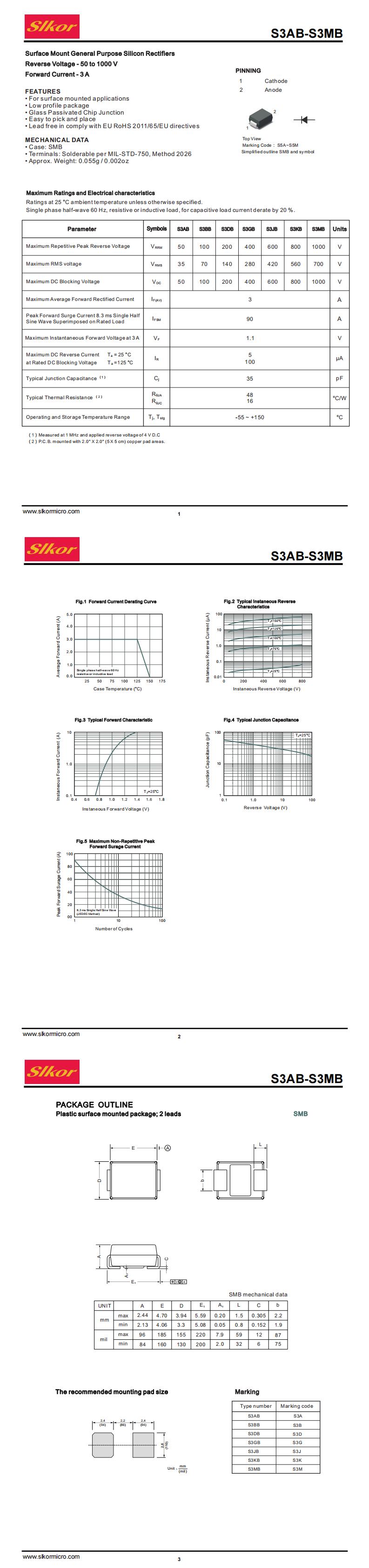

| S3M SMB.pdf | S3M SMB | - |
