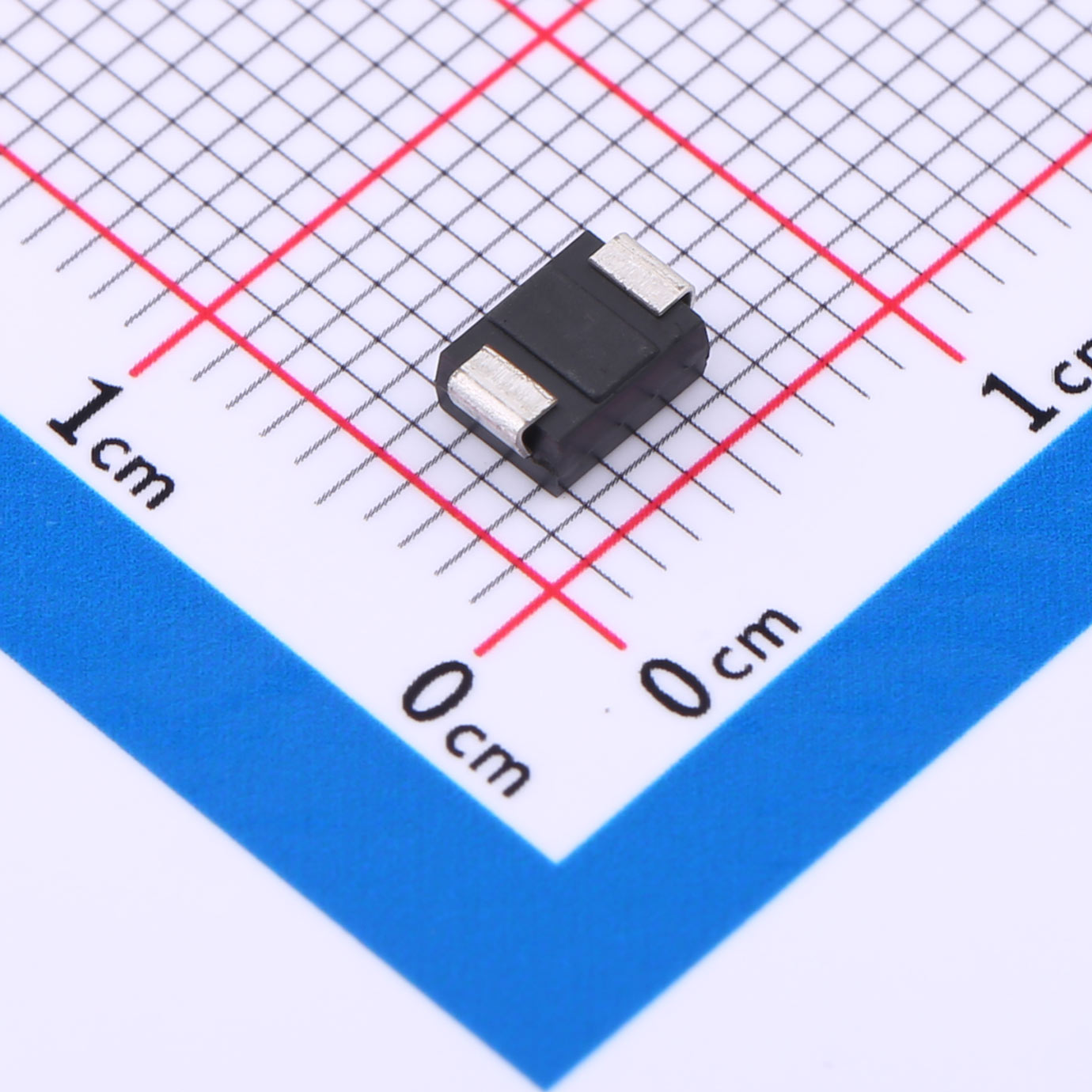

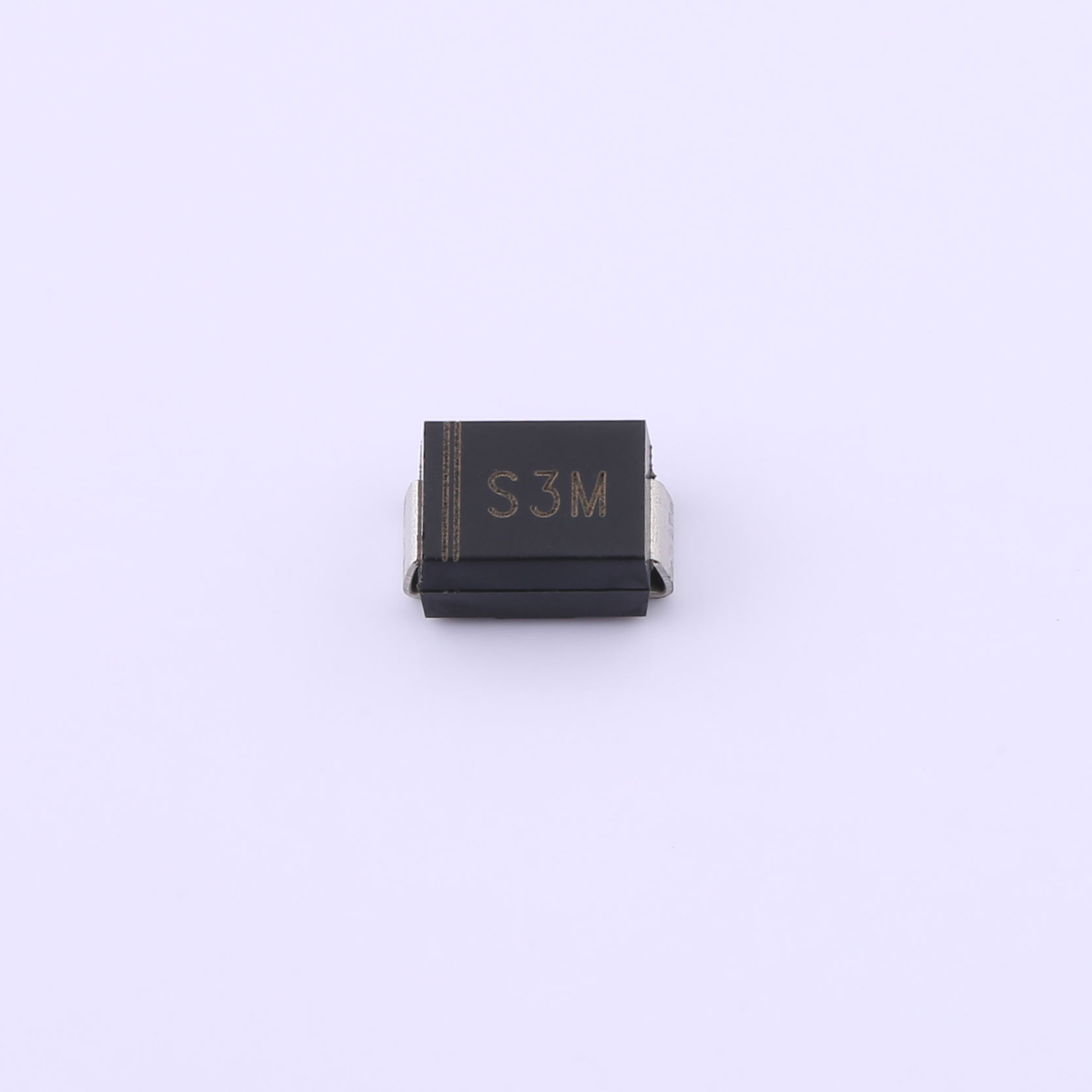

The S3M is a high-performance general-purpose diode designed for efficient rectification and voltage regulation in electronic circuits. Featuring a maximum reverse voltage (Vr) of 1000V and a forward current (Io) rating of 3A, it is engineered to deliver reliable performance across various applications.
Download datasheet Inquiry
DURFACE MOUNT GENERA RECTIFIER
Our adventage
Description
The S3M is a high-performance general-purpose diode designed for efficient rectification and voltage regulation in electronic circuits. Featuring a maximum reverse voltage (Vr) of 1000V and a forward current (Io) rating of 3A, it is engineered to deliver reliable performance across various applications.
Features
● High Voltage Rating: The S3M diode is capable of withstanding a maximum reverse voltage (Vr) of 1000V, ensuring robust performance in applications requiring high voltage tolerance.
● High Current Capability: Rated for a forward current (Io) of 3A, the diode supports moderate to high current loads, making it suitable for power supply and signal processing applications.
● Low Forward Voltage drop: With a forward voltage (Vf) of 1.15V at 3A, the diode minimizes power loss and heat generation during operation, optimizing energy efficiency.
● Low Leakage Current: The S3M diode maintains a low reverse leakage current (Ir) of 10μA at 1000V, enhancing reliability and stability in low-power and sensitive electronic circuits.
Applications
● Power Supplies: Used for rectification and voltage regulation in power supply units for industrial, consumer electronics, and automotive applications.
● Signal Diodes: Applied in signal processing circuits to manage and protect signals against reverse polarity and voltage spikes.
● Battery Chargers: Integrated into charging circuits to convert AC to DC efficiently and manage voltage levels.
● Industrial Equipment: Suitable for use in industrial control systems, automation equipment, and machinery requiring reliable and efficient power management.
| File Name | Title | Description |
|---|---|---|

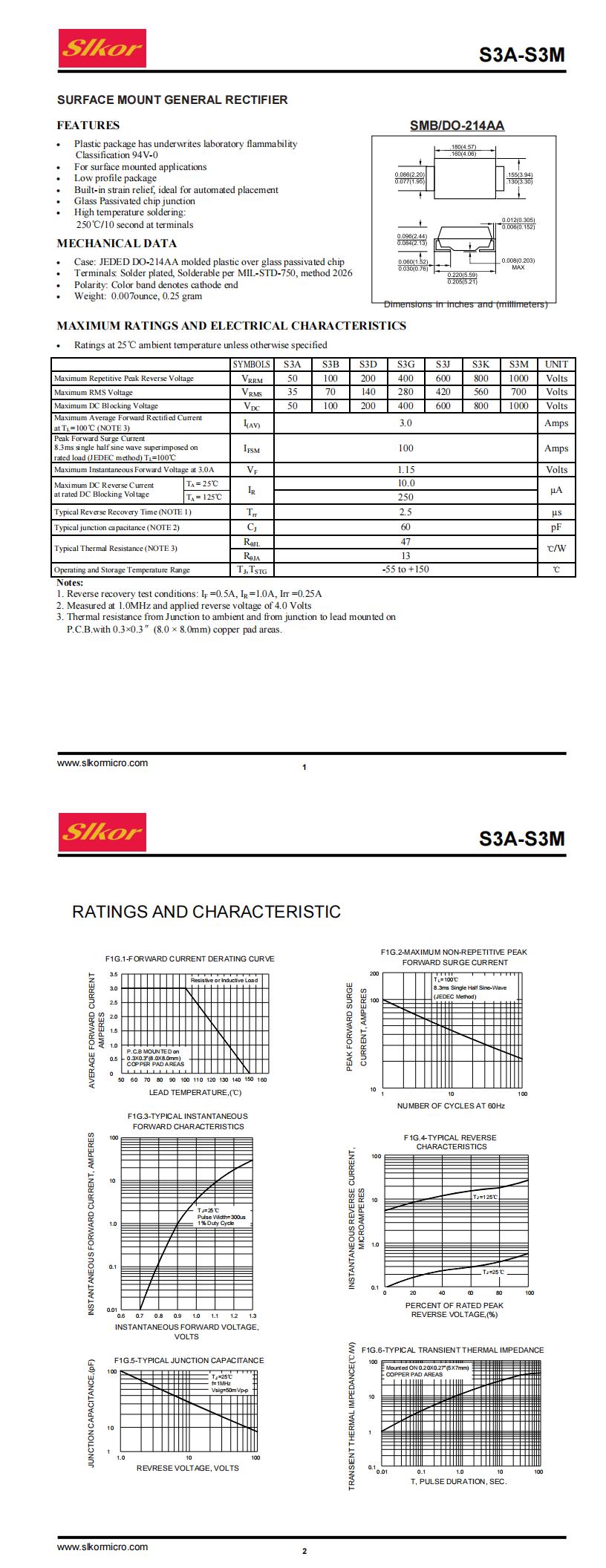

| S3M SMB.pdf | S3M SMB | - |
