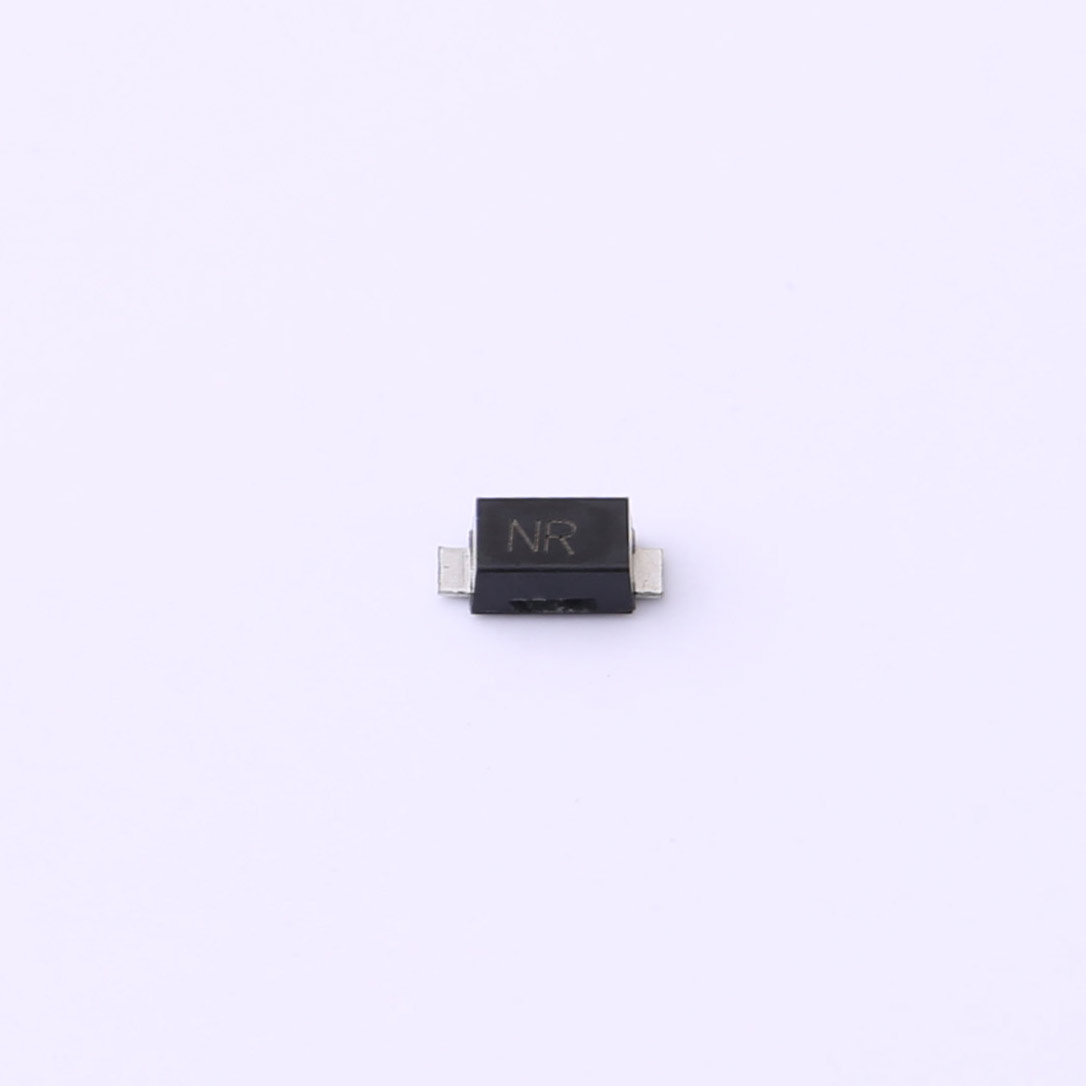

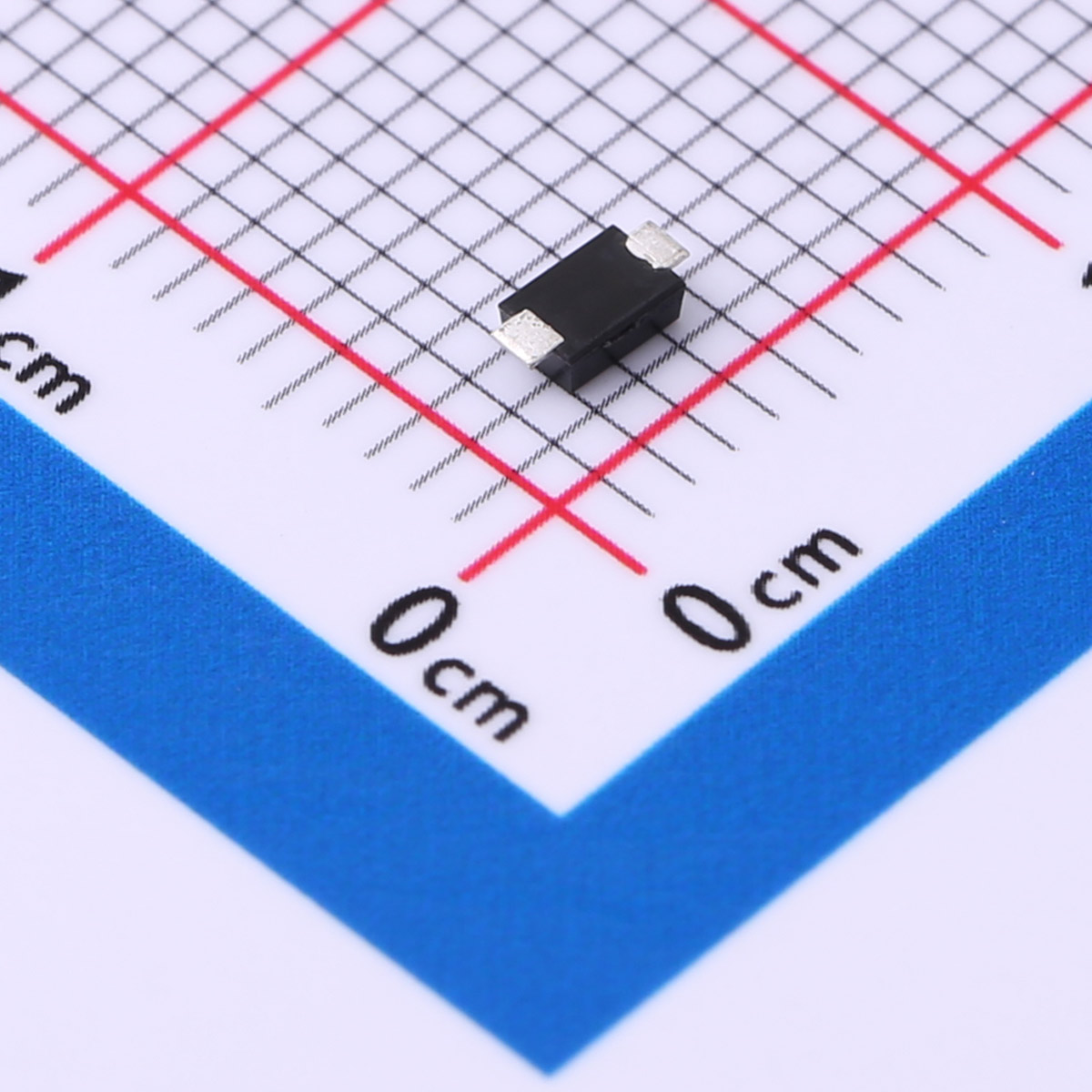

SMF8.0CA Transient Voltage Suppressor
Download datasheet InquiryFeatures
● For surface mounted applications
● Low profile package
● Low incremental surge resistance,excellent clamping capability
● 200W peak pulse power capability witha10/1000μs wave from,repetition rate (dutycycle):0.01%
● High temperature soldering guaranteed: 260℃/10 seconds, at terminals
Mechanical Data
● Case: JEDEC SOD-123FL, molded plastic over passivated chip
● Polarity: Color band denotes positive end ( cathode ) except for bidirectional
● Mounting position: Any
● Weight: 0.006 ounces, 0.02 gram
| File Name | Title | Description |
|---|---|---|
| SMF33A SOD-123FL.pdf | SMF33A SOD-123FL | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vrwm:10.2V VBR(min):11.4V VBR(max):12.6V Ir:5μA VC:16.7V Ppp@10/1000μs:600W
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for straightforward identification, is engineered to deliver robust protection against high-energy voltage spikes. Its advanced design ensures effective clamping and suppression in circuits requiring high transient energy handling.
