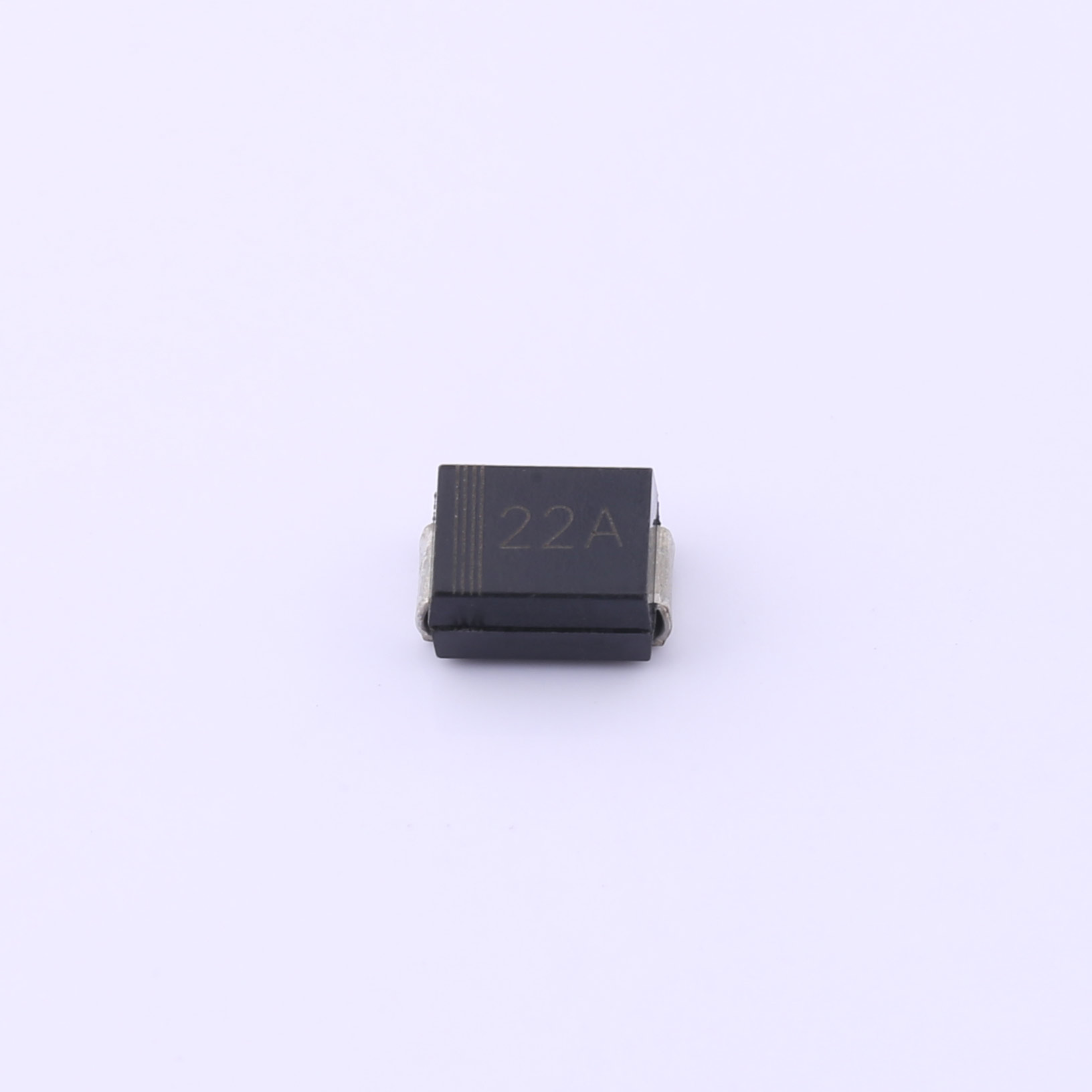

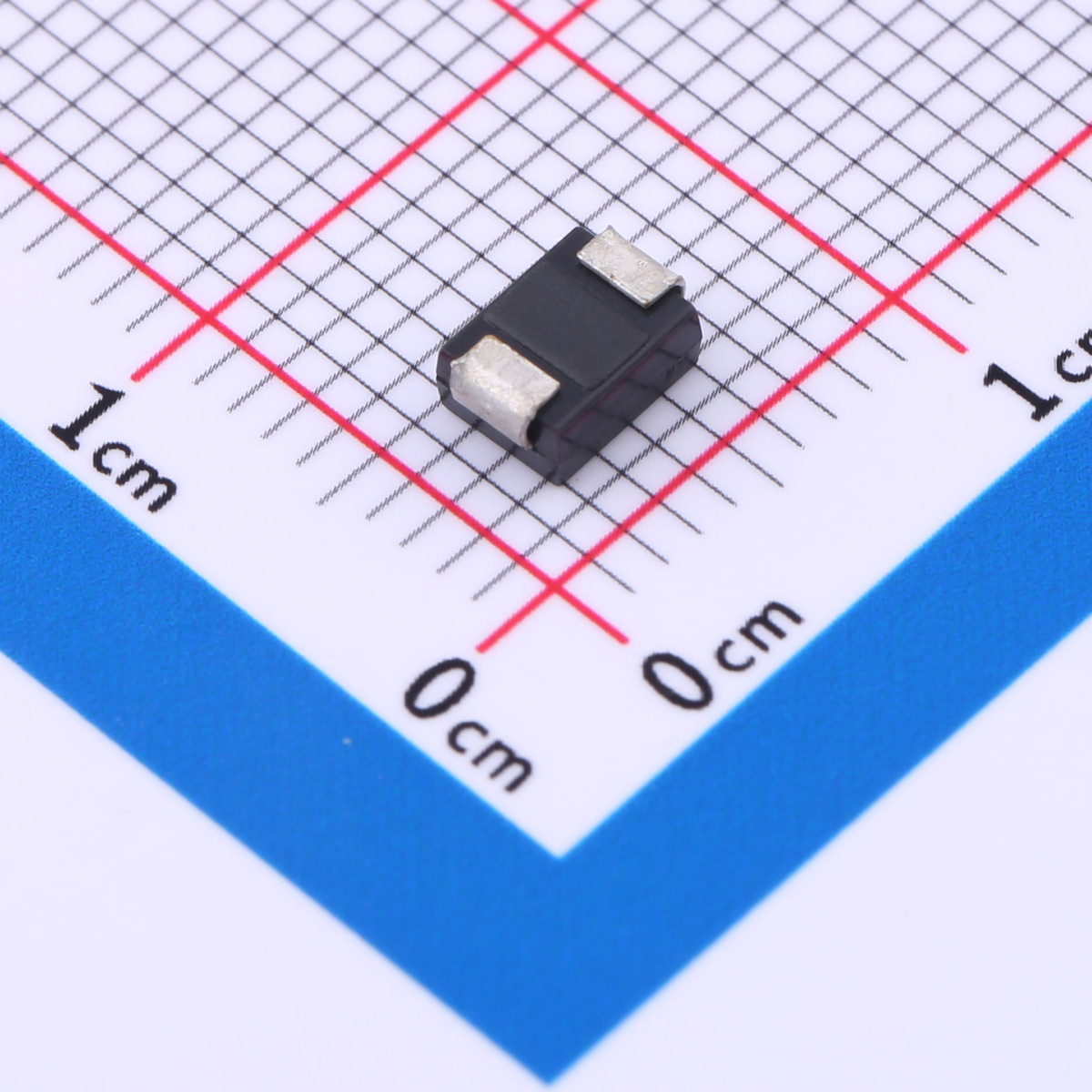

This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for straightforward identification, is engineered to deliver robust protection against high-energy voltage spikes. Its advanced design ensures effective clamping and suppression in circuits requiring high transient energy handling.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for straightforward identification, is engineered to deliver robust protection against high-energy voltage spikes. Its advanced design ensures effective clamping and suppression in circuits requiring high transient energy handling.
Features
● 600W peak pulse power
● Excellent clamping capability
● Small clamping voltage
● Fast response time: uni-directional less than 1.0ps from 0V to VBR, bi-directional less than 5.0ns
Mechanical characteristics
● Package: Molded package
● Encapsulation material: Flame-retardant epoxy recognized by UL94V-O
● Terminals: Tin-plated
● Polarity: Cathode indicated by color band
● Mounting position: Any
Applications
● Industrial Equipment
● Power Supplies
● Telecom and Networking
● Automotive Systems
| File Name | Title | Description |
|---|---|---|
| 2.pdf | 2 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vrwm:10.2V VBR(min):11.4V VBR(max):12.6V Ir:5μA VC:16.7V Ppp@10/1000μs:600W
