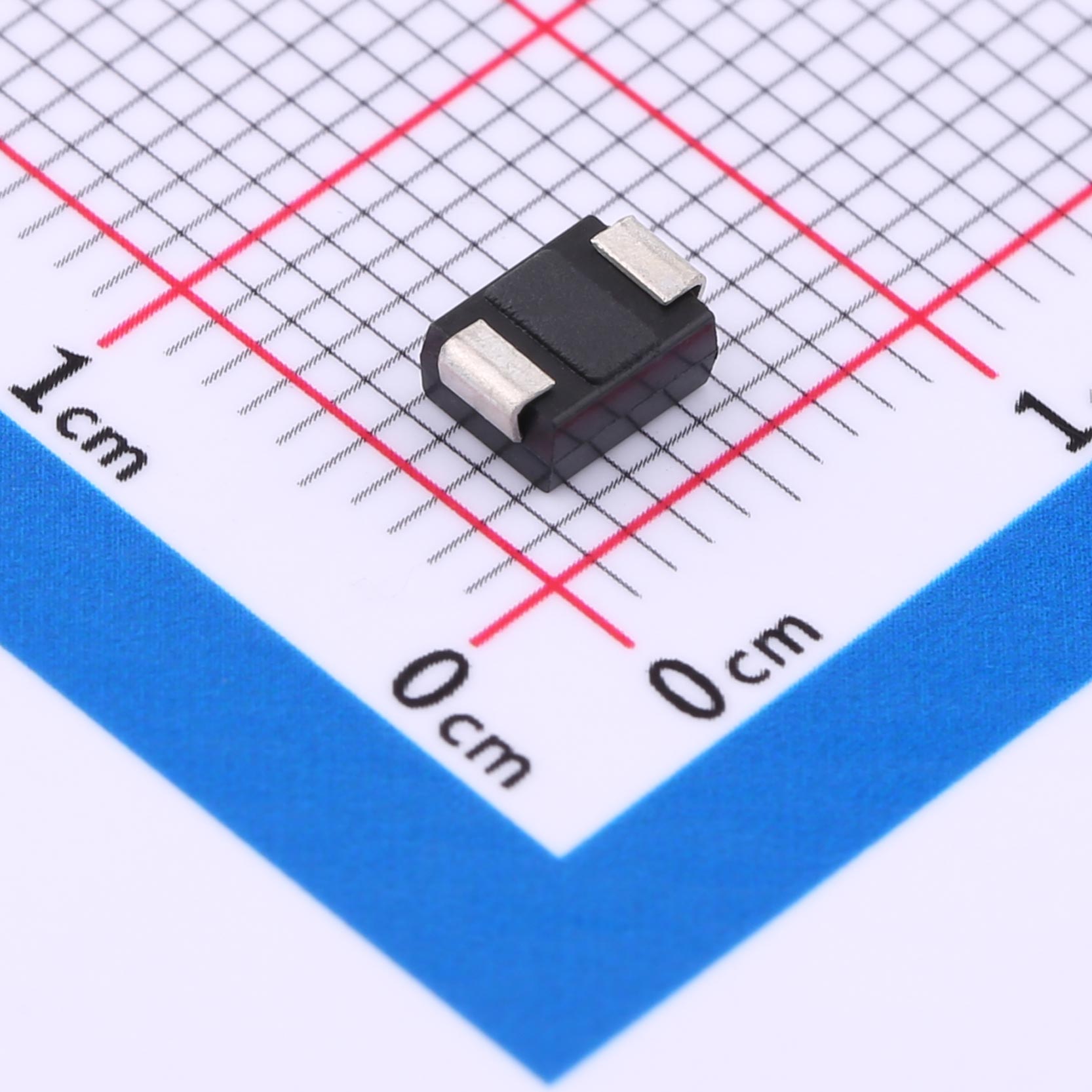

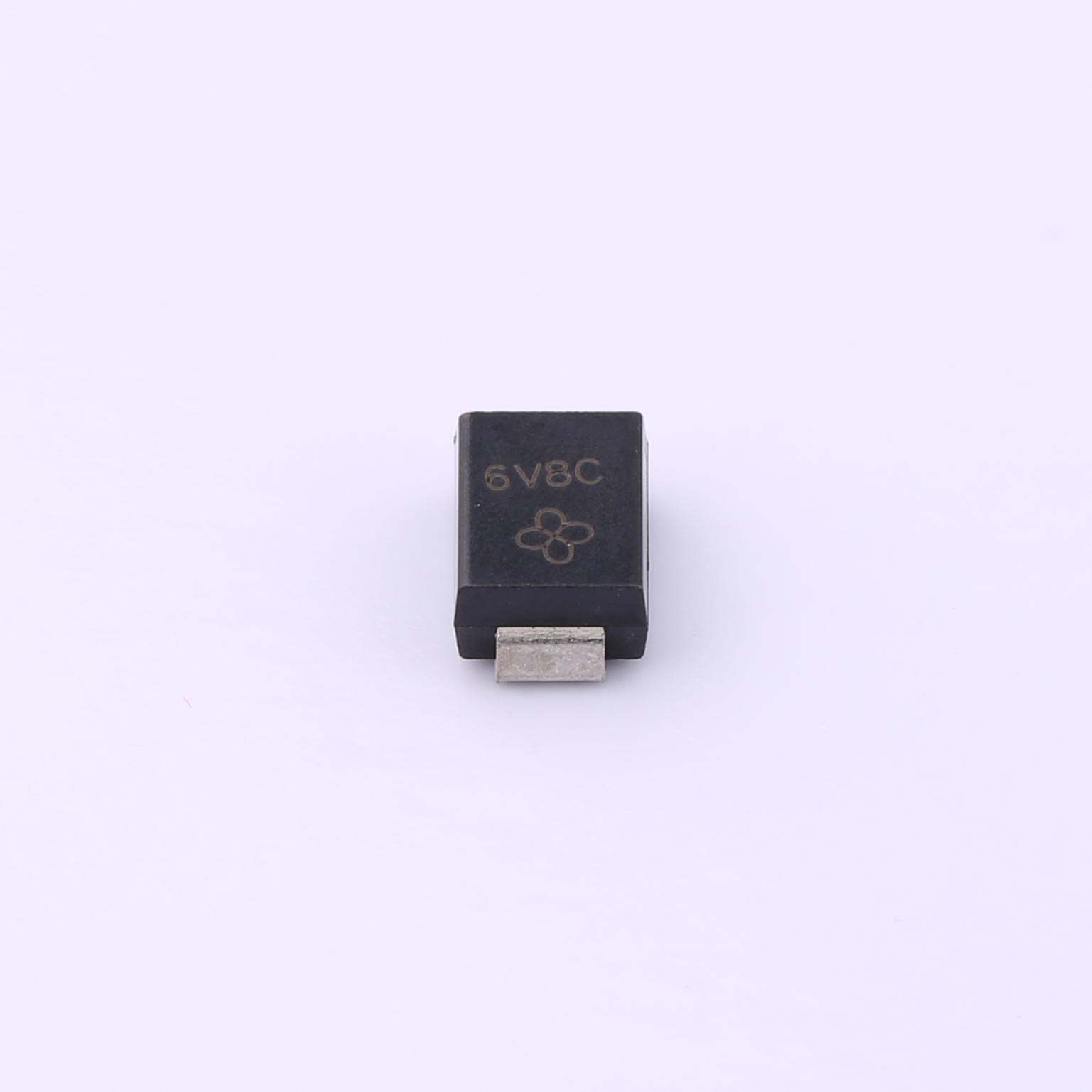

SMBJ6.8CA Transient Voltage Suppressor SMB
Download datasheet Inquiry
Features
Glass Passivated Die Construction
Uni-and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material:UL Flammability Classification Rating 94V-0
Mechanical Data
Case:SMB/DO-214AA,Molded Plastic
Teminals:Solder Plated,Solderableper MIL-STD-750,Method 2026
Polarty:Cathode Band or Cathode Notch
Marking:Type Number
Weight 0.093 grams(approx.)
| File Name | Title | Description |
|---|---|---|
| SMBJ6.8CA.pdf | SMBJ6.8CA | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vrwm:10.2V VBR(min):11.4V VBR(max):12.6V Ir:5μA VC:16.7V Ppp@10/1000μs:600W
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for straightforward identification, is engineered to deliver robust protection against high-energy voltage spikes. Its advanced design ensures effective clamping and suppression in circuits requiring high transient energy handling.
?The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to protect sensitive electronic circuits from transient voltage events in both directions. It effectively clamps excessive voltage levels and dissipates surge currents, ensuring the reliability and longevity of electronic systems.
The Polar Bidirectional TVS Diode is an advanced semiconductor device engineered to protect sensitive electronics from voltage spikes and surges. With a VRWM (Working Peak Reverse Voltage) of 40V and VBR (Breakdown Voltage) ranging from 44.4V to 51.1V, this diode efficiently clamps transient voltages to safe levels, safeguarding against potential damage. It features an ultra-low reverse leakage current (Ir) of 5μA, ensuring minimal power consumption and maximum efficiency in normal operating conditions. The diode can handle surge currents up to 9.3A (Ipp@10/1000μs) and has a clamping voltage (VC) of 64.5V, providing robust protection against transient events up to 600W (Ppp@10/1000μs).
The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes. With a VRWM (Working Peak Reverse Voltage) of 33V and VBR (Breakdown Voltage) ranging from 36.7V to 42.2V, this diode provides robust protection against voltage surges and spikes. It features an ultra-low reverse leakage current of 5μA, ensuring minimal power dissipation during normal operation. The diode is capable of handling surge currents up to 11.3A (Ipp@10/1000μs) and clamps transient voltages effectively with a VC (Clamping Voltage) of 53.3V.
