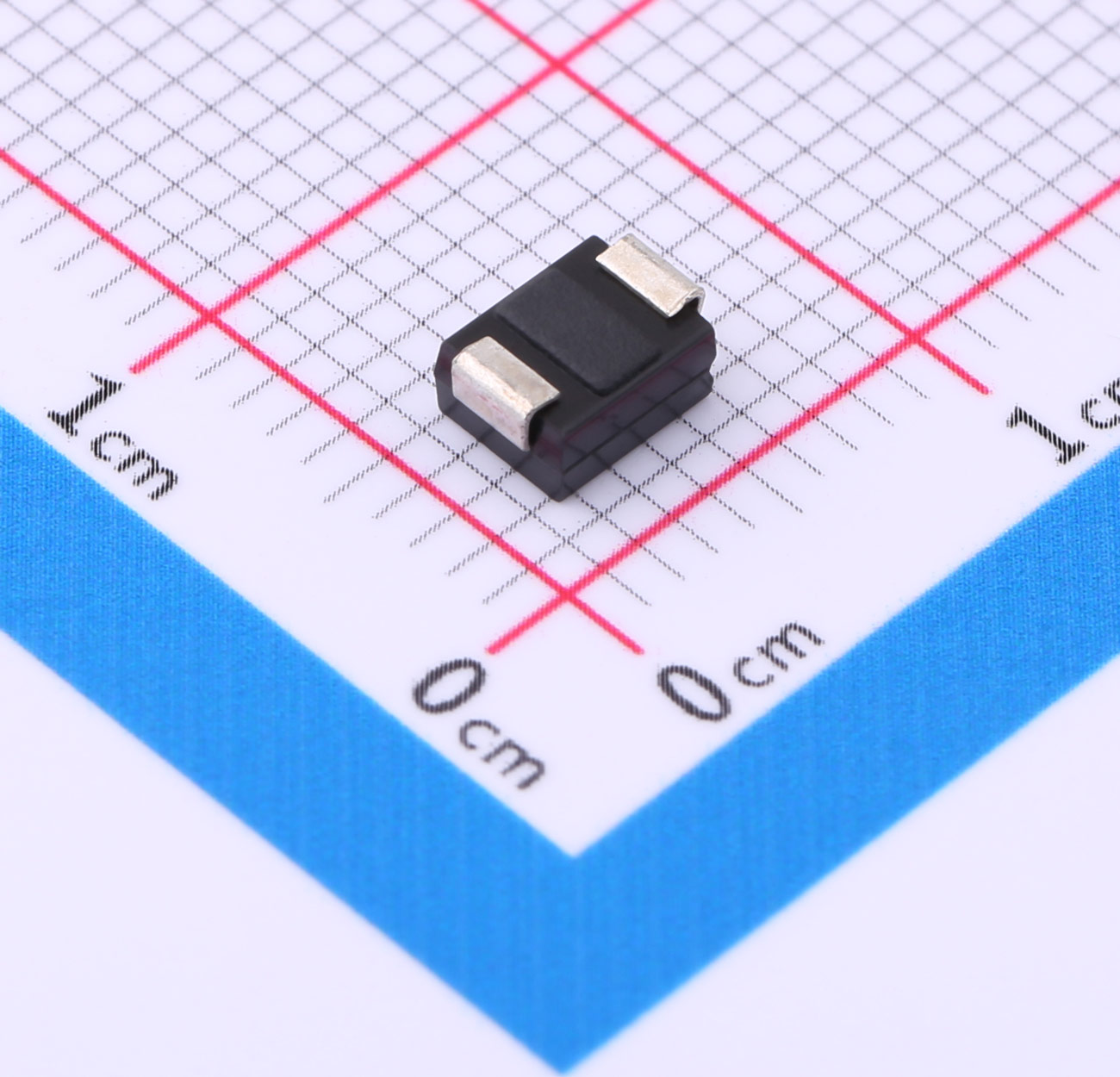

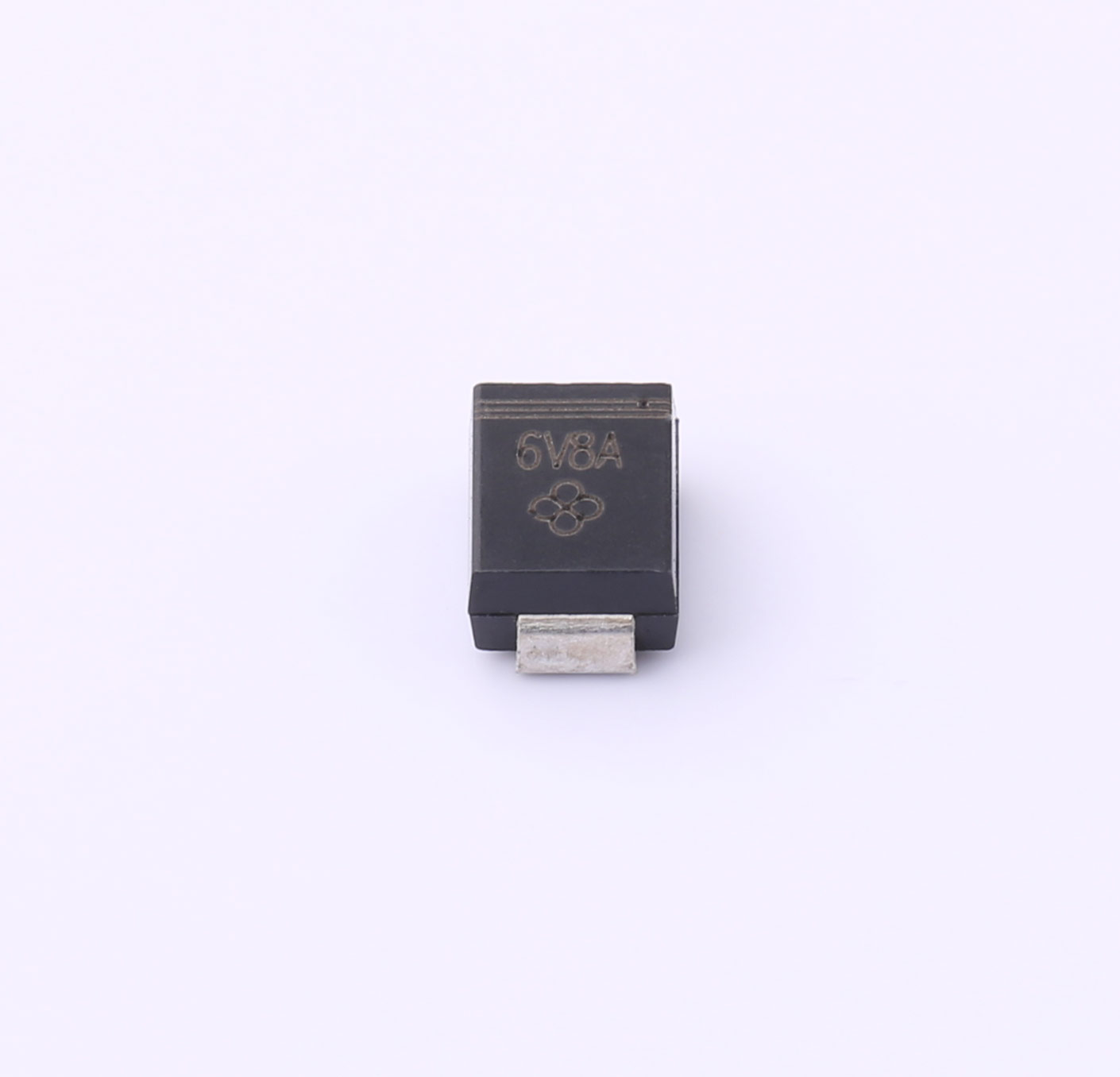

SMBJ6.8A Transient Voltage Suppressor SMB
Download datasheet Inquiry
Features
Glass Passivated Die Construction
Uni-and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material:UL Flammability Classification Rating 94V-0
Mechanical Data
Case:SMB/DO-214AA,Molded Plastic
Teminals:Solder Plated,Solderableper MIL-STD-750,Method 2026
Polarty:Cathode Band or Cathode Notch
Marking:Type Number
Weight 0.093 grams(approx.)
| File Name | Title | Description |
|---|---|---|

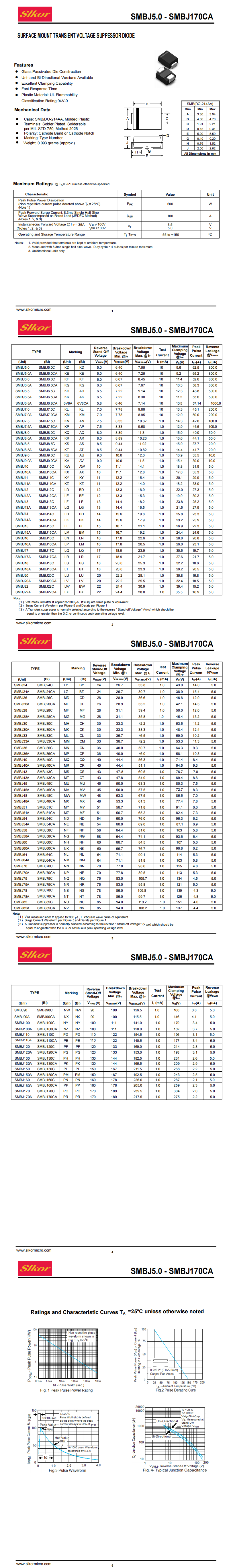

| SMBJ6.8CA.pdf | SMBJ6.8CA | - |
