The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device designed to protect sensitive electronic circuits from transient voltage events occurring in both directions. With a VRWM (Working Peak Reverse Voltage) of 18V, this diode provides reliable protection within its operating voltage range. It features bidirectional VBR (Breakdown Voltage) specifications, with a minimum clamping voltage of 20V and a maximum of 22.1V, effectively suppressing voltage spikes to safeguard connected components. The diode maintains an ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power consumption and high efficiency during normal operation. It offers robust surge protection, capable of handling peak pulse currents (Ipp) of 51.4A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses. The clamping voltage (VC) is set at 29.2V, providing reliable voltage clamping during transient events to protect downstream electronics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a versatile semiconductor device designed to protect sensitive electronic circuits from transient voltage events occurring in both directions. With a VRWM (Working Peak Reverse Voltage) of 18V, this diode provides reliable protection within its operating voltage range. It features bidirectional VBR (Breakdown Voltage) specifications, with a minimum clamping voltage of 20V and a maximum of 22.1V, effectively suppressing voltage spikes to safeguard connected components. The diode maintains an ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power consumption and high efficiency during normal operation. It offers robust surge protection, capable of handling peak pulse currents (Ipp) of 51.4A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses. The clamping voltage (VC) is set at 29.2V, providing reliable voltage clamping during transient events to protect downstream electronics.
Features
● 1500W peak pulse power capability at 10/1000μs waveform
● For surface mounted applications to optimize board space
● Glass passivated chip junction
● Halogen free and RoHS compliant
Mechanical Data

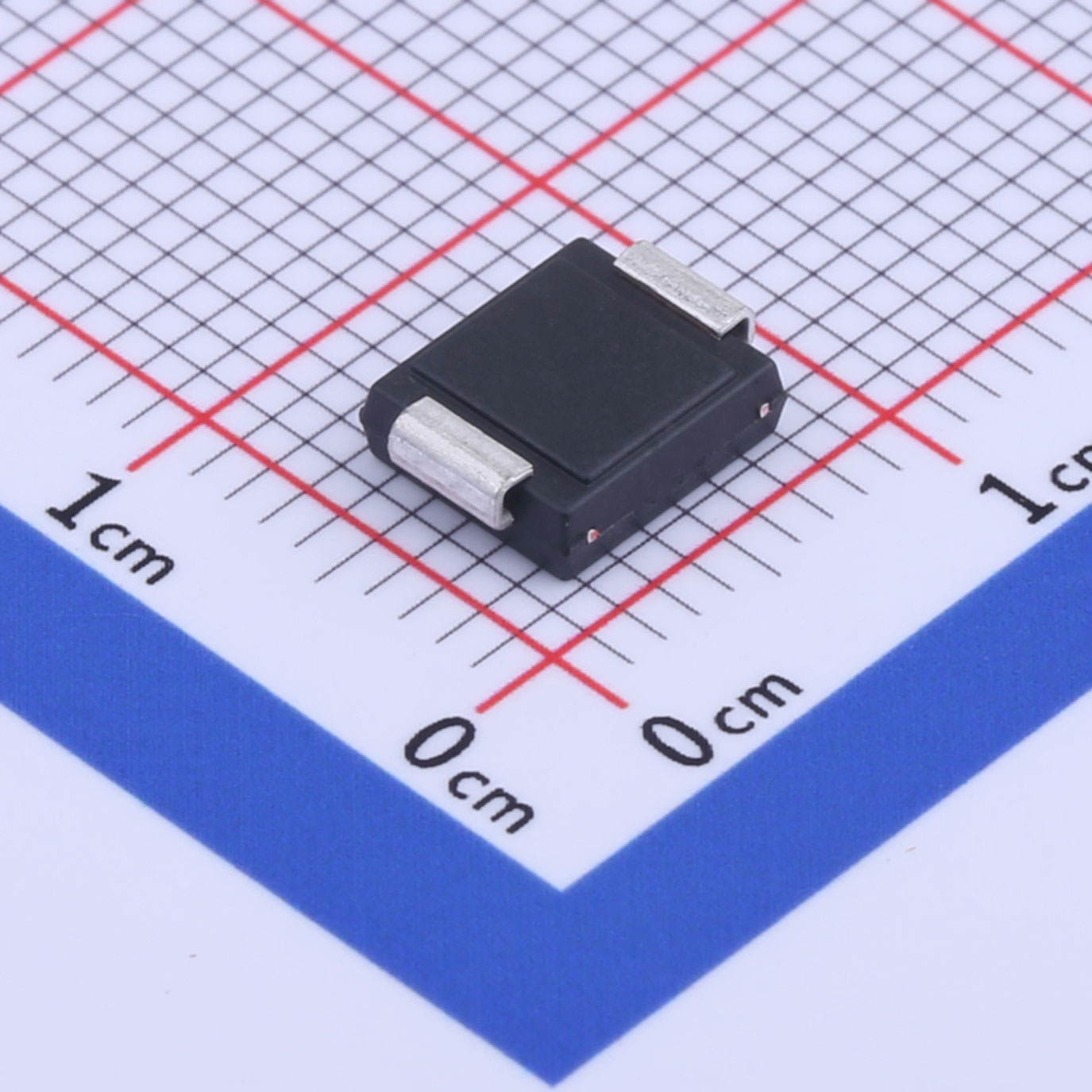

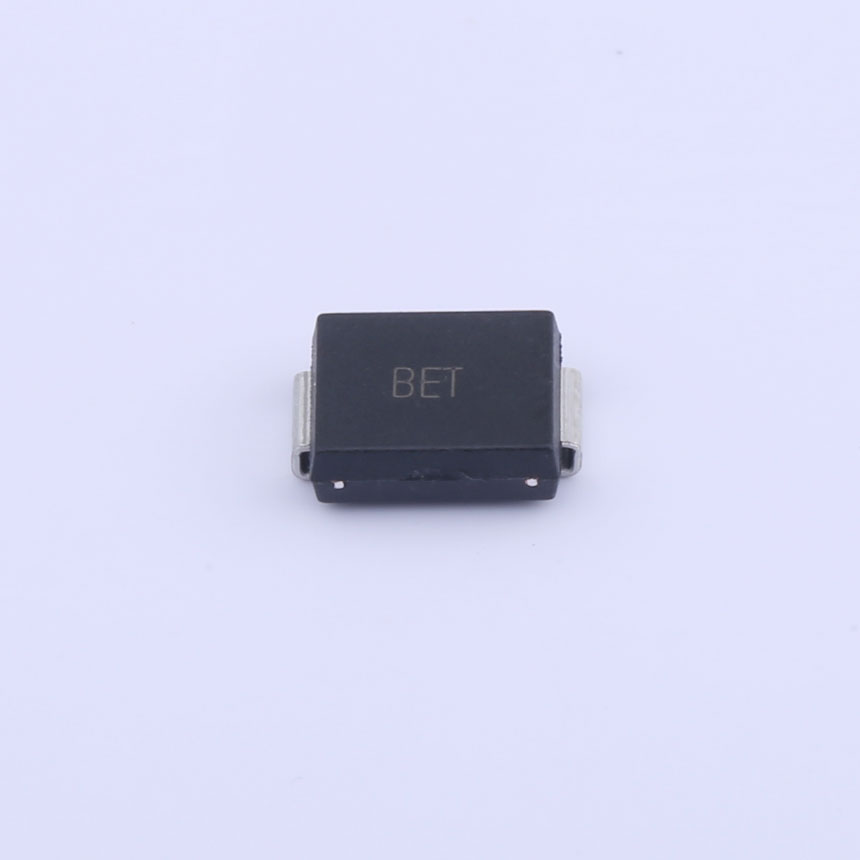

● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.22g (0.0077oz)
Applications
● Telecommunications
● Consumer Electronics
● Automotive Electronics
● Industrial Applications
| File Name | Title | Description |
|---|---|---|
| SMCJ36CA.pdf | SMCJ36CA | - |
