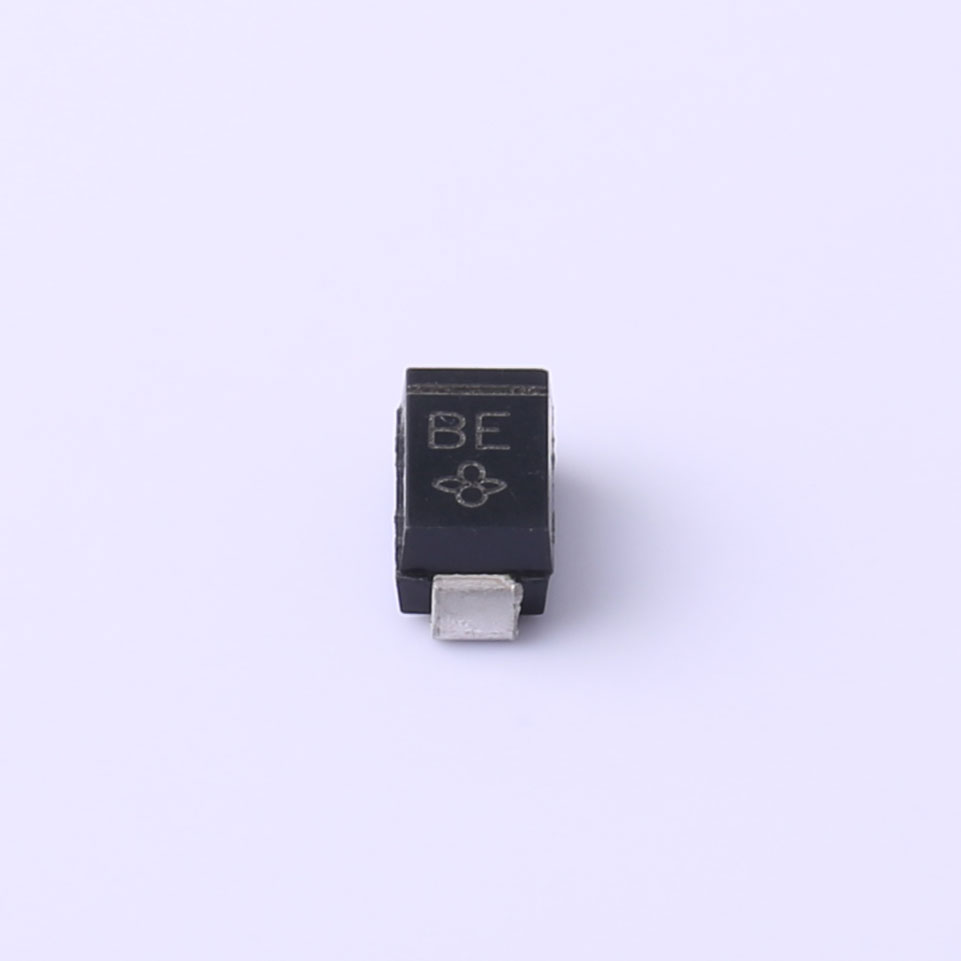

The Polar Unidirectional TVS Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges. Featuring a unidirectional clamping configuration, it efficiently suppresses transient voltages exceeding its specified breakdown voltage range, ensuring robust protection for electronic systems. This diode is engineered with high precision and reliability to safeguard against potential damage caused by electrical disturbances.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Unidirectional TVS Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges. Featuring a unidirectional clamping configuration, it efficiently suppresses transient voltages exceeding its specified breakdown voltage range, ensuring robust protection for electronic systems. This diode is engineered with high precision and reliability to safeguard against potential damage caused by electrical disturbances.
Features
● UL Recognized File # E-326243
● For surface mounted application
● Low profile package
● Built-in strain relief
● Glass passivated junction
● Excellent clamping capability
● Fast response time: Typically less than 1.0ps from 0 volt to BV min
● Typical IR less than 1uA above 10V
● High temperature soldering guaranteed: 260℃ / 10 seconds at terminals
● Plastic material used carried Underwriters Laboratory Flammability Classification 94V-0
● 400 watts peak pulse power capability with a 10 / 1000 us waveform (300W above 78V)

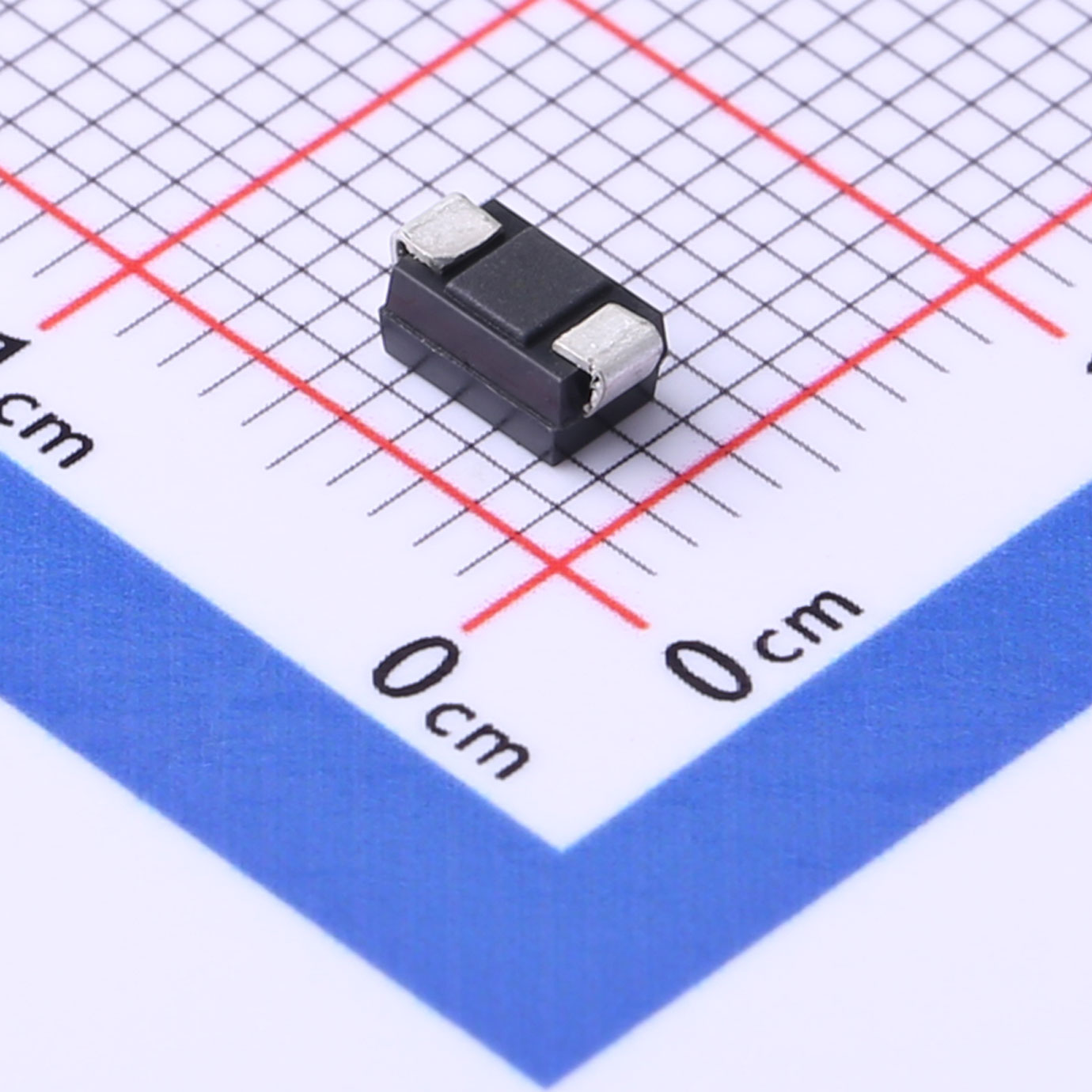

Mechanical Data
● Case: Molded plastic
● Terminals: Pure tin plated, lead free
● Polarity: Indicated by cathode band
Application
● Consumer Electronics
● Telecommunications
● Automotive Electronics
● Industrial Equipment
| File Name | Title | Description |
|---|---|---|
| SMAJ170A.PDF | SMAJ170A | - |
