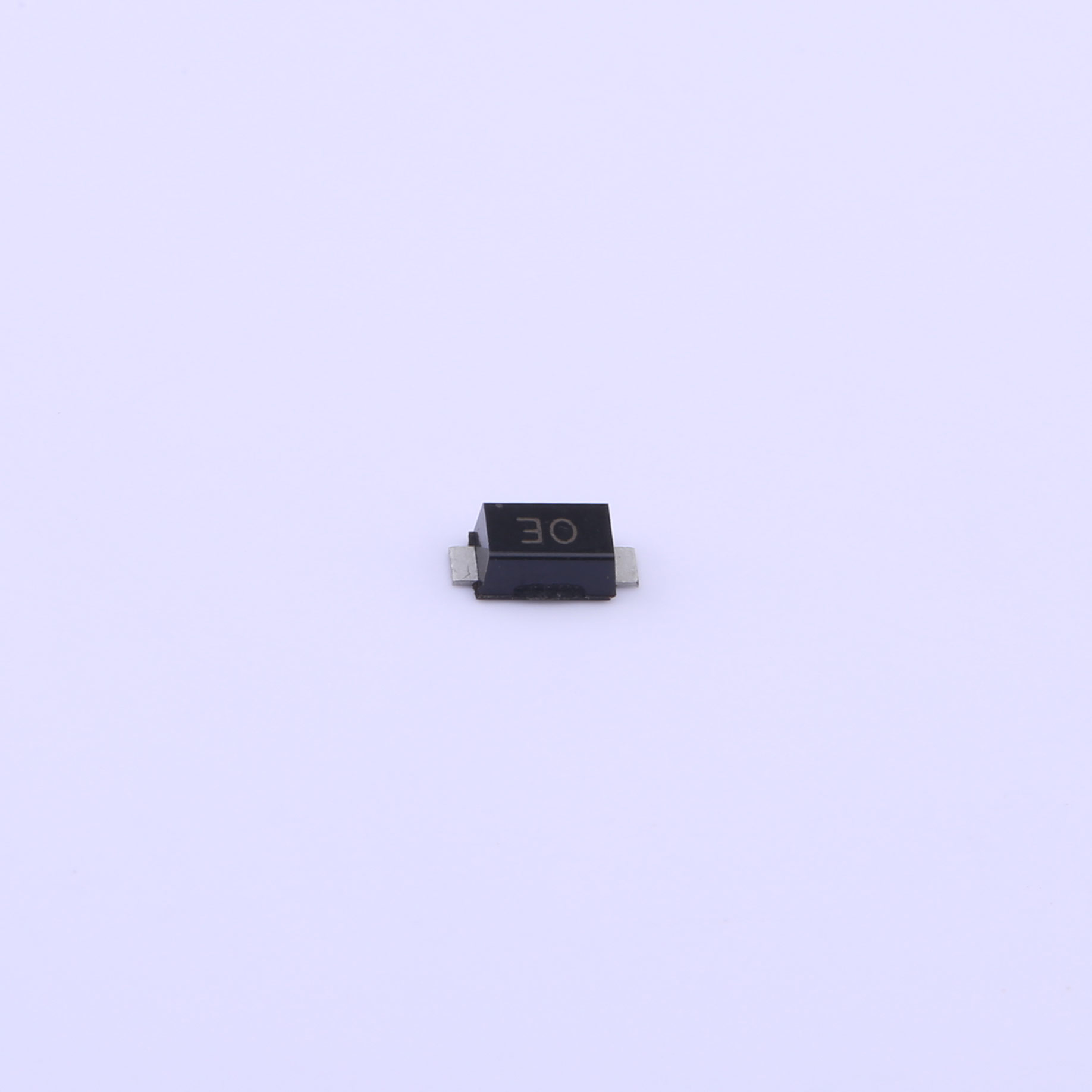

?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced electronic component designed to protect sensitive circuits from voltage transients and spikes. It offers bidirectional protection, meaning it guards against voltage surges in both directions, ensuring the reliability and longevity of connected electronics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced electronic component designed to protect sensitive circuits from voltage transients and spikes. It offers bidirectional protection, meaning it guards against voltage surges in both directions, ensuring the reliability and longevity of connected electronics.
Features
● For surface mounted applications
● Low profile package
● Low incremental surge resistance, excellent clamping capability
● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%
● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals
Mechanical Data

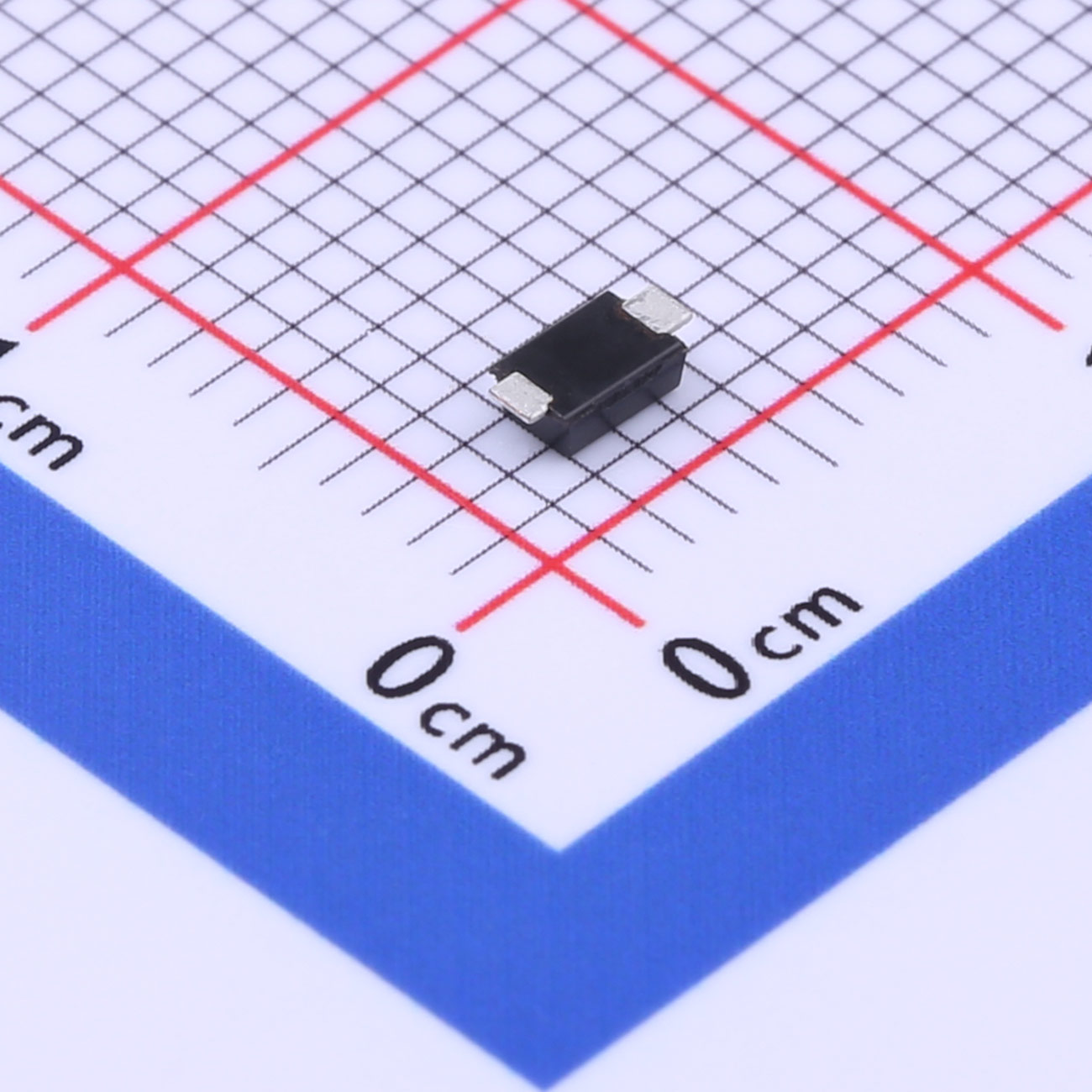

● Case: JEDEC SOD-123FL, molded plastic over passivated chip
● Polarity: Color band denotes positive end ( cathode ) except for bidirectional
● Mounting position: Any
● Weight: 0.006 ounces, 0.02 gram
Applications
● Automotive Electronics
● Telecommunications
● Industrial Control Systems
● Consumer Electronics
| File Name | Title | Description |
|---|---|---|
| SMF30CA.pdf | SMF30CA | - |
