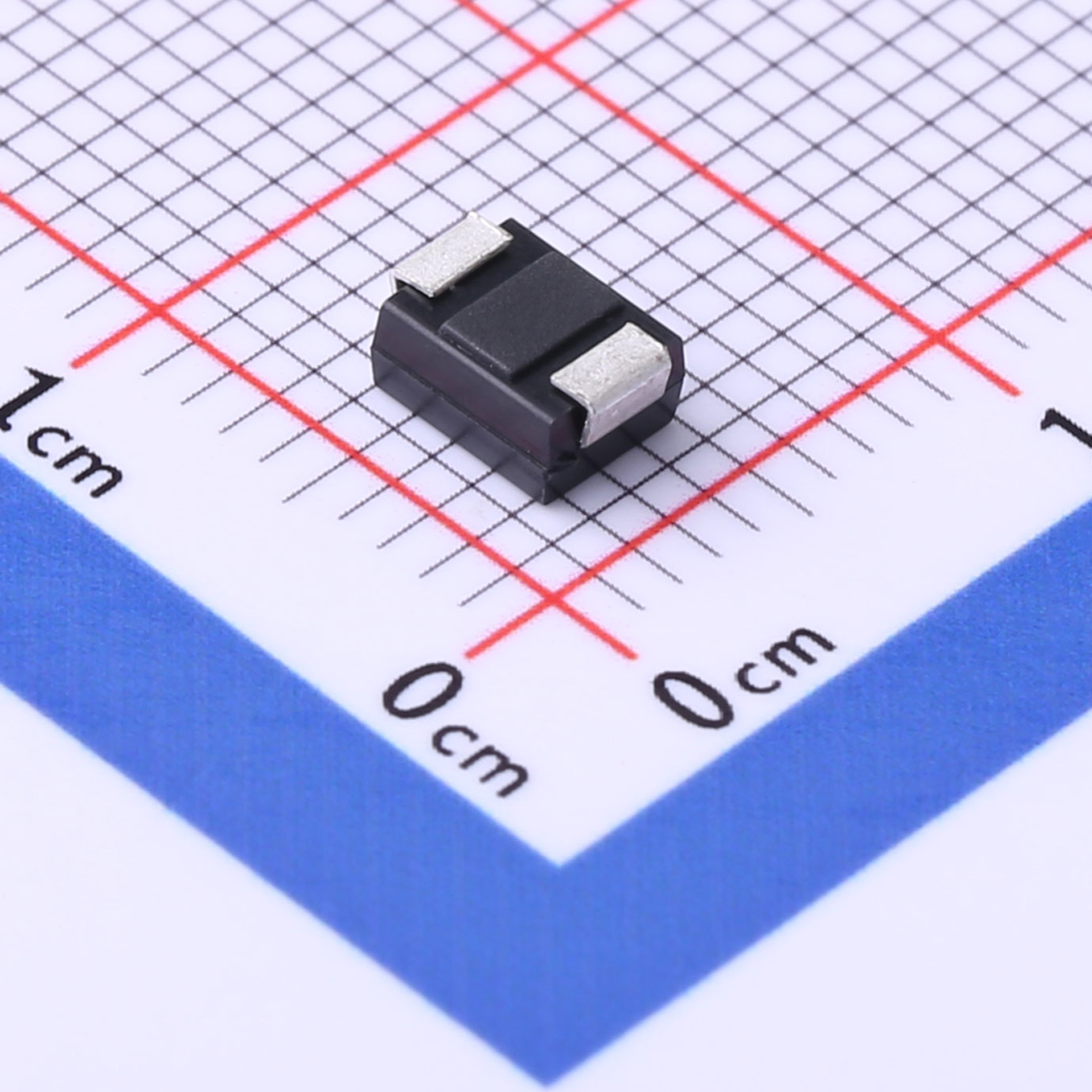

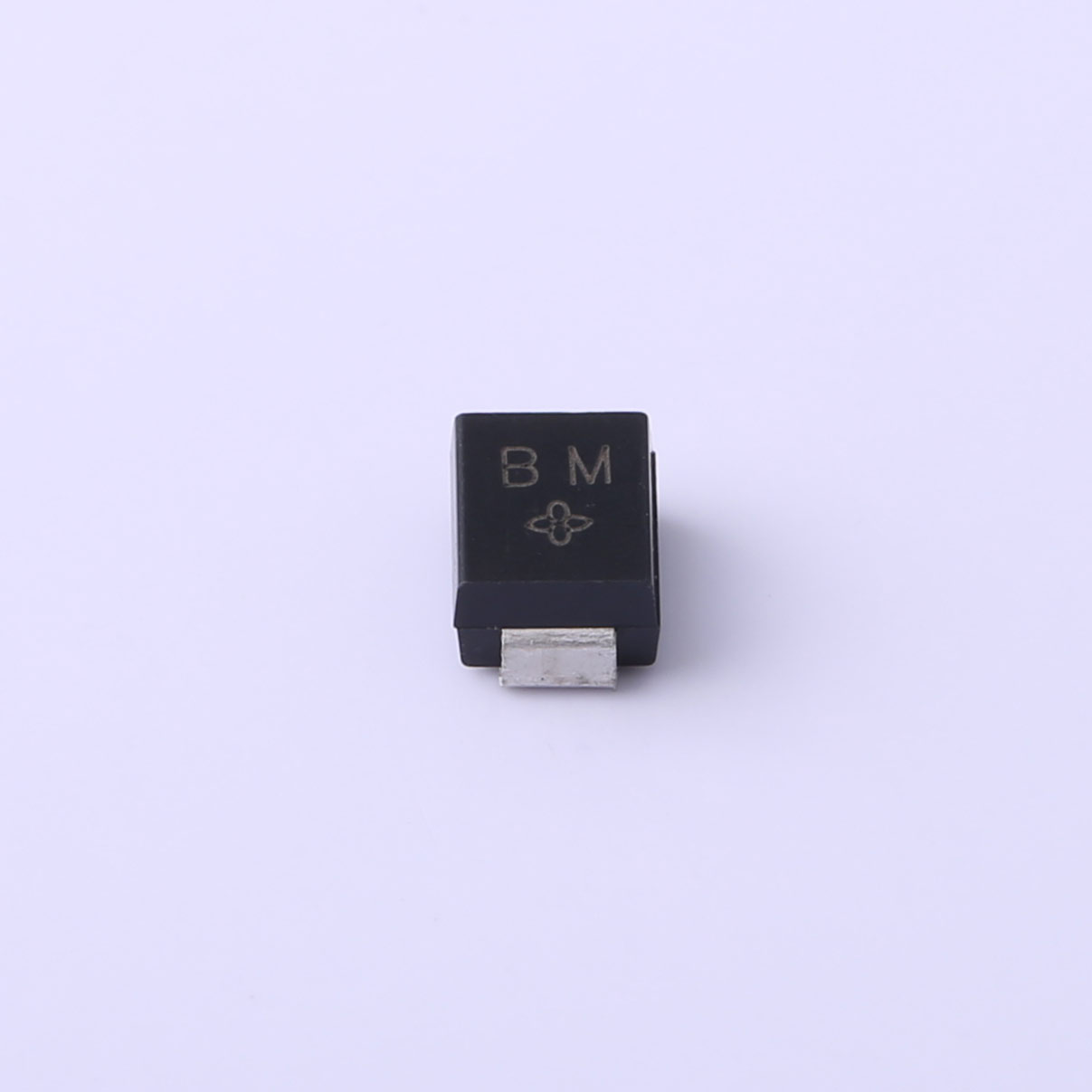

The Polar Unidirectional TVS Diode in SMB package is a crucial component designed to protect sensitive electronic circuits from voltage spikes and transient events. It efficiently clamps excessive voltage levels to safeguard against potential damage, ensuring the reliability and longevity of electronic devices.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Unidirectional TVS Diode in SMB package is a crucial component designed to protect sensitive electronic circuits from voltage spikes and transient events. It efficiently clamps excessive voltage levels to safeguard against potential damage, ensuring the reliability and longevity of electronic devices.
Features
● Glass Passivated Die Construction
● Uni- and Bi-Directional Versions Available
● Excellent Clamping Capability
● Fast Response Time
● Plastic Material: UL Flammability Classification Rating 94V-0
Mechanical Data
● Case: SMB/DO-214AA, Molded Plastic
● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
● Polarity: Cathode Band or Cathode Notch
● Marking: Type Number
● Weight: 0.093 grams (approx.)
Applications
● Consumer Electronics
● Telecommunications
● Automotive Electronics
● Industrial Electronics
| File Name | Title | Description |
|---|---|---|
| SMBJ12CA.pdf | SMBJ12CA | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
This high-power TVS (Transient Voltage Suppression) Diode is designed to offer robust protection against high-energy transient voltage spikes. Featuring a color-banded cathode for easy orientation, it ensures reliable suppression and clamping for sensitive electronic components in demanding environments.
This high-power TVS (Transient Voltage Suppression) Diode, featuring a color-banded cathode for easy identification, is designed for robust transient voltage protection in demanding applications. With a maximum breakdown voltage range of 19.0V to 20.0V and a peak pulse power of 600W, it is well-suited for safeguarding high-power electronic circuits from damaging voltage spikes.
The Polar Bidirectional TVS Diode is a sophisticated semiconductor device engineered to protect sensitive electronic circuits from transient voltage events in both directions. It acts swiftly to suppress voltage spikes and divert surge currents away from critical components, ensuring the reliability and longevity of electronic systems.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a high-performance component designed to protect sensitive electronic circuits from transient voltage spikes in both directions. With a working peak reverse voltage (Vrwm) of 10V, this diode ensures robust protection against voltage surges, maintaining the integrity and reliability of electronic systems.
The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and lightning.
The AZC199-04 has a low capacitance of 0.4pFmaximum and operates with virtually no insertion loss to 1GHz. This makes the device ideal for protection of high-speed data lines such as USB 2.0, Firewire, DVI, and gigabit Ethernet interfaces. The low capacitance array configuration allows the user to protect four high-speed data or transmission lines. The low inductance construction minimizes voltageovershoot during high current surges. They may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and lightning.
?The AZ5325-01F ESD Protection Device is engineered to offer superior protection against electrostatic discharge (ESD) in a compact DFN1006 package. This device is ideal for high-speed, low-capacitance applications where reliable ESD safeguarding is essential.
