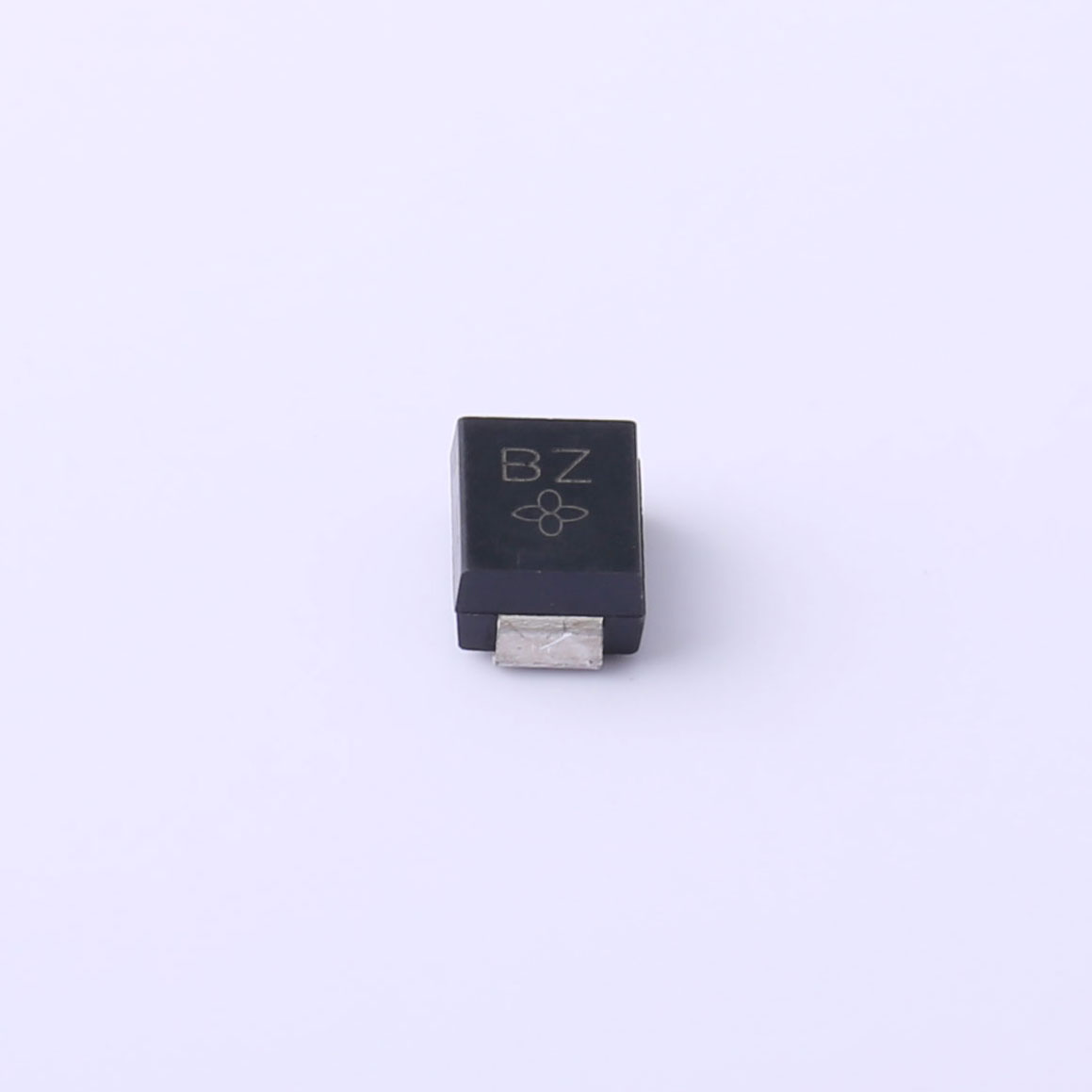

The Polar Bidirectional TVS Diode is a sophisticated semiconductor device engineered to protect sensitive electronic circuits from transient voltage events in both directions. It acts swiftly to suppress voltage spikes and divert surge currents away from critical components, ensuring the reliability and longevity of electronic systems.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS Diode is a sophisticated semiconductor device engineered to protect sensitive electronic circuits from transient voltage events in both directions. It acts swiftly to suppress voltage spikes and divert surge currents away from critical components, ensuring the reliability and longevity of electronic systems.
Features
● Glass Passivated Die Construction.
● Uni-and Bi-Directional Versions Available.
● Excellent Clamping Capability.
● Fast Response Time.
● Plastic Material: UL Flammability Classification Rating 94V-0.
Mechanical Data

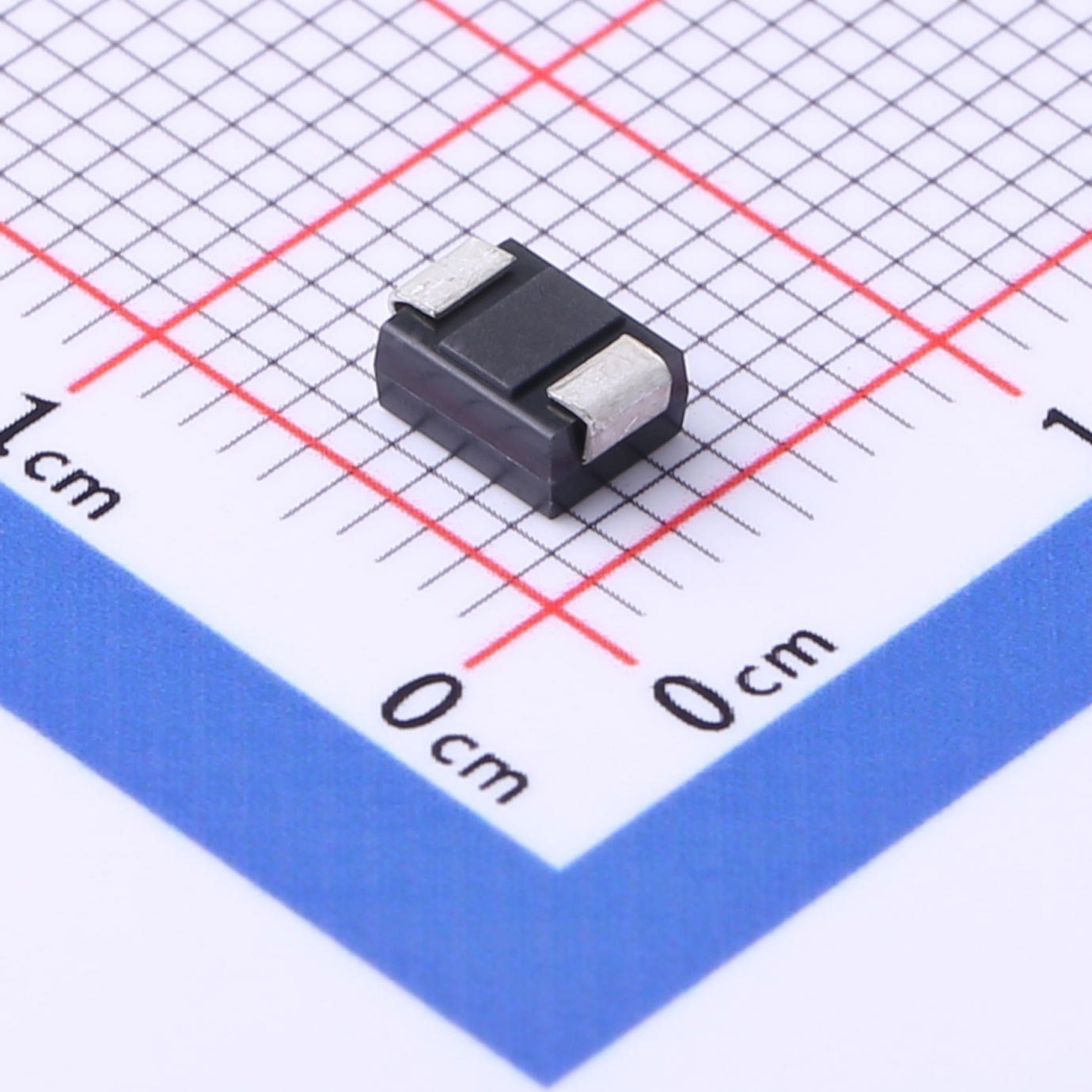

● Case:SMB/DO-214AA,Molded Plastic.
● Terminals:Solder Plated,Solderable per MIL-STD-750, Method 2026.
● Polarity:Cathode Band or Cathode Notch.
● Marking:Type Number.
● Weight: 0.093 grams (approx.).
Applications
● Telecommunications
● Industrial Automation
● Automotive Electronics
● Consumer Electronics

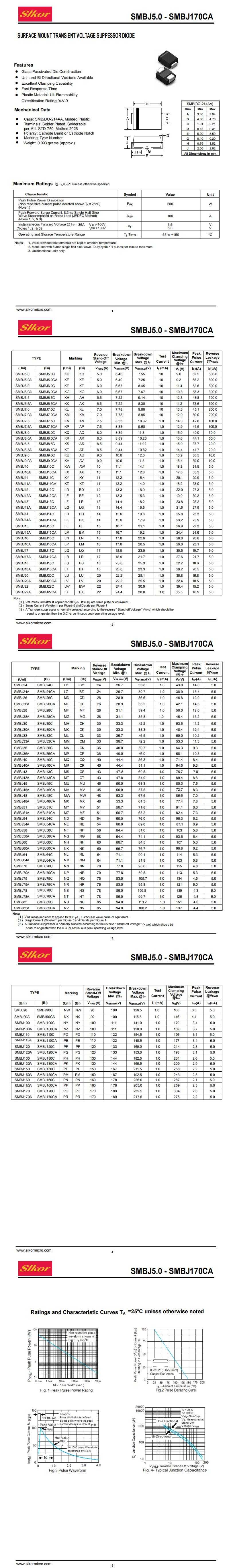

| File Name | Title | Description |
|---|---|---|
| SMBJ18CA.pdf | SMBJ18CA | - |
