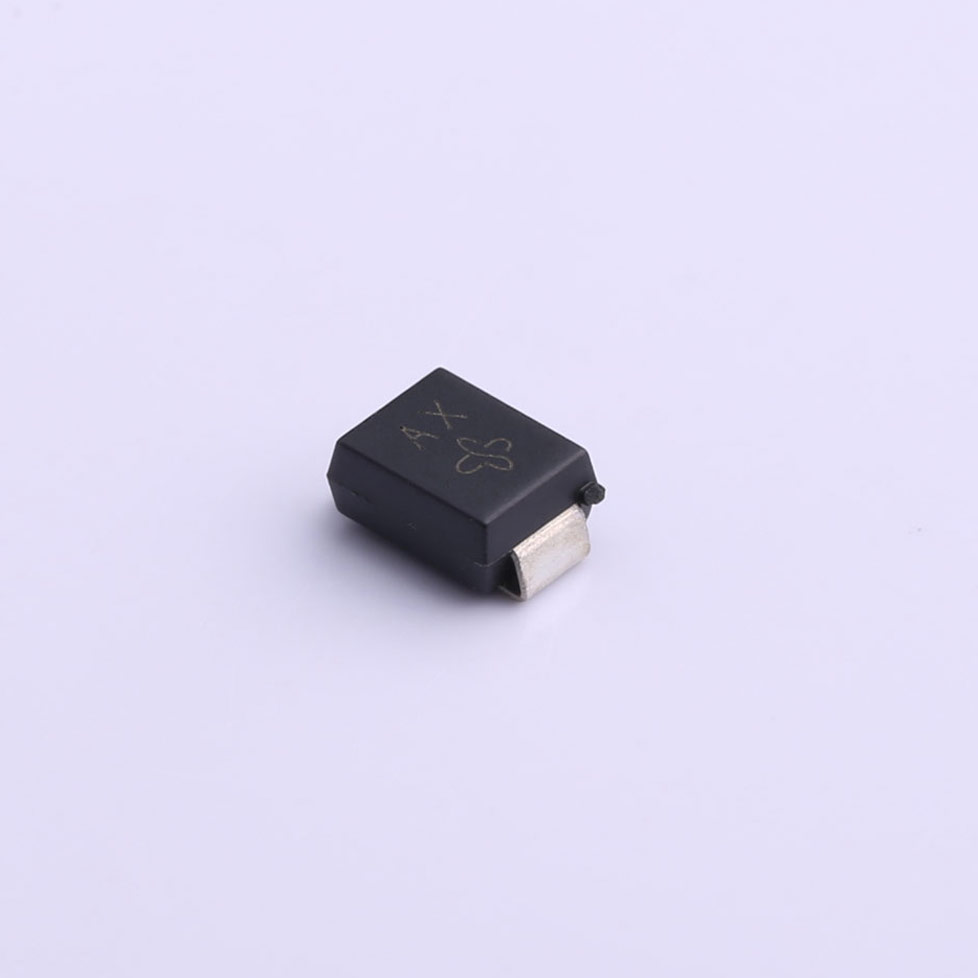

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a high-performance component designed to protect sensitive electronic circuits from transient voltage spikes in both directions. With a working peak reverse voltage (Vrwm) of 10V, this diode ensures robust protection against voltage surges, maintaining the integrity and reliability of electronic systems.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a high-performance component designed to protect sensitive electronic circuits from transient voltage spikes in both directions. With a working peak reverse voltage (Vrwm) of 10V, this diode ensures robust protection against voltage surges, maintaining the integrity and reliability of electronic systems.
Features
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material: UL Flammability Classification Rating 94V-0
Mechanical Data

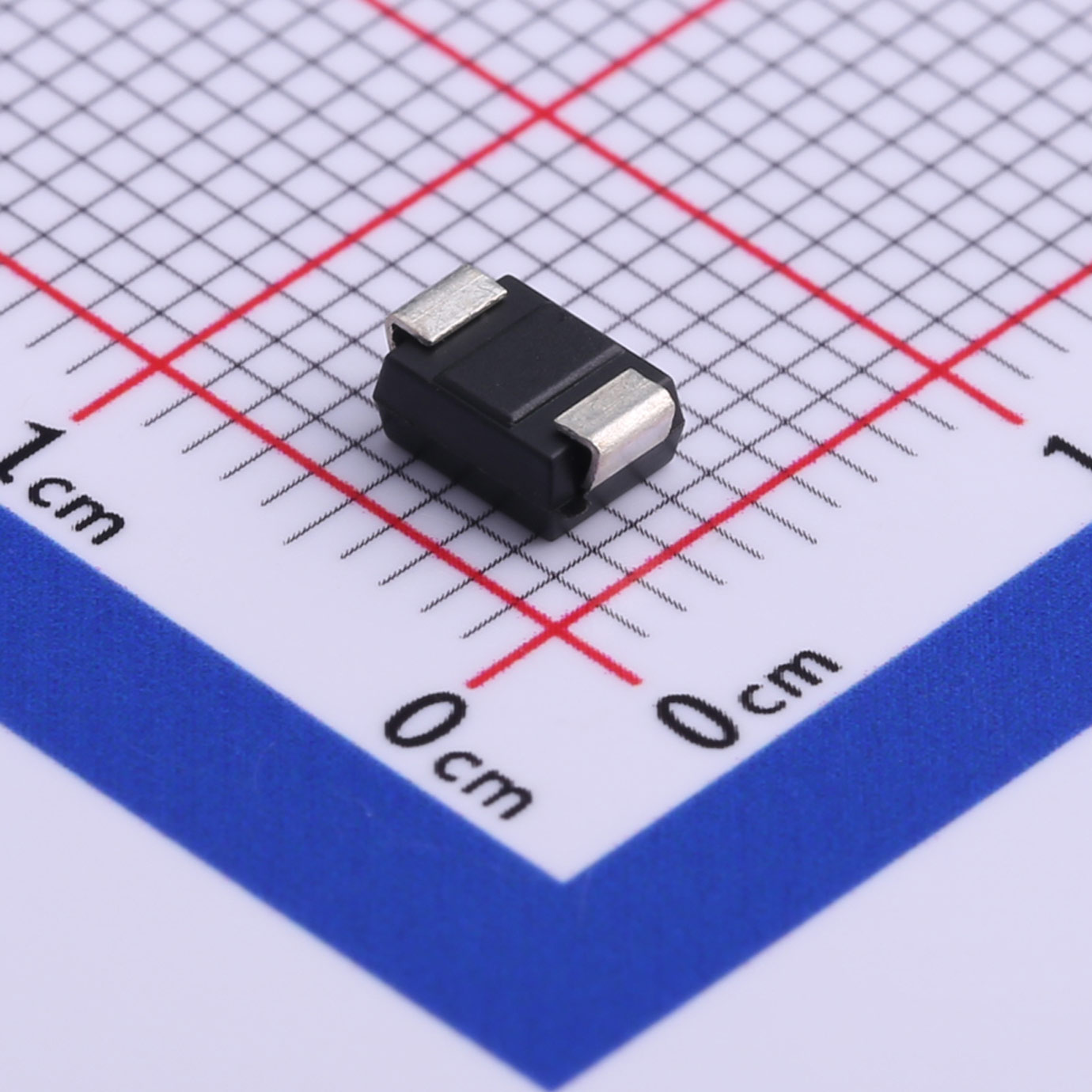

Case: SMB/DO-214AA, Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)
Applications
Telecommunication Equipment: Protects telecom infrastructure such as communication lines, network interfaces, and sensitive telecom equipment from lightning-induced surges and power disturbances.Consumer Electronics: Safeguards mobile phones, tablets, and other consumer electronics from voltage spikes during charging or power supply fluctuations.Automotive Electronics: Ensures the reliability of vehicle electronics including ECUs, infotainment systems, and sensors against electrical disturbances from alternator load dumps or battery faults.Industrial Controls: Used in industrial automation systems, PLCs, and control circuits to prevent damage from switching transients and electrical noise.Power Supplies: Protects power supplies, DC-DC converters, and voltage regulators from voltage surges and spikes, maintaining stable operation and extending the lifespan of electronic devices.
