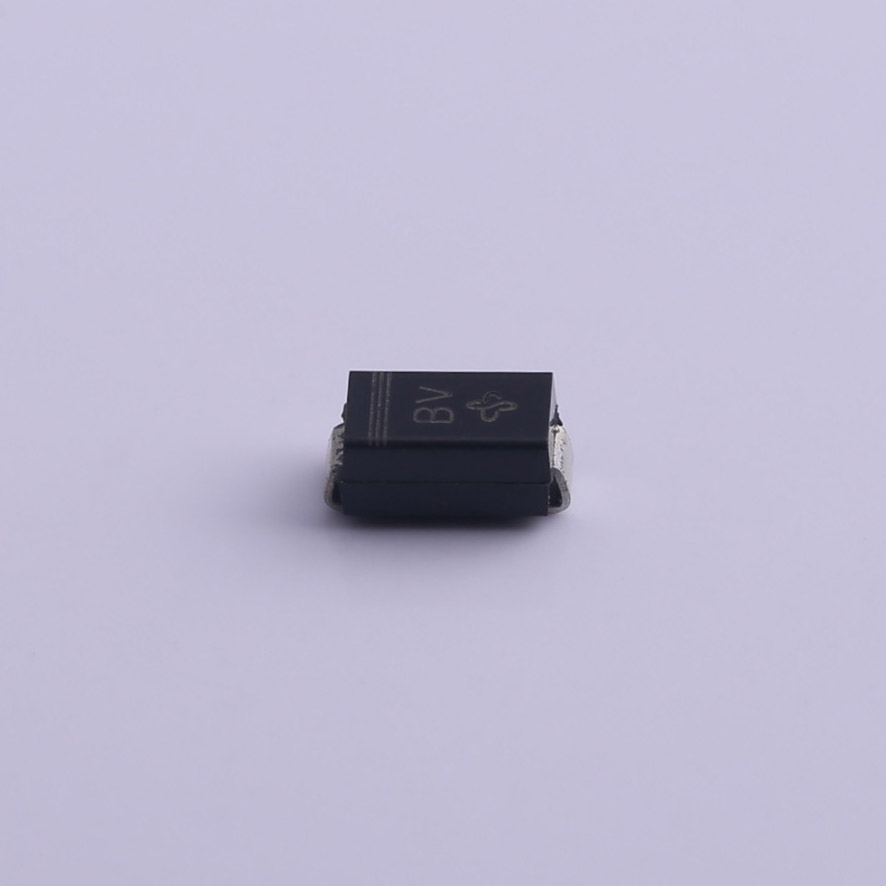

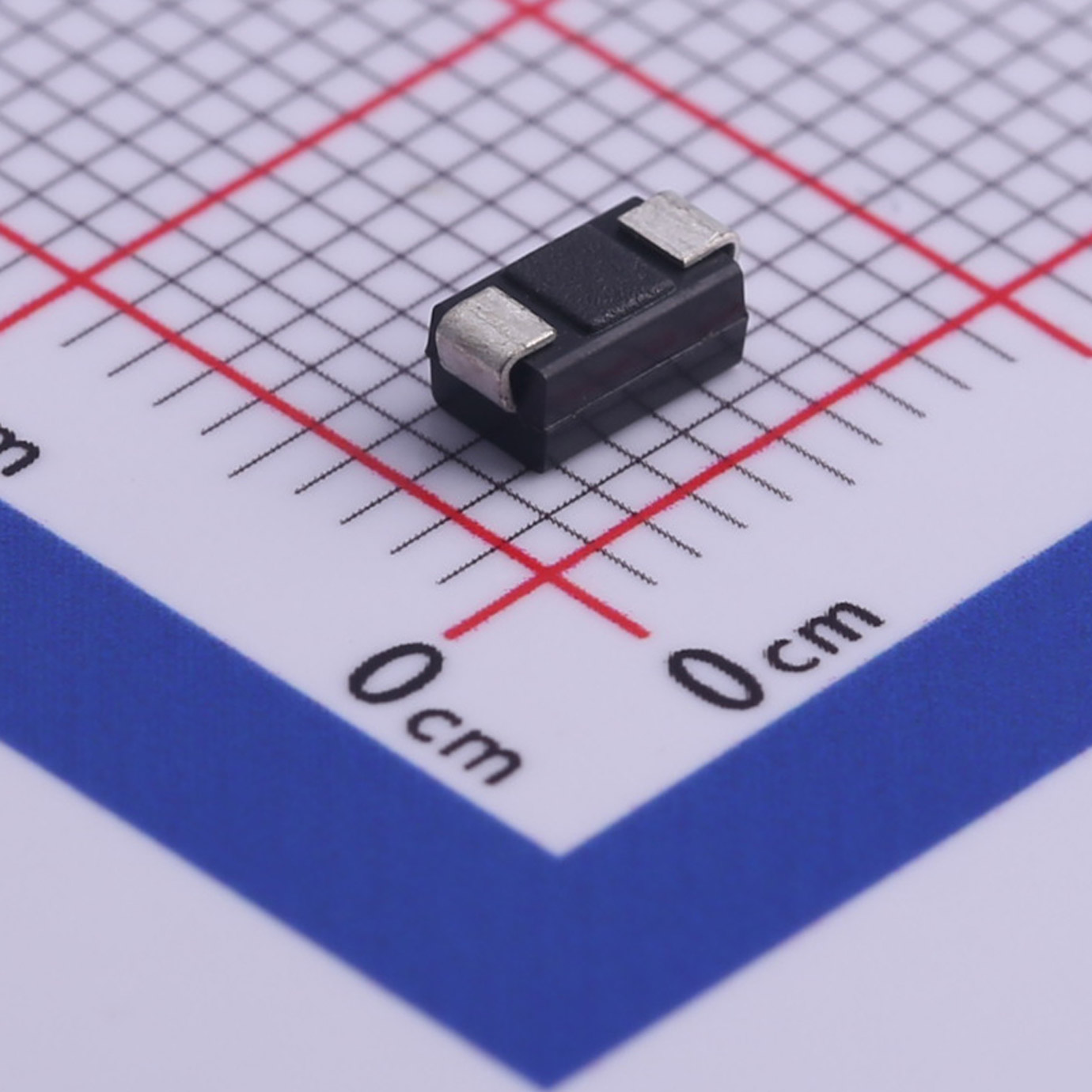

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is an advanced component designed to protect sensitive electronic circuits from transient voltage events. With its precise specifications and robust design, it effectively clamps excessive voltage spikes, ensuring reliable operation of electronic devices.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is an advanced component designed to protect sensitive electronic circuits from transient voltage events. With its precise specifications and robust design, it effectively clamps excessive voltage spikes, ensuring reliable operation of electronic devices.
Features
● UL Recognized File # E-326243
● For surface mounted application
● Low profile package
● Built-in strain relief
● Glass passivated junction
● Excellent clamping capability
● Fast response time: Typically less than 1.0ps from 0 volt to BV min
● Typical IR less than 1uA above 10V
● High temperature soldering guaranteed: 260℃ / 10 seconds at terminals
● Plastic material used carried Underwriters Laboratory Flammability Classification 94V-0
● 400 watts peak pulse power capability with a 10 / 1000 us waveform (300W above 78V)
Applications
● Consumer Electronics: Protects devices such as smartphones, tablets, and cameras from voltage spikes due to lightning strikes or power surges.
● Computing Systems: Safeguards microprocessors, memory modules, and sensitive electronic components in PCs and servers from transient voltage fluctuations.
● Telecommunication Equipment: Essential for protecting telecom infrastructure, including routers, switches, and communication lines, against voltage surges.
● Automotive Electronics: Used in automotive electronics to shield sensitive systems like engine control units (ECUs) and infotainment systems from voltage transients.
● Industrial Applications: Ensures reliable operation of industrial control systems, PLCs, sensors, and automation equipment in harsh environments prone to electrical disturbances.
| File Name | Title | Description |
|---|---|---|

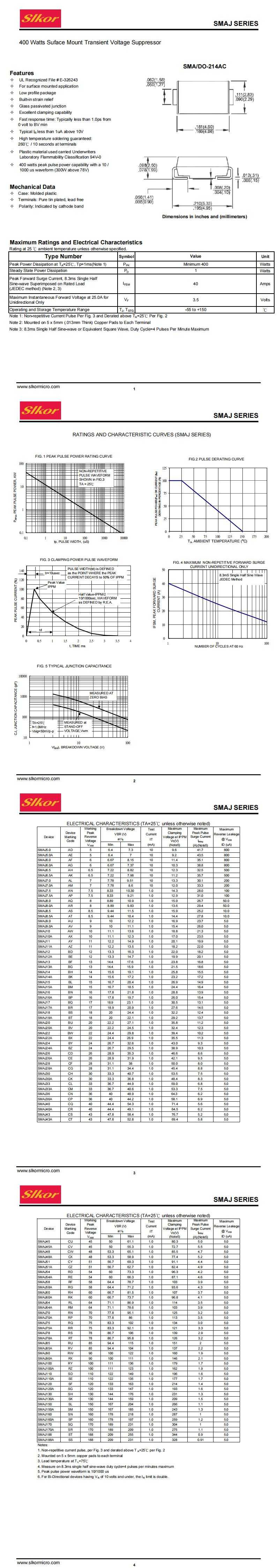

| SMAJ20A.pdf | SMAJ20A | - |
