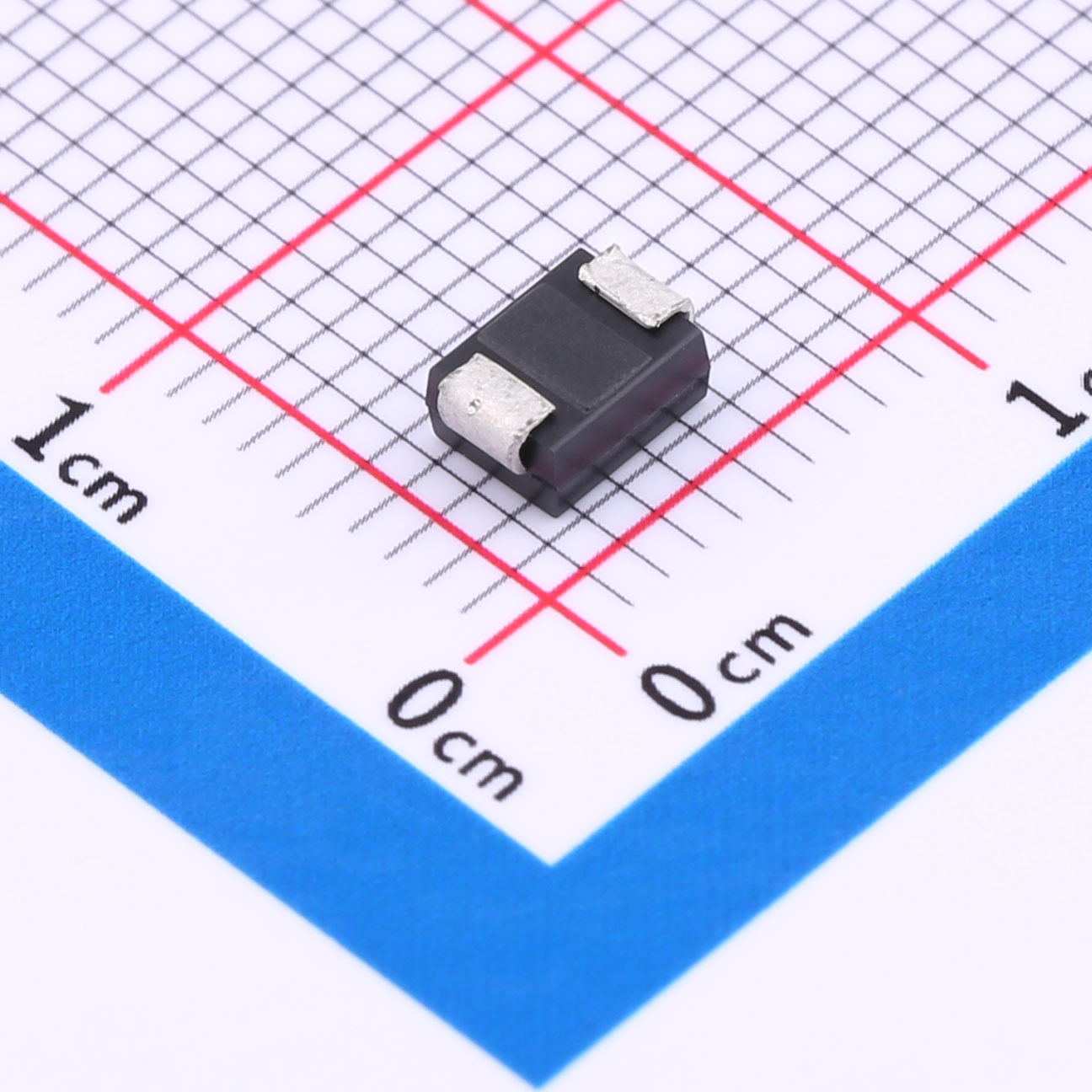

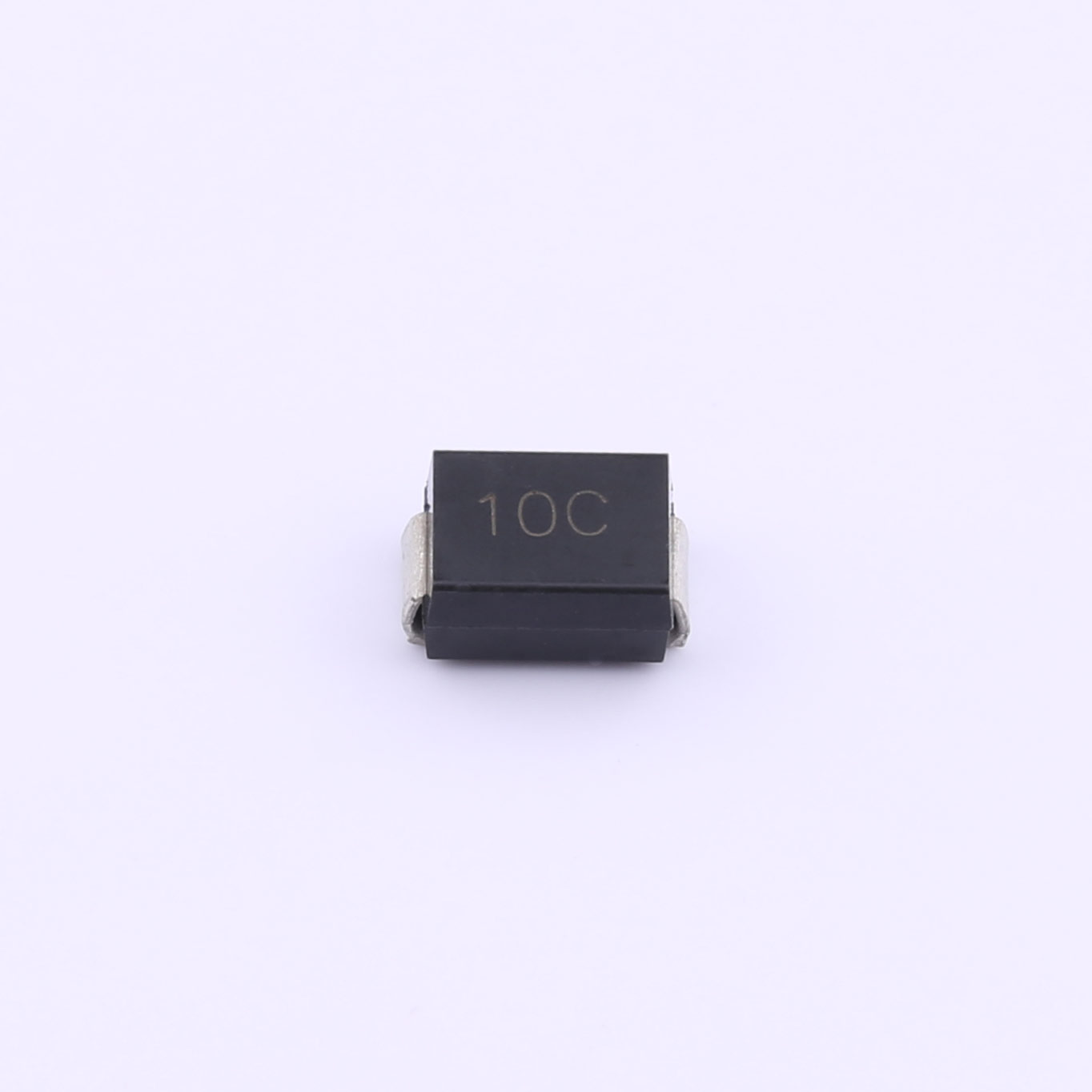

This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
Features
● 600W peak pulse power
● Excellent clamping capability
● Small clamping voltage
● Fast response time: uni-directional less than 1.0ps from 0V to VBR, bi-directional less than 5.0ns
Mechanical characteristics
● Package: Molded package
● Encapsulation material: Flame-retardant epoxy recognized by UL94V-O
● Terminals: Tin-plated
● Polarity: Cathode indicated by color band
● Mounting position: Any
Applications
● Industrial Equipment
● Power Supplies
● Telecom and Networking
● Consumer Electronics
| File Name | Title | Description |
|---|---|---|
| 2.pdf | 2 | - |
