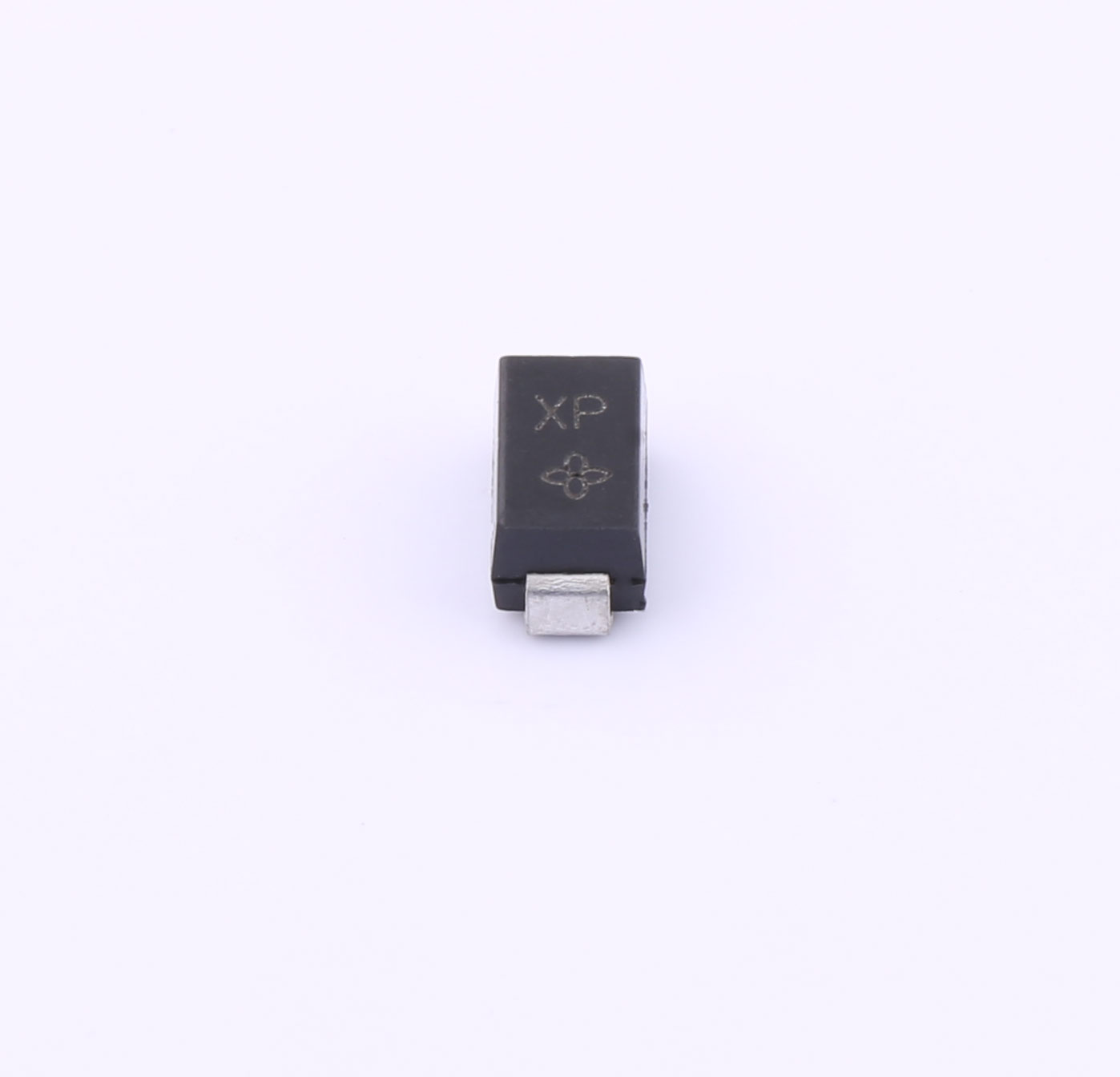

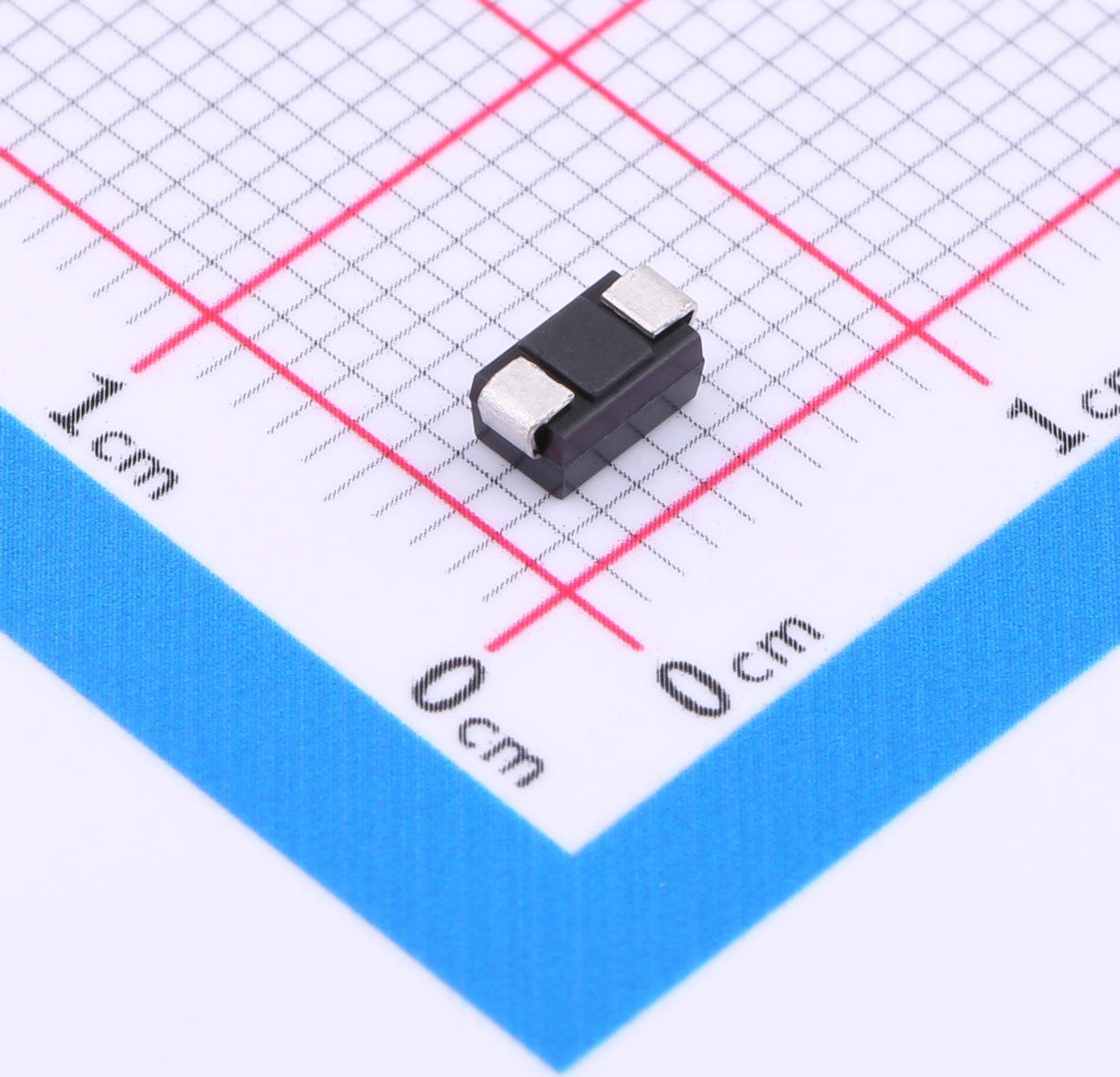

SMAJ16CA Transient Voltage Suppression Diode DO-214AC
Download datasheet InquirySURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
FEATURES
Glass Passivated Die Construction
Uni-Directional and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification Rating 94V-O
MECHANICAL DATA
Case: JEDEC SMA(DO-214AC),Transfer Molded Epoxy
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity Cathode Band Except Bi-Directional
| File Name | Title | Description |
|---|---|---|
| SMAJ10CA.pdf | SMAJ10CA | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a highly efficient semiconductor device engineered to protect sensitive electronic circuits from transient voltage spikes and surges. Featuring bidirectional clamping capabilities, it offers robust protection in both directions, ensuring the reliable operation of electronic components under varying voltage conditions.
This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
The BTRD04A15 is a 15V bi-directional TVS diode, utilizingleading monolithic silicon technology to provide fastresponse time and low ESD clamping voltage, making thisdevice an ideal solution for protecting voltage sensitive data and power line. The complies with the IEC 61000-4-2 (ESD) with ±30 kV air and ±30 kV contact discharge. It is assembled into an ultra-small 1.0x0.6mm lead-free DFN package. The small size and high ESD surge protection make an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications.
?The Polar TVS Diode is an advanced transient voltage suppression component engineered to protect sensitive electronic circuits from voltage transients and surges. With a robust design and precise specifications, it offers reliable performance in safeguarding electronics against damaging voltage spikes.
?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a robust semiconductor device engineered to protect sensitive electronic circuits from transient voltage spikes and surges in both directions. With a VRWM (Working Peak Reverse Voltage) of 30V, this diode ensures effective protection within its specified operational voltage range. It features bidirectional VBR (Breakdown Voltage) specifications with a minimum clamping voltage of 33.3V and a maximum of 36.8V, offering reliable suppression of voltage spikes to safeguard connected components. The diode maintains an ultra-low reverse leakage current (Ir) of 1μA, ensuring minimal power consumption and high efficiency during normal operation. It is capable of handling peak pulse currents (Ipp) of up to 31A and transient power dissipation (Ppp) suitable for 10/1000μs pulses.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an advanced electronic component designed to protect sensitive circuits from transient voltage spikes and surges in both directions. With a VRWM (Working Peak Reverse Voltage) of 75V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 83.3V (minimum) to 92.1V (maximum). Featuring an ultra-low reverse leakage current (Ir) of 1μA, it ensures minimal power loss during normal operation. The diode can handle peak pulse currents (Ipp) of up to 12.4A for 10/1000μs pulses, with a clamping voltage (VC) of 121V.
The Polar Bidirectional TVS Diode is a high-performance semiconductor device designed to safeguard sensitive electronic circuits from transient voltage spikes in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 26V, VBR (Breakdown Voltage) ranging from 28.9V to 33.2V, and a low reverse leakage current of 5μA, this diode ensures robust protection against voltage surges, enhancing the reliability and longevity of electronic systems.
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is a compact and efficient device designed to protect sensitive electronic circuits from transient voltage events in both directions. With a working peak reverse voltage (Vrwm) of 7.5V, this diode provides robust protection against voltage spikes, ensuring the reliability and longevity of electronic systems.
