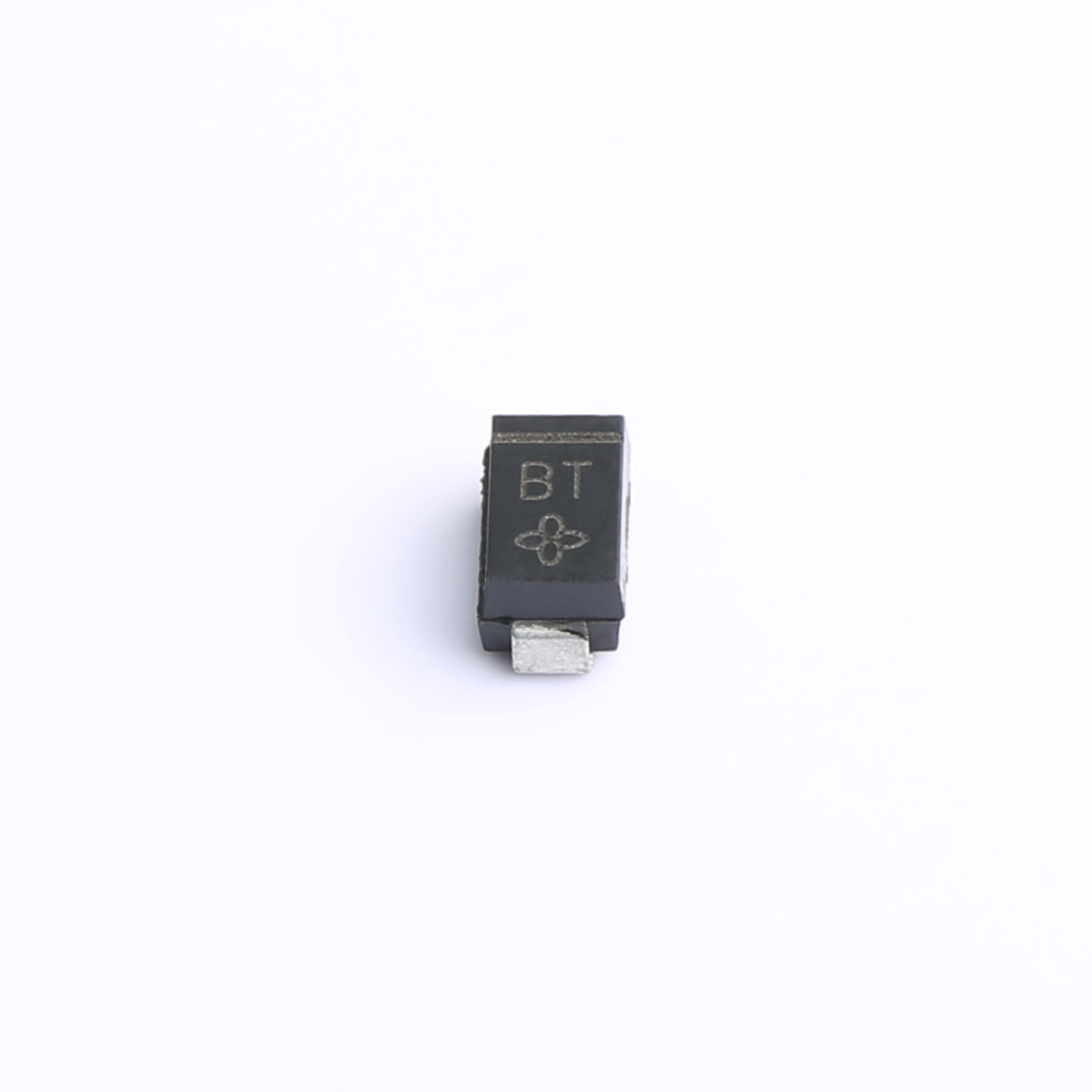

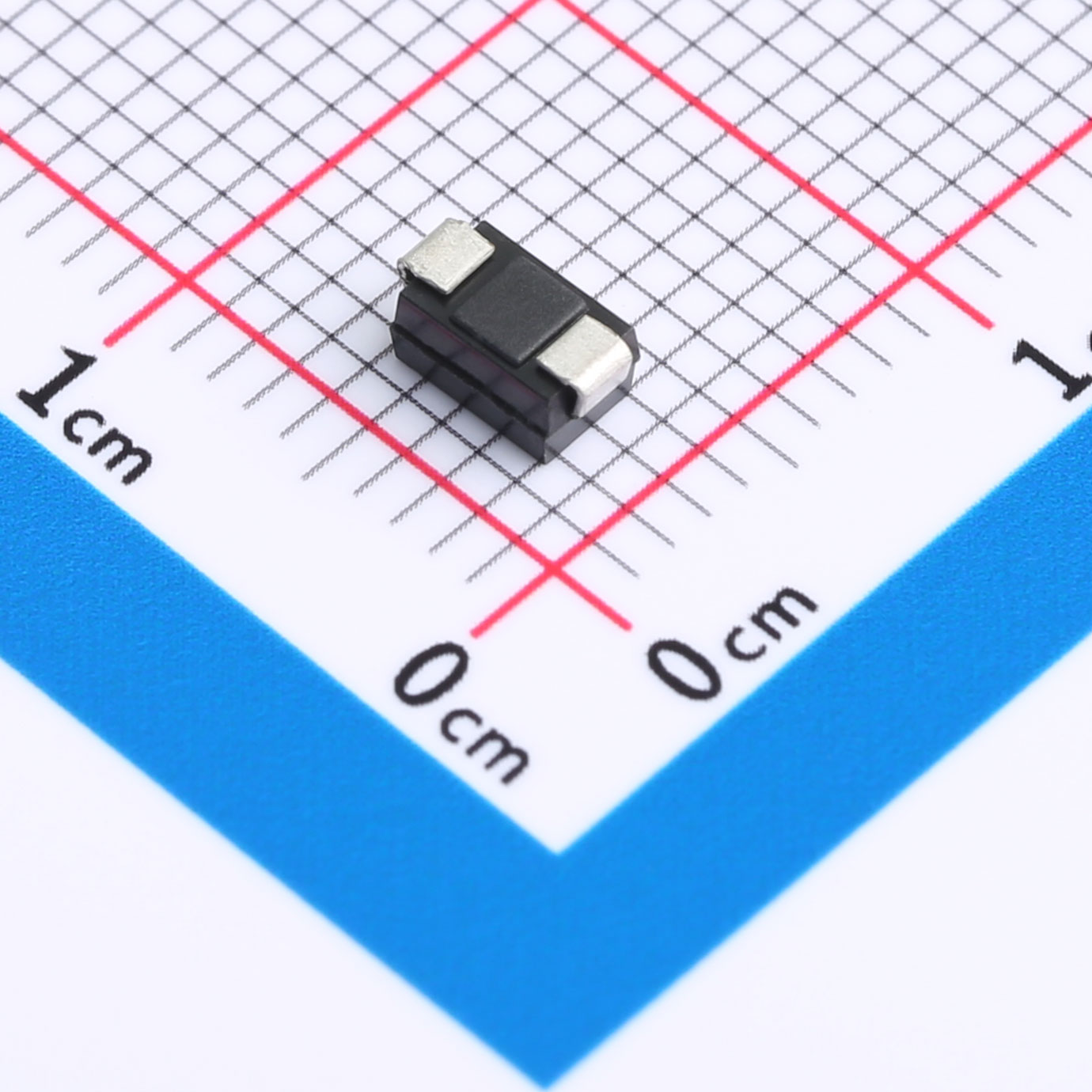

SMAJ18A Transient Voltage Diode DO-214AC
Download datasheet InquirySURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
FEATURES
Glass Passivated Die Construction
Uni-Directional and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability Classification Rating 94V-O
MECHANICAL DATA
Case: JEDEC SMA(DO-214AC),Transfer Molded Epoxy
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity Cathode Band Except Bi-Directional
| File Name | Title | Description |
|---|---|---|
| SMAJ10CA.pdf | SMAJ10CA | - |
