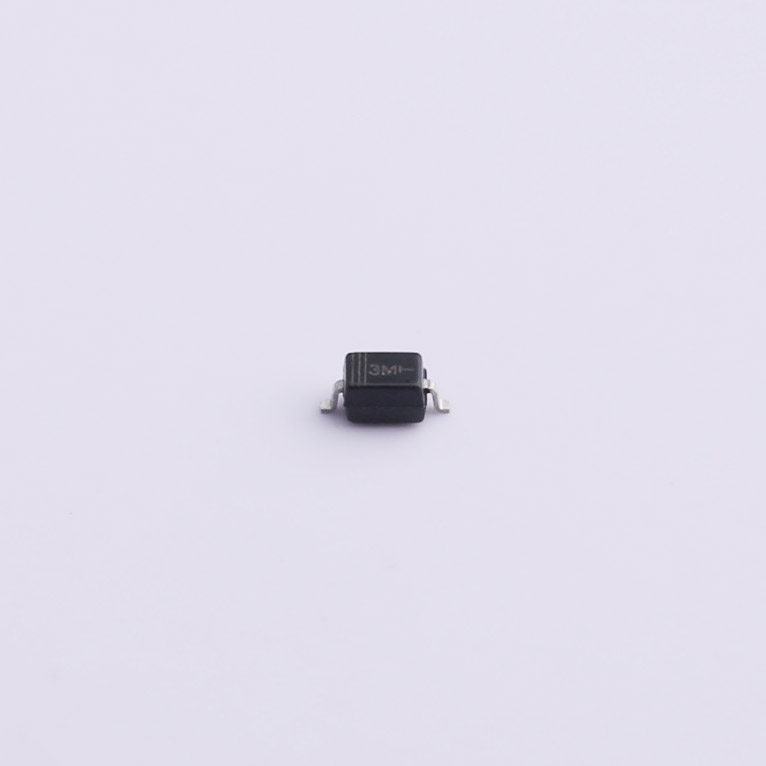

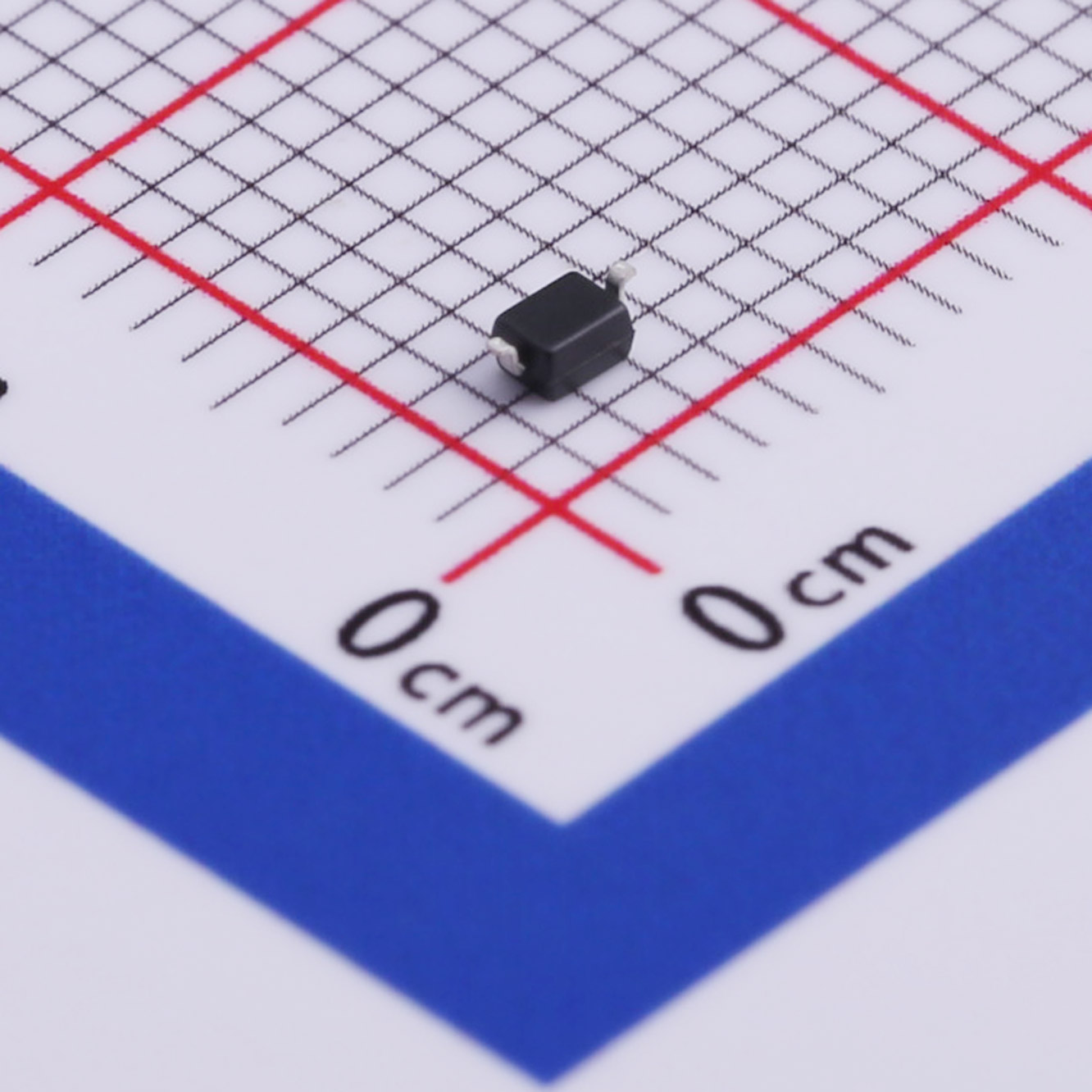

The SLESD3Z5VOC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts
ideal for ESD protection on designs where board space is at a premium.
This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
The SLESD3Z5VOC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts
ideal for ESD protection on designs where board space is at a premium.
This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
FEATURES
IEC61000-4-2 (ESD) ±15kV (air),
±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
Peak power dissipation: 200W (8/20μs)
Protects one directional I/O line
Low clamping voltage
Working voltages : 5V
Low leakage current
APPLICATIONS
High Speed Line :USB1.0/2.0, VGA, DVI, SDI,
Serial and Parallel Ports
Notebooks, Desktops, Servers
Projection TV
Cellular handsets and accessories
Portable instrumentation
Peripherals
MACHANICAL DATA
SOD-323 package
Terminals: Gold plated, solderable per MIL-STD-750, method 2026
Packaging: Tape and Reel
Reel size: 7 inch
| File Name | Title | Description |
|---|---|---|

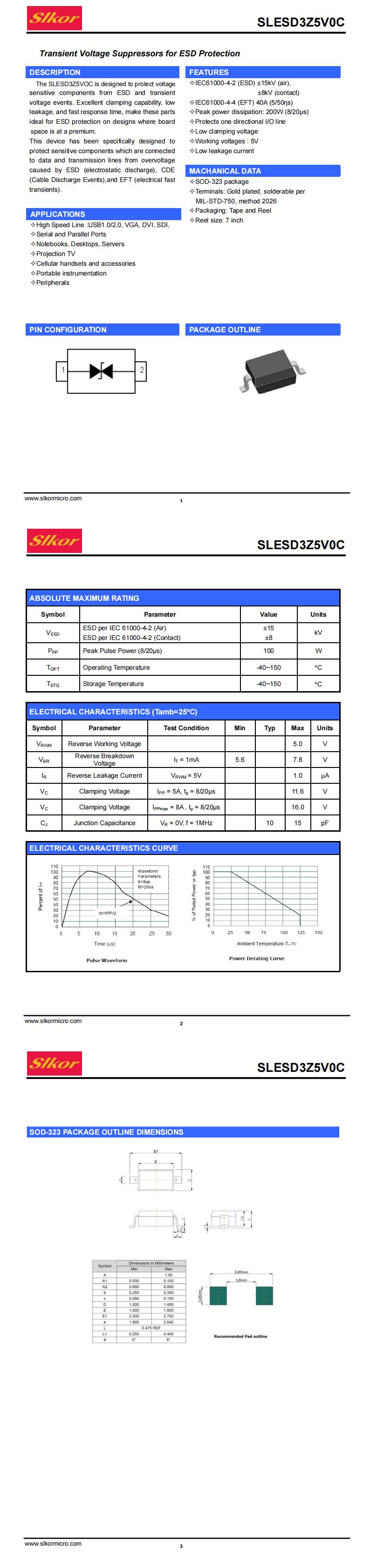

| SLESD3Z5V0C.pdf | SLESD3Z5V0C | - |
