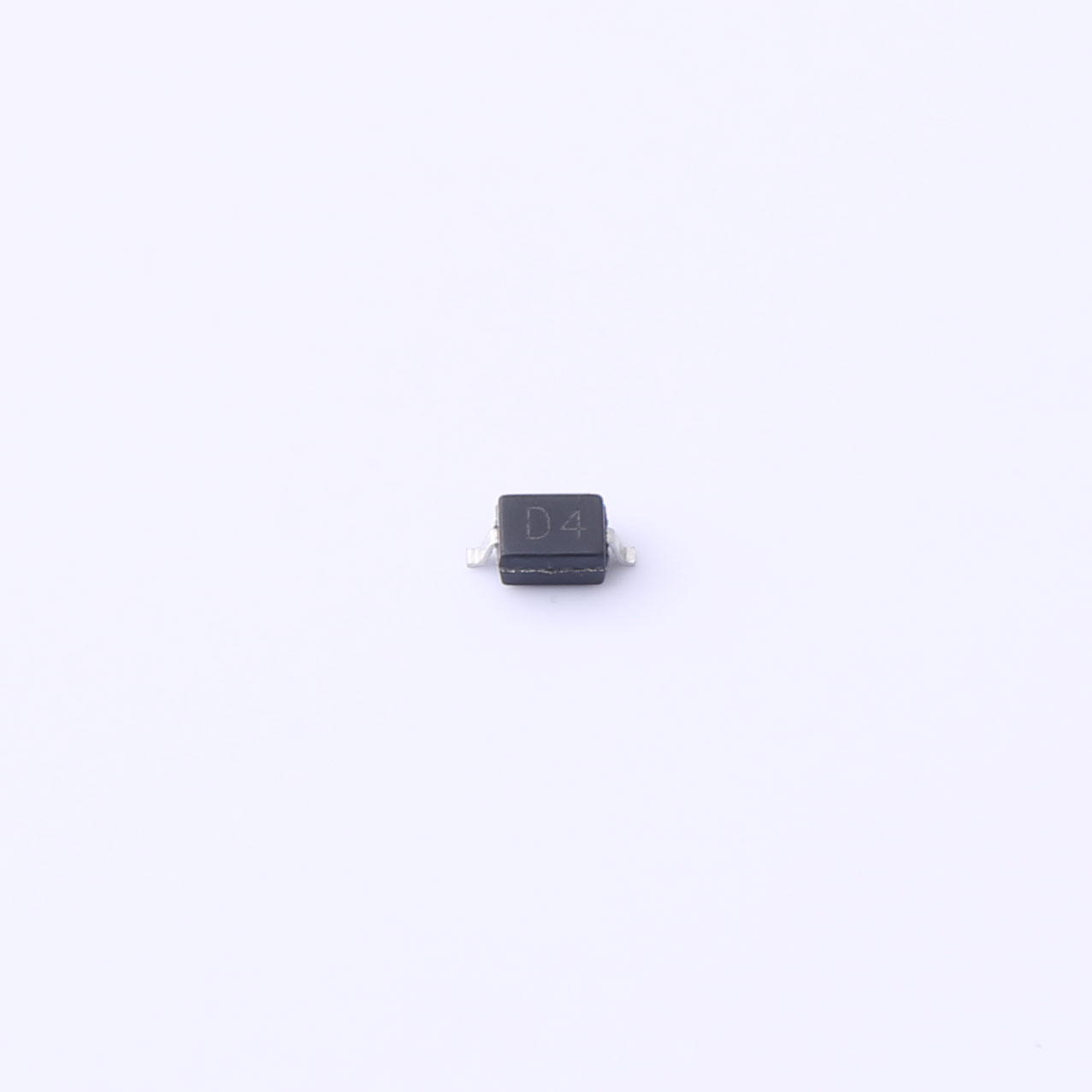

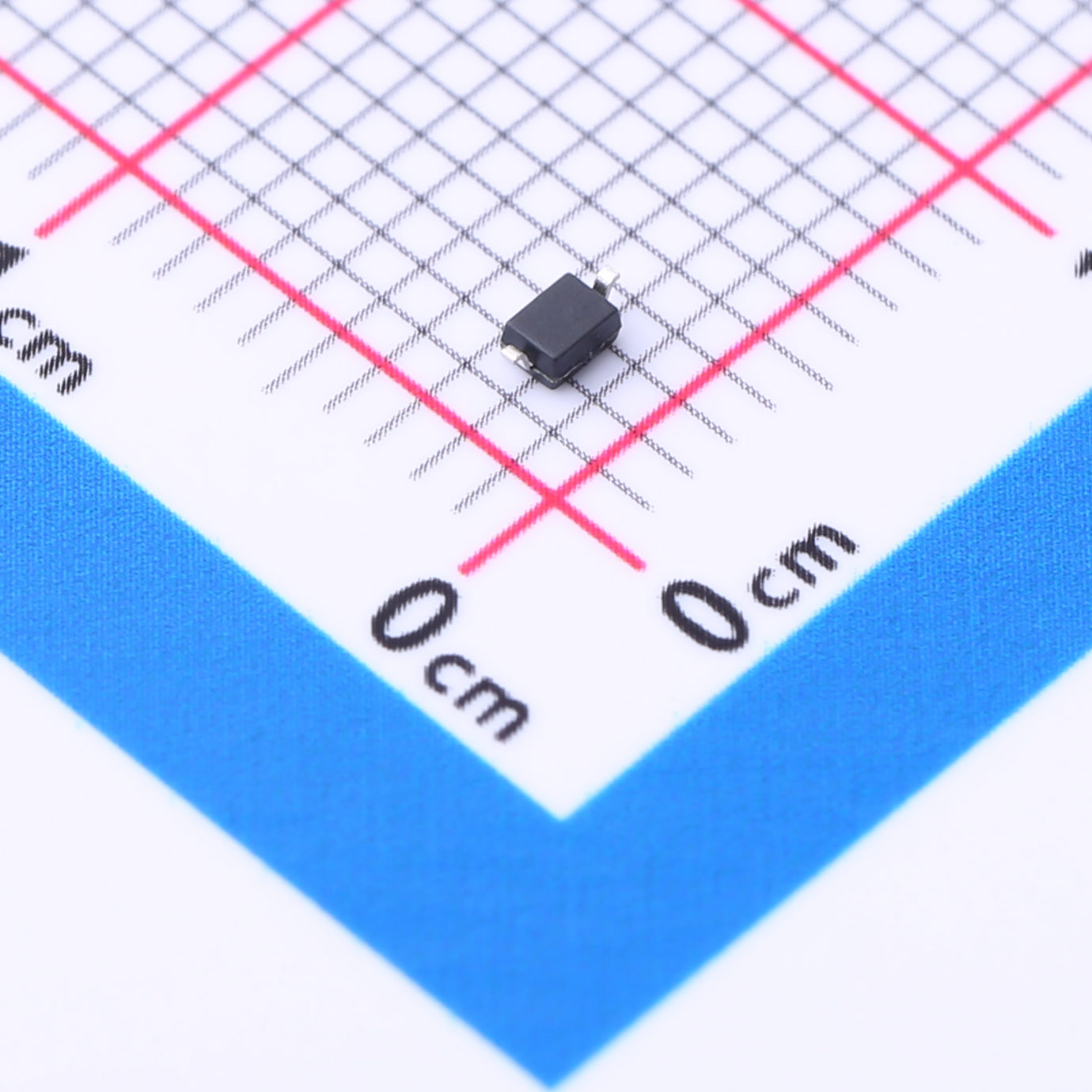

PTVSHC3D4V5B Transient Voltage Suppressor
Download datasheet Inquiry
Description
The SLESD5Z36 is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Features
● IEC61000-4-2 Level 4 ESD Protection
● Protects one directional I/O line
● Low clamping voltage
● Working voltages : 36V
● Low leakage current
Mechanical Data
● SOD-323 package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
Ordering Information
● Device: SLESD5Z36
● Package: SOD-323
● Marking:ZS
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs
Applications
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● LED backlight
● Peripherals
| File Name | Title | Description |
|---|---|---|

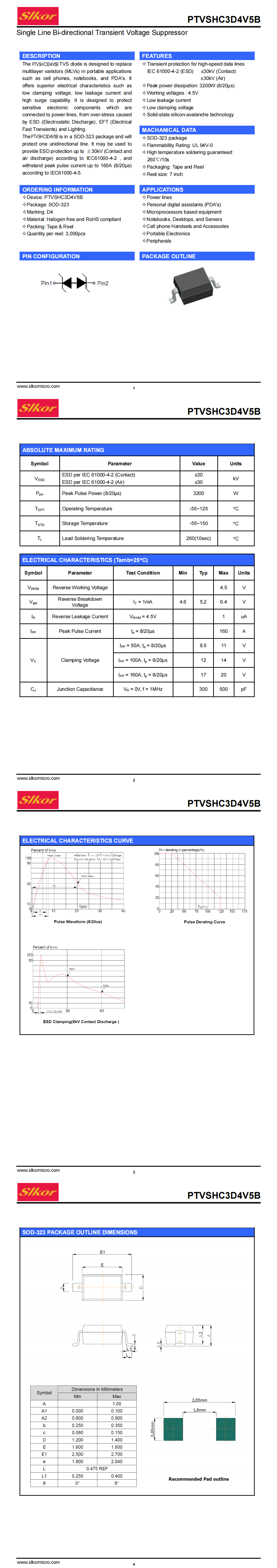

| PTVSHC3D4V5B SOD-323.pdf | PTVSHC3D4V5B SOD-323 | - |
