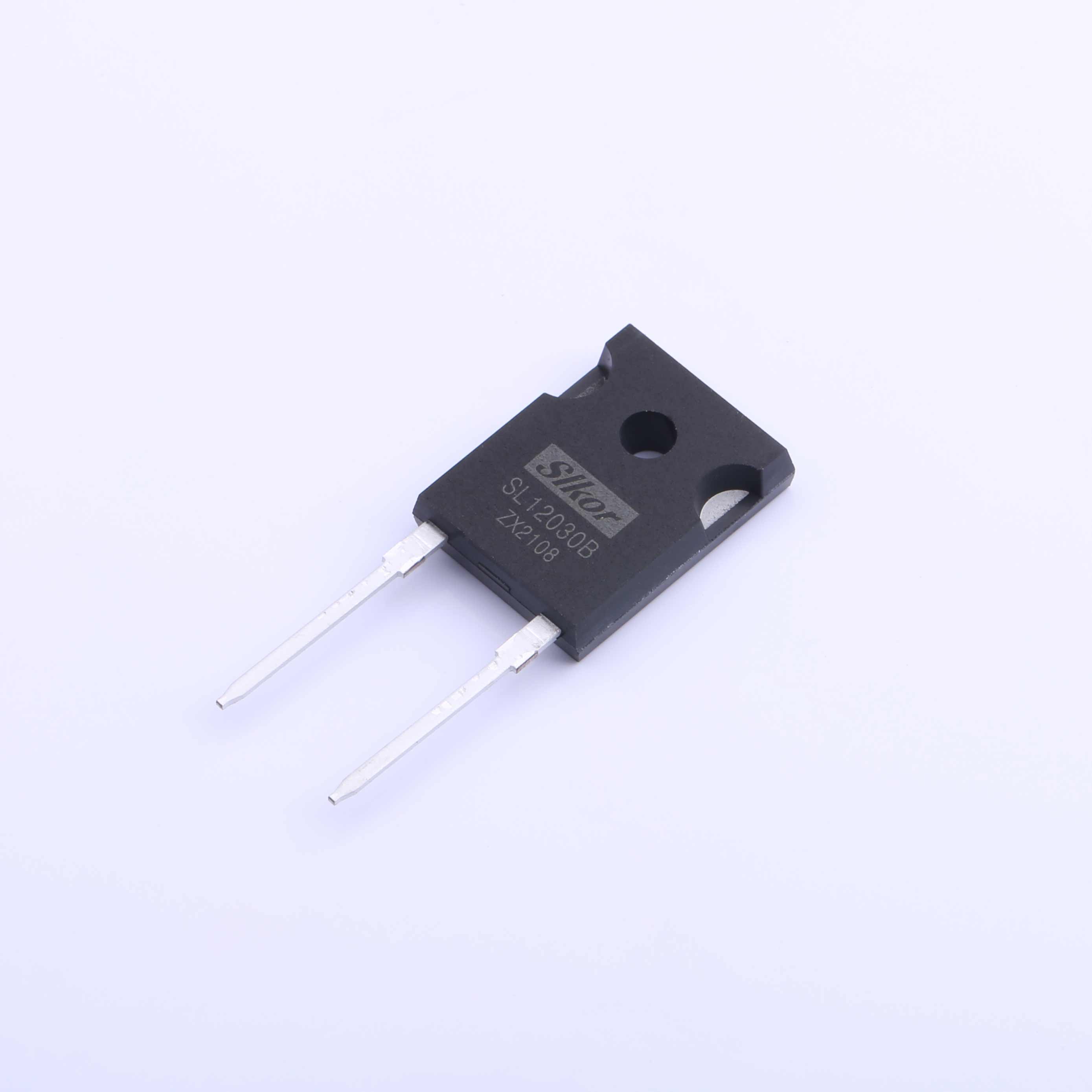

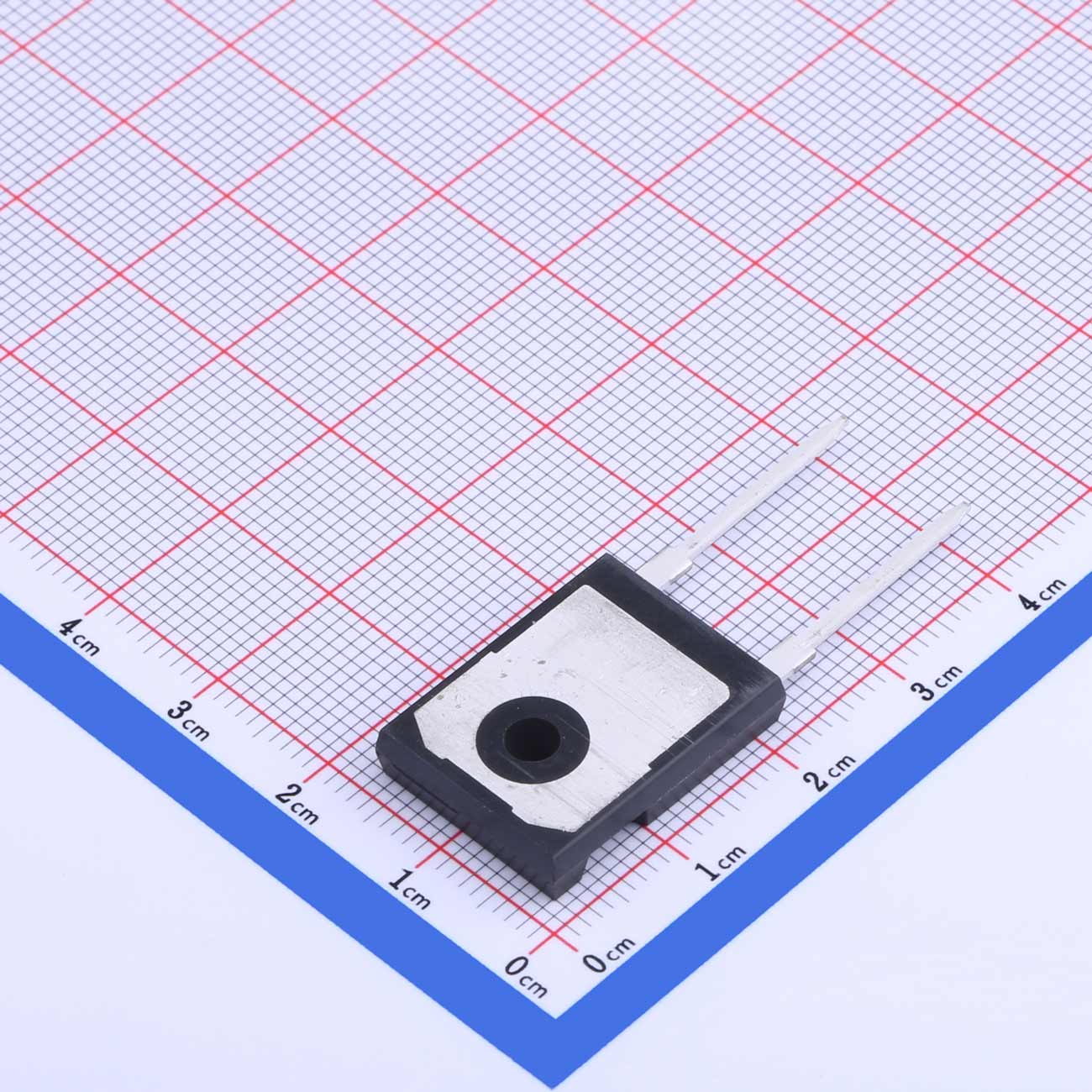

SL12030B SiC Power Schottky Diodes TO-247-2

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description
The Polar TO-247-2 High Power Rectifier Diode is a cutting-edge semiconductor device engineered for efficient power rectification in demanding electrical applications. With a robust design and advanced specifications, this diode ensures reliable performance and superior thermal management capabilities. Featuring a maximum reverse voltage rating (VRRM) of 1200V, a forward current rating (IF) of 30A, and a low forward voltage drop (VF Typ) of 1.8V, it is optimized for high-power environments. The TO-247-2 package enhances heat dissipation, allowing for continuous operation under heavy load conditions.

Features

● Maximum junction temperature of 175°C

● High Surge Current Capacity

● Zero Backward Repetitive Current

● Zero Forward Repetitive Voltage

● High-Frequency Operation

● Switching Properties are free from temperature changes

● Forward Turn-on Voltage VF of PTC

Applications

● Solar Boosters

● Inverter Renewal Reverse Parallel Diode
● Vienna Three-Phase PFC Rectifier Converter

● EV Charging Station

● Switching Power Supply
