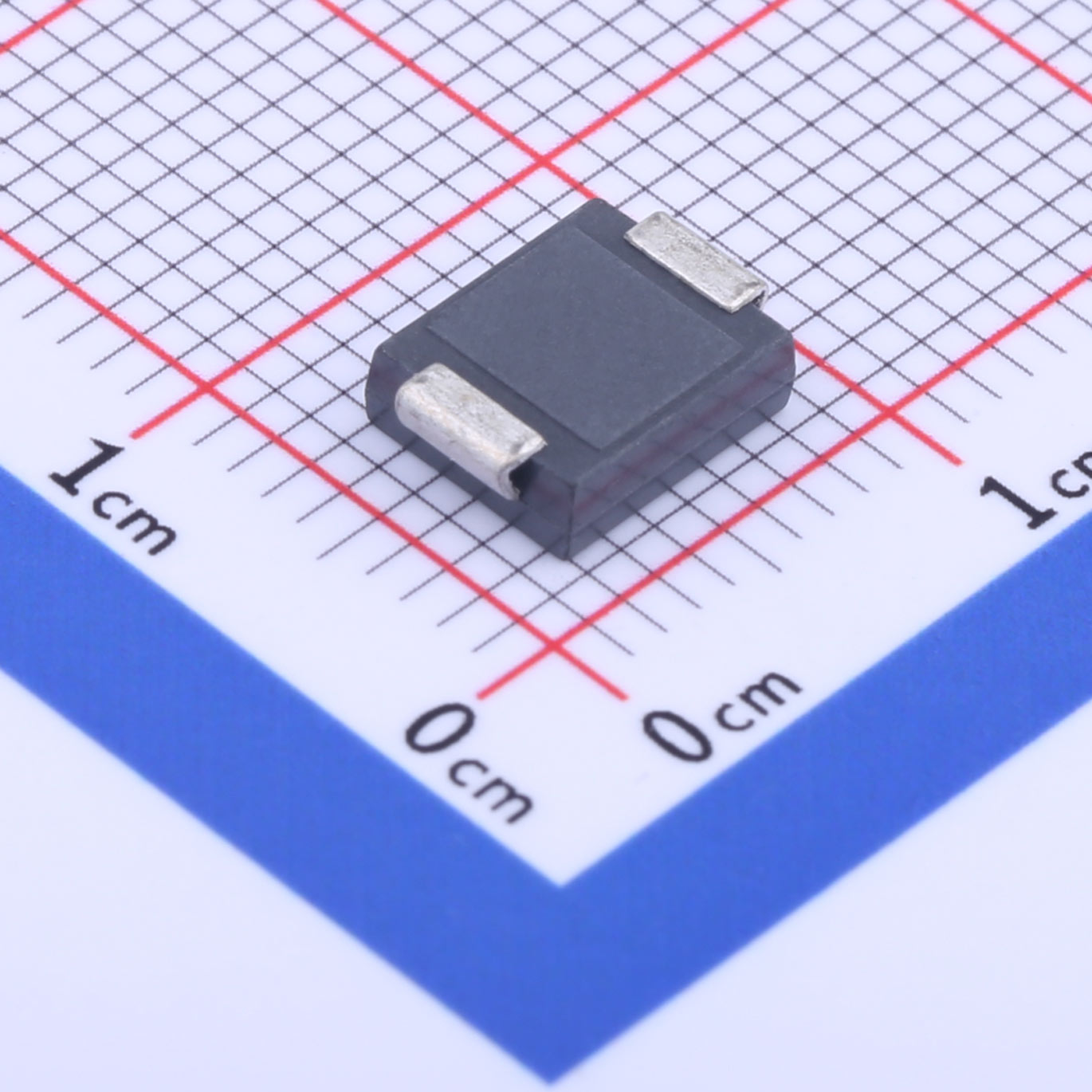

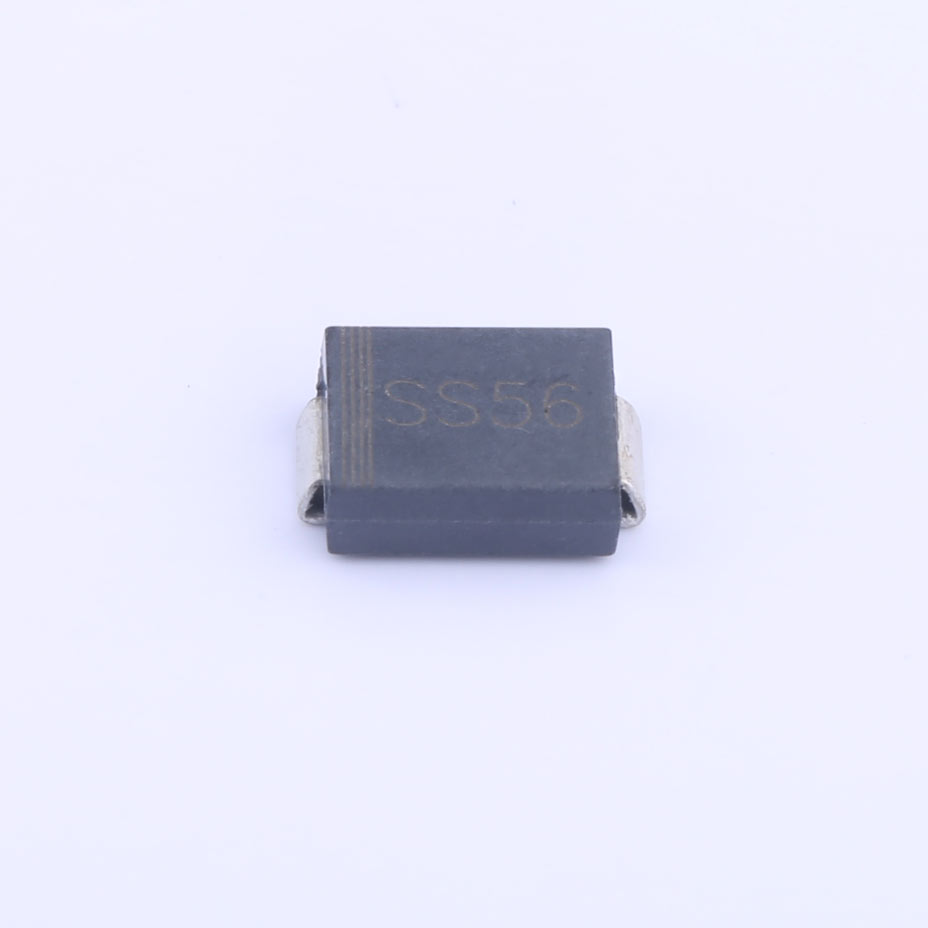

SS56C Schottky Diodes SMC

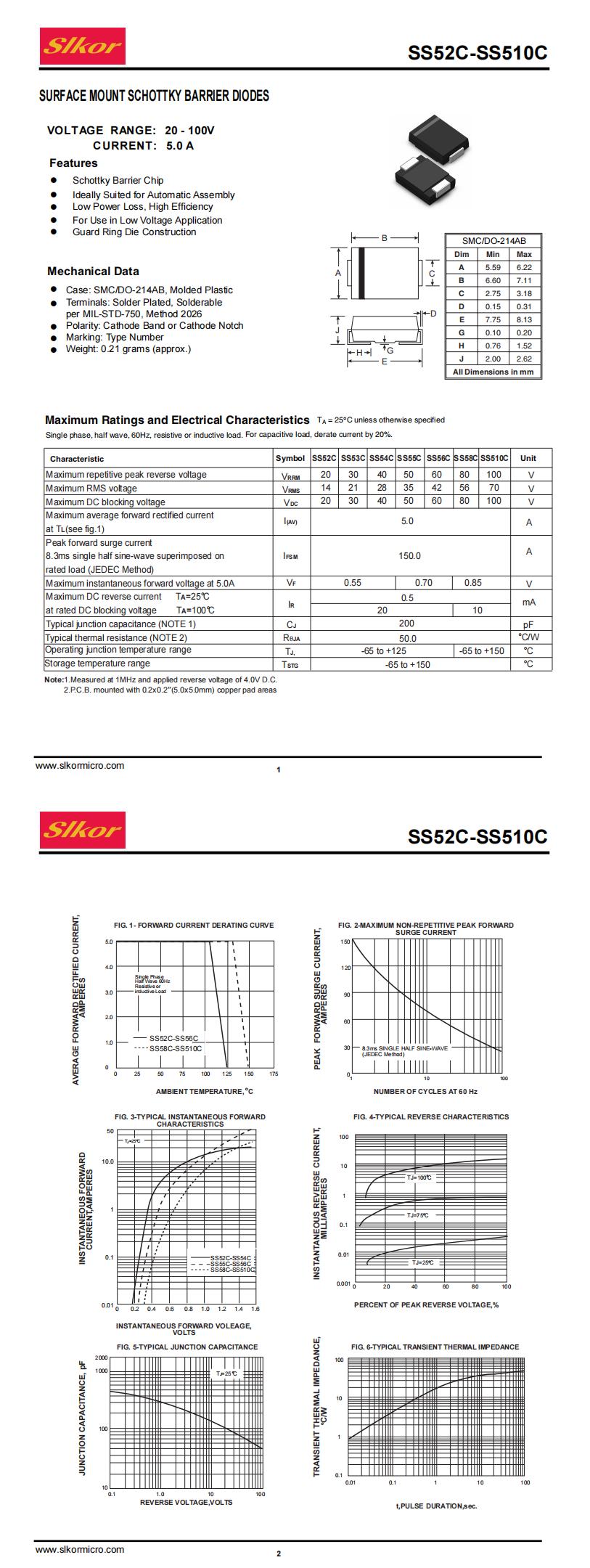

Download datasheet InquirySURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20-100V
CURRENT: 5.0 A
Features
Schottky Barrier Chip
Ideally Suited for Automatic Assembly
Low Power Loss,High Efficiency
For Use in Low Voltage Application
Guard Ring Die Construction
Mechanical Data
Case: SMC/DO-214AB, Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.21 grams (approx.)
