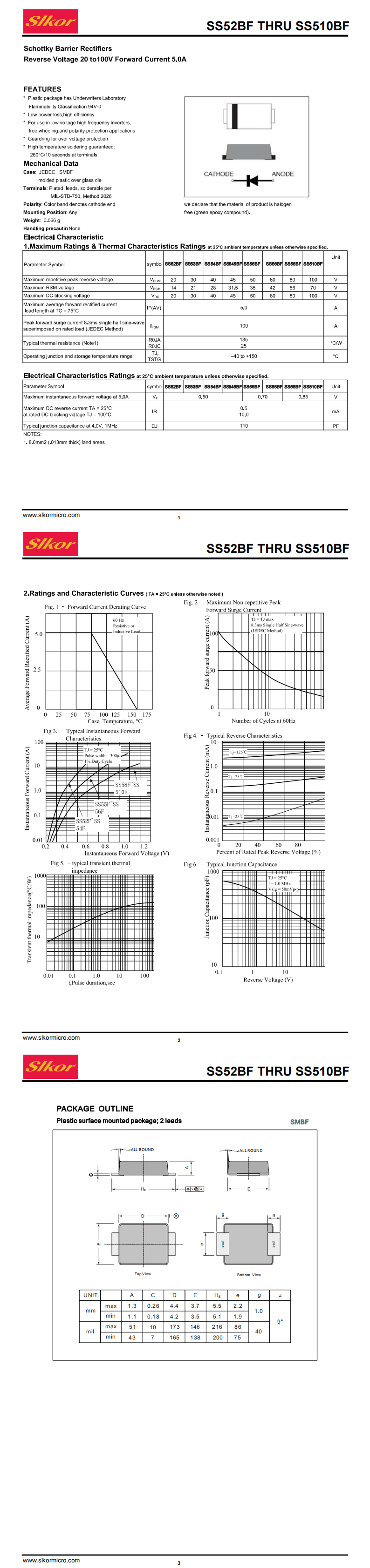

SS510BF Schottky Rectifying SMBF

Features

• Plastic package has Underwriters Laboratory

  Flammability Classification 94V-0

• Low power loss,high efficienc

• For use in low voltage high frequency invertersfree wheeling,and polarity protection applications

• Guardring for over voltage protection

• High temperature soldering guaranteed:260°C/10 seconds at terminals

Mechanical Data

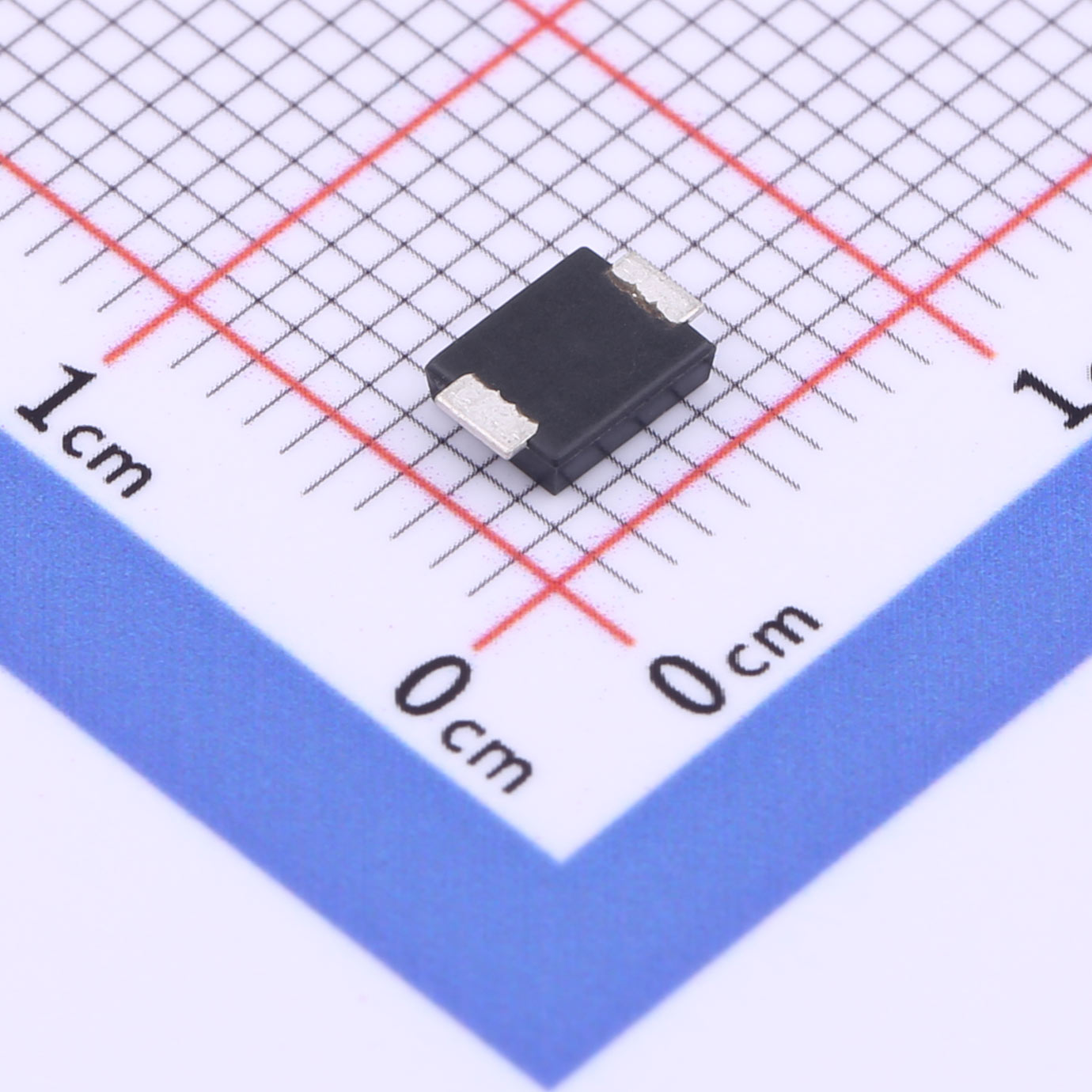

• Case: JEDEC SMBF

   molded plastic over glass die


• Terminals: Plated leads, solderable per


   MIL-STD-750,Method 2026

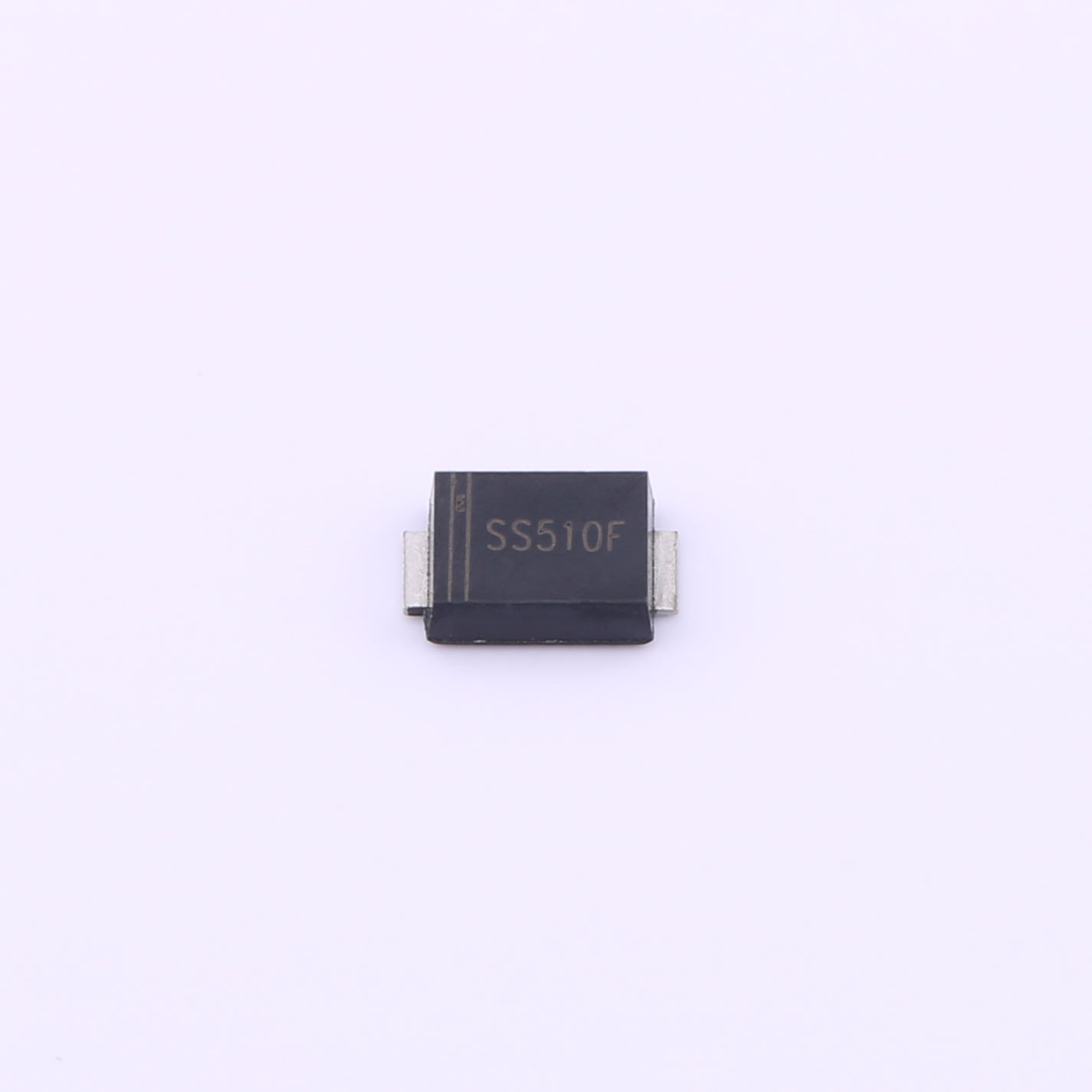

• Polarity: Color band denotes cathode end

• Mounting Position: Any

• Weight: 0.066 g

• Handling precautin:None
