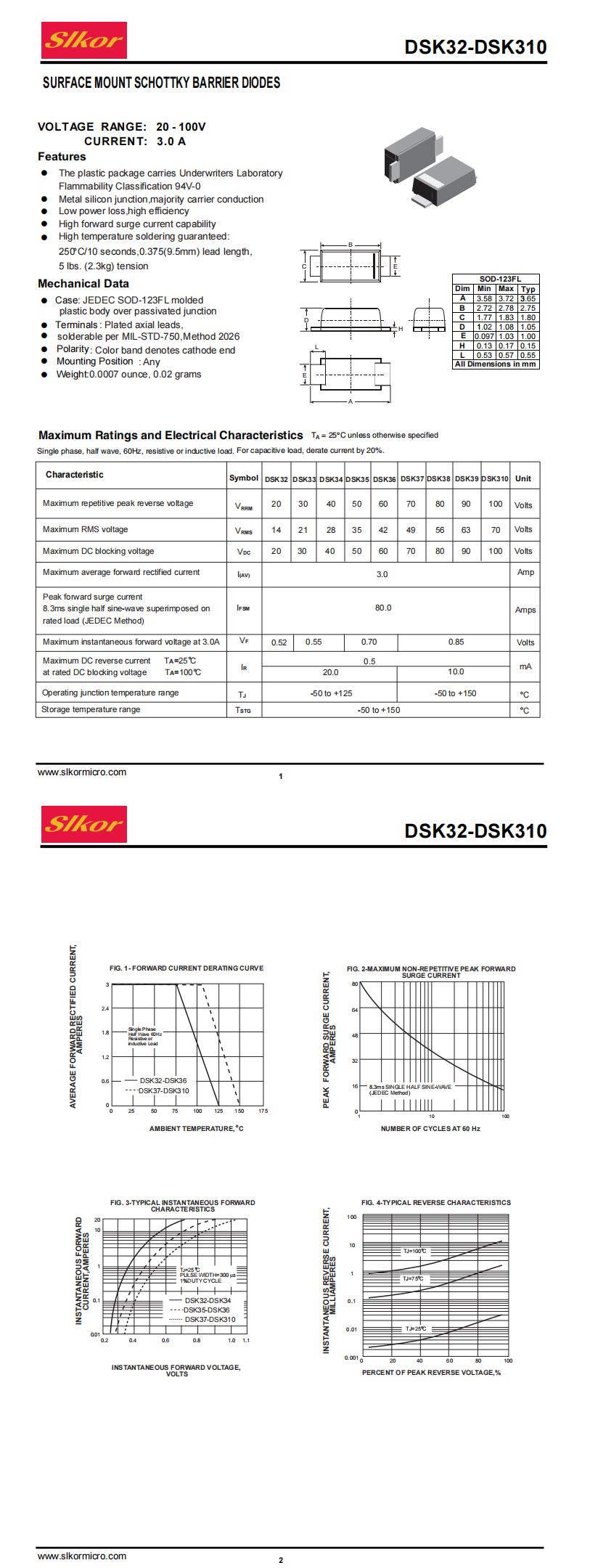

SURFACE MOUNT SCHOTTKY BARRIER DIODES


VOLTAGE RANGE: 20-100V

CURRENT: 3.0 A


Features

  • The plastic package camries Underwriters Laboratory

  • Flammability Classification 94V-0

  • Metal silicon junction, majority carrier conduction

  • Low power loss high efficiency

  • High forward surge current capability

  • High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm)lead length, 5 Ibs.(2.3kg)tension


Mechanical Data

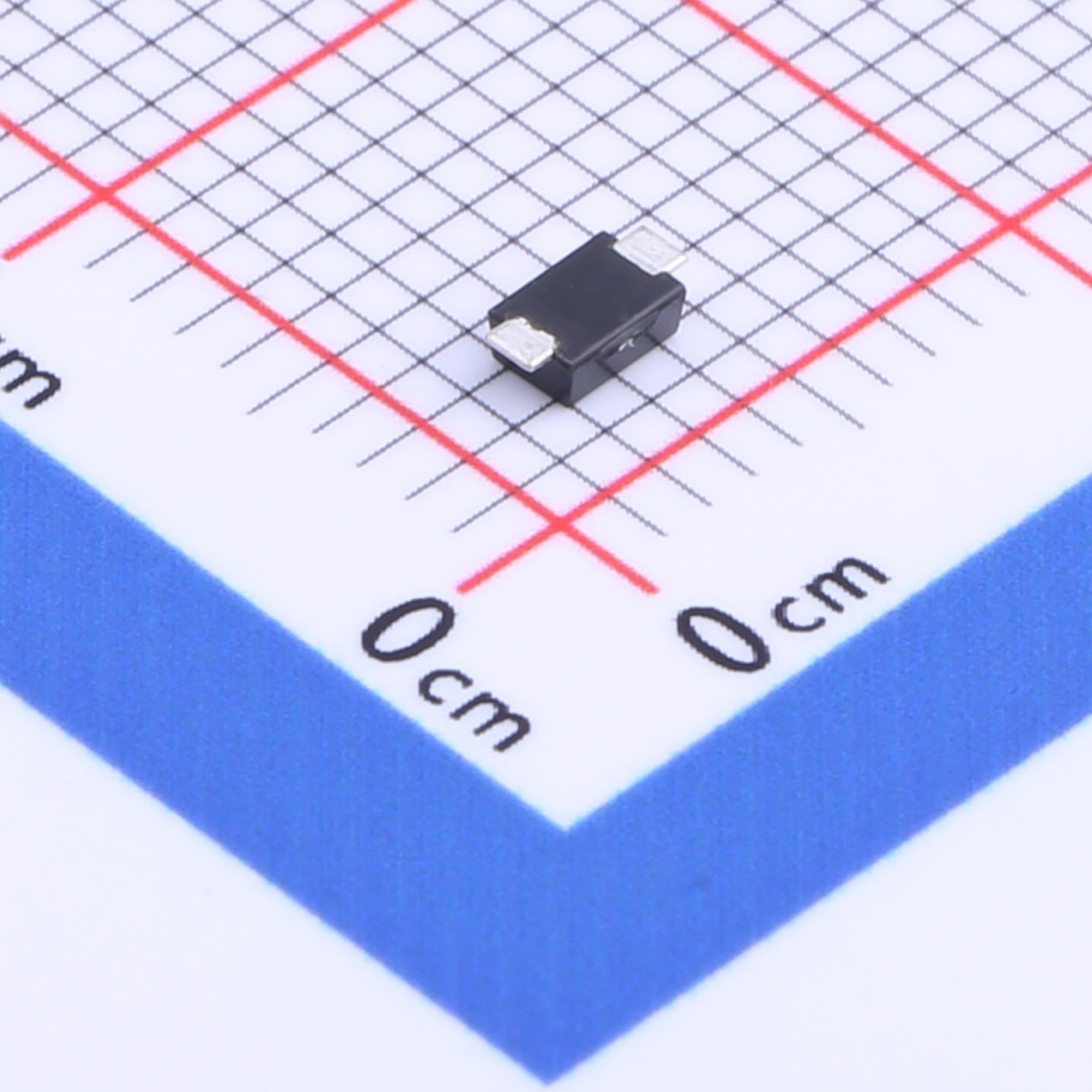

  • Case: JEDEC SOD-123FLmolded plastic body over passivated junction

  • Temminals: Plated axial leads solderable per MIL-STD-750, Method 2026

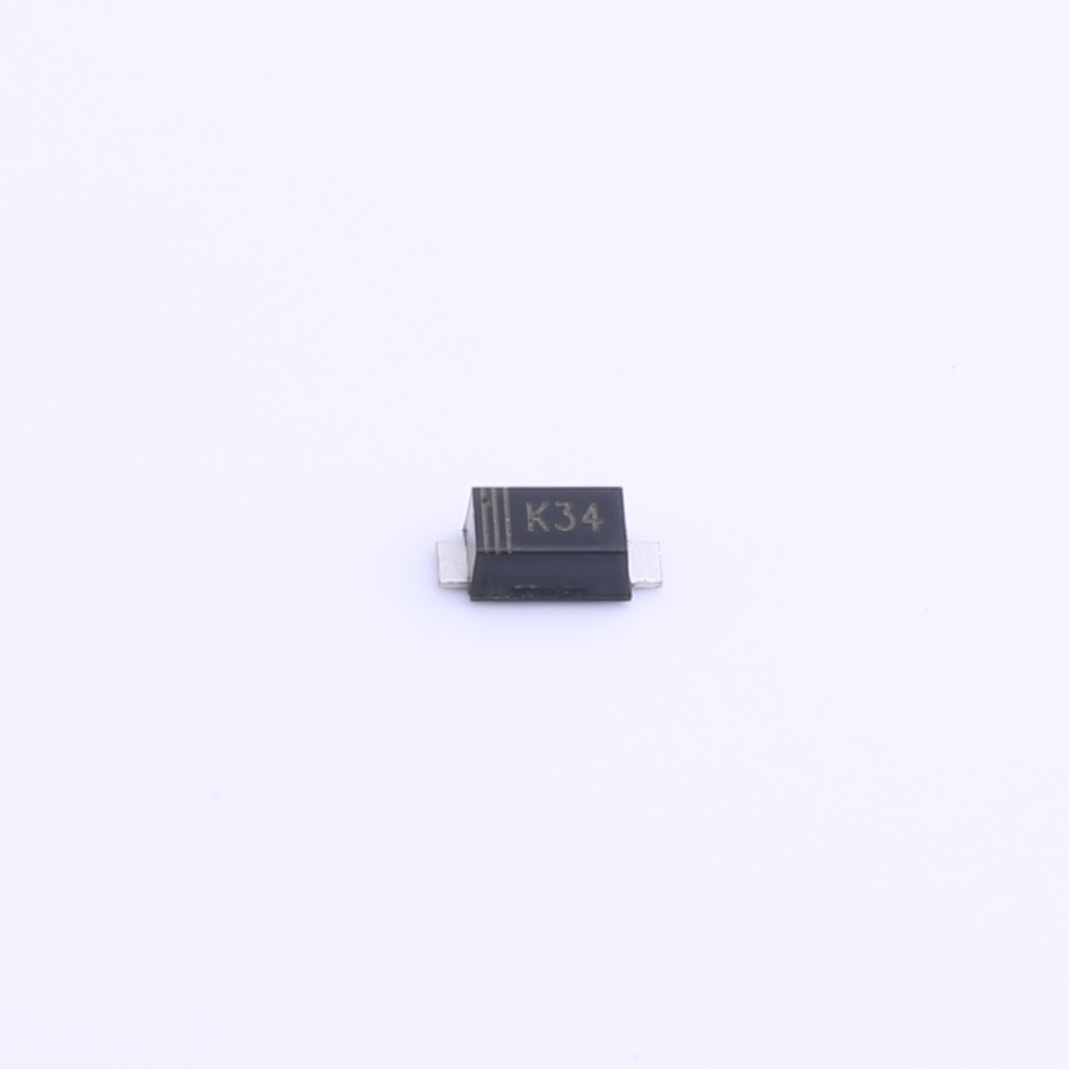

  • Polarity: Color band denotes cathode end
    Mounting Position: Any

  • Weight: 0.0007 ounce.0.02 grams
