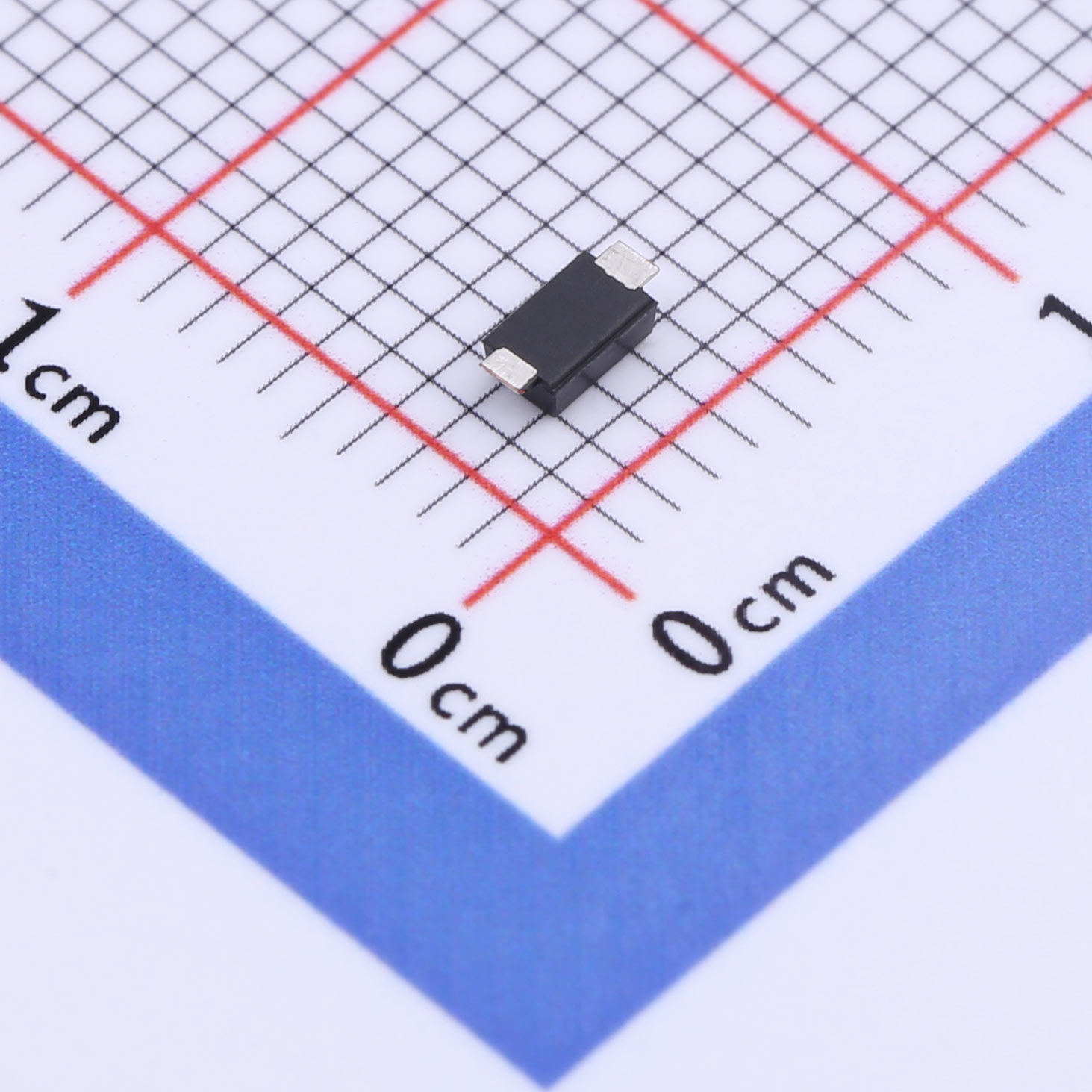

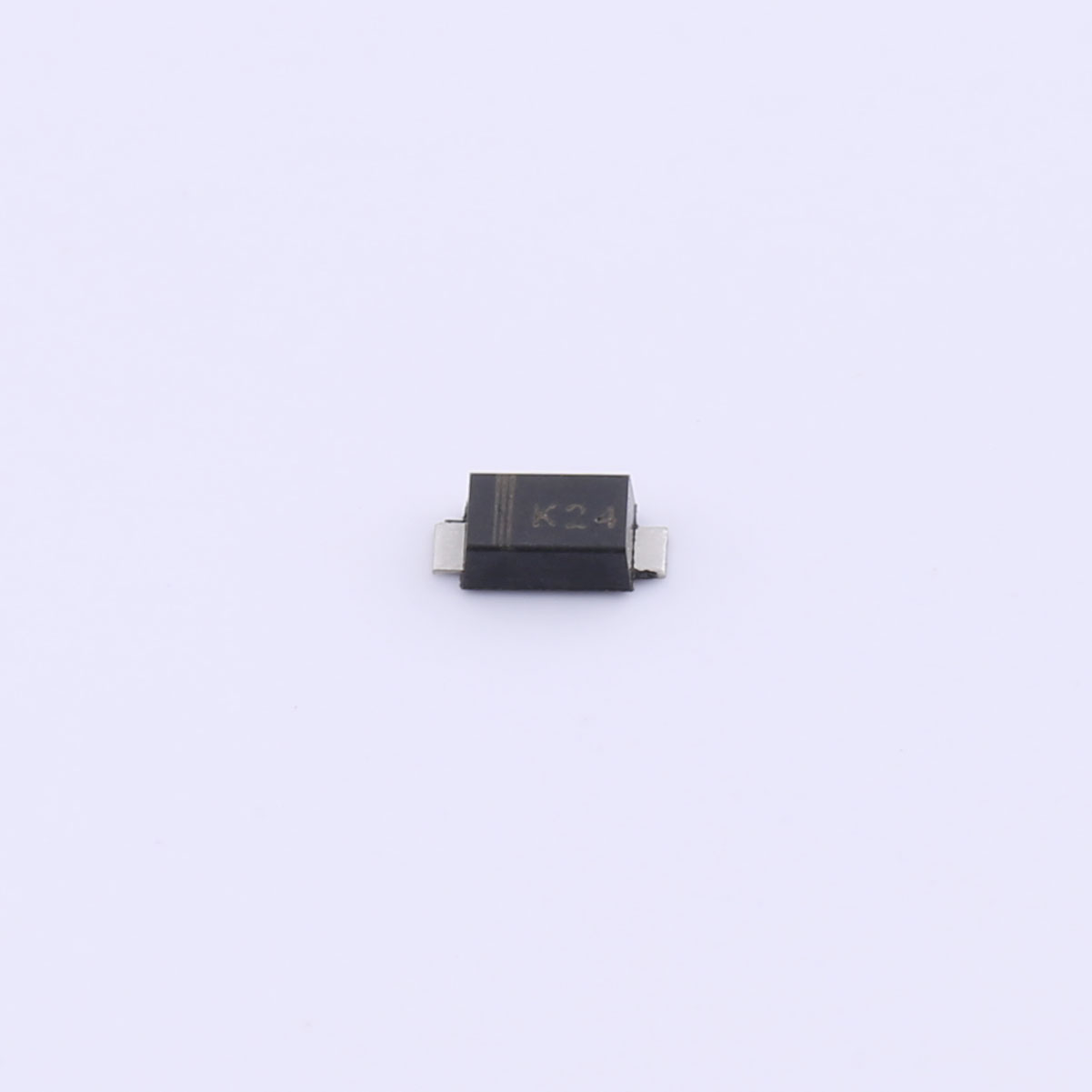

DSK24 Schottky Barrier Diodes SOD-123FL
Download datasheet Inquiry
FEATURES
? Metal to silicon rectifier, majority carrier conduction.
? For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.
? Low power loss, high efficiency.
? High current capability, low VF.
? High surge capacity.
? Glass passivated

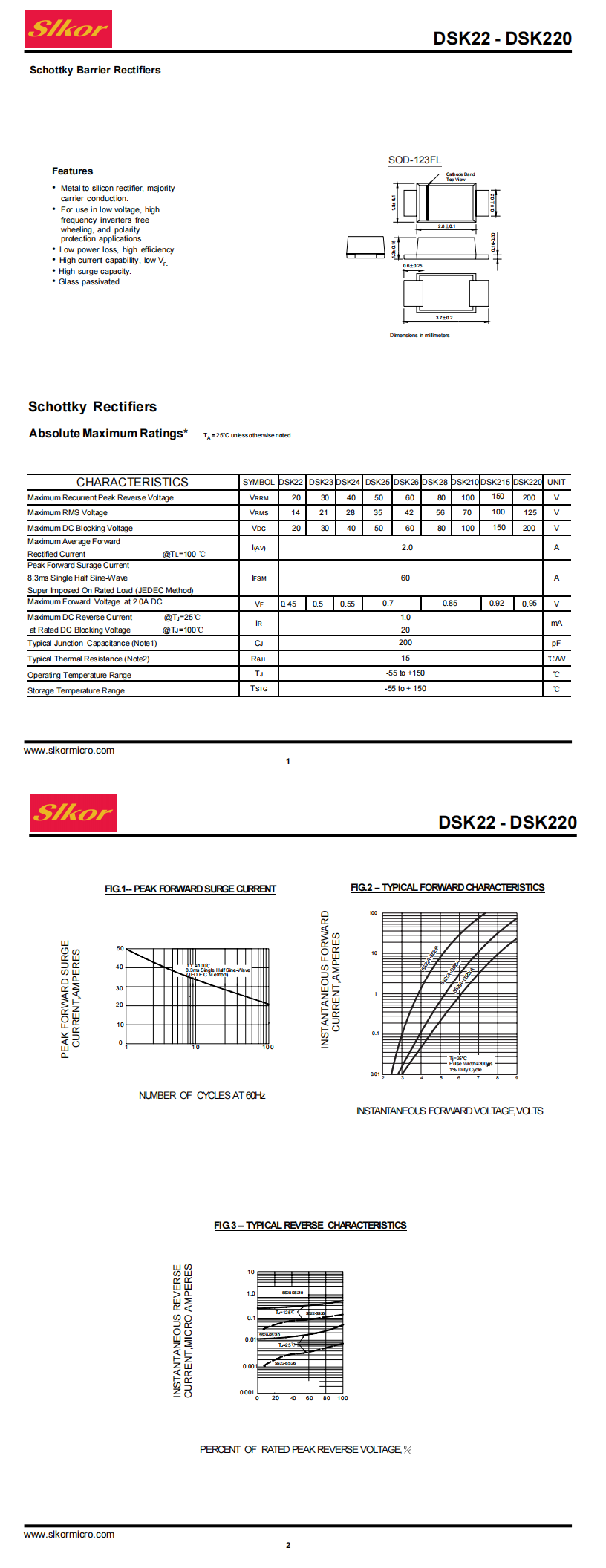

| File Name | Title | Description |
|---|---|---|
| DSK210 SOD-123FL.pdf | DSK210 SOD-123FL | - |
