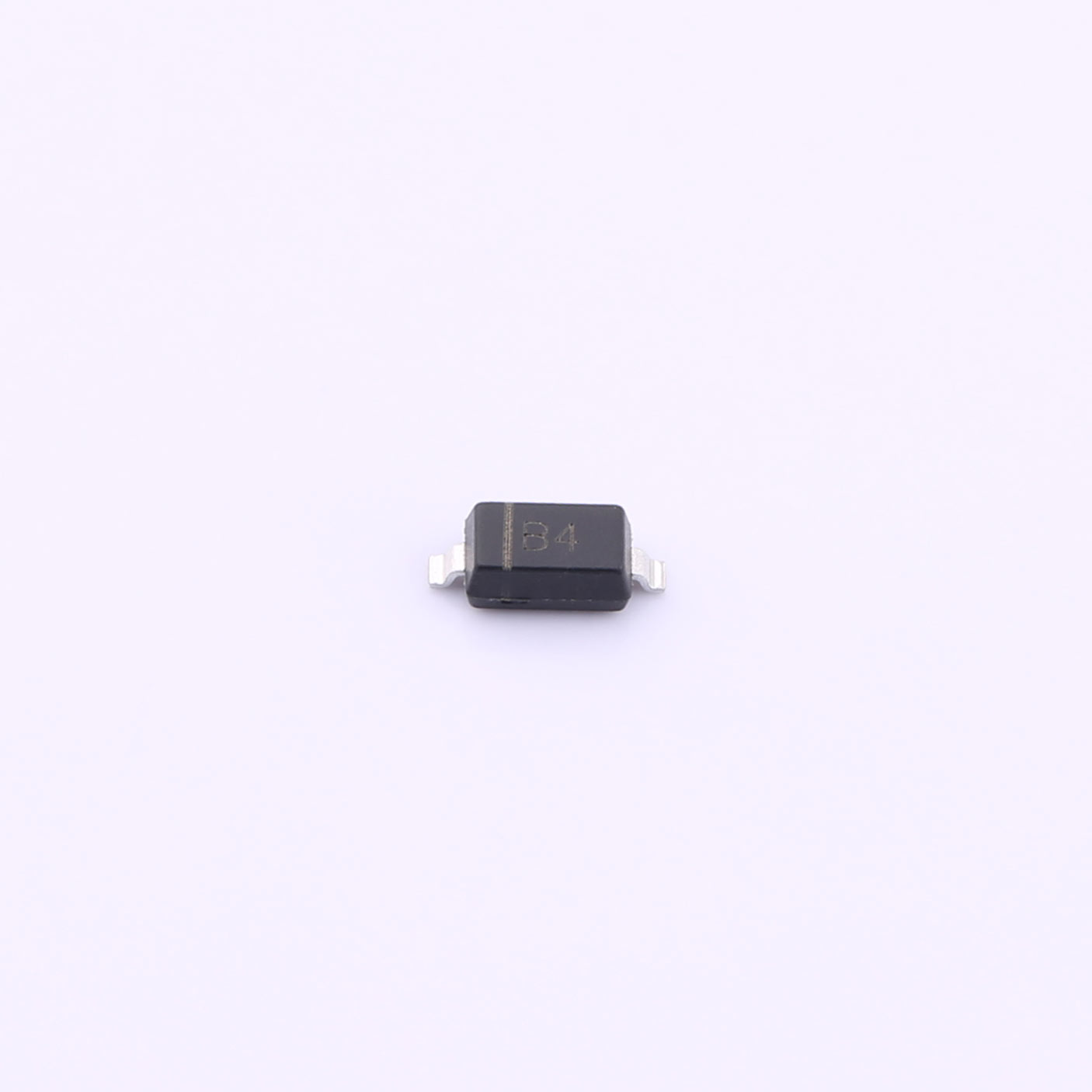

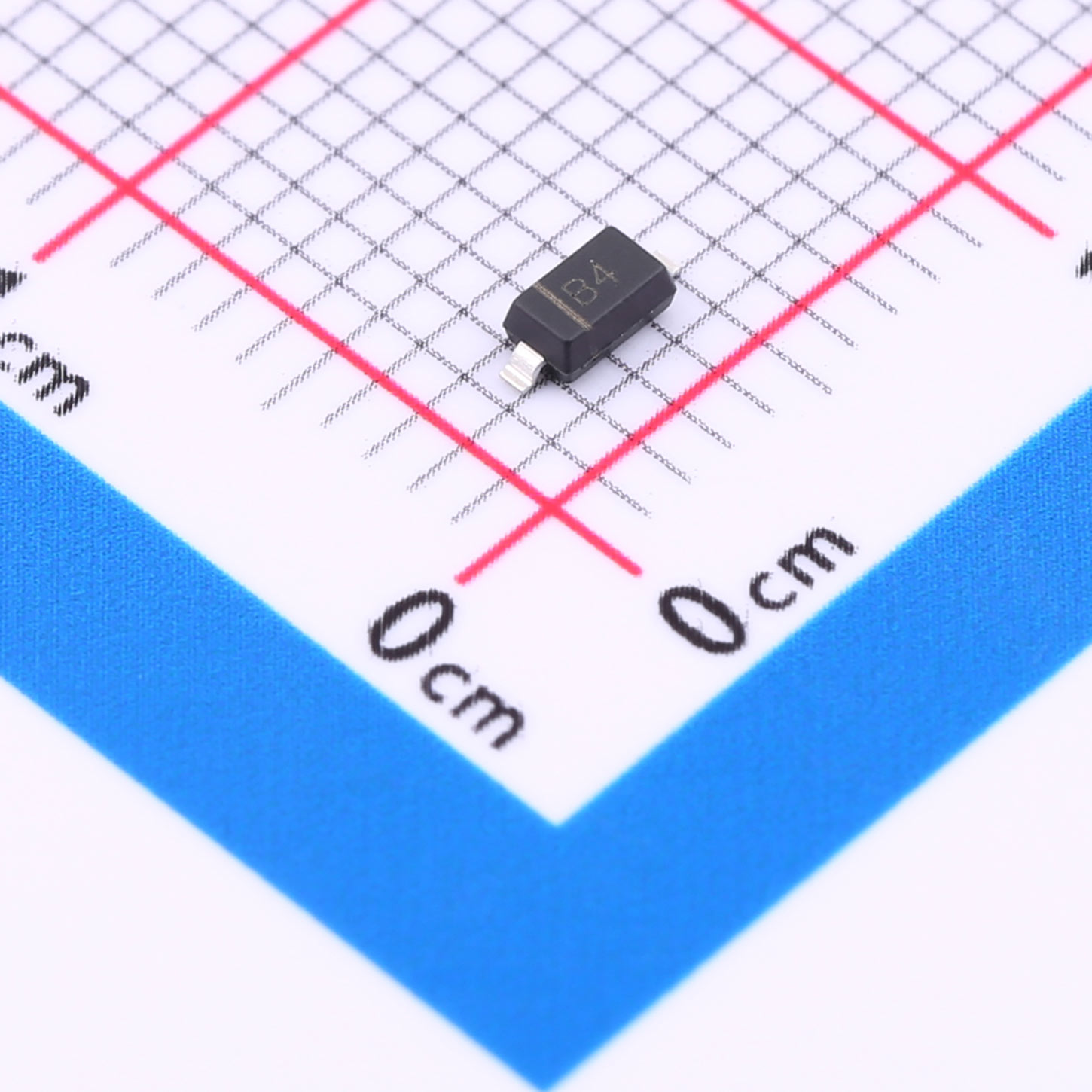

MBR0540W B4 Schottky Rectifiers SOD-123
Download datasheet Inquiry
Schottky Barrier Rectifiers
Features
Low Forward Voltage drop
Guard Ring Construction for Transient Protection
High Conductance
Also Available in Lead Free Version
| File Name | Title | Description |
|---|---|---|

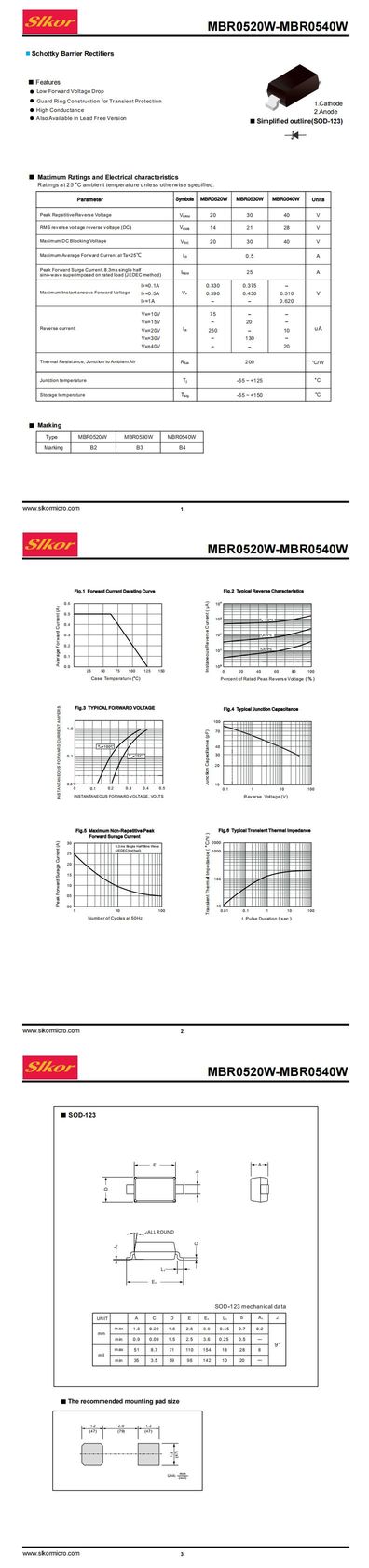

| MBR0540W SOD-123-1.pdf | MBR0540W SOD-123-1 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Our High-Precision Diode, designed with a maximum Reverse Voltage (VR) of 30V and a Forward Voltage (VF) of just 0.26V, is engineered to provide reliable and efficient performance in various electronic applications. With a minimal reverse leakage current of 500nA, this diode ensures stability and precision, making it an ideal choice for high-performance circuits. The diode is packaged in a compact SOD-123 format, optimizing space utilization on your PCB.
This diode is engineered for efficiency and reliability in a variety of electronic circuits. It features a maximum current rating of 1A and operates with a maximum reverse voltage of 60V. The forward voltage drop is a low 0.49V, ensuring minimal power loss and optimal performance.
